CANON CN20x50 IAS H/P1 – 50-1000mm PL

PL mount zoom lens

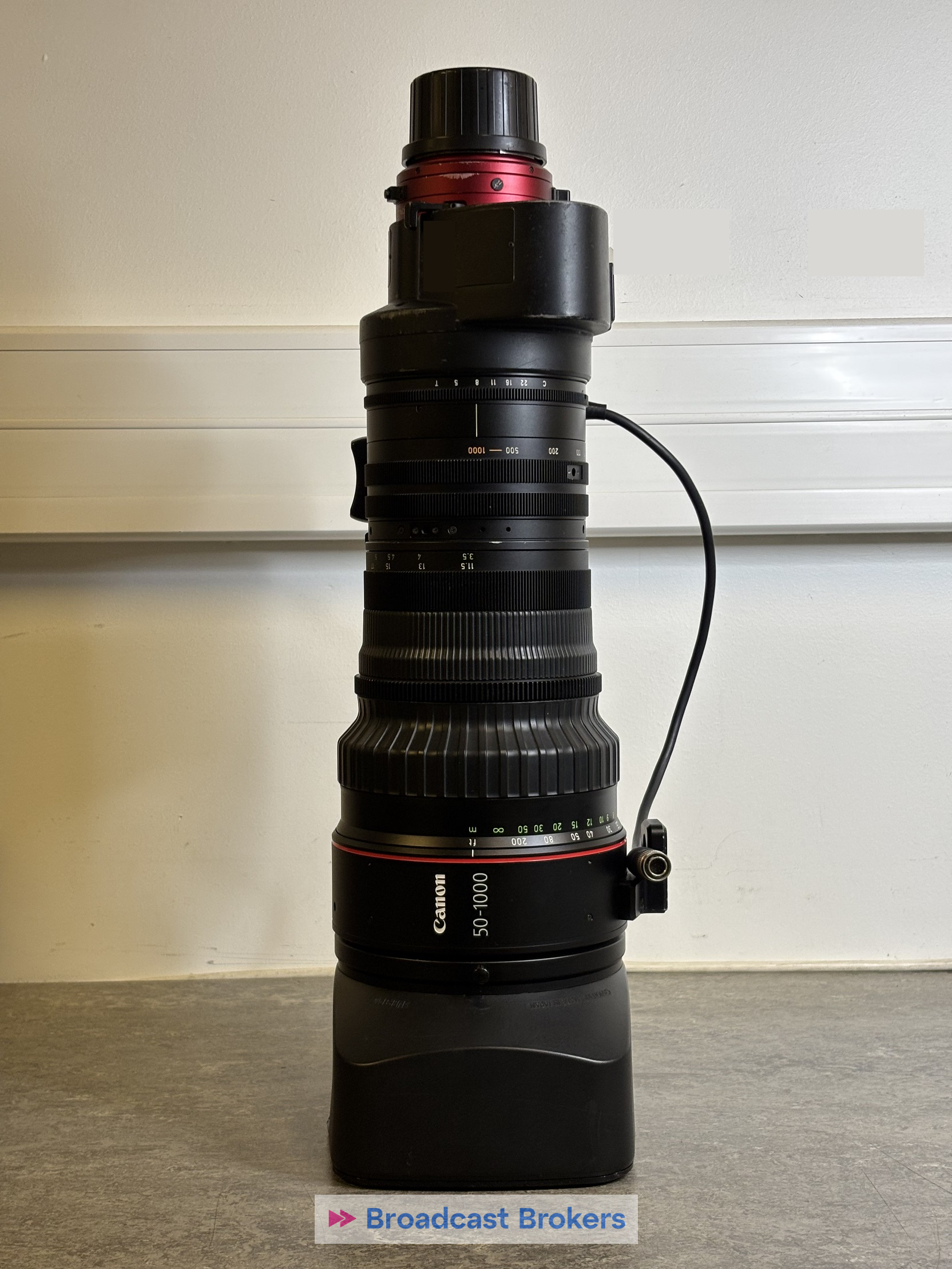

Canon CINE‑SERVO 50‑1000 mm T5.0‑8.9 PL lens (also known as CN20x50 IAS H/P1 when in PL mount).

Key Specifications

• Focal Length Range: 50–1000 mm (with built-in 1.5× extender → 75–1500 mm)

• Zoom Ratio: 20× C

• Maximum Relative Aperture (T-stop):

  • T5.0 from 50–560 mm

  • T8.9 at 1000 mm

  • With 1.5× extender: T7.5 at 75–840 mm; T13.35 at 1500 mm

• Mount: PL mount (PL version) — also available in EF mount version.

• Format / Image Circle: Super 35mm sensor coverage (≈ 31.4 mm diagonal)

• Minimum Focus Distance (M.O.D., from image plane): 3.5 m / 11.5′

• Iris Blades: 11 blades

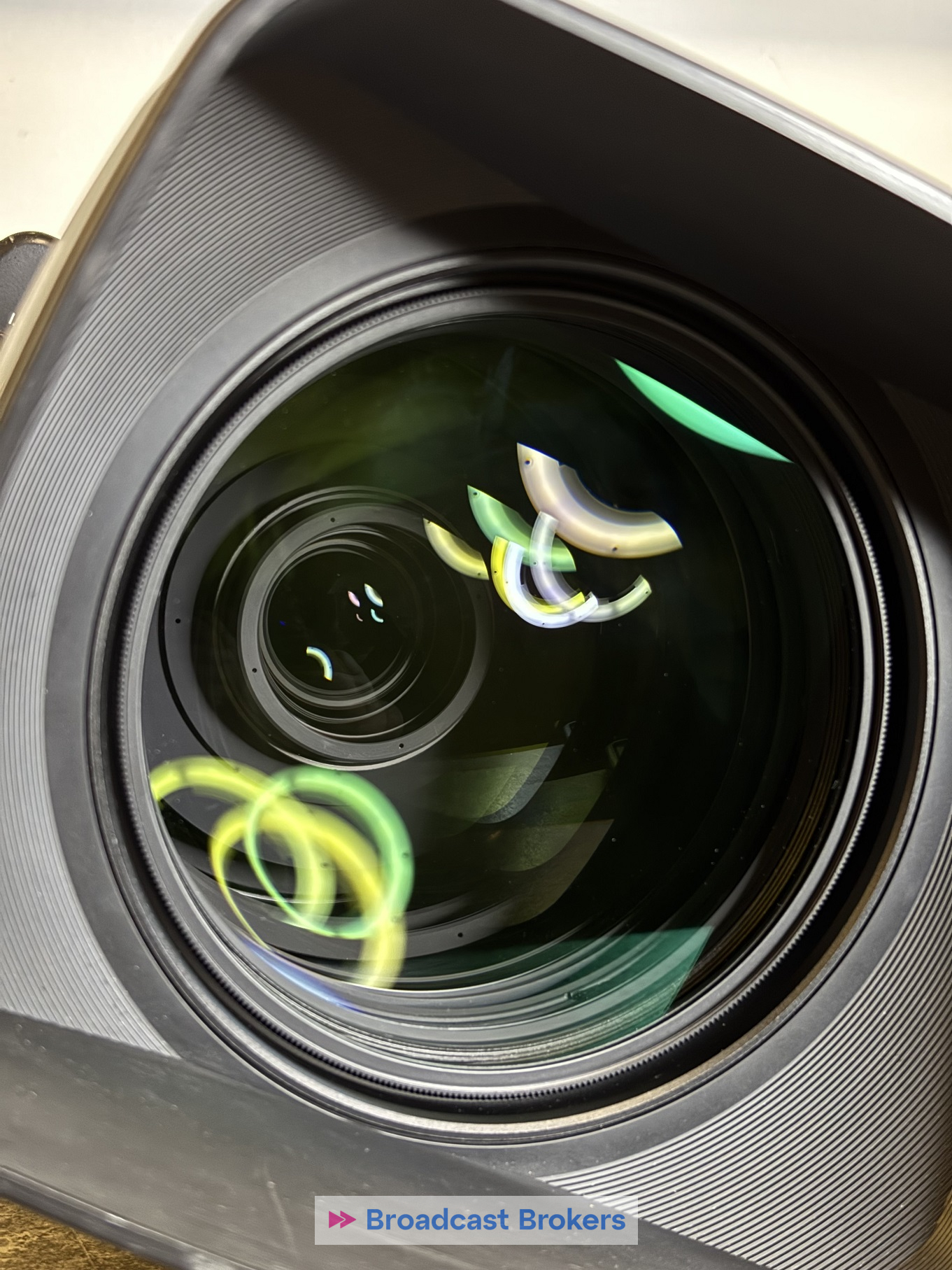

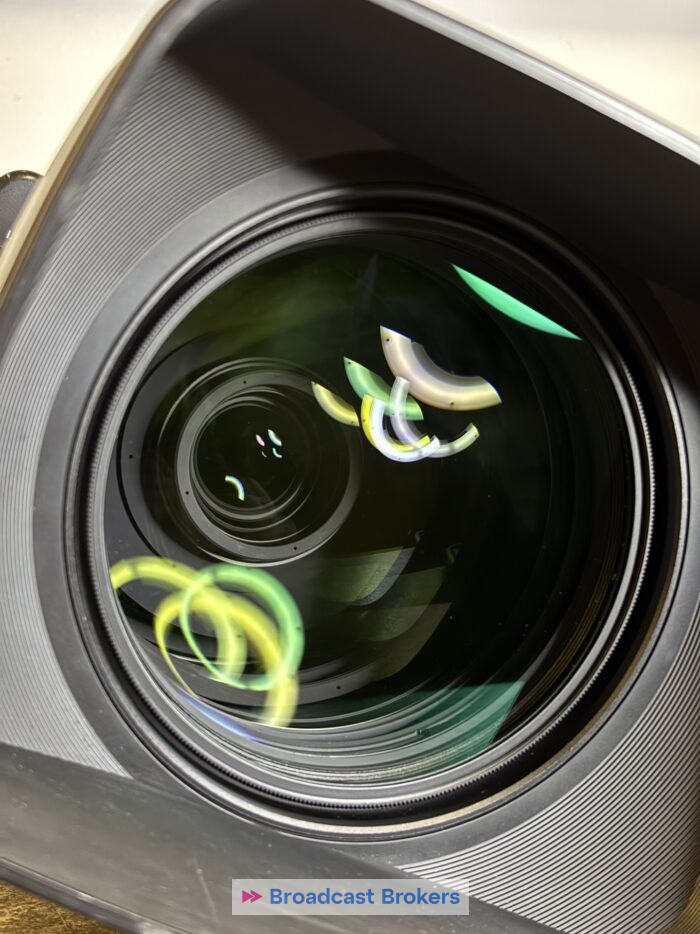

• Front Diameter: φ136 mm

• Approximate Size: about 175 × 170.6 × 413.2 mm (W×H×L) for PL version. Approximate Weight: 6.6 kg / 14.55 lb

• Gear Pitches for cine accessories: Focus: 0.8/0.5 MOD; Zoom: 0.5 MOD; Iris: 0.5 MOD.

Special Features & Notes

• Built-in 1.5× extender enabling the 75–1500 mm range while maintaining optical performance.

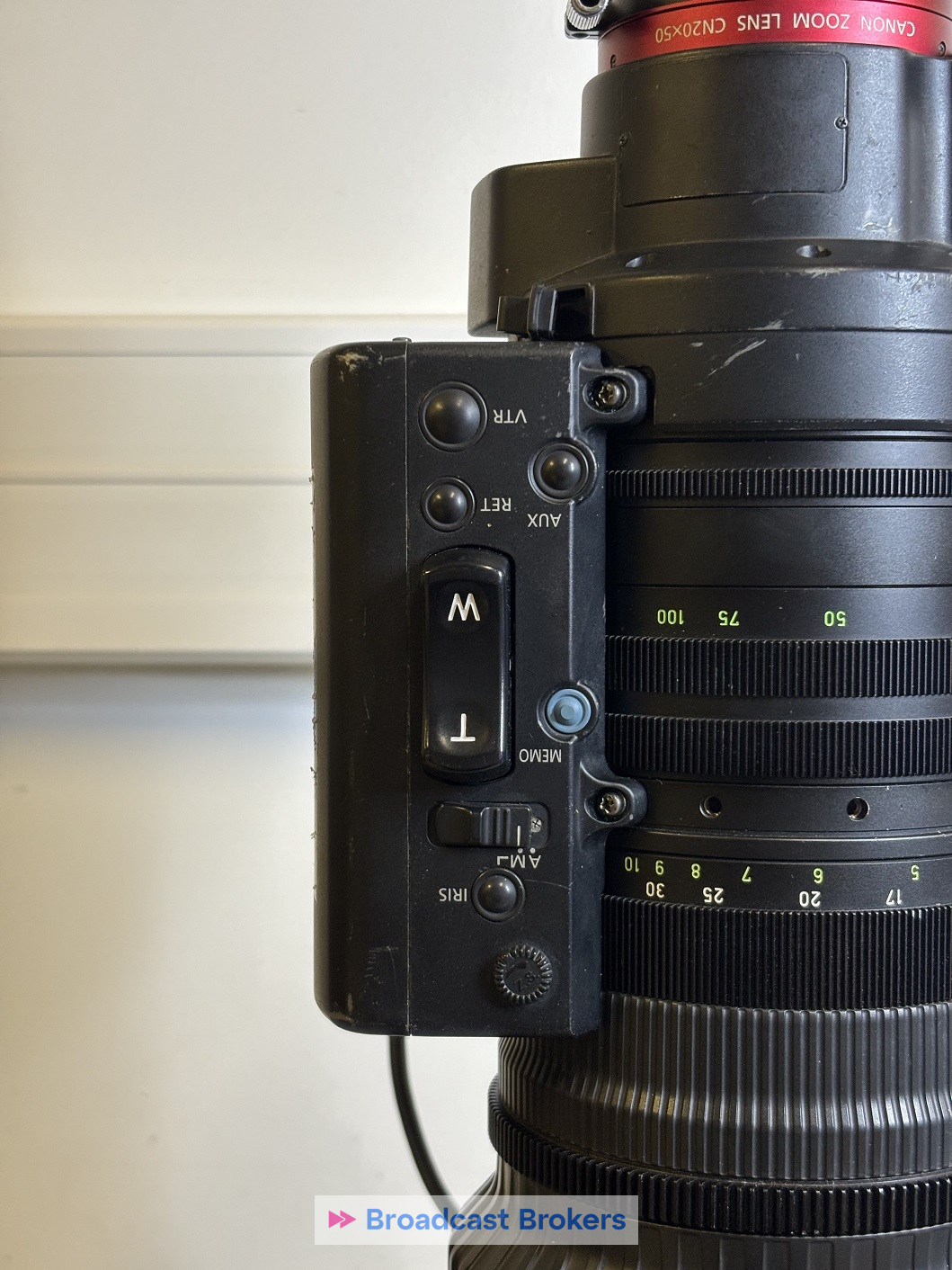

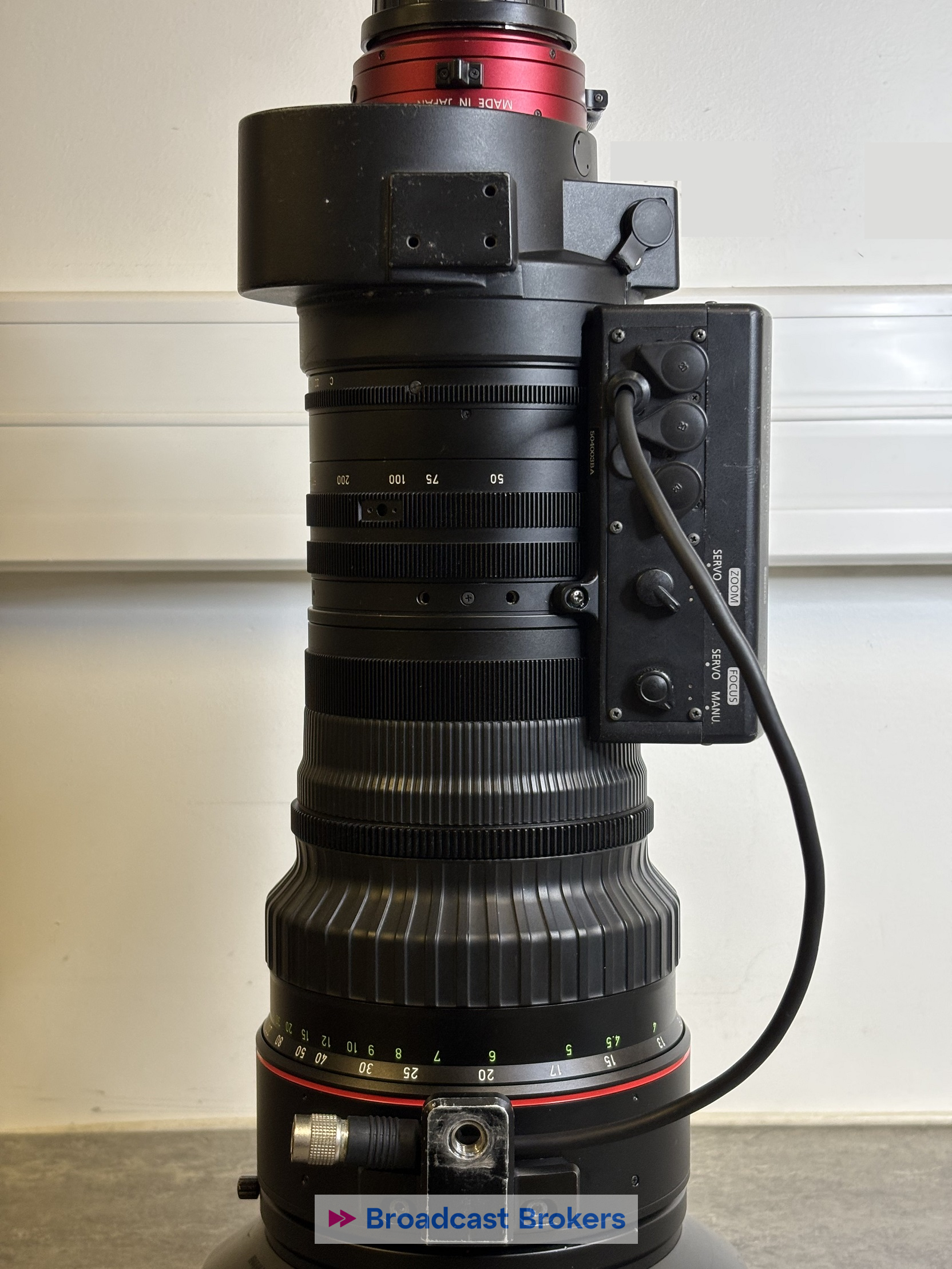

• Removable servo/drive unit: This lens incorporates a broadcast/ENG-style zoom, focus and iris servo unit which can be removed for pure cine style manual operation.

• Designed for both broadcast and cinema workflows: includes support for metadata output (via 20-pin connectors or 12-pin broadcast interface) and 16-bit precise data for virtual-studio systems.

• Robust, weather- and shock-resistant build.

• Designed specifically for Super35 format sensors — does not cover full-frame even with extender.

Use-Case / Considerations

• Because of its weight (~6.6 kg) and size, this lens is more suited for tripod or heavy-rig setups, especially in the 1000mm+ range.

• The T-stop being relatively “slow” (T5.0 at wide, T8.9 at 1000mm) means that for low-light work you’ll need plenty of light or higher ISO.

• The extreme telephoto capability (up to 1500mm with extender) makes it ideal for wildlife, sports, surveillance, or very long-distance shooting.

• Since it’s optimized for Super35, if you plan to use on full-frame large-sensor cameras you will have coverage issues.

• Servo unit and metadata support make it attractive for broadcast and remote studio use; but it also has full cine gear compatibility (0.8/0.5 MOD gears, etc) for cinema workflows.
