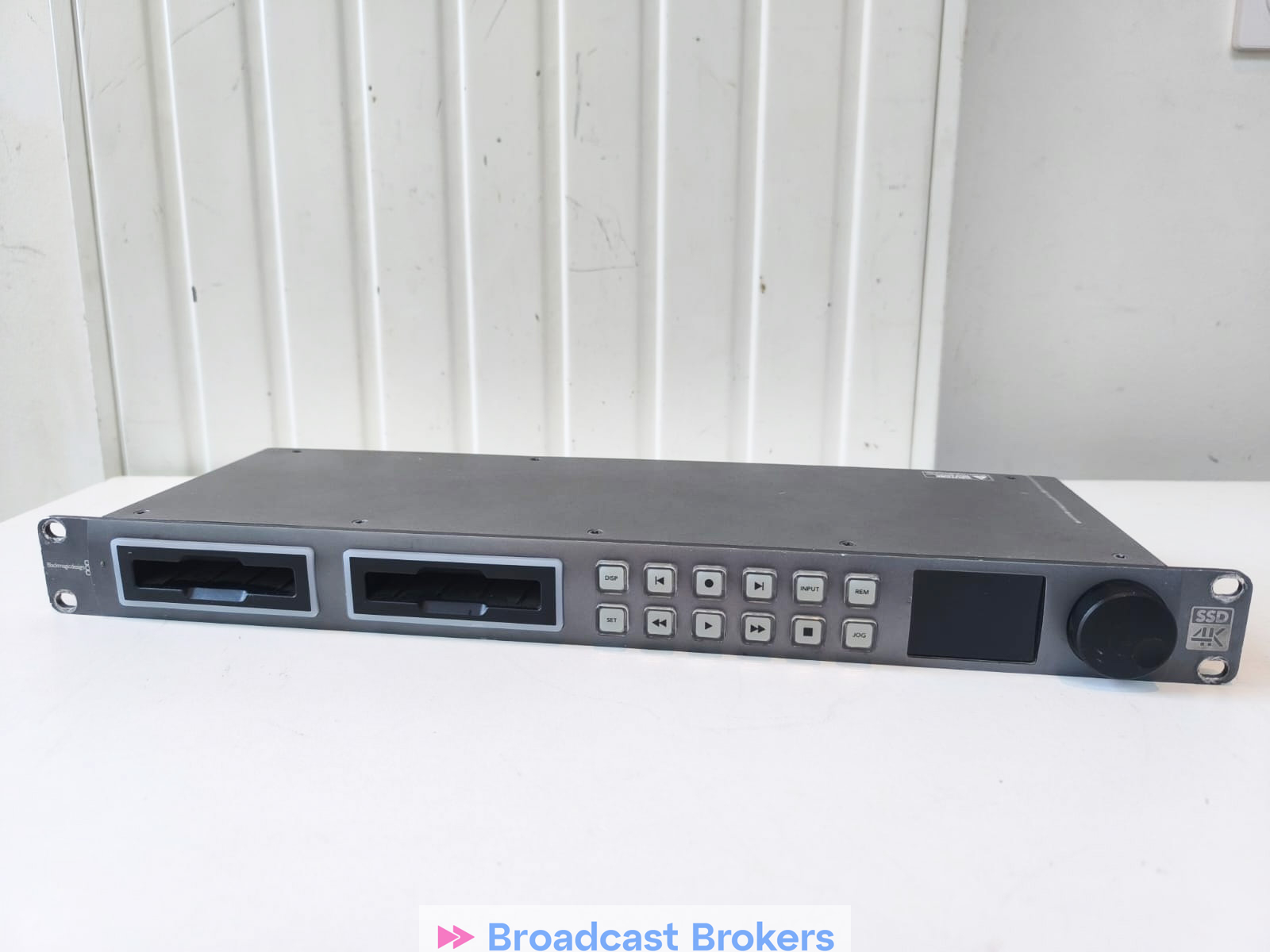

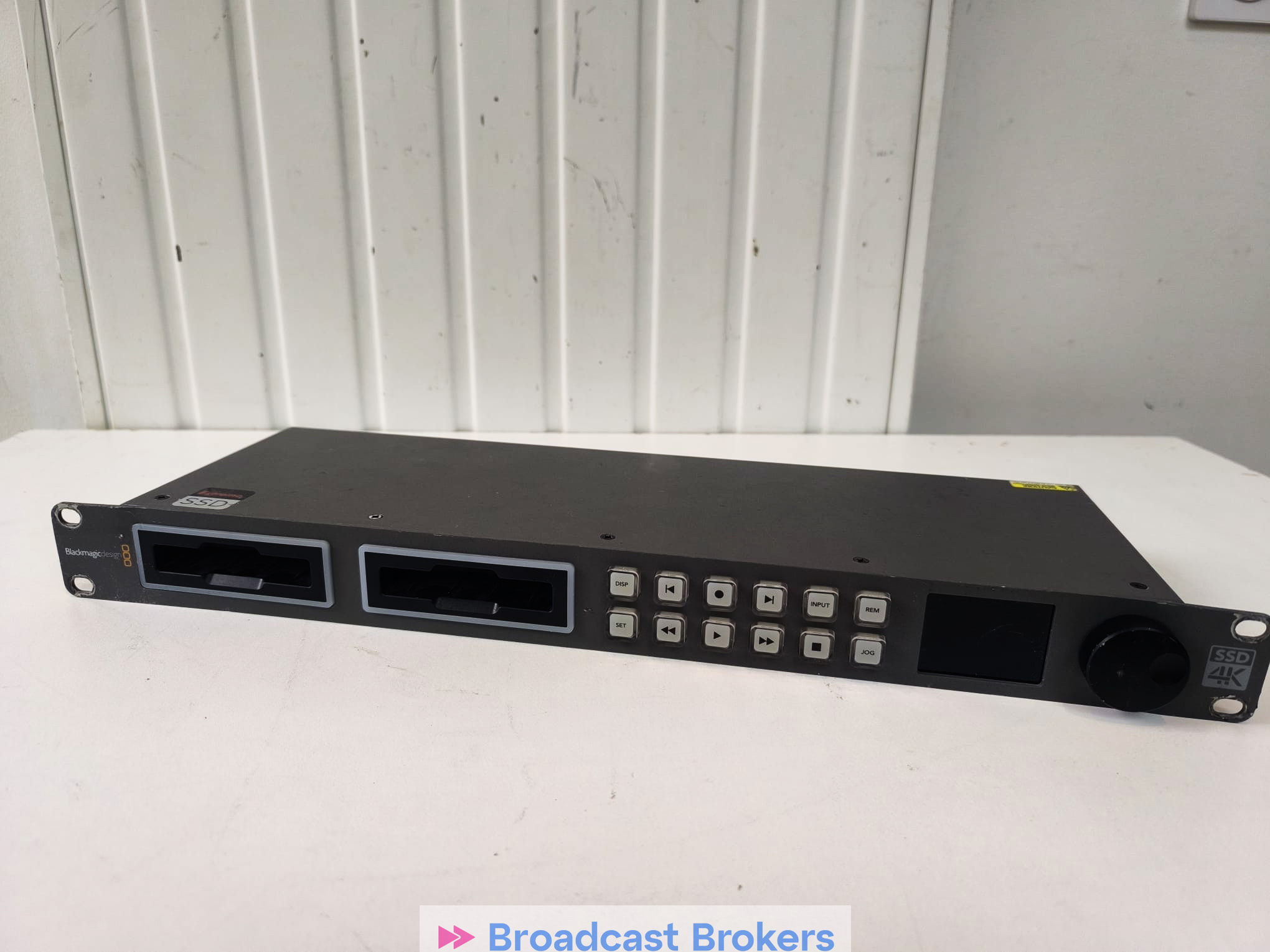

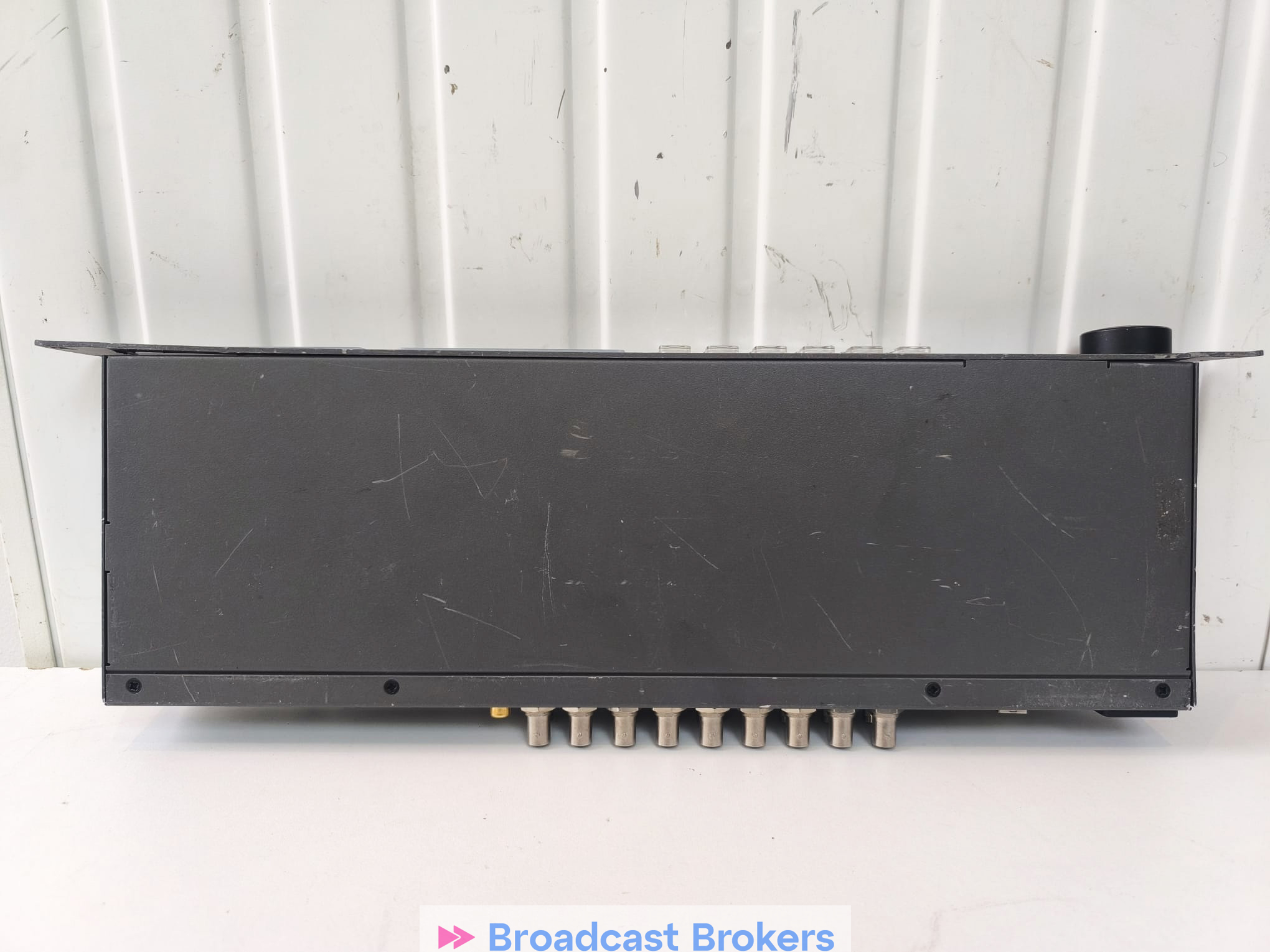

BlackMagic Design HyperDeck Studio 4K PRO

The Blackmagic Design HyperDeck Studio 4K PRO is a professional broadcast and production deck that provides high-quality recording and playback in a variety of formats.

Key Features:

1. Resolution Support:

   • Supports up to Ultra HD (3840 x 2160) resolution at 60 fps.
   • Can also handle HD (1920 x 1080) recording and playback.

2. Recording Media:

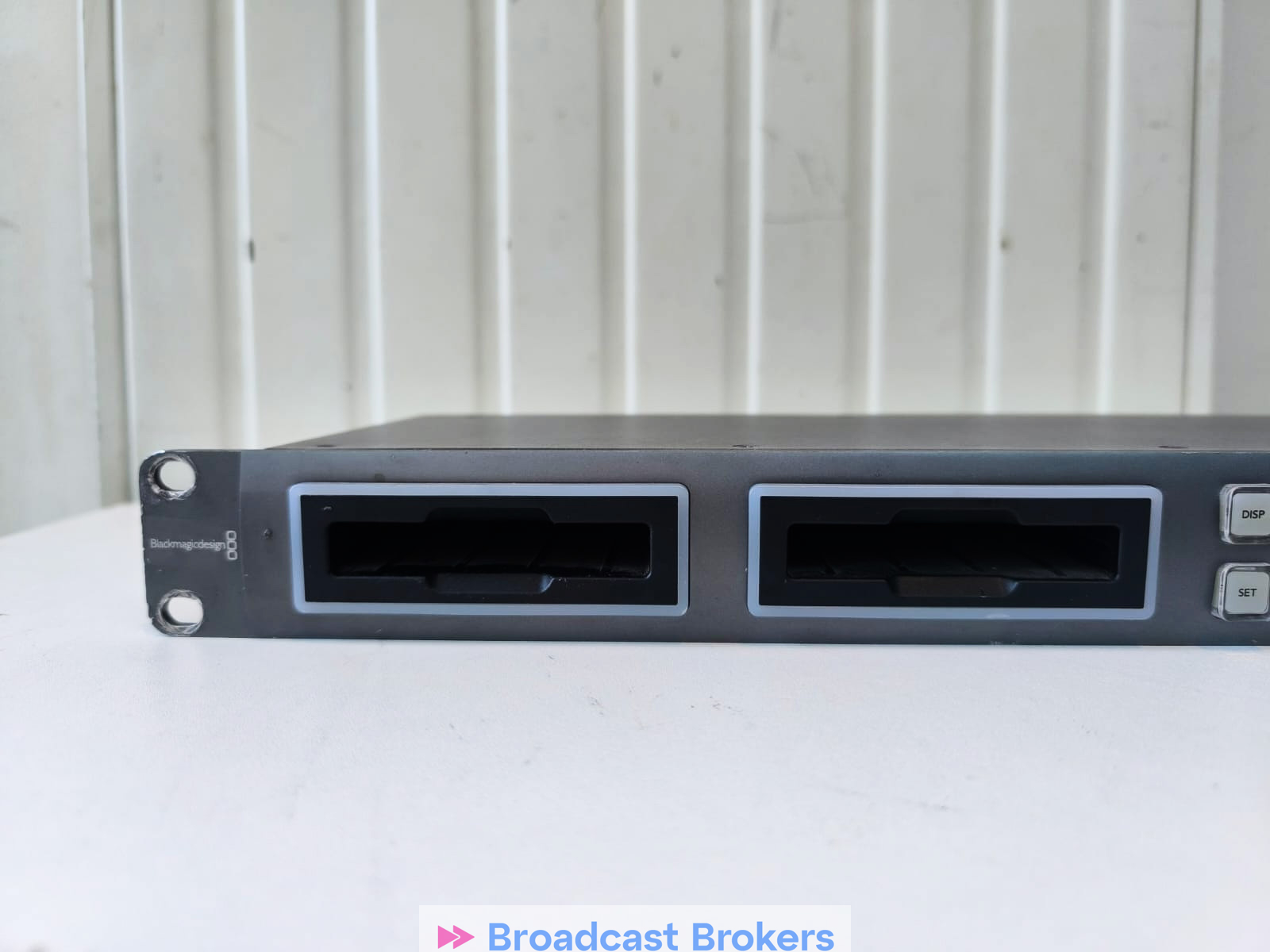

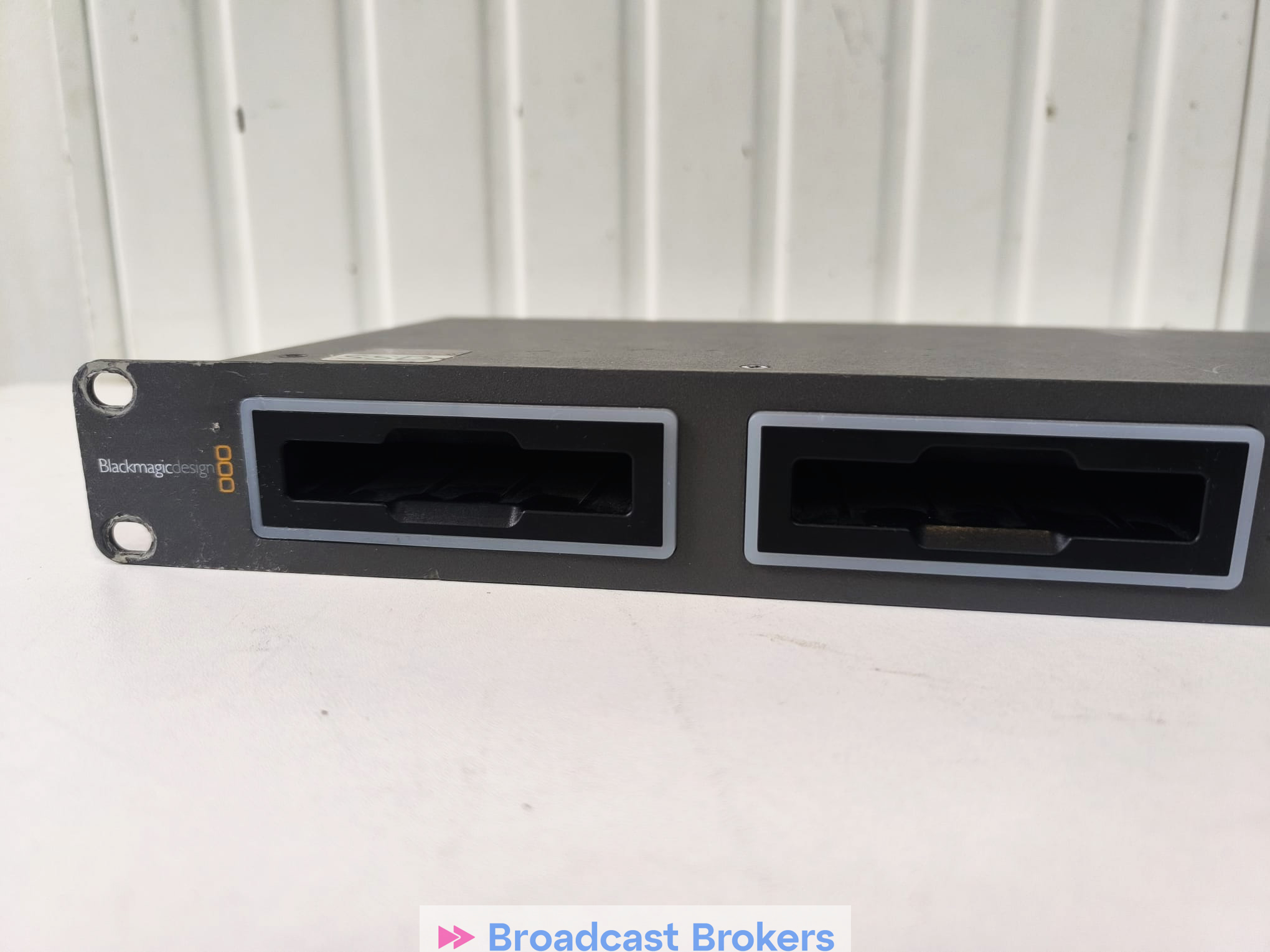

   • Uses 2x 2.5-inch SSDs (Solid-State Drives) for recording, offering high-speed storage for 4K video.
   • Supports UHD, HD, and proxy file recording options.
   • Can record in popular video codecs like ProRes (HQ, 422, LT) and DNxHR for flexibility in post-production workflows.

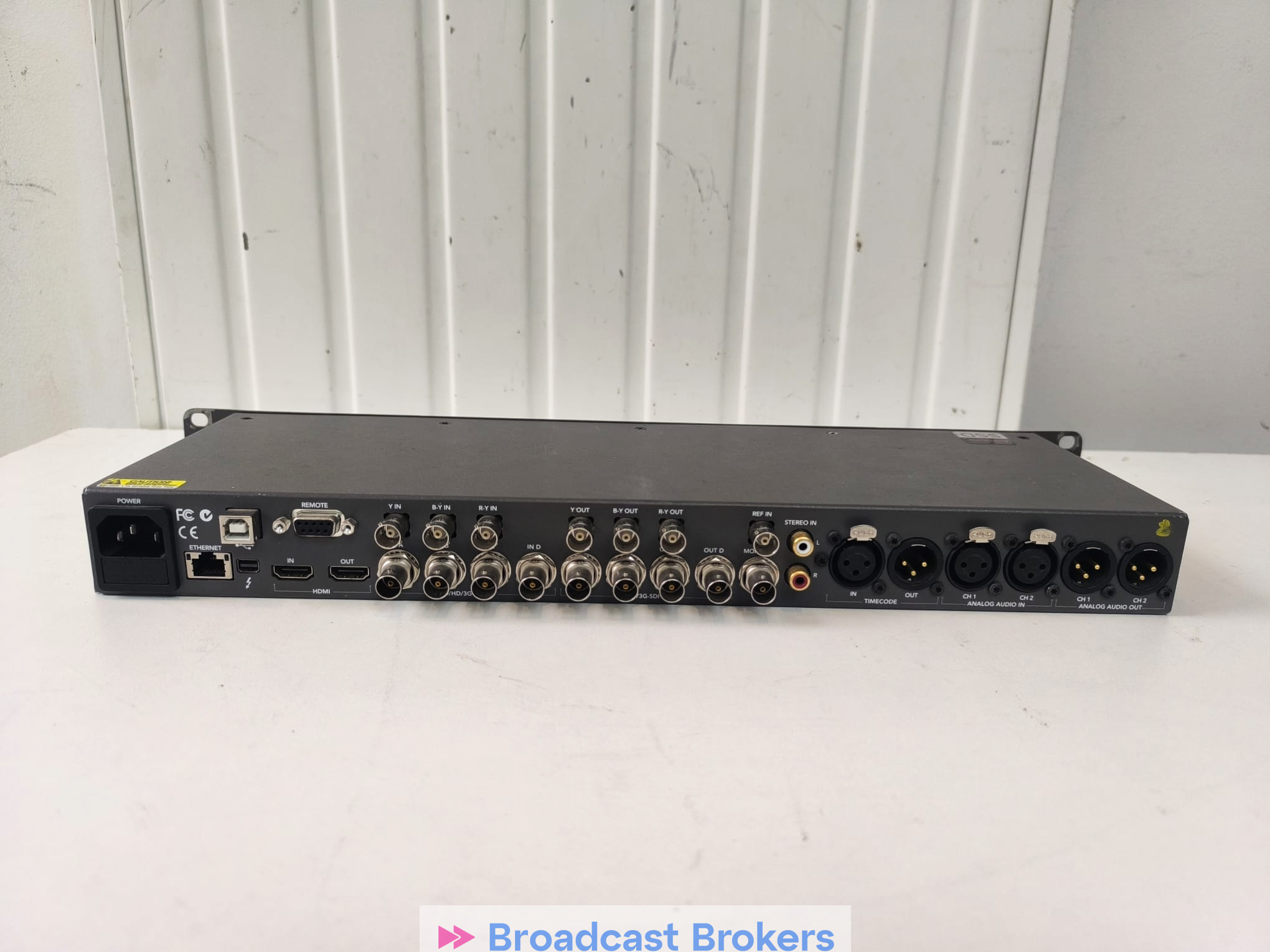

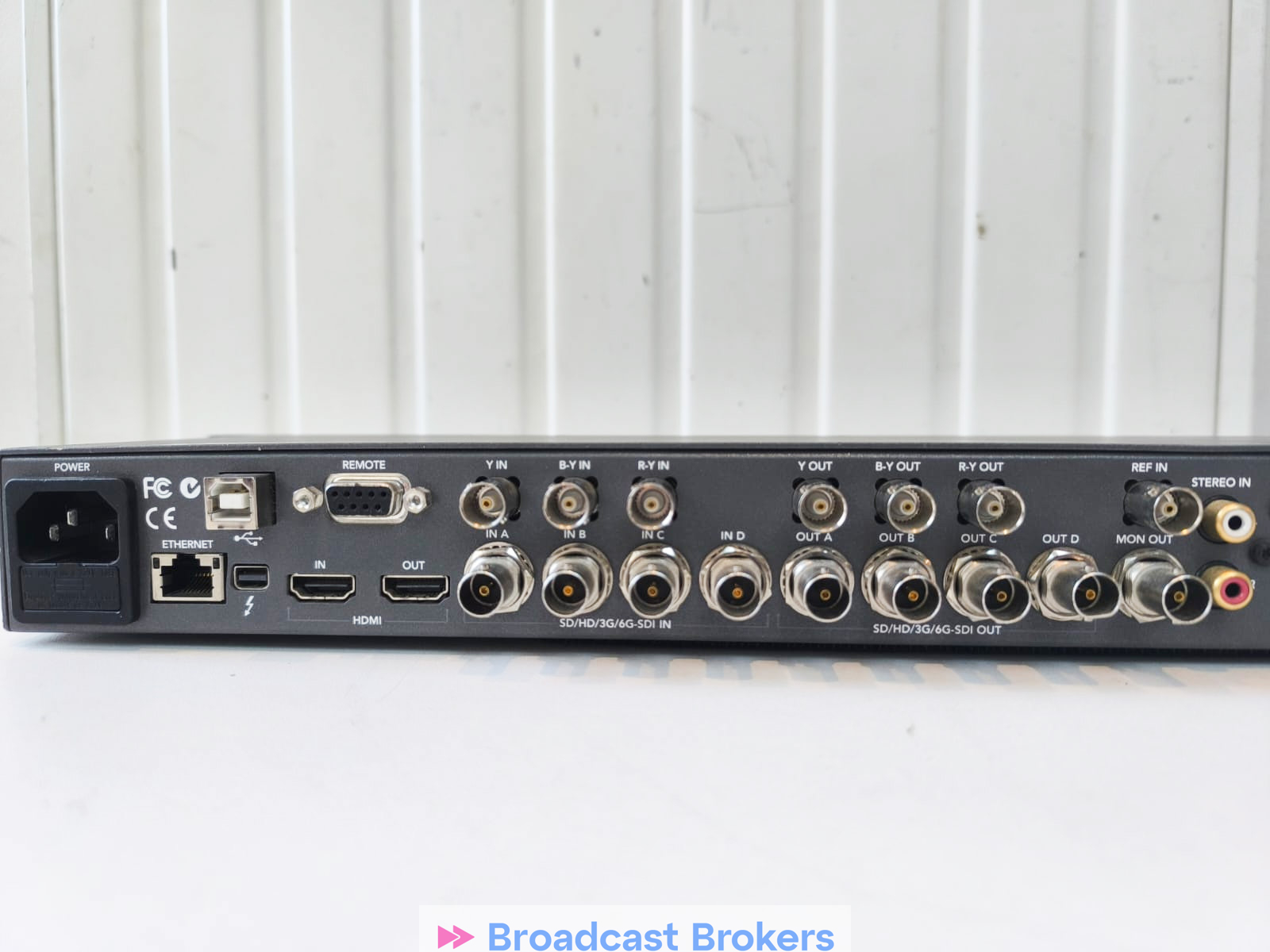

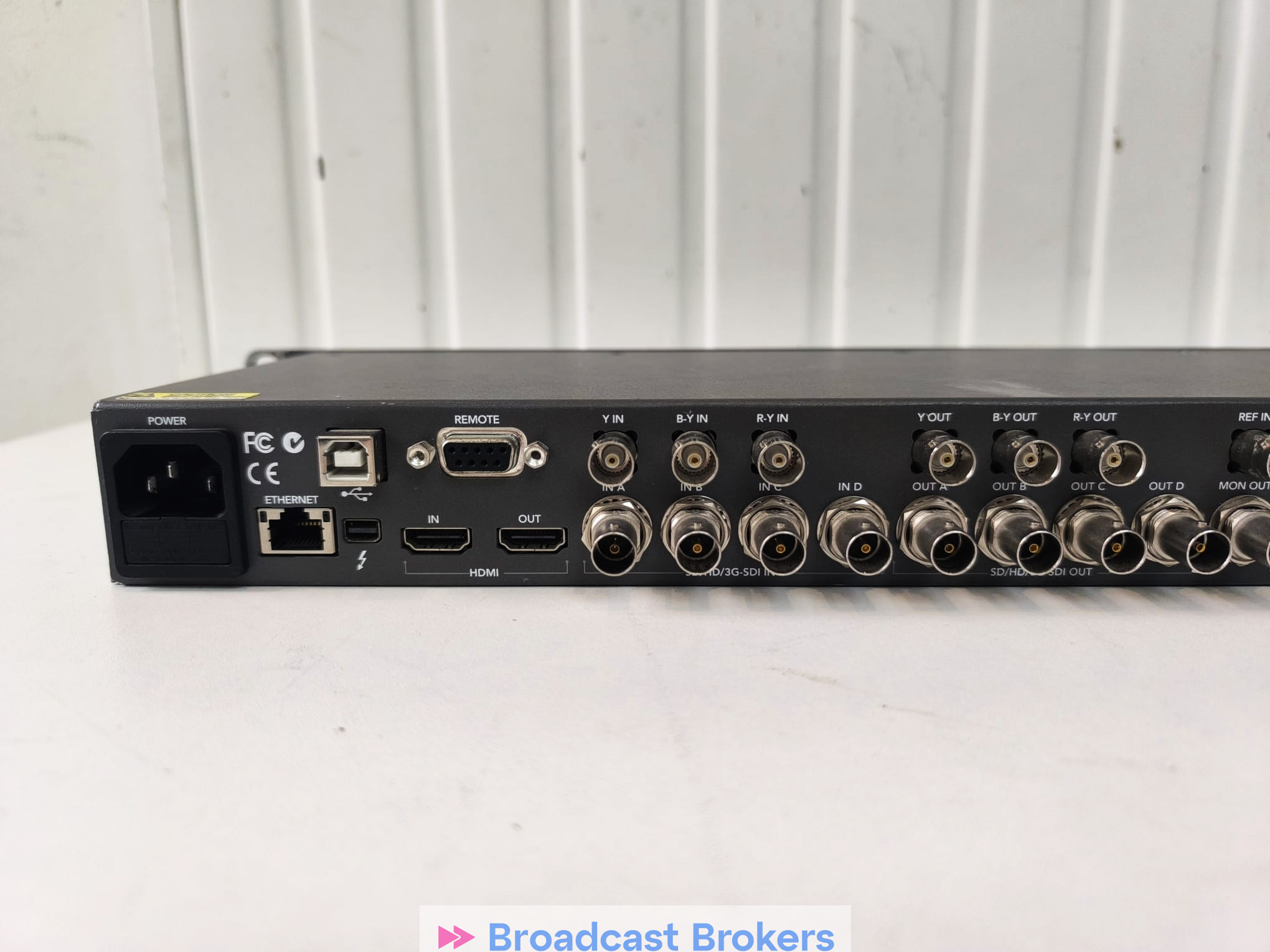

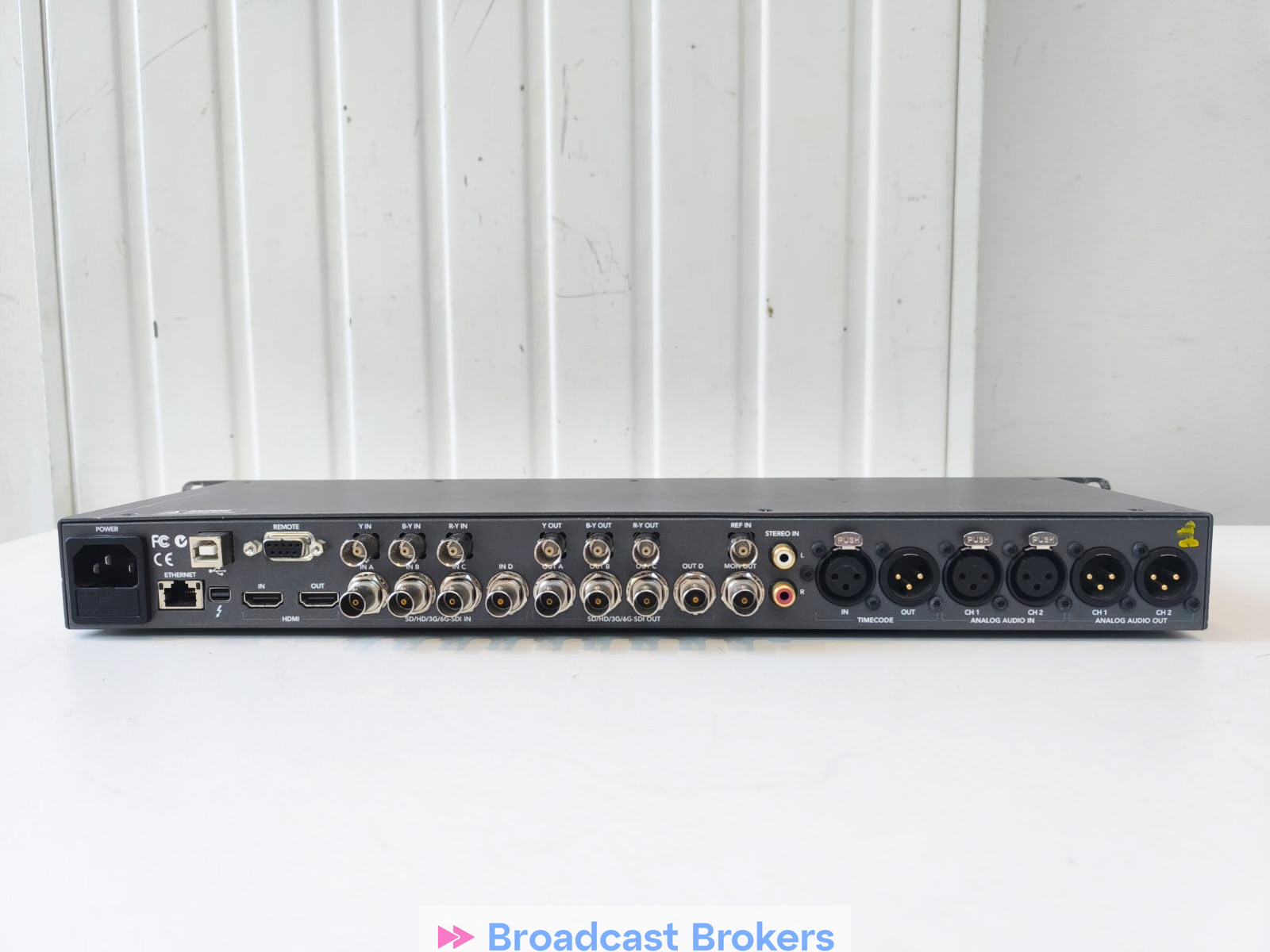

3. Connectivity:

   • 12G-SDI inputs and outputs for ultra-fast 4K video transfers.
   • HDMI 2.0 output for compatibility with consumer monitors and projectors.

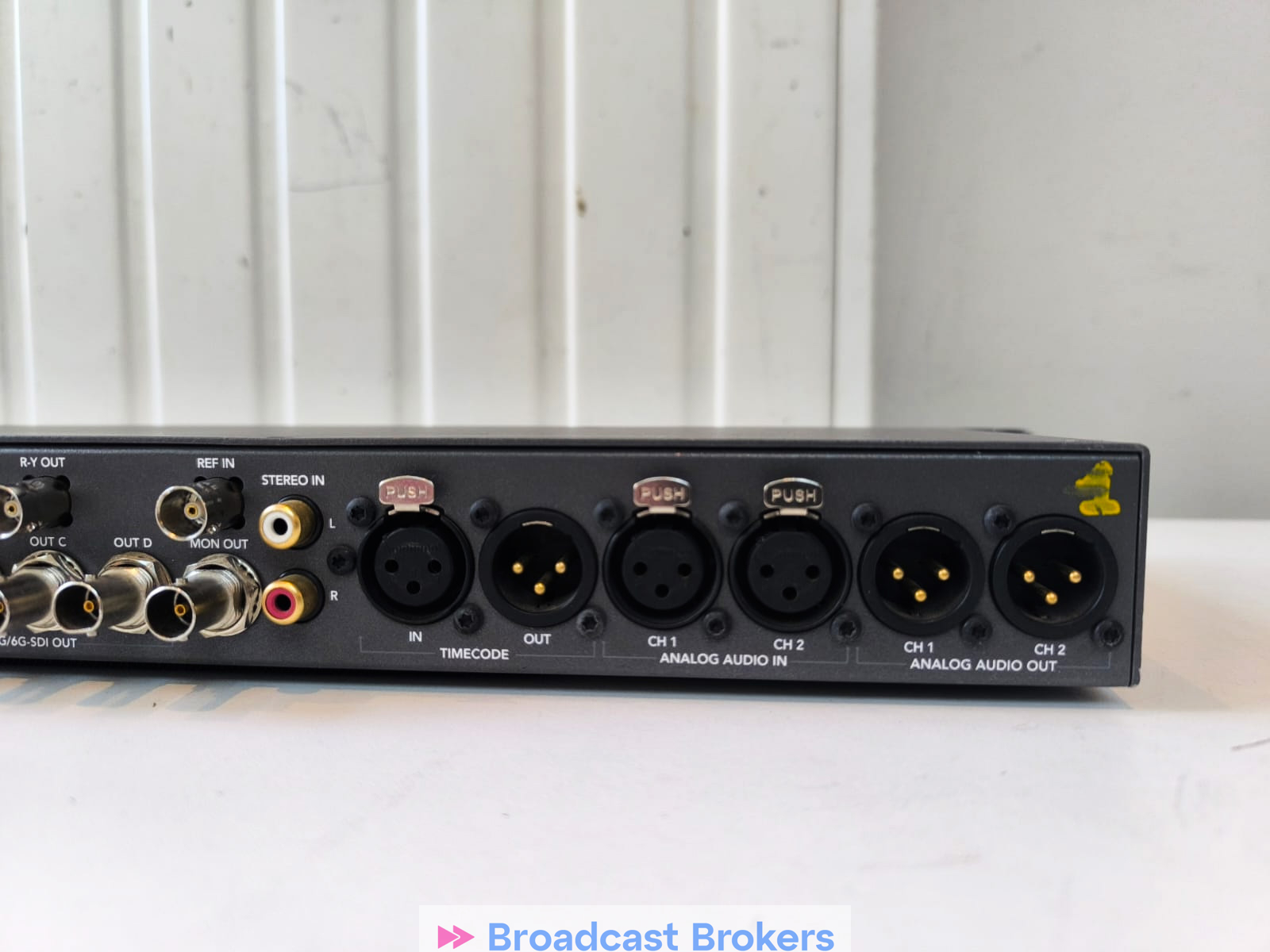

   • Timecode input/output for synchronization with other devices.
   • RS-422 and USB-C for remote control and external connections.

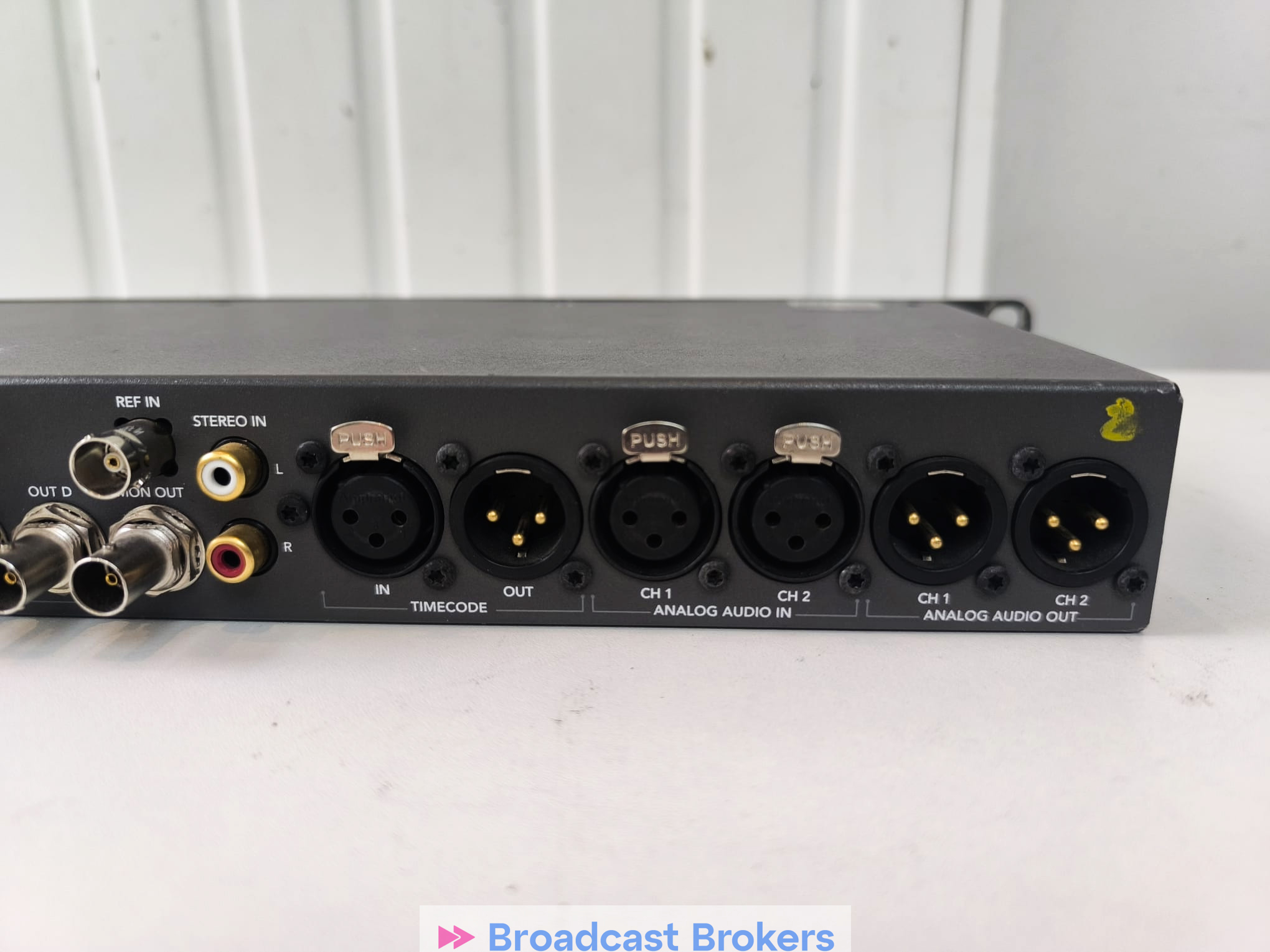

   • Balanced XLR Audio Inputs: 2 x XLR audio channels for professional audio inputs.

4. Monitoring and Display:

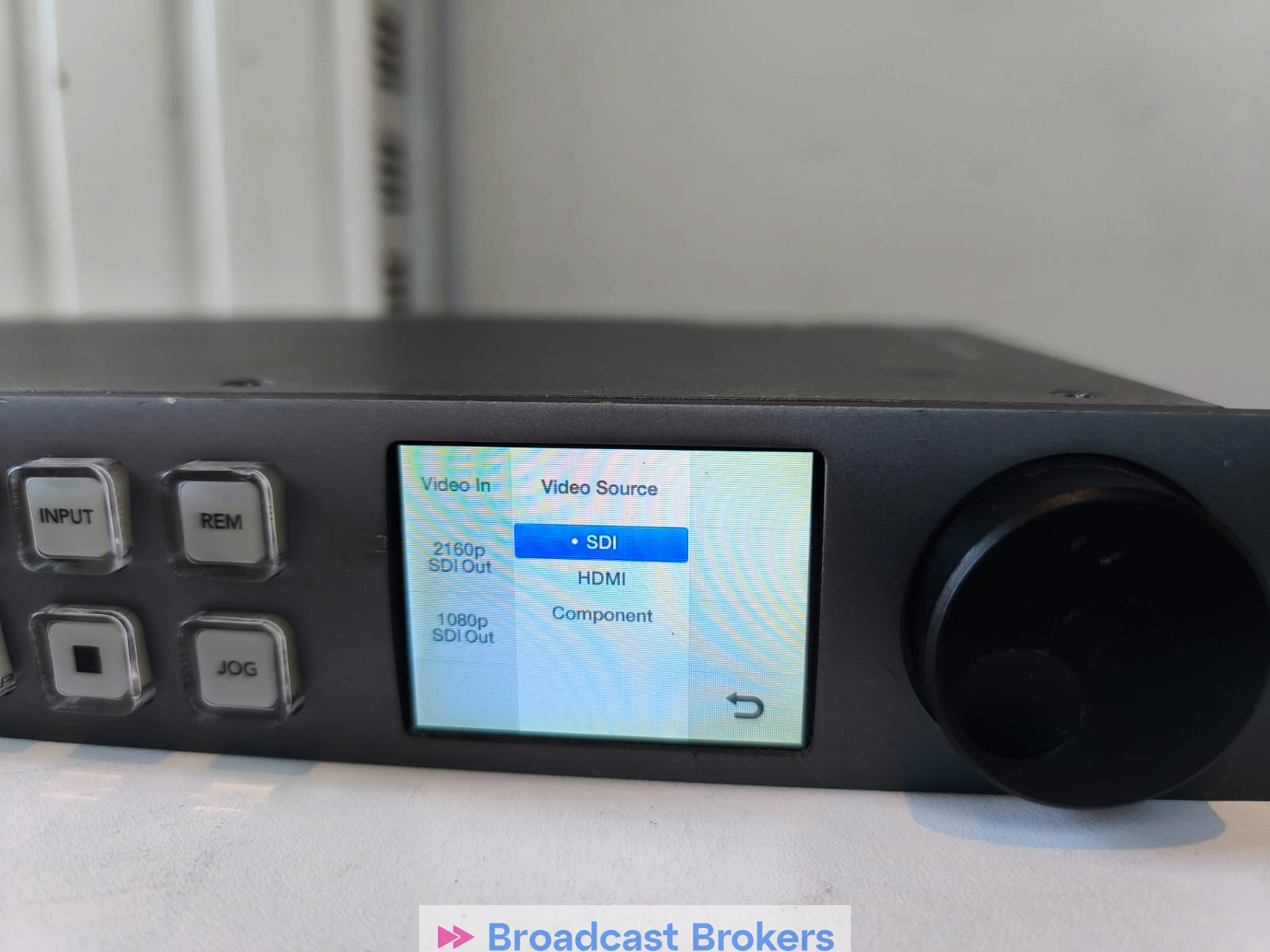

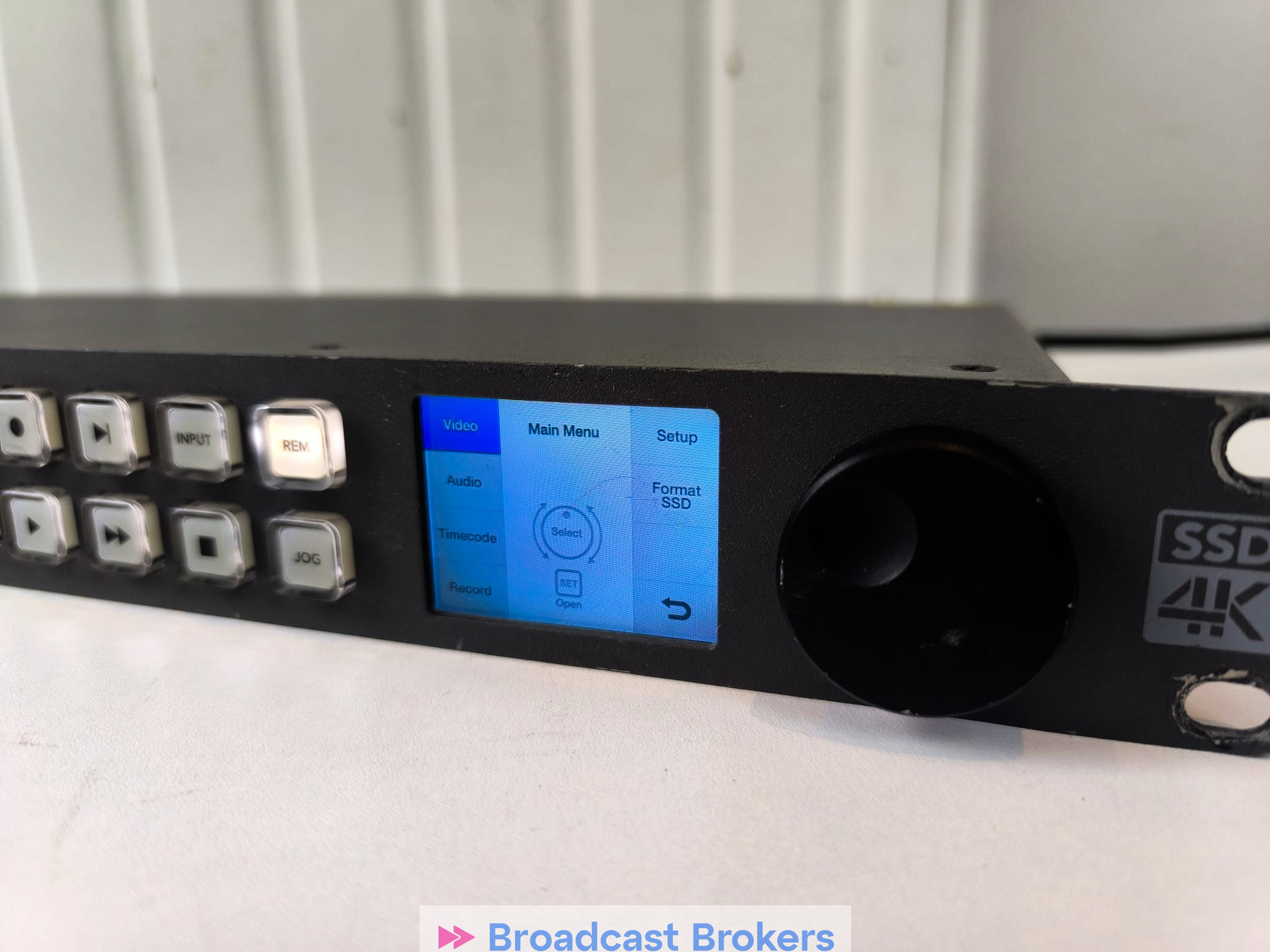

   • Built-in LCD for monitoring the video signal.
   • Supports dual-screen monitoring for simultaneous input/output display.

5. Control Options:

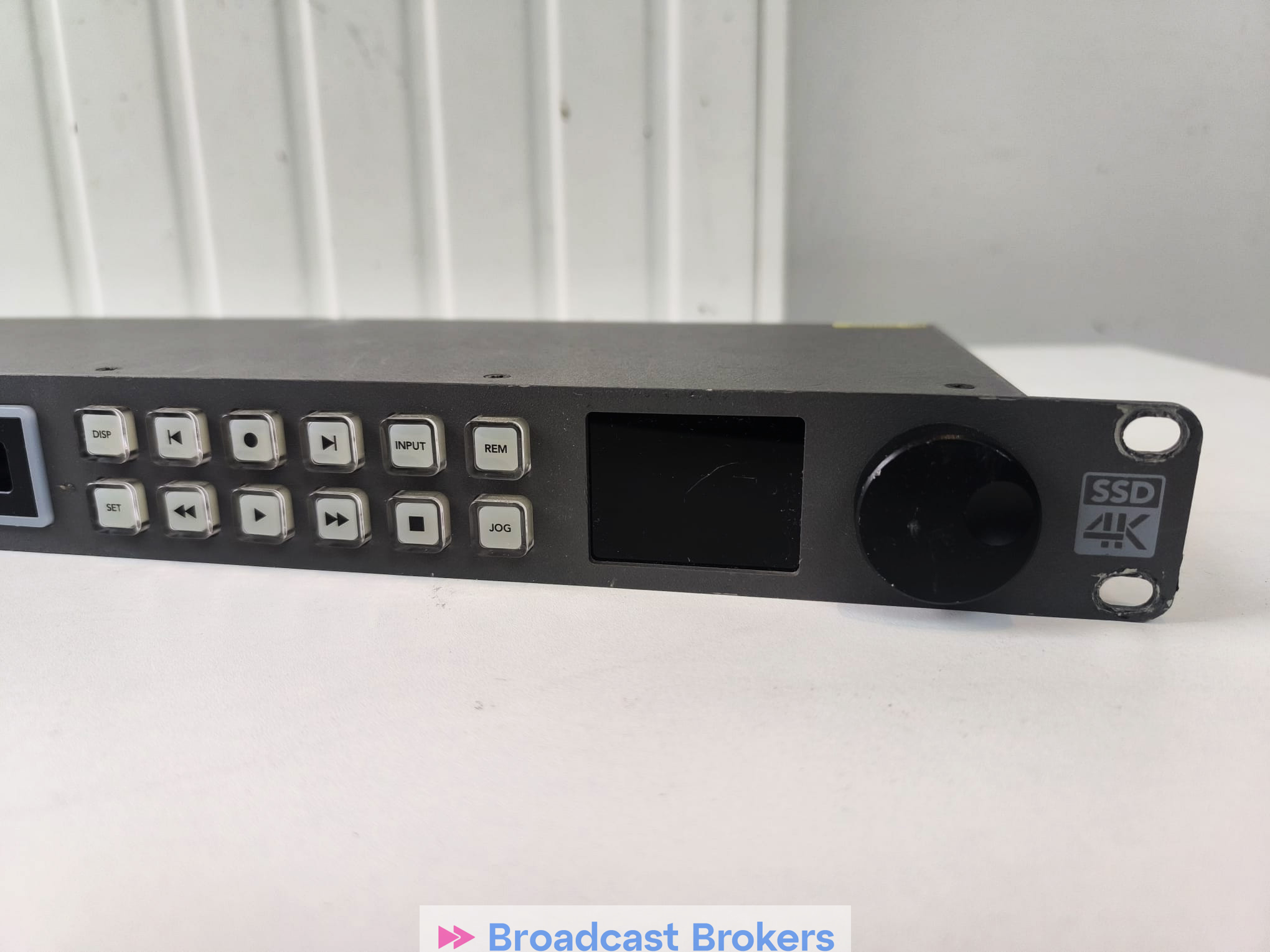

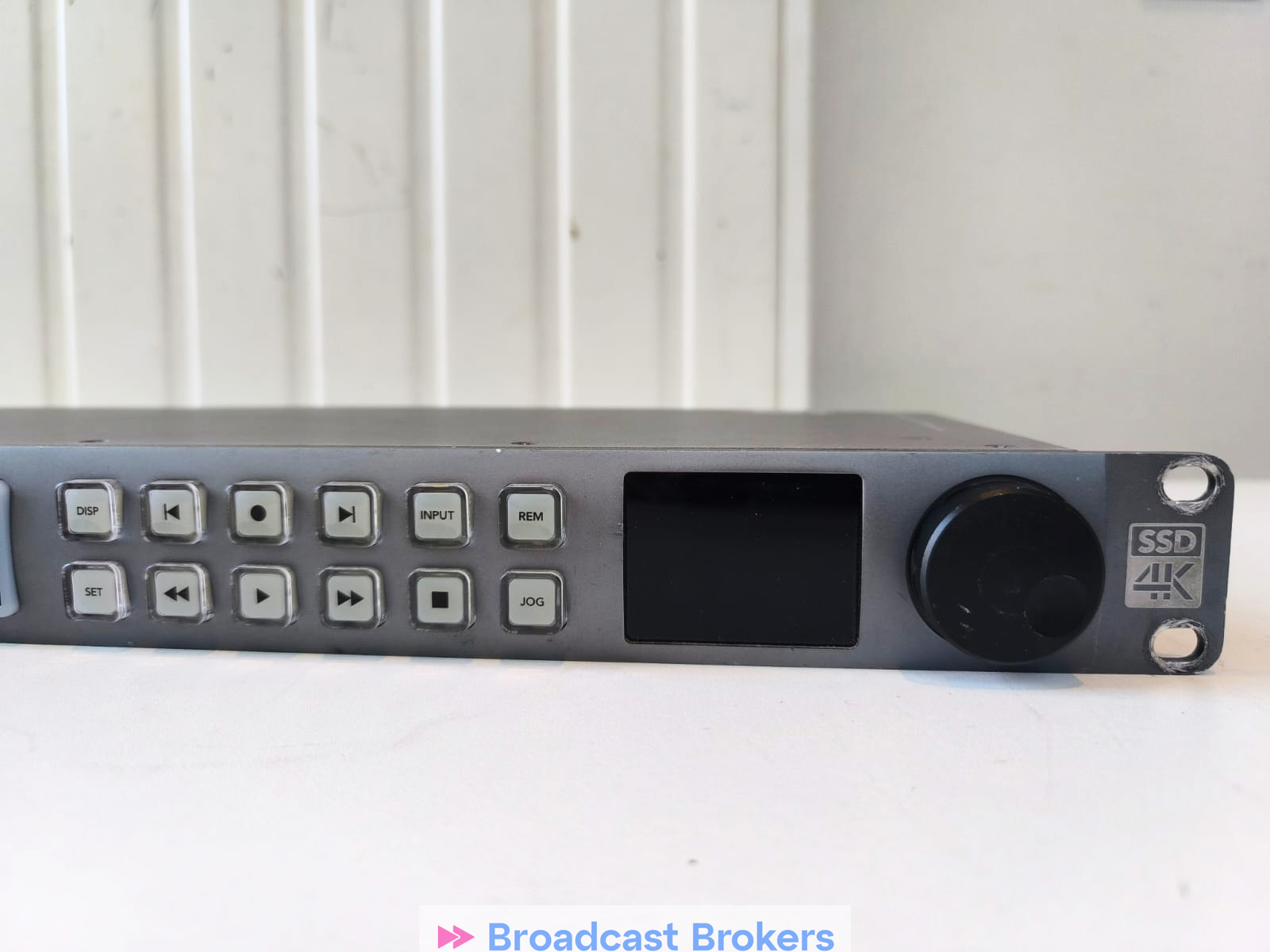

   • Front panel with intuitive buttons and an LCD display for quick operation.
   • Remote Control via Ethernet, allowing for integration with larger setups.
   • Tally support for live production environments.

6. Supported Codecs:

   • Apple ProRes (HQ, 422, LT).
   • Avid DNxHR.
   • Uncompressed formats for higher-quality recordings.
   • H.264 for more compressed formats (for smaller file sizes).

7. External Monitoring:

   • 12G-SDI Output for external monitors or devices.
   • HDMI 2.0 output for consumer-level display compatibility.

8. Advanced Features:

   • Loop-through SDI connections for chained devices.
   • Syncing Capabilities: Supports genlock input for synchronous video and timecode.
   • Dual SDI Input for both playback and recording.

9. Power:

   • 12V DC power input, can operate on external battery packs for mobile use.
   • Includes an AC power adapter for standard power supply.

10. Dimensions & Weight:

    • Dimensions: 19.2 x 2.5 x 7.7 inches (487 x 63.5 x 195 mm).
    • Weight: 4.9 kg (10.8 lbs).

Compatibility:

• Ideal for integration with professional broadcasting setups, live events, studio environments, and post-production workflows.
• Works well with other Blackmagic products, such as ATEM switchers and DeckLink cards.

Additional Features:

• Instant Replay capability for sports productions or live events.
• Supports Timecode and LTC for audio/video sync.
• Ability to record in multi-channel audio.

This is a highly versatile and professional recording and playback solution designed for high-end broadcast and production environments.
