The Blackmagic Design ATEM 4 M/E Broadcast Studio 4K is a professional broadcast switcher designed for high-quality video production. It offers advanced features for live production, including 4K resolution support, multi-view outputs, and built-in effects. Below are the key technical details:
Key Features:
-
4 M/E Configuration:
- 4 M/E (Mix Effect) rows, meaning 4 layers of switching for each input.
- Each M/E row has 20 buttons for switching, with full flexibility to assign any input or external source.
-
4K Resolution:
- Supports up to Ultra HD (3840 x 2160) resolution at 60 frames per second (fps).
- Fully compatible with both HD and UHD formats.
-
Inputs and Outputs:
- Input Ports: 16 x 12G-SDI inputs, each capable of handling up to 4K.
- Output Ports: 12 x 12G-SDI outputs, allowing simultaneous 4K video output.
- Multiview Outputs: Supports up to 4 views of different video sources on a single display.
- Auxiliary Outputs: Can be assigned to any program or pre-program feed.
-
Advanced Effects:
- DVE (Digital Video Effects): 2D and 3D DVE transitions, including wipes, slides, and other dynamic effects.
- Upstream Keyers: 4 upstream keyers for graphics, logos, and live keying with a chroma or luminance keyer.
- Downstream Keyer: 1 downstream keyer for inserting final graphics or logos.
- Built-in SuperSource: 4-input compositing feature that allows multiple images to be displayed simultaneously.
-
Control and Software:
- Control Panel: Includes a hardware control panel with physical buttons, knobs, and a touchscreen for quick operation.
- Software Control: Can also be controlled through the included ATEM Software Control app (available on Windows and macOS).
- Custom Control Options: The switcher supports optional hardware controllers like the ATEM 1 M/E, ATEM 2 M/E, or custom solutions for specific needs.
-
Audio:
- Embedded audio support via SDI and HDMI.
- Full audio mixer with automatic mixing features.
- 12 Channels of audio with individual audio controls.
-
Advanced Features:
- Media Player: 2 Media Players to load still images or video clips.
- Color Corrector: Each input has an individual 6-way color corrector with automatic color balance.
- Frame Sync: Each input includes automatic frame synchronization.
- Control Protocols: Supports external control protocols like RS-232, RS-422, and more.
-
Integration with Other Devices:
- Blackmagic Design Hardware: Full compatibility with Blackmagic Design cameras, converters, and other hardware solutions for a complete broadcast setup.
- Live Streaming: Capable of live streaming video directly via the ATEM Software Control or through integration with additional live streaming hardware.
-
Power and Reliability:
- Redundant Power Supplies: Dual power supply for reliability in critical live production environments.
- Rackmount Design: 2RU size for easy installation in standard 19” racks.
-
Networking:
- Ethernet Port: For remote control and software integration.
- Tally and Control Integration: Supports tally systems for camera operators and external equipment control.
Compatibility:
- Compatible with all professional HD and UHD equipment, including 4K cameras, broadcast routers, and video servers.

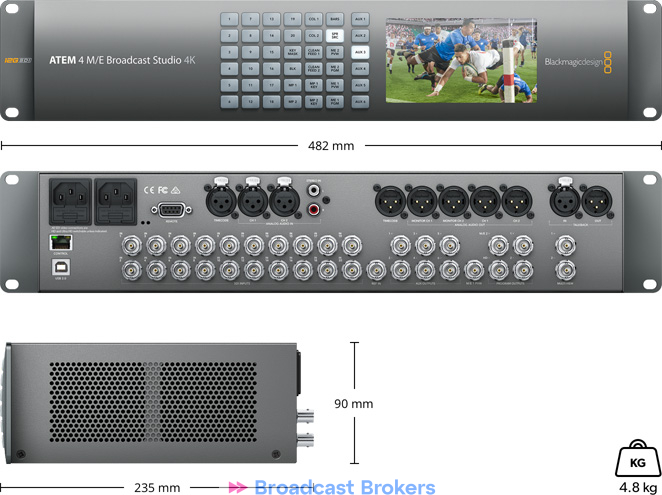

Size and Weight:
- Dimensions: 19 x 3.5 x 15.5 inches (482 x 89 x 396 mm)
- Weight: Approximately 14.5 kg (32 lbs)
This switcher is designed for high-end live production environments, such as TV studios, live events, and broadcast stations that need a powerful, flexible, and reliable solution for 4K production.
