VITEC MGW DIAMOND-H 4K

VITEC MGW Diamond-H 4k Video Encoder, one Channel, SRT, ULL licence

ALSO AVAILABLE : VITEC MGW Ace Encoder Compact HEVC (H.265)

VITEC MGW ACE one Channel 2k , SRT and ULL LicenseZ, HDMI and SDI in

VITEC E3830 HD, h264 full HD. SRT License, HDMI in

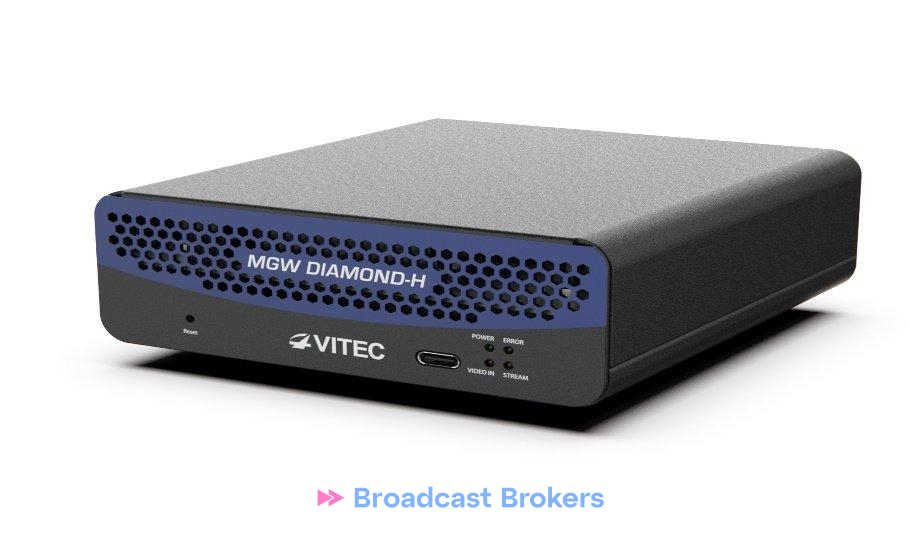

The VITEC MGW Diamond-H is a compact, portable video encoder designed for efficient streaming and broadcasting applications. Below are its technical specifications:

Video Encoding:

• Compression Standard: HEVC (H.265)
• Encoding Channels: Supports up to 4 channels from 2 sources at HD resolution, or 1 channel at 4K resolution.
• Bit Rate: Ranges from 36 Kbps to 80 Mbps.
• Frame Rate: Configurable from 1 to 60 frames per second.
• Latency: Less than 55 milliseconds.
• Output Resolutions: Configurable from CIF up to 3840x2160p60.
• GOP Structure: Selectable options include I, IP, IBP, IBBP, I(3)BP.
• Bit Rate Regulation: Supports Constant Bit Rate (CBR) and Variable Bit Rate (VBR) modes.

Video Inputs:

• HDMI Inputs: 2x HDMI Type A connectors supporting HDMI 2.0, accepting input resolutions from SD up to 4Kp60.
• SDI Input: 1x HD-BNC connector supporting 12G-SDI (SMPTE 2082-1), as well as 3G/HD/SD-SDI standards (SMPTE 259M-C, SMPTE 292M, SMPTE 274M, SMPTE 296M, SMPTE 424M, 425M Level A only).

Video Output:

• HDMI Loop-through: 1x HDMI Type A connector for loop-through, supporting HDMI 2.0, from SD up to 4Kp60.

Audio Encoding:

• Channels: Up to 32 audio encoding channels.
• Codec: MPEG-4 AAC-LC (ISO/IEC 14496-3) and AAC-ELD.
• Bit Rate: 32 Kbps – 256 Kbps in Stereo, 16 Kbps – 128 Kbps in Mono.
• Sampling Rate: 16 kHz – 48 kHz.

Ancillary Data Support:

• High Dynamic Range (HDR): Supports HDR10 (SMPTE ST 2084/ITU-R BT.2100) via HDMI and HLG (ITU-R BT.2100) from SDI.

Network Protocols:

• UDP Transport Stream (TS)
• RTP Transport Stream (TS)
• Stream protection protocols for reliable video/audio and metadata transmission, including Zixi™, SRT, RIST, and Pro-MPEG.

Physical Characteristics:

• Power over Ethernet (PoE+): Simplifies integration by allowing power and data transmission over a single Ethernet cable.
• Form Factor: Compact and low-power design, optimized for field use.
