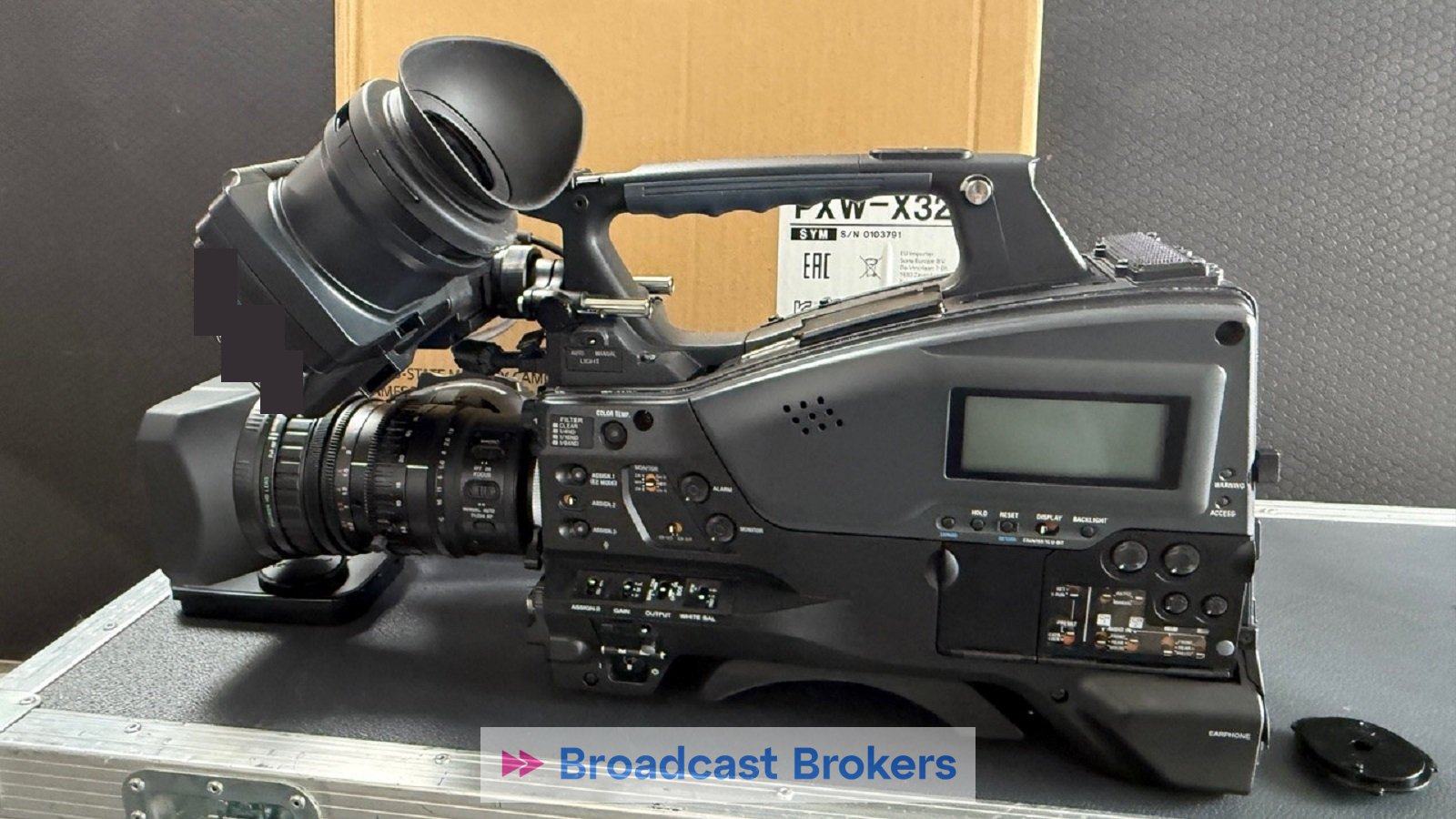

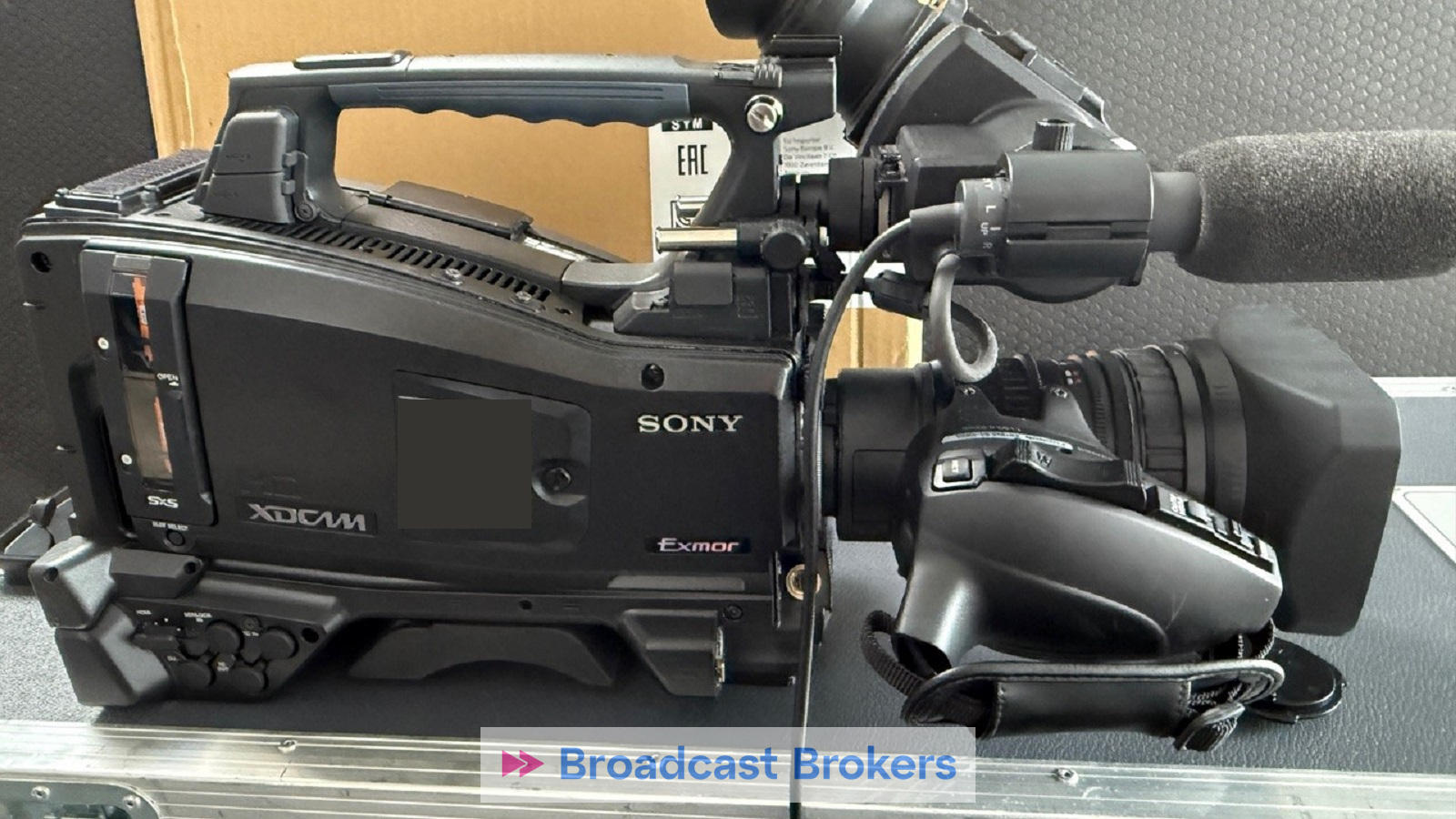

Sony PXW-X320

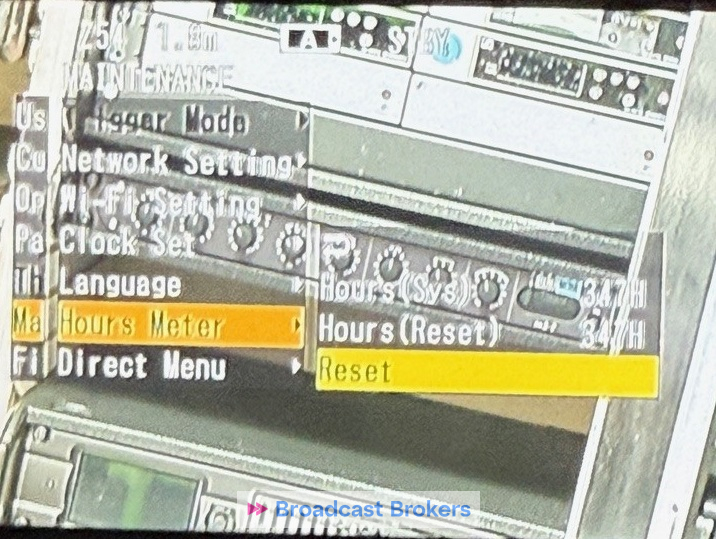

XDCAM HD Camcorders, 2 units available, each has 347 hrs use ,

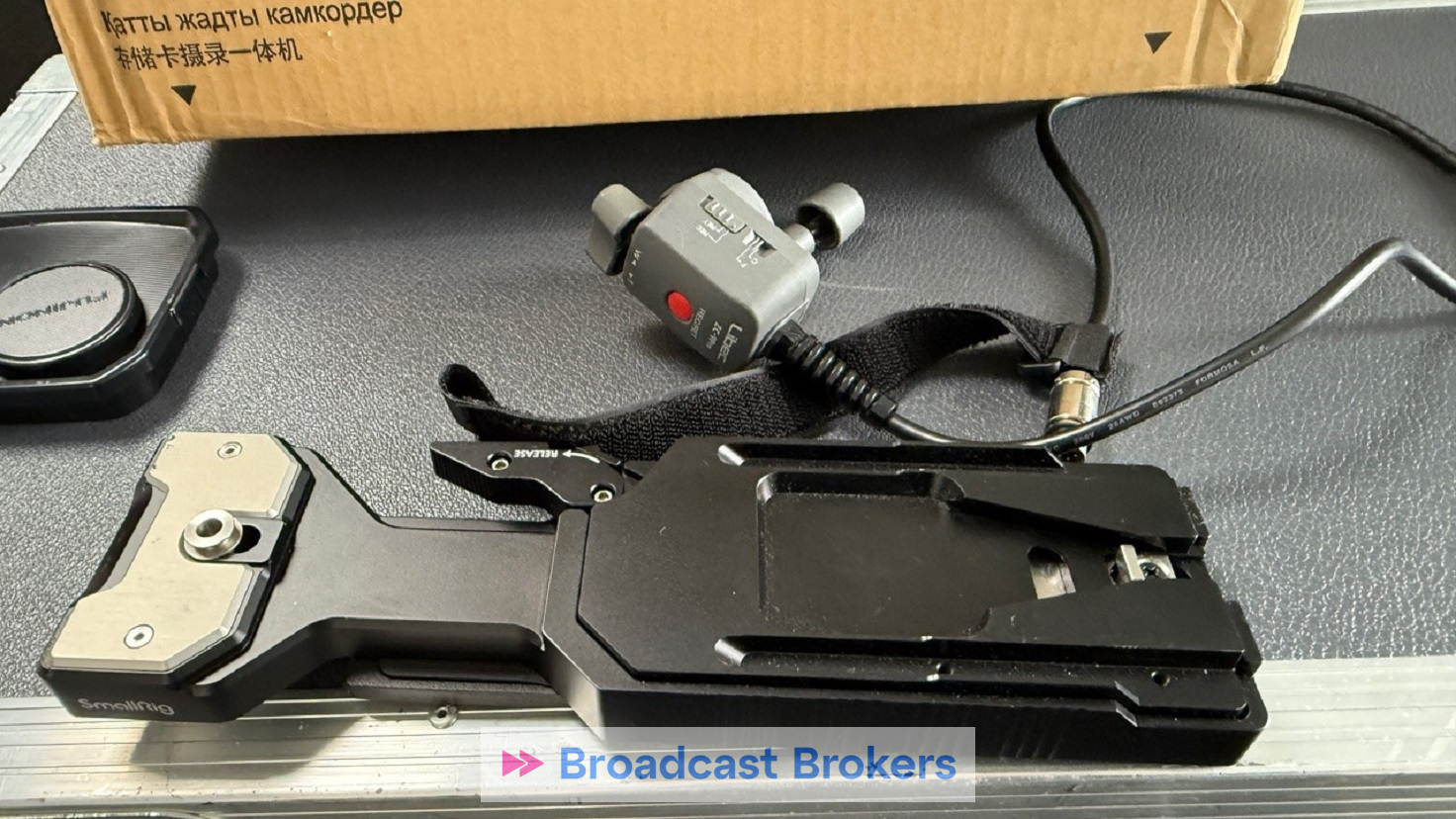

delivered with Fujinon lens +tripod plate

Sony PXW‑X320

1. Imaging & Sensor

• Equipped with three 1/2″ Exmor Full HD CMOS sensors (1920 × 1080) for high-resolution, high‑sensitivity imaging with improved signal-to-noise ratio (~60 dB)

• Horizontal resolution: 1,000 TV lines or more in 1080i mode S‑N ratio: around 60 dB thanks to a 3D Noise Reducer that operates across spatial and temporal axes

2. Lens & Optics

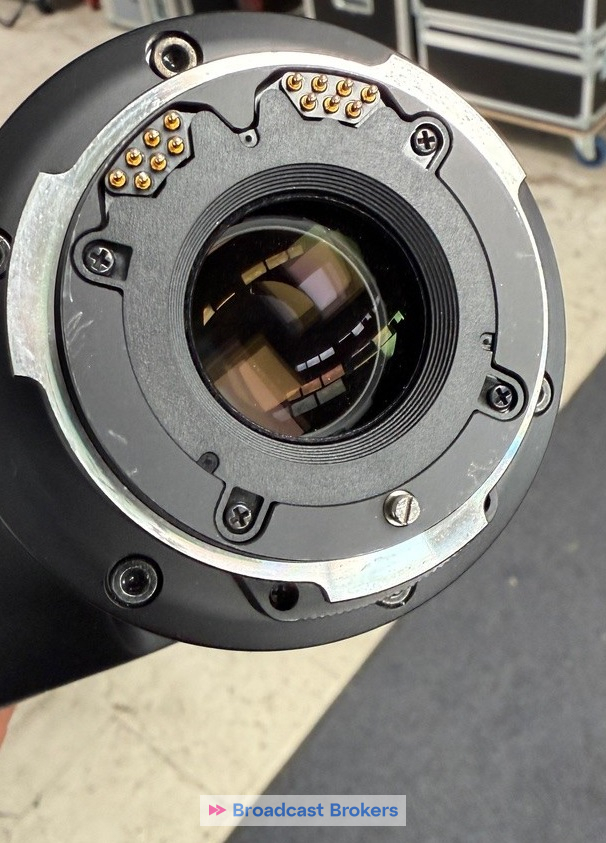

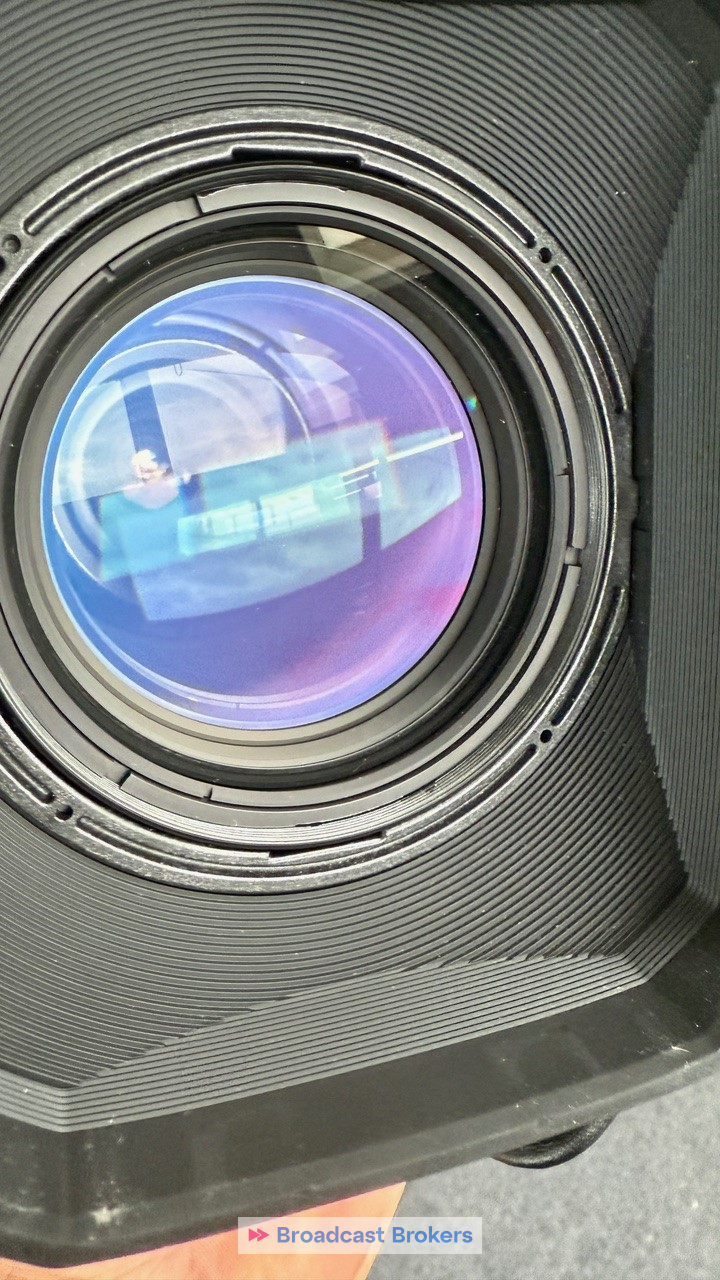

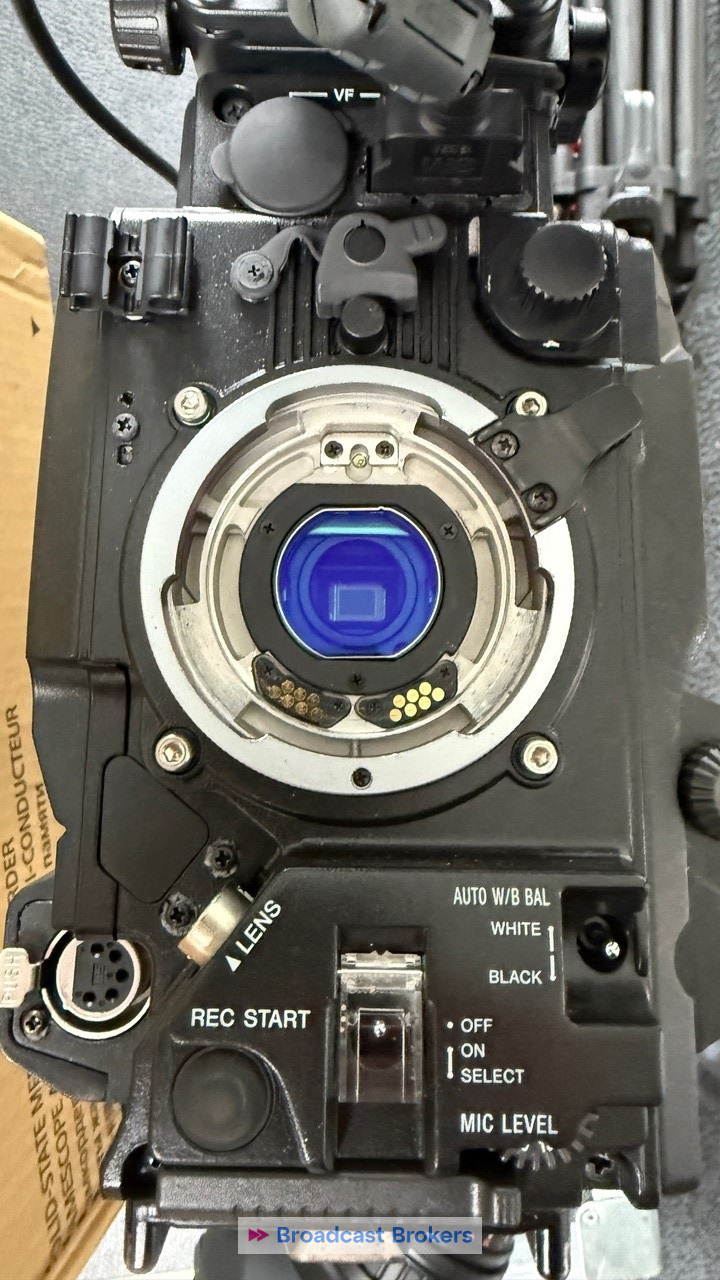

• Lens mount: B4 / Sony 1/2″ bayonet Typically pairs with a 16× Fujinon optical zoom lens (5.8 mm–93 mm, ~31.4–503 mm equivalent)

• Iris range: from f/1.6–f/1.9 (wide) down to f/16; supports auto and manual iris control

• ND filters: built-in mechanical wheel offering Clear, 1/4, 1/16, and 1/64 stops

3. Recording Formats & Frame Rates

• XAVC-I (Intra): CBR, up to 112 Mbps.

• XAVC‑Long: VBR up to 50 Mbps.

• MPEG HD422: 50 Mbps CBR; MPEG HD: up to 35 Mbps; MPEG IMX: 50 Mbps; DVCAM: 25 Mbps

• XAVC-I supports full HD at 59.94i/50i/29.97p/25p/23.98p and 720p (50/59.94 fps)

• Slow & Quick Motion: 1080p from 1 to 30 fps; 720p from 1 to 60 fps, captured natively (no interpolation)

4. Audio

• Records 4‑channel audio, 24‑bit/48 kHz in most modes (XAVC, MPEG HD422), with certain modes offering 16‑bit

5. Connectivity & I/O

• Video outputs: 2 x BNC (HD‑SDI), 1 x HDMI, 1 x composite (BNC)

• Audio: 2 x XLR Mic/Line inputs with +48 V phantom, 1 x XLR 5‑pin output, and 1 x 3.5 mm headphone output

• Additional interfaces: BNC connectors for timecode and genlock, USB (A & B), FireWire 6‑pin, lens control (12‑pin), Hirose 8‑pin, DE‑15/DB‑15 for wireless receiver

6. Viewfinder & Display

• 3.5″ QHD color LCD viewfinder, 960 × 540 resolution. Flip-up cover aids visibility during tripod use lemac.com.auAdorama.

7. Power & Form Factor

• Power consumption: ~18 W to 25 W depending on configuration

• Weight (body only): ~3.4 kg / 7.5–7.9 lb

• Dimensions: Approx. 124 × 269 × 332 mm (W×H×D)

8. Recording Media

• Dual SxS card slots; SD card slot also available for proxies or DVCAM recording via adapter (adapter may be required)

9. Additional Features

• Flash band reducer for improved image quality when using electronic shutter under artificial lighting

• Genlock and timecode support for multi-camera synchronization in broadcast workflows

• Wireless capability via optional CBK‑WA101 adapter—enables IP streaming and quick clip transfer

Summary Table
