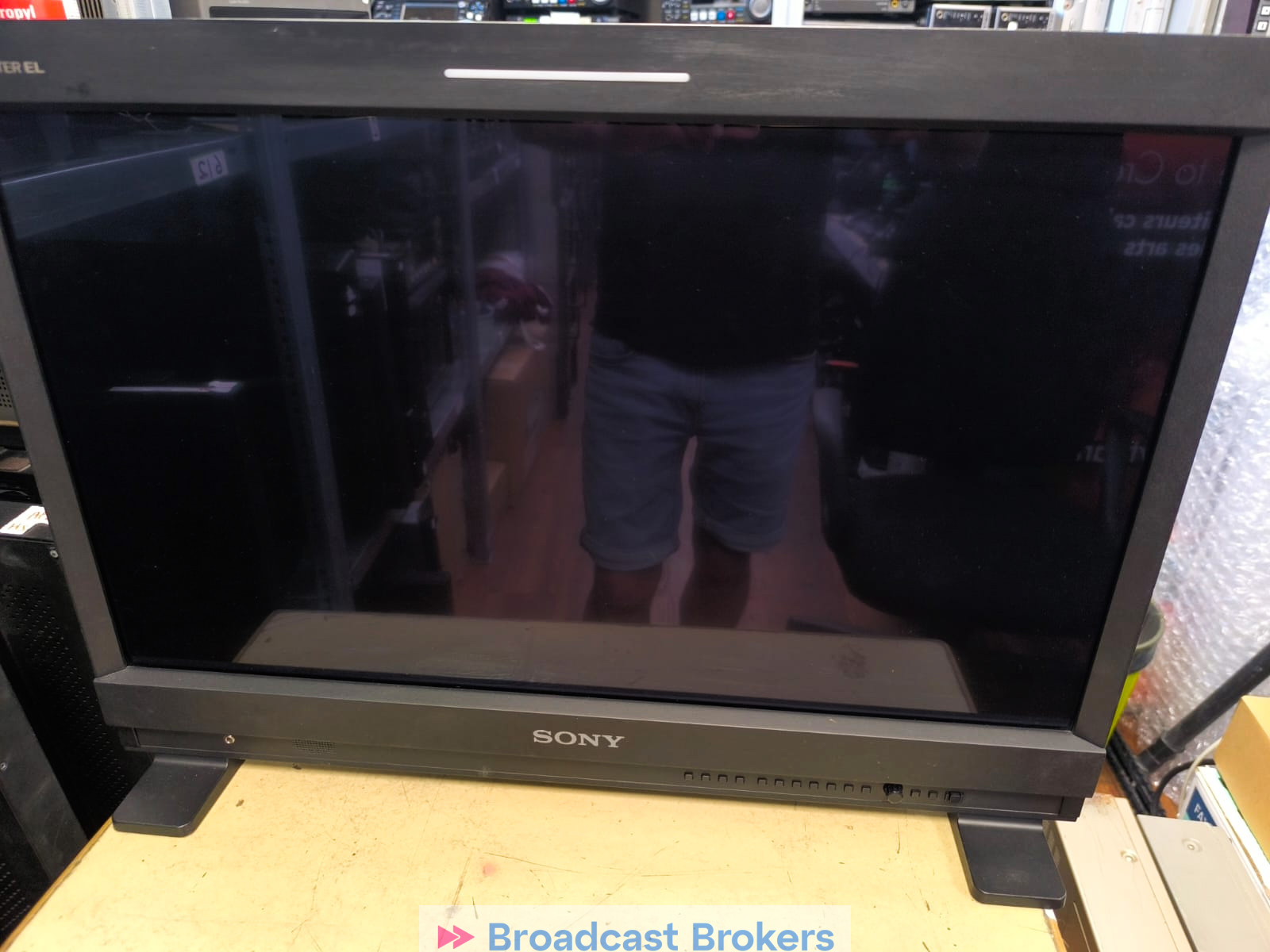

SONY PVM-A250 OLED Monitor

The Sony PVM-A250 is a 25-inch professional OLED production monitor used in broadcast, color grading, and on-set monitoring. Based on Sony’s official manuals and specification sheets, here are the main technical details:

Display

• Panel: OLED (Sony TRIMASTER EL technology)
• Screen size: 24.5 inches (viewable)
• Native resolution: 1920 × 1080 (Full HD)
• Aspect ratio: 16:9
• RGB panel driver: 10-bit per channel
• Refresh rates: 48 Hz / 50 Hz / 60 Hz
• Effective pixels: 99.99%
• Viewing angle: 89° (up/down/left/right) typical

Color & Monitoring Features

• Color spaces:
  • ITU-R BT.709
  • EBU
  • SMPTE-C
  • DCI-P3
  • ITU-R BT.2020
  • Adobe RGB
  • sRGB
  • S-Gamut / S-Gamut3
  • S-Gamut3.Cine
• Color temperatures:
  • D50
  • D65
  • D93
  • User presets
• Supports:
  • Waveform monitor
  • Vector scope
  • Audio level meters (up to 8 channels)
  • Focus assist
  • False Color (firmware v2.0+)
  • S-Log2 / S-Log3 monitoring
  • Flexible area markers
  • Side-by-side comparison mode

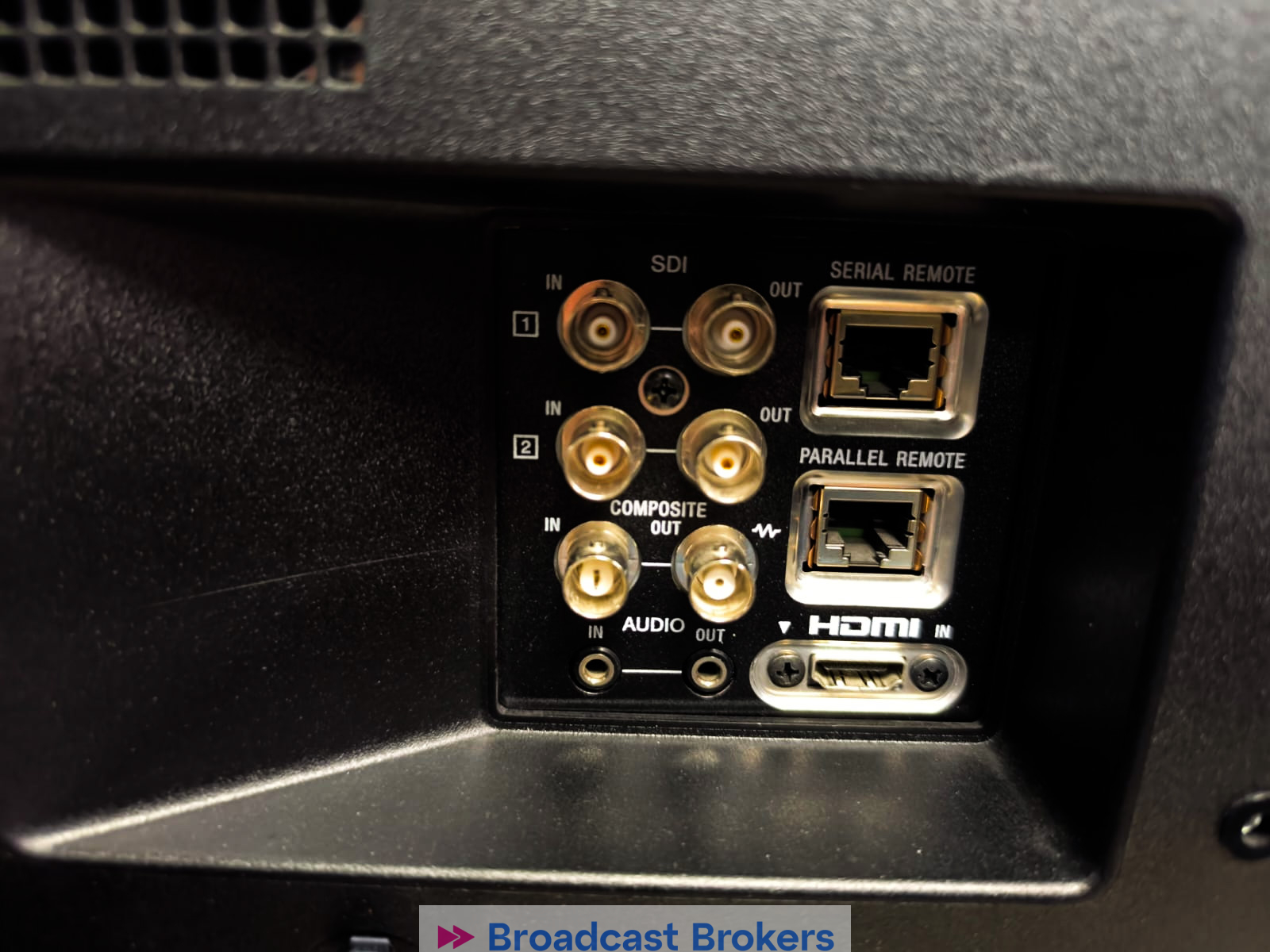

Video Inputs

• 2 × 3G/HD/SD-SDI (BNC)
• 1 × HDMI (Deep Color, HDCP)
• 1 × Composite Video (BNC, NTSC/PAL)

Video Outputs

• 2 × 3G/HD/SD-SDI loop-through (BNC)
• 1 × Composite output (BNC)

Audio

• Stereo mini-jack audio input
• Stereo mini-jack monitor output
• Headphone output
• Built-in mono speaker (1 W)

Remote Control Interfaces

• Parallel remote: RJ-45 (8-pin)
• Serial/Ethernet remote: RJ-45 (10BASE-T/100BASE-TX)

Physical Specifications

• Dimensions (W × H × D):
  • 581.0 × 386.6 × 65.5 mm
• Weight:
  • Approx. 6.1 kg (13.4 lb)
• Warm-up time:
  • Approx. 30 minutes for critical color work

Power

• Input voltage:
  • AC 100–240 V
  • 50/60 Hz
• Power consumption:
  • ~80 W typical
  • ~115 W maximum

Environmental Specifications

• Operating temperature:
  • 0–35 °C
• Recommended calibration environment:
  • 20–30 °C
• Operating humidity:
  • 30–85% (non-condensing)

Notable Features

• Sony Super Top Emission OLED panel
• Extremely deep blacks and high contrast
• Wide color gamut including BT.2020 support
• Professional calibration support with Sony Auto White Adjustment software
• Rack-mount capability
• Designed for broadcast, grading, and digital cinema monitoring
