Panasonic AK-UC3300 4K

NEW 4K FIber SMPTE Broadcast camera chains – 3 units available each with:

Panasonic AK-UC3300GSJ camera

Panasonic AK-UCU700ESJ CCU

Panasonic AK-HRP1015GJ OCP

Panasonic AK-HVF75GJ viewfinder

Panasonic SHAN-TM700 tripod plate

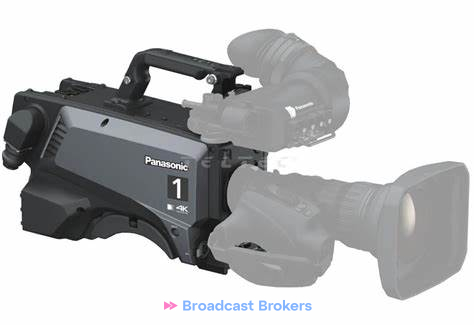

The Panasonic AK-UC3300GSJ is a 4K studio camera designed for high-quality broadcast and professional AV applications.

Camera Unit

• Sensor: 11.14-megapixel MOS sensor

• Sensitivity:

  • High Sensitivity Mode: F10 (59.94 Hz) / F11 (50 Hz) at 2,000 lux, 3,200 K

  • Normal Mode: F6 (59.94 Hz) / F7 (50 Hz)

• Signal-to-Noise Ratio: ≥62 dB

• Horizontal Resolution:

  • HD: ≥1,000 TV lines

  • 4K: ≥2,000 TV lines (with compatible Camera Control Units)

• Gain Settings: −6 to +36 dB in 3 dB increments

• Shutter Speeds: 1/48 to 1/2,000 sec, with various frame rate options

• Optical Filters: Clear, 1/4, 1/16, 1/64

• Lens Mount: 2/3-type bayonet

Video Formats & Frame Rates

• 4K UHD: 3840 x 2160p at 23.98/25/29.97/50/59.94 fps

• Full HD: 1920 x 1080p at 23.98/25/29.97/50/59.94 fps (1x / 2x)

• HD: 1280 x 720p at 50/59.94 fps

• High-Speed Shooting: Supports 2x HD high-speed shooting in 1080p, 1080i, and 720p modes

Connectivity & I/O

• Video Outputs:

  • 2x 3G-SDI (BNC)

  • 1x AUX (switchable between HD Trunk and Prompter 2)

  • 1x Genlock IN / Prompter OUT (BNC)

• Audio Inputs:

  • 2x XLR 3-pin (MIC/LINE, +48V switchable)

  • 1x Front MIC (XLR 3-pin, switchable with MIC 1)

• Intercom: 2x XLR 5-pin

• Headphone Output: 1x 3.5mm mini jack

• Other I/O:

  • 1x Optical Fiber (LEMO)

  • 1x Ethernet (RJ-45)

  • 1x Lens (12-pin)

  • 1x Viewfinder (20-pin)

  • 1x Remote (10-pin)

  • 1x Trunk (12-pin)

  • 1x External I/O (20-pin, DC 12V, 0.5A)

  • 1x DC IN (4-pin XLR, 12V)

  • 1x DC OUT (12V, 1A)

  • Power & Environmental

• Power Supply:

  • DC 12V (via external power supply)

  • AC 240V, 50/60Hz (when connected to AK-UCU600 series CCU)

• Power Consumption:

  • 119W (maximum, with external 12V)

  • 170W (maximum, with AK-UCU600 series CCU)

• Operating Temperature: –10°C to 45°C (14°F to 113°F)

• Storage Temperature: –20°C to 60°C (–4°F to 140°F)

• Operating Humidity: 85% or less (relative humidity)

• Dimensions (W x H x D): 151 mm x 267 mm x 374 mm (5-31/32 inches x 10-17/32 inches x 14-23/32 inches)

• Weight: Approx. 4.3 kg (9.46 lbs) (body only, excluding accessories)
