CALREC BRIO 36

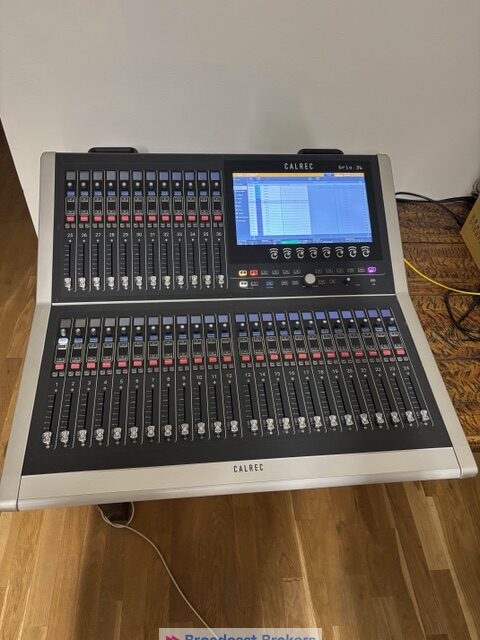

The Calrec Brio 36 is a compact, professional digital audio mixing console designed for broadcast production and OB environments. It combines a 36-fader surface with powerful DSP mixing architecture and flexible I/O options.

DSP & Audio Architecture

Operating sample rates: 44.1, 48, 88.2, 96 kHz (full features available at all rates).

DSP legs (standard):

• 64 mono-equivalent legs (configurable as input channels / outputs / buses).

Assignable DSP paths:

Up to 64 legs as mono, stereo or 5.1 input channels.

36 legs for mains/groups (max 4 mains, 8 groups).

24 legs for auxes (mono or stereo).

64 legs assignable as insert sends & returns.

64 legs assignable as direct or mix-minus outputs.

Control Surface

36 × dual-layer motorised 100 mm faders with PFL overpress.

1 user-assignable rotary control per strip.

2 user-assignable buttons per strip.

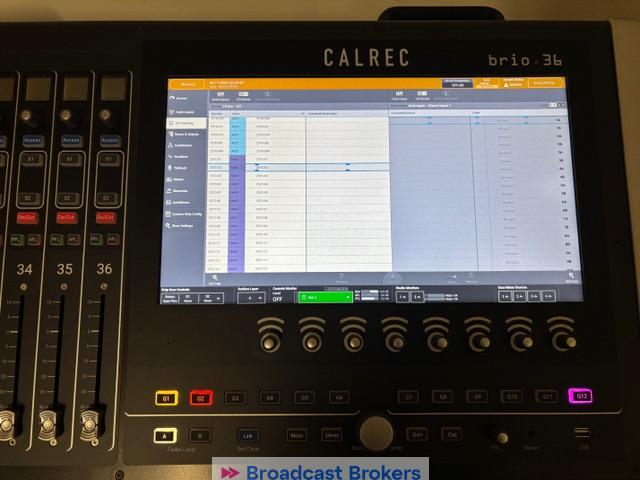

Intuitive multi-touchscreen UI with dedicated rotary controllers for parameter control.

Mixing & Processing Features

EQ & Dynamics

6-band EQ on every input, group, aux, and main path:

• 4-band full PEQ

• 2-band LF/HF filters (12 dB/24 dB-oct).

Full dynamics per path including:

• Expander/Gate/Ducker (sidechain EQ, key inputs)

• Compressor & multi-band compressor.

Aux and Main paths have dedicated dynamics.

Automatic Features

Automatic Mix-Minus and Off-Air Conference bus for mix-minus control.

Automixers available for mono inputs and groups.

Path delay available on every path.

Monitoring & Metering

3 monitor outputs.

Surround-capable metering within each strip.

Configurable meter screen output (e.g., DVI).

Comprehensive loudness metering.

I/O Connectivity

Built-in I/O

24 × analogue Mic/Line inputs (XLR).

16 × analogue line outputs (XLR).

8 × AES3 digital inputs (BNC) with SRC.

8 × AES3 digital outputs (BNC).

8 GPI + 8 GPO via 9-pin D-SUB connectors.

Expansion

3 × double-sized expansion slots for modular I/O cards.

Optional Hydra2 module for networked I/O or external I/O connectivity.

Optional SFP packs (single-mode, multimode, bi-directional, copper) depending on slot configuration.

Remote & Control Protocols

Front-end control via GPI/GPO.

Supports remote mixer control protocols (e.g., SW-P-08, CSCP, EMBER+).

AutoFaders for audio-follows-video operation.

Hardware & Performance

Self-contained core: Power, router, control processor, DSP in one chassis.

Redundant PSU capability (dual IEC).

Operating with low power consumption and efficient heat design for broadcast environments.

Physical Specs

Dimensions: approx. 892 mm × 892 mm × 270 mm (W × D × H).

Motorised faders, compact surface suitable for OB vans and
