ARRI MASTER GRIP

ARRI MASTER GRIP Set without motors

What you see on pictures is what is available

The ARRI Master Grips are advanced electronic control handgrips designed for precise handheld operation of cameras and lenses. They are particularly suited for ARRI ALEXA and AMIRA cameras but are also compatible with third-party systems when paired with appropriate accessories.

 Key Technical Specifications

• Control Features:

  • Focus, iris, and zoom control

  • Start/stop recording

  • Adjustable motor speed and zoom response

  • Motor limits (focus/iris range)

  • Assignable user buttons (up to 6 per grip)

  • Touchscreen lock (TCH LCK)

  • Multilingual interface (English, Chinese, Spanish, German)

• Connectivity:

  • 2x LEMO 4-pin (LBUS) inputs

  • Compatible with ARRI cforce motors, EF/ENG lenses, and servo zooms

  • Camera control via LCUBE CUB-1 (for third-party cameras)

• Power Requirements:

  • 12–34 VDC

  • Approximately 30 mA

• Mounting:

  • ARRI/Hirth rosette

  • Compatible with standard pan arms and rod mounts

• Construction:

  • Lightweight magnesium alloy housing

  • Ergonomic design for comfort during extended use

• Environmental Conditions:

  • Operating temperature: -20°C to 50°C

  • Storage temperature: -30°C to 70°C

  • Dimensions and Weight:

  • Dimensions: 172.7 × 101.6 × 81.3 mm

  • Weight: 380 g

 Available Models

ARRI offers four Master Grip variants:

• Right-Hand Grip with Rocker (MRR-1): Ideal for zoom control.

• Left-Hand Grip with Wheel (MLW-1): Suited for focus or iris adjustments.

• Right-Hand Grip with Wheel (MRW-1): For focus or iris adjustments.

• Left-Hand Grip with Rocker (MLR-1): For zoom control.

These grips can be used individually or paired for two-handed operation.

 Accessories and Compatibility

• LCUBE CUB-1: Enables camera control for third-party systems.

• Handgrip Extensions: Available in 80 mm, 160 mm, and 240 mm lengths for added flexibility.

• Pan Arm Adapters: Compatible with Sachtler, O’Connor, and Vinten systems.

• Rod Mounting Bracket RMB-4: Attaches to AMIRA cameras for lens motor support.

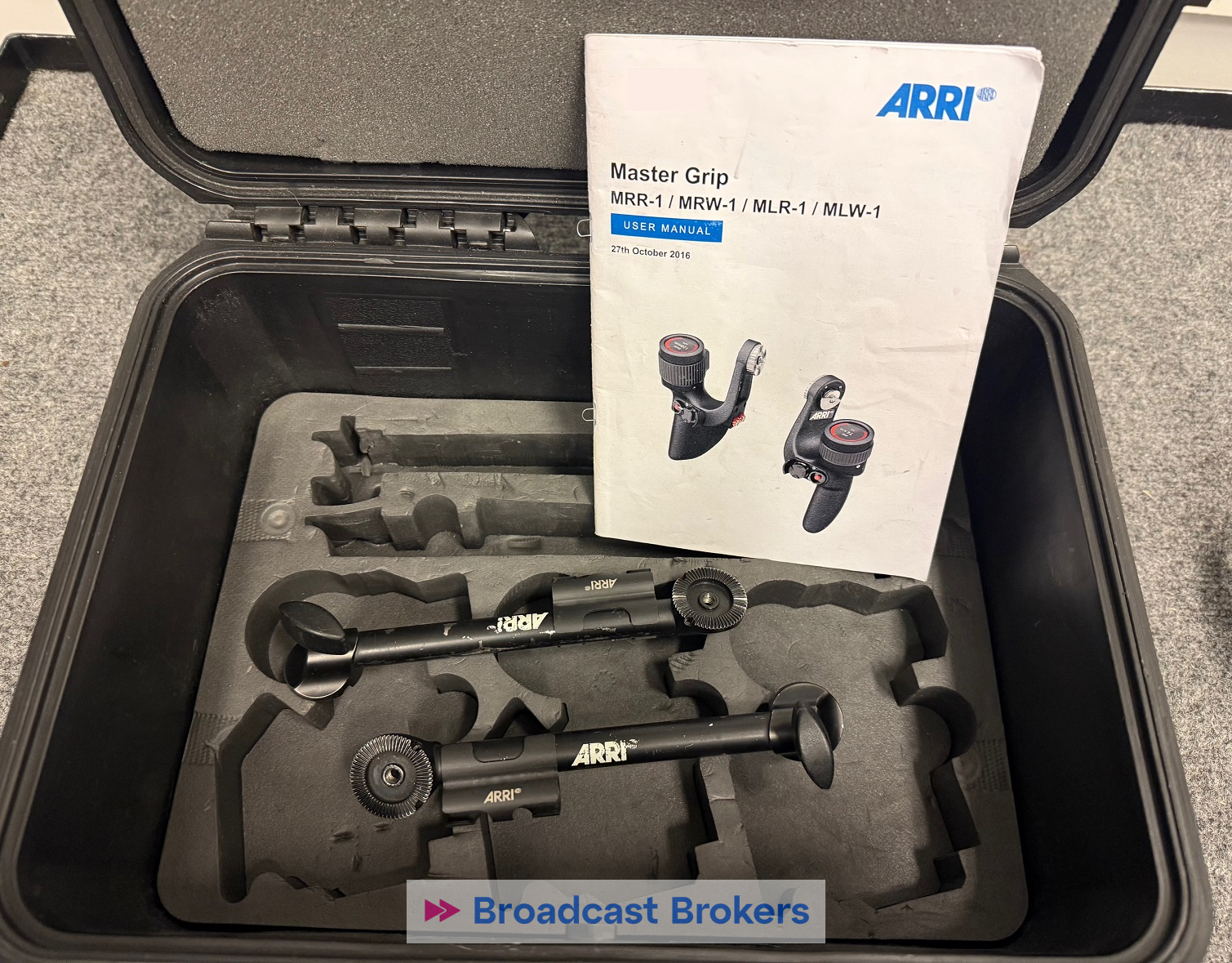

 Storage and Transport

ARRI provides a custom-designed case that accommodates:

• Two Master Grips

• Three motors

• Handgrip extensions

• LCUBE converters

• Cables
