SAMYANG XEEN CINEMA E-Mount : 14,35,24,50,85,135mm metric

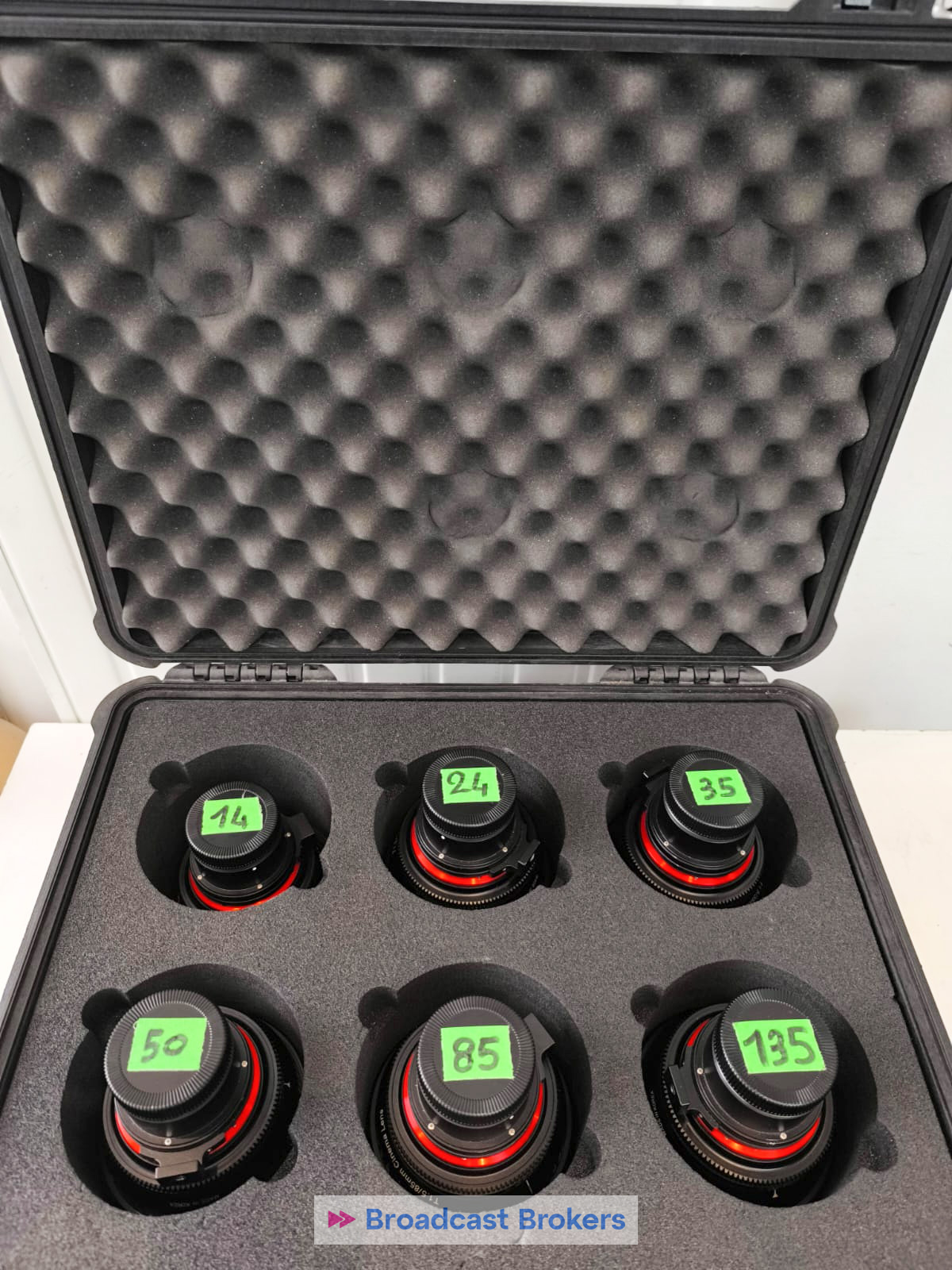

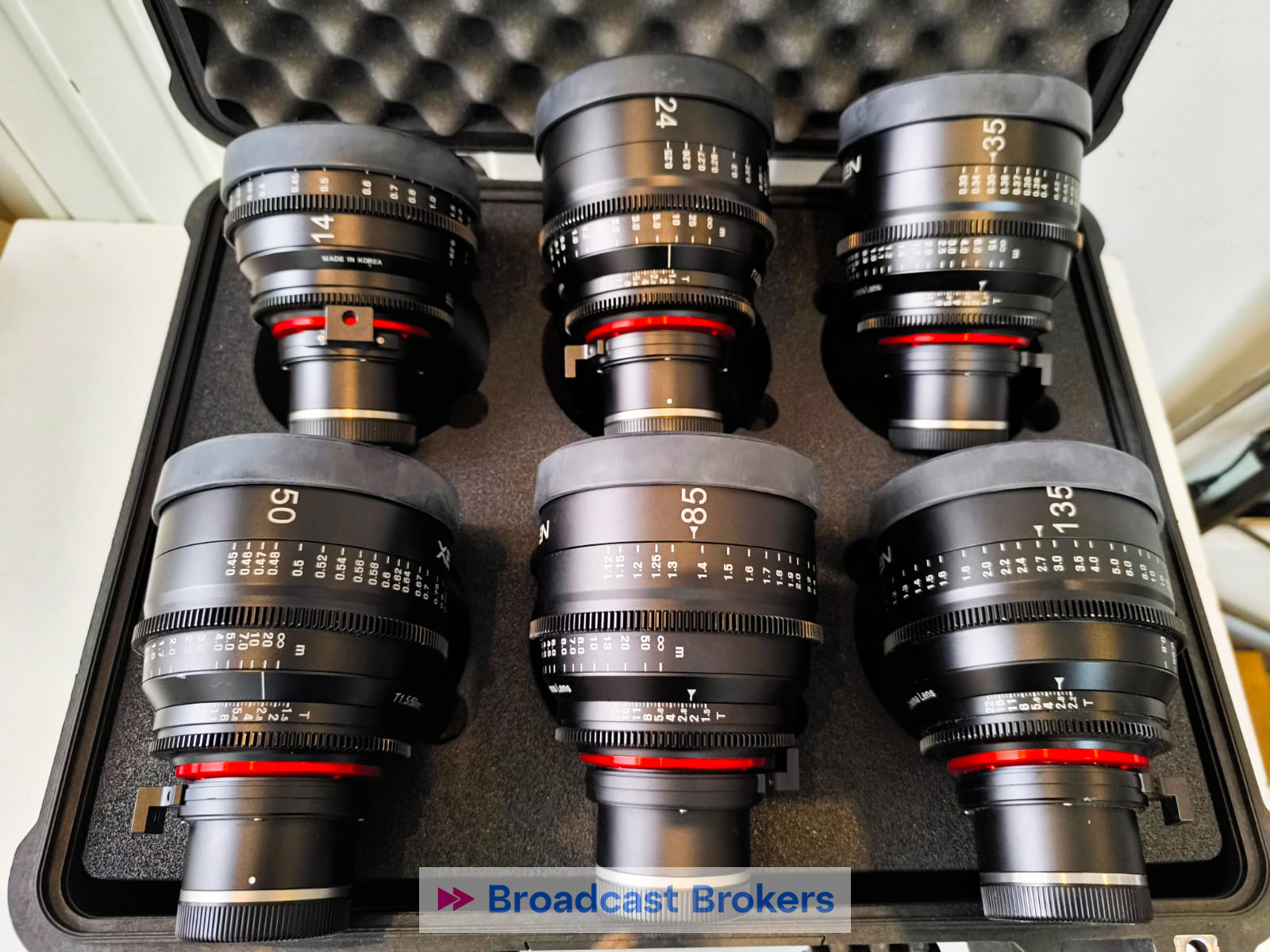

E-mount prime lenses x6 :

XEEN T3.1/14mm
XEEN T1.5/35mm
XEEN T1.5/24mm
XEEN T1.5/50mm
XEEN T1.5/85mm
XEEN T2.2/135mm

The Samyang XEEN Cinema E-Mount lenses are designed for high-performance cinema production, offering a wide range of focal lengths. Here’s a breakdown of the technical details for each of the focal lengths (14mm, 35mm, 24mm, 50mm, 85mm, and 135mm) in the XEEN Cinema series:

General Features:

• Mount Type: E-Mount (Sony Full-frame and Super 35mm sensors)
• Optical Design: Full-frame coverage
• Lens Type: Prime lenses
• Build Quality: Robust metal construction, weather-sealed for durability in various shooting conditions
• Focus: Manual focus only
• Iris: Manual aperture control with a 9-blade circular aperture for smooth bokeh
• Focus Ring: Long focus throw for precise control
• T-stop: The lenses in the XEEN series are marked with T-stops (not F-stops), offering consistent light transmission across all focal lengths

Specific Lens Technical Details:

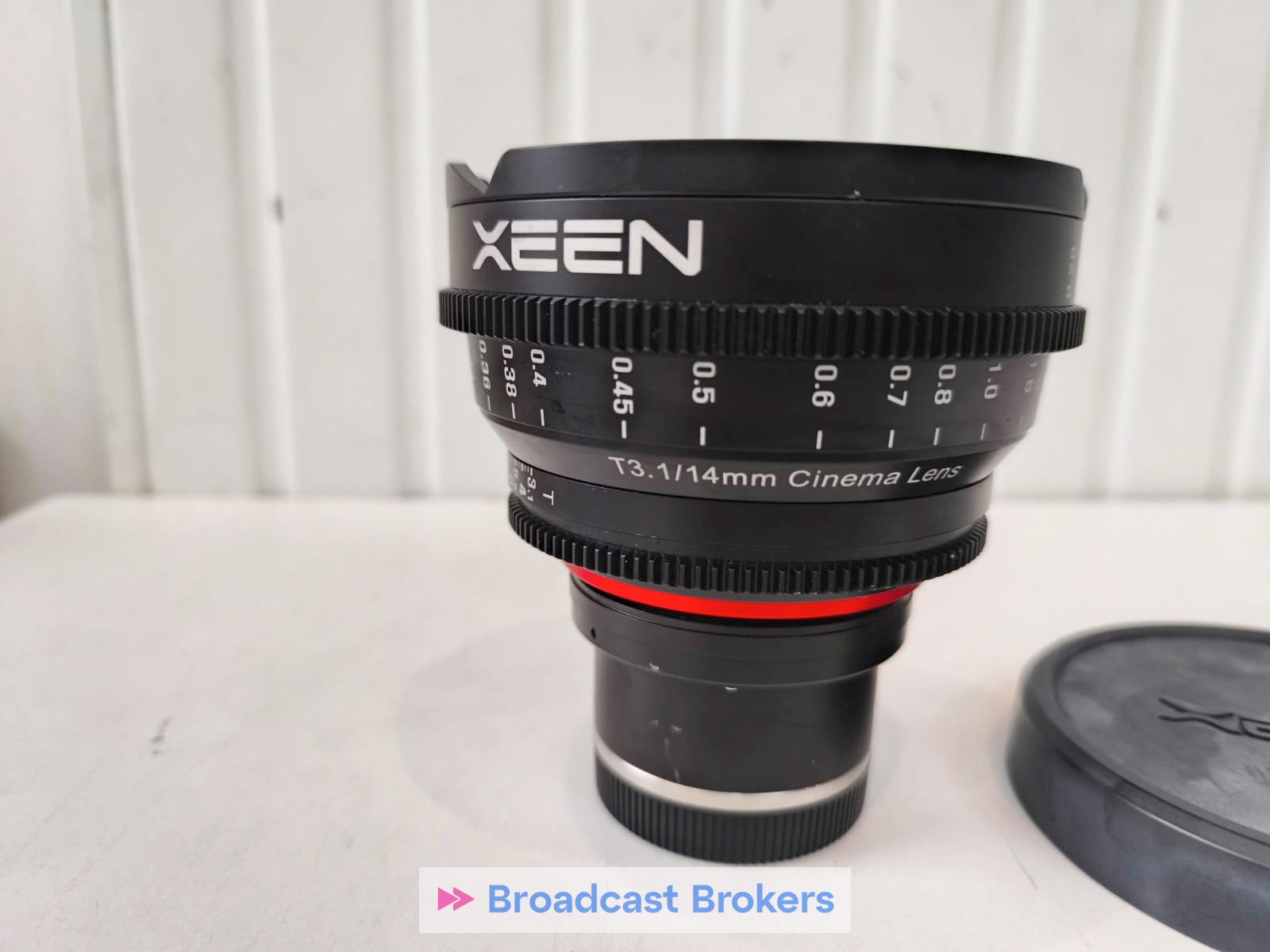

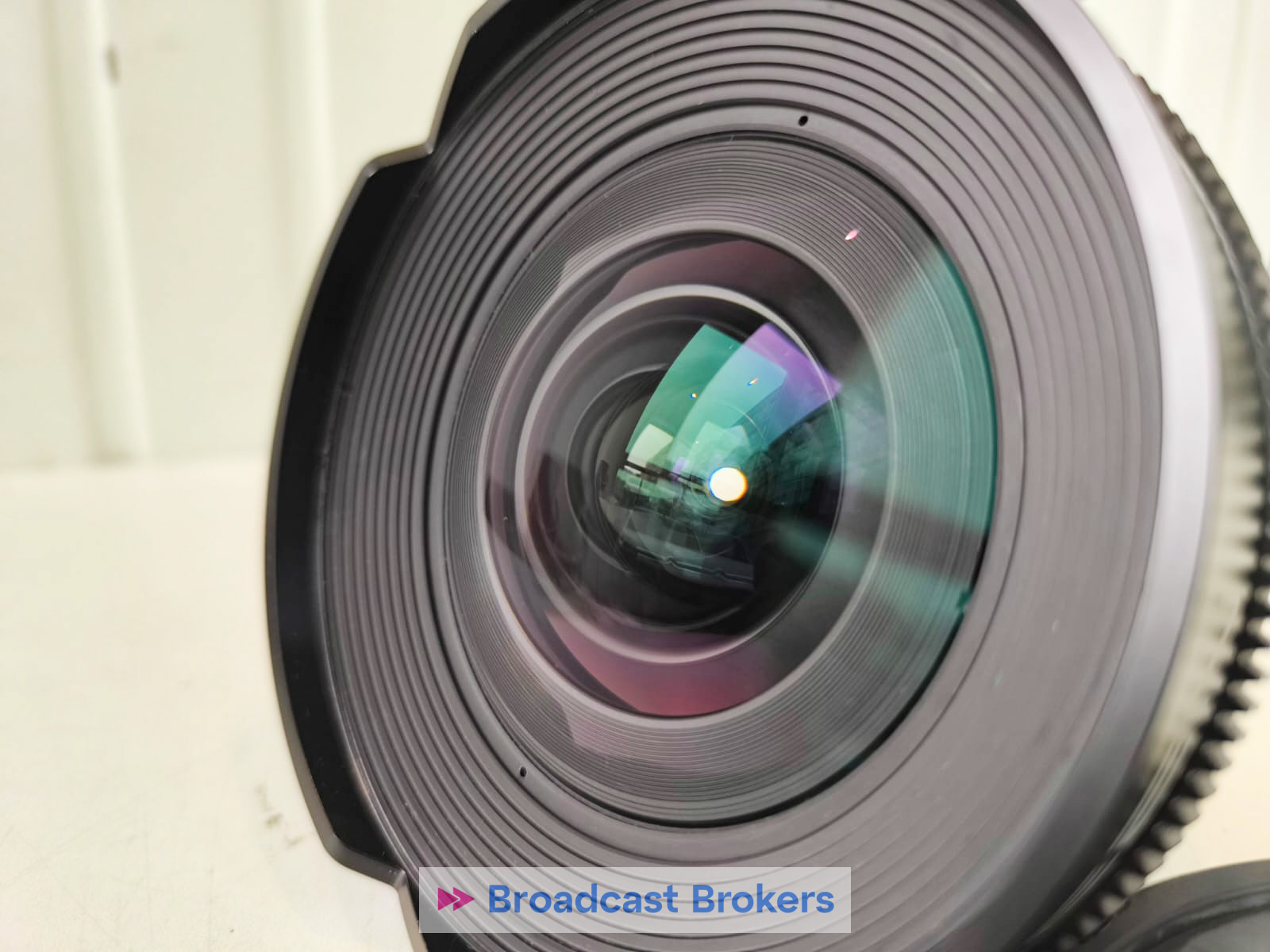

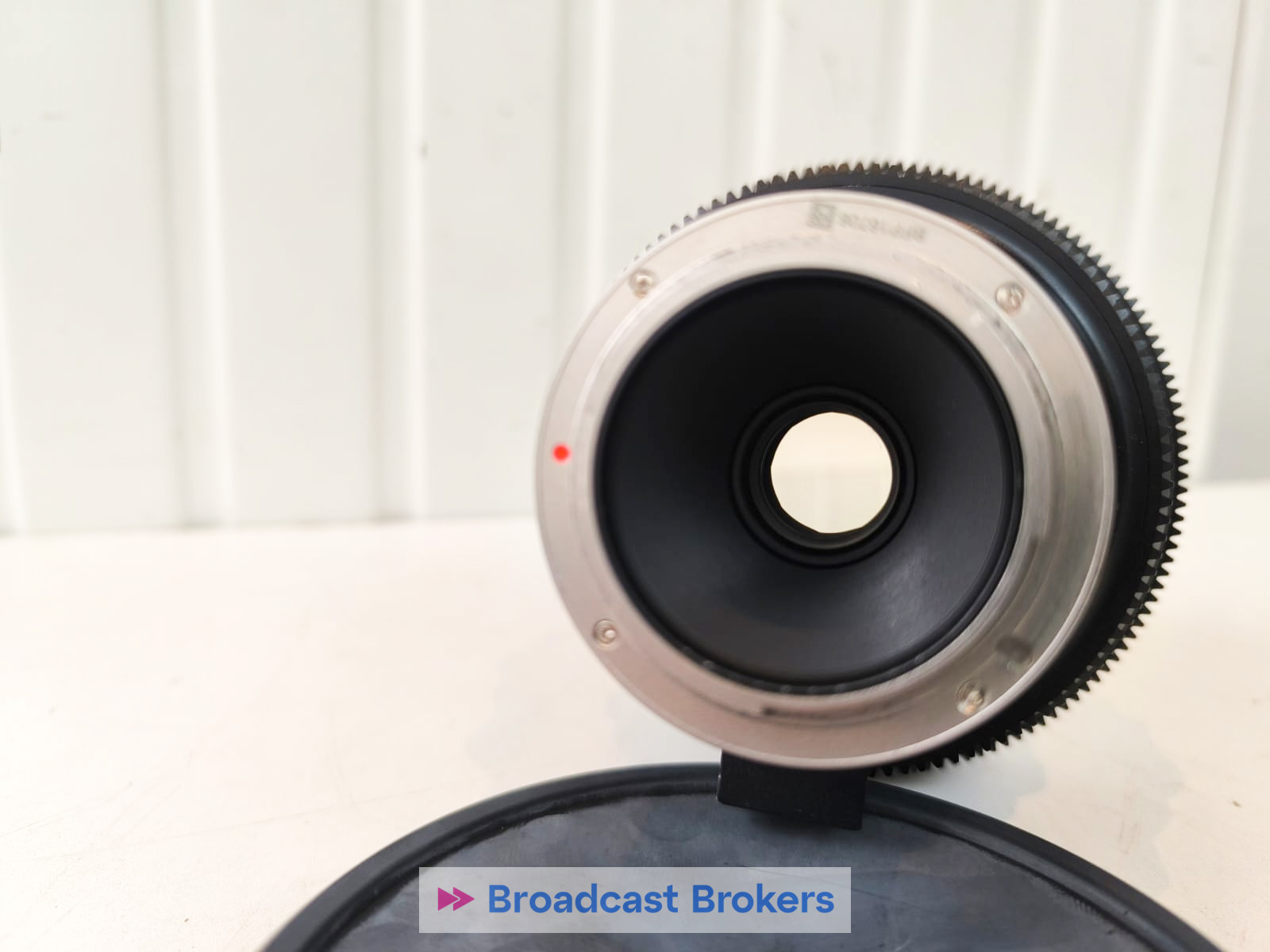

1. 14mm T3.1 XEEN Cinema E-Mount:

• Focal Length: 14mm
• Aperture: T3.1
• Angle of View: 114.9° (full-frame)
• Elements/Groups: 11 elements in 9 groups
• Minimum Focus Distance: 0.28m (28cm)
• Weight: ~1.1 kg
• Lens Type: Ultra-wide angle
• Lens Coating: Ultra Multi Coating (UMC)

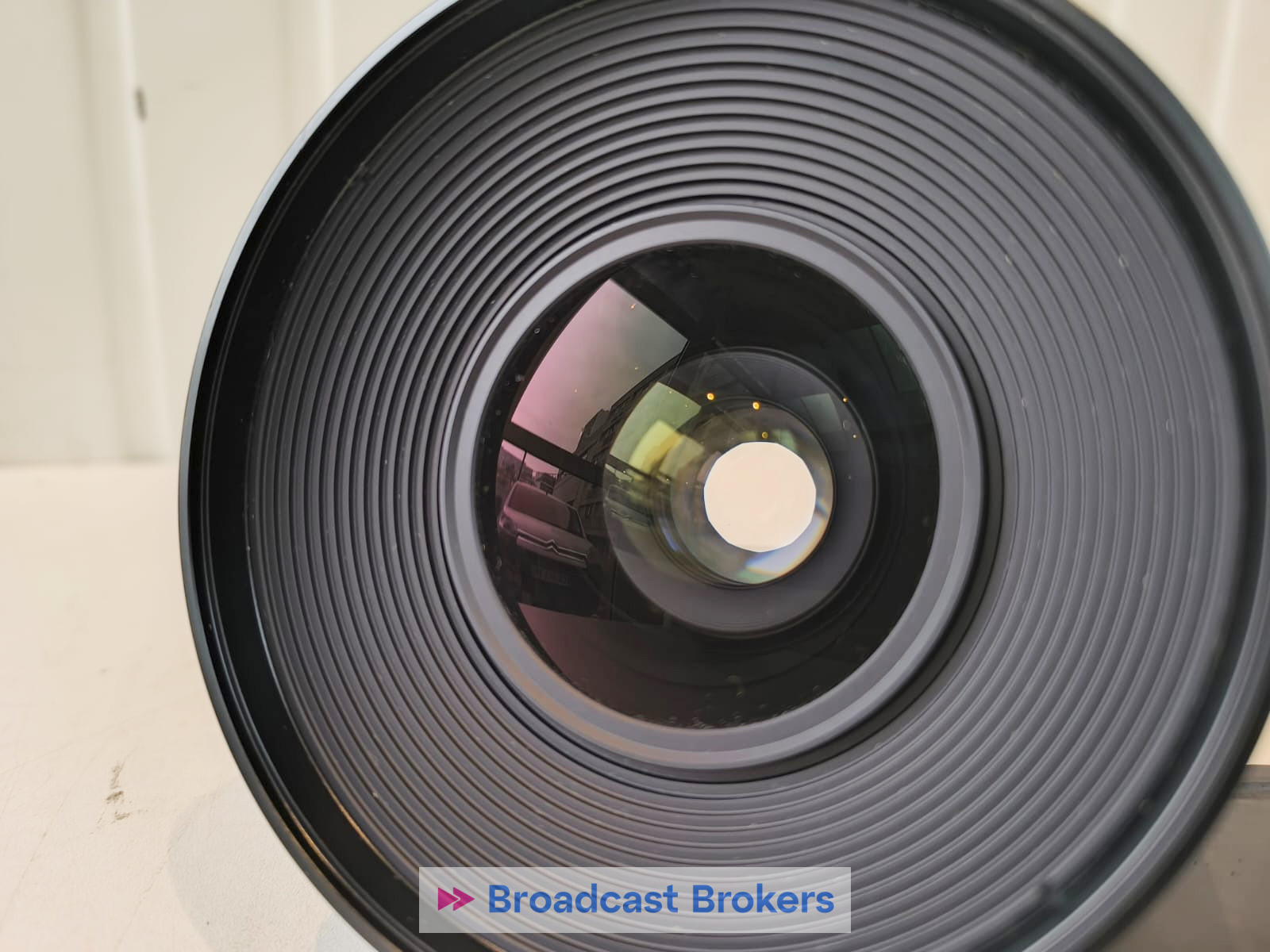

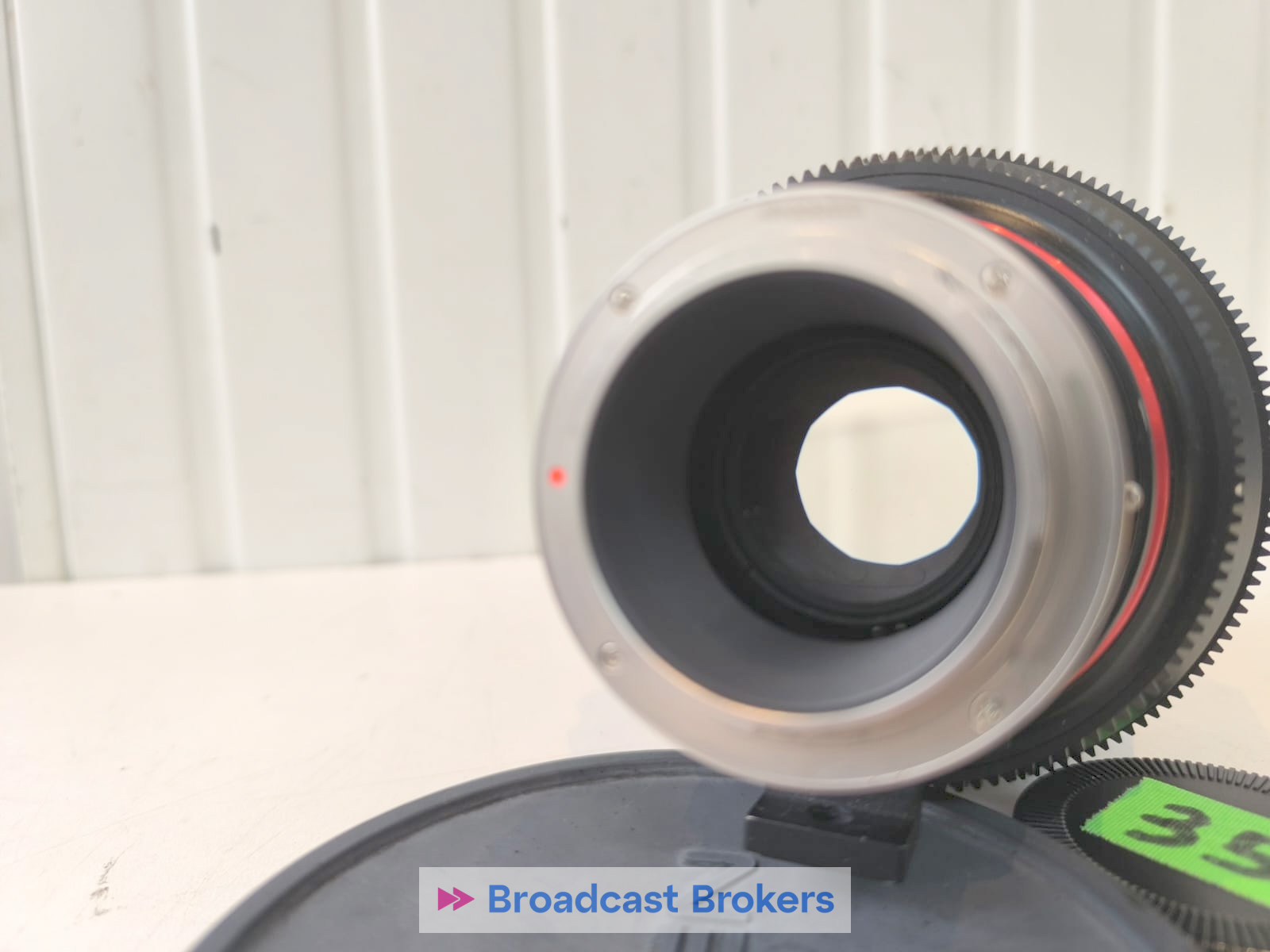

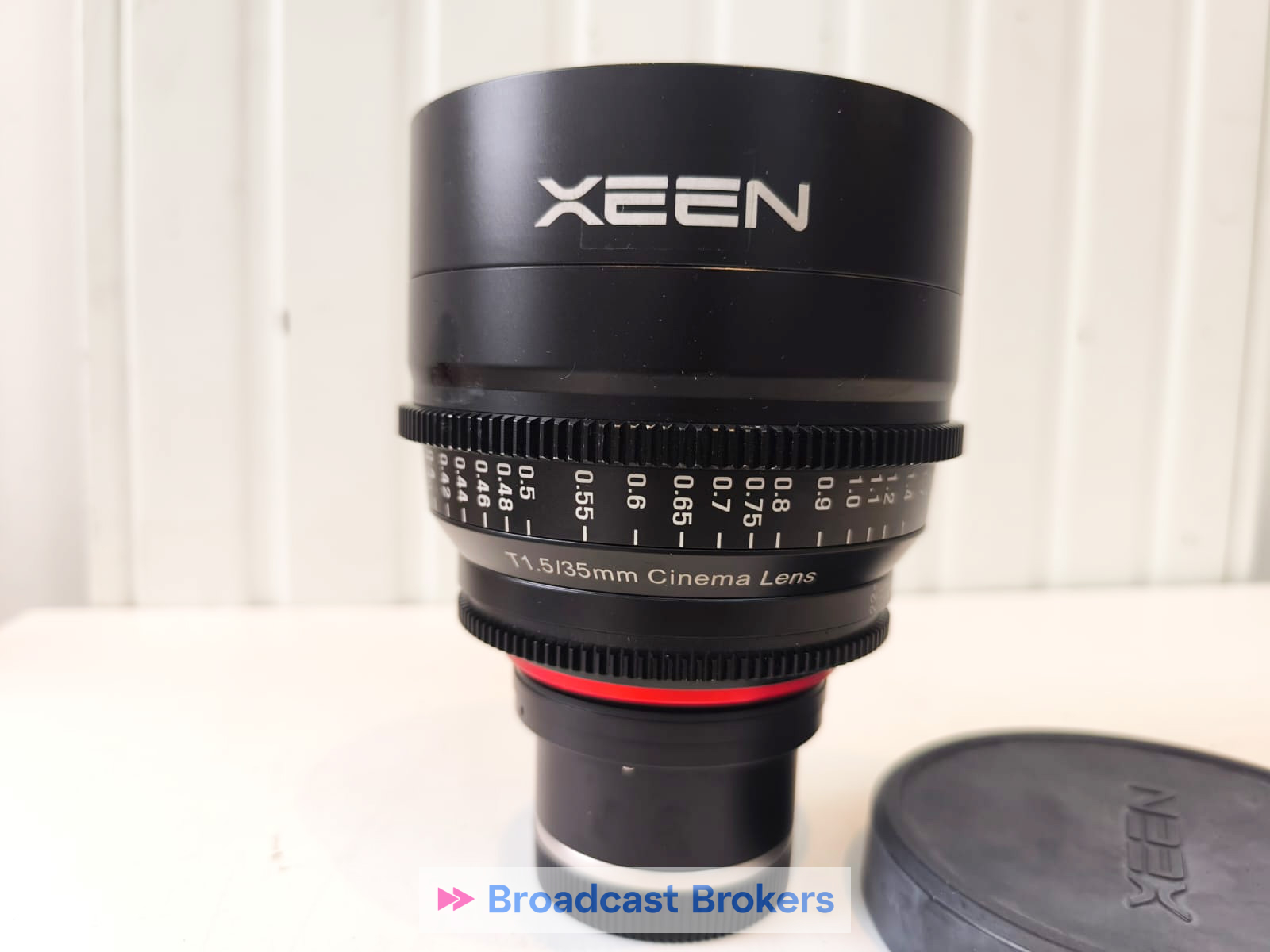

2. 35mm T1.5 XEEN Cinema E-Mount:

• Focal Length: 35mm
• Aperture: T1.5
• Angle of View: 63.1° (full-frame)
• Elements/Groups: 11 elements in 9 groups
• Minimum Focus Distance: 0.3m
• Weight: ~1.1 kg
• Lens Type: Standard wide-angle
• Lens Coating: Ultra Multi Coating (UMC)

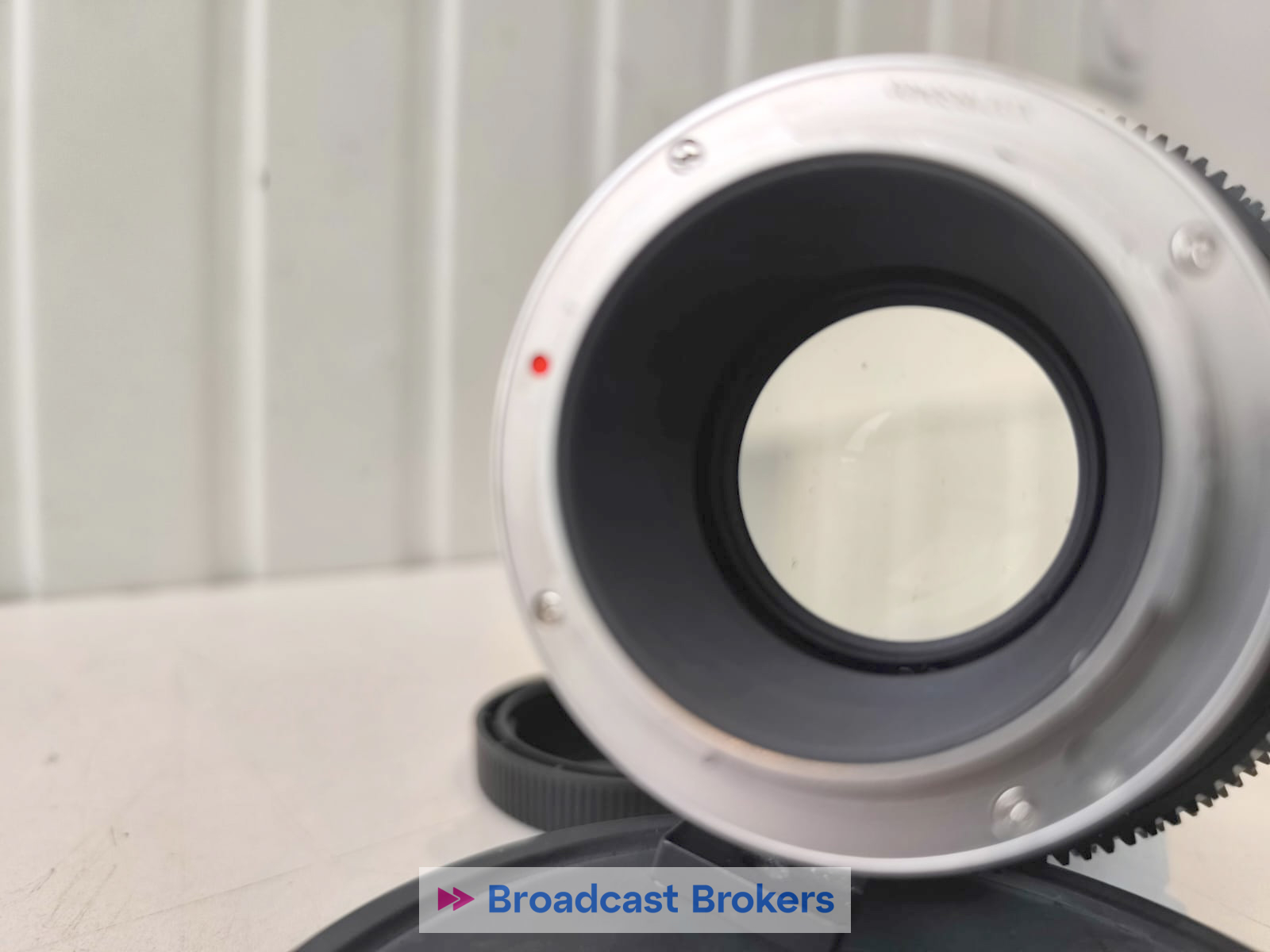

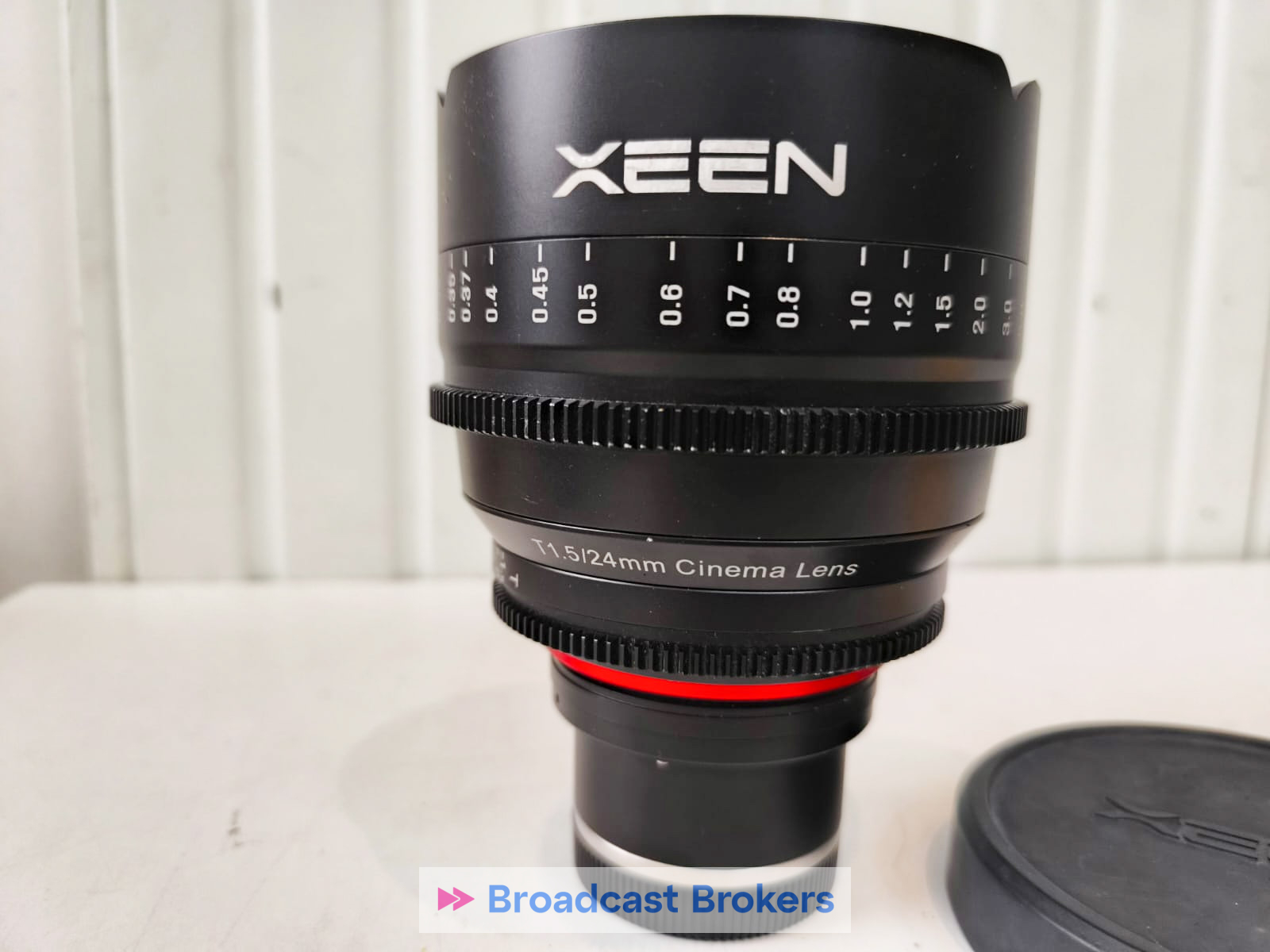

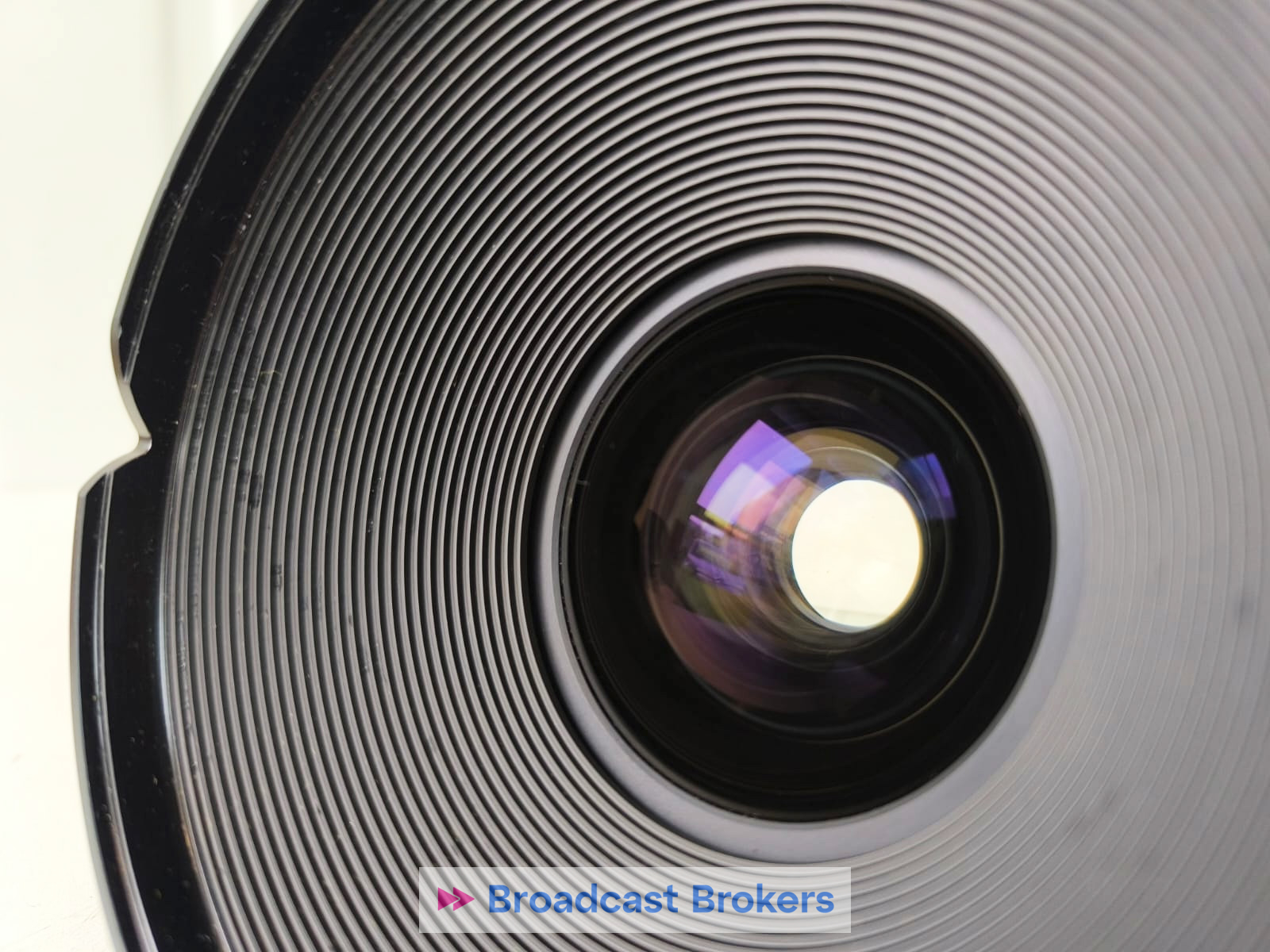

3. 24mm T1.5 XEEN Cinema E-Mount:

• Focal Length: 24mm
• Aperture: T1.5
• Angle of View: 84.1° (full-frame)
• Elements/Groups: 13 elements in 11 groups
• Minimum Focus Distance: 0.25m
• Weight: ~1.1 kg
• Lens Type: Wide-angle
• Lens Coating: Ultra Multi Coating (UMC)

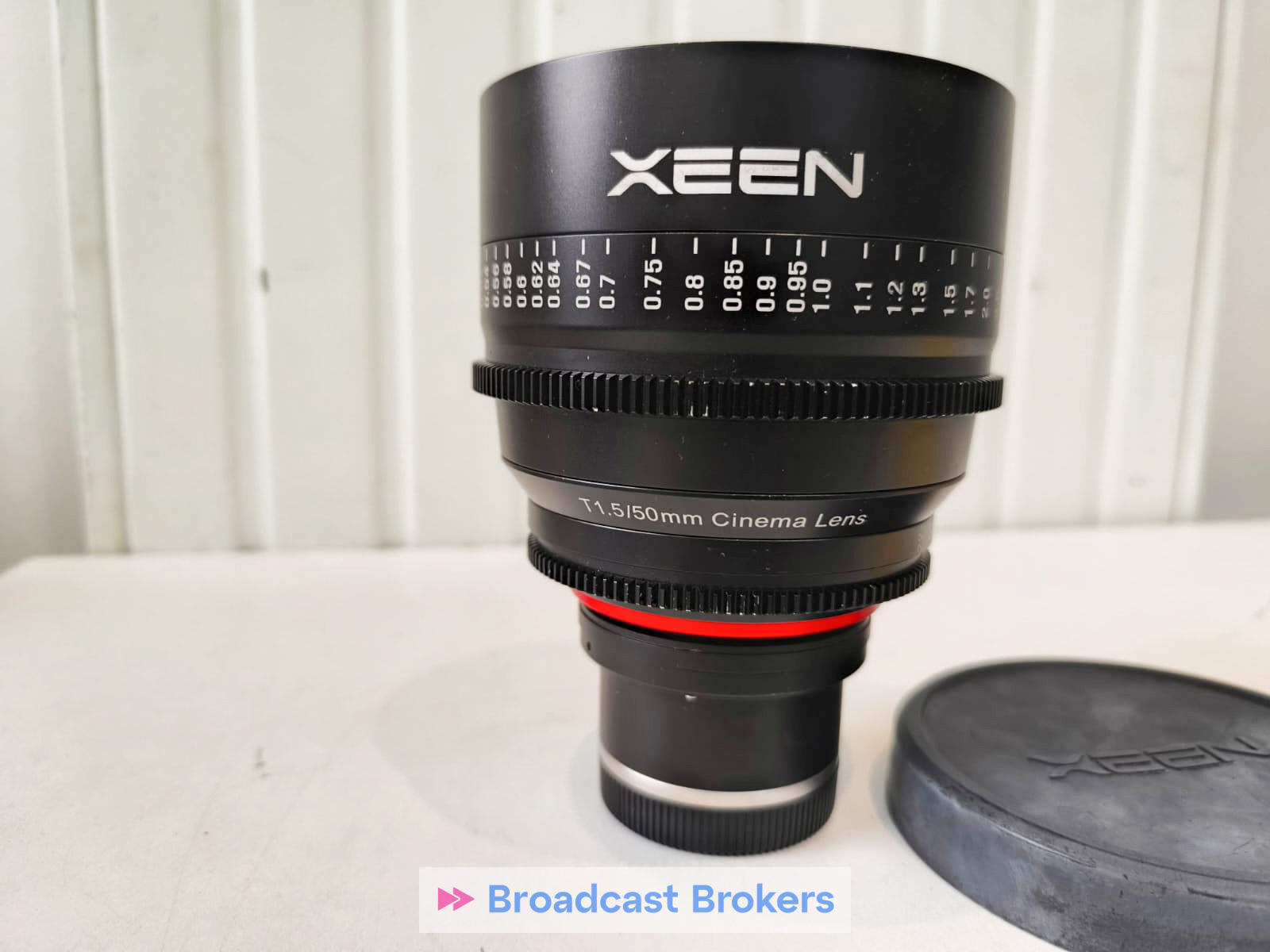

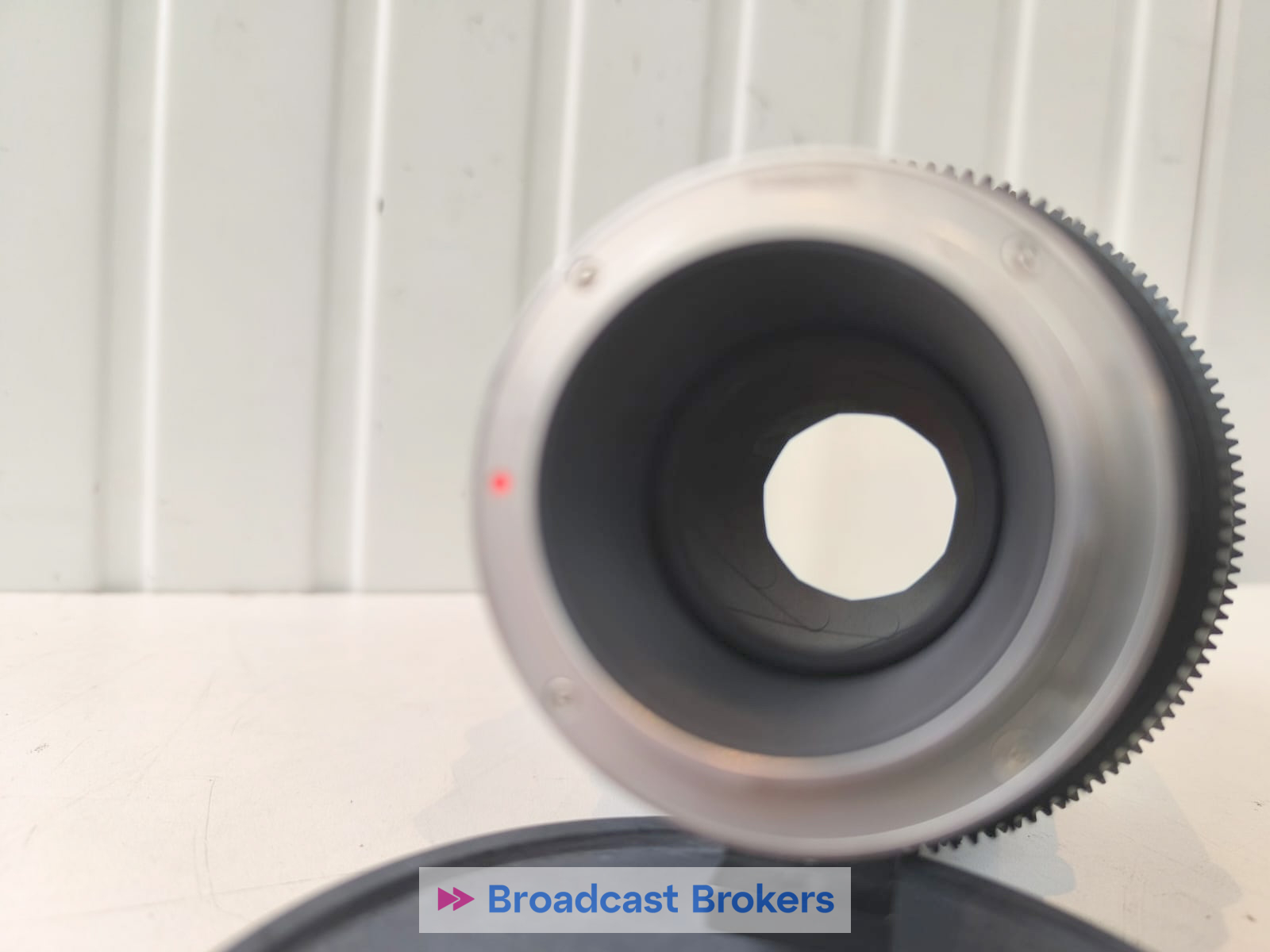

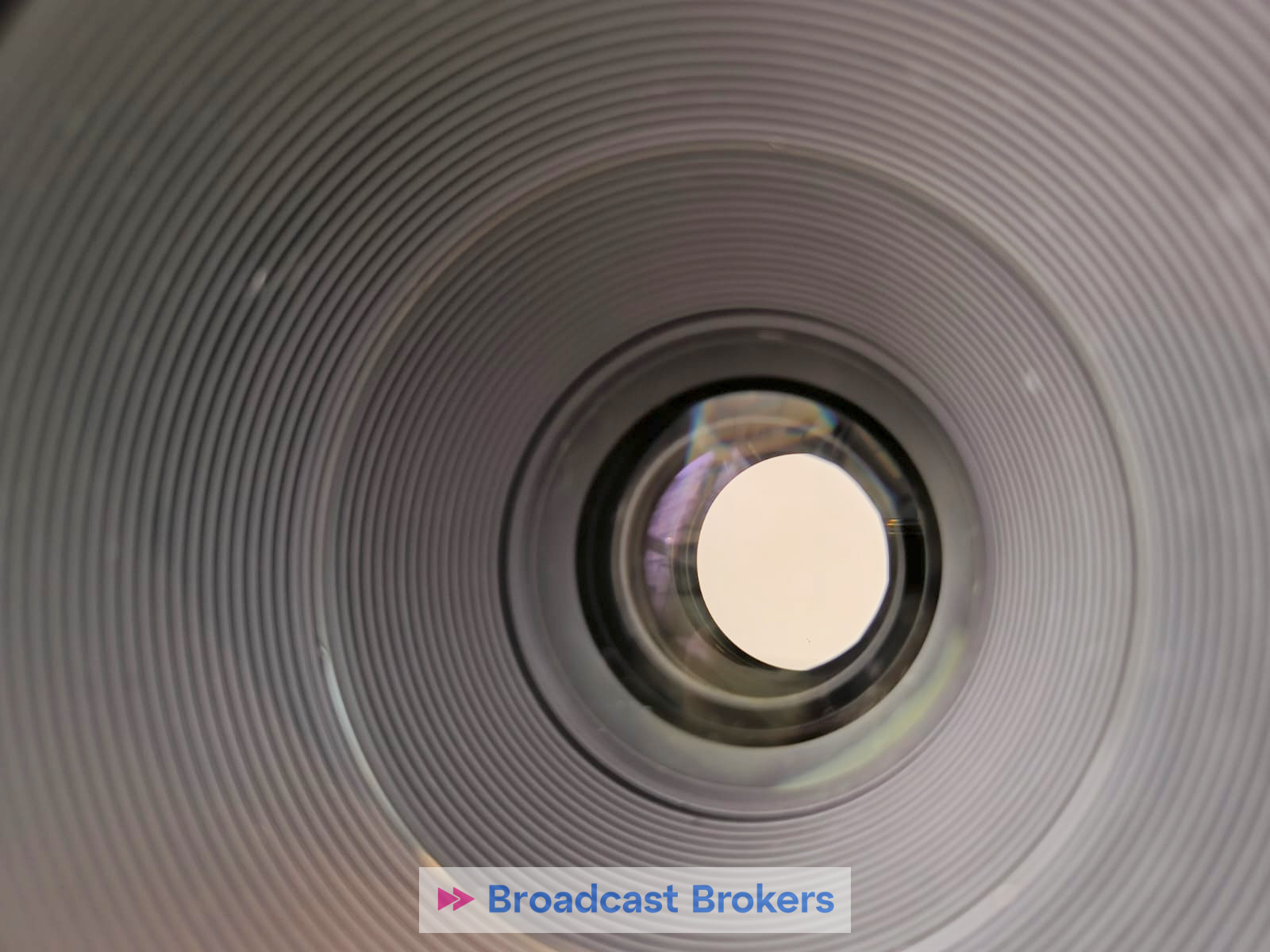

4. 50mm T1.5 XEEN Cinema E-Mount:

• Focal Length: 50mm
• Aperture: T1.5
• Angle of View: 46.2° (full-frame)
• Elements/Groups: 9 elements in 7 groups
• Minimum Focus Distance: 0.5m
• Weight: ~1.1 kg
• Lens Type: Standard prime
• Lens Coating: Ultra Multi Coating (UMC)

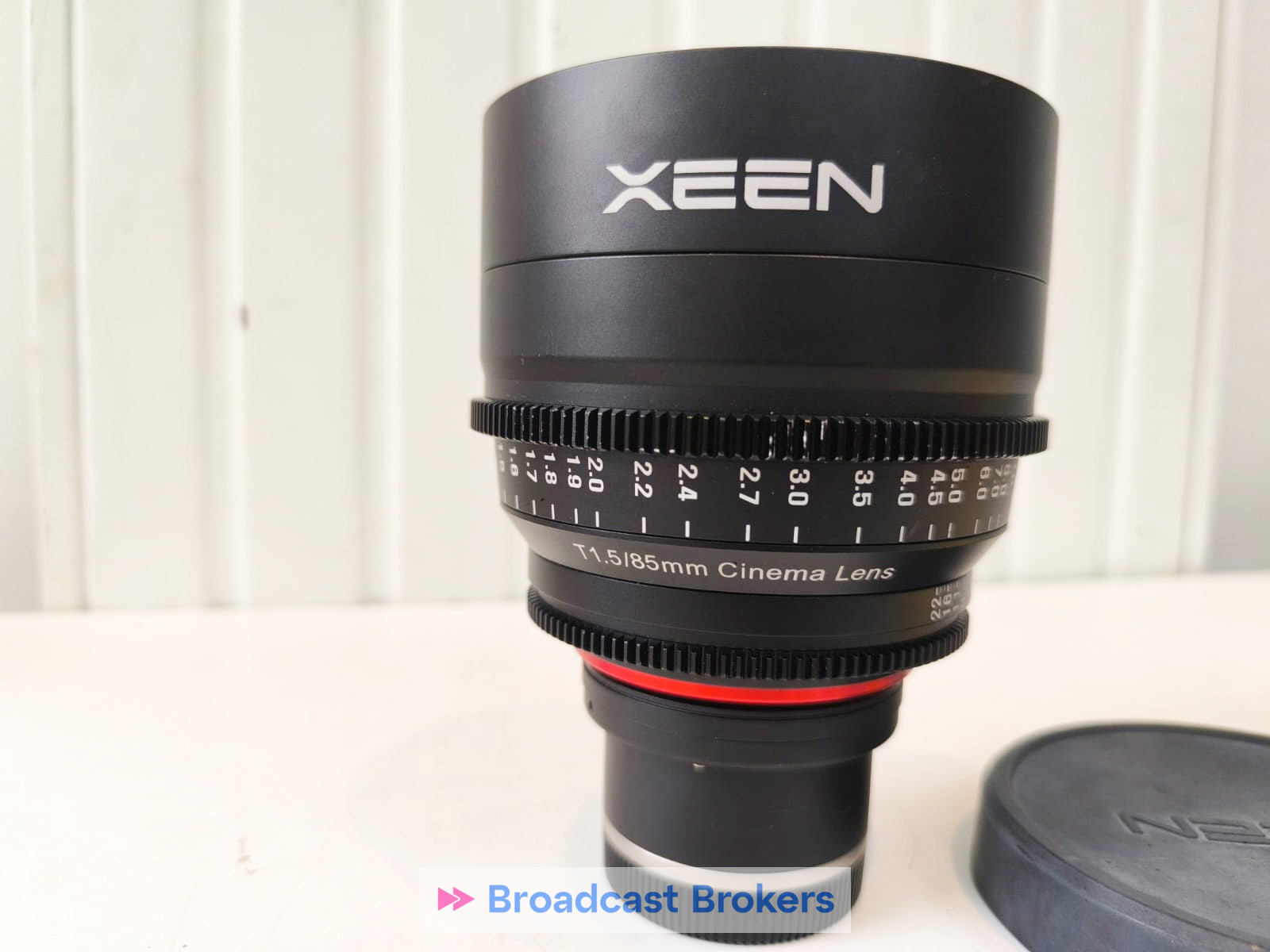

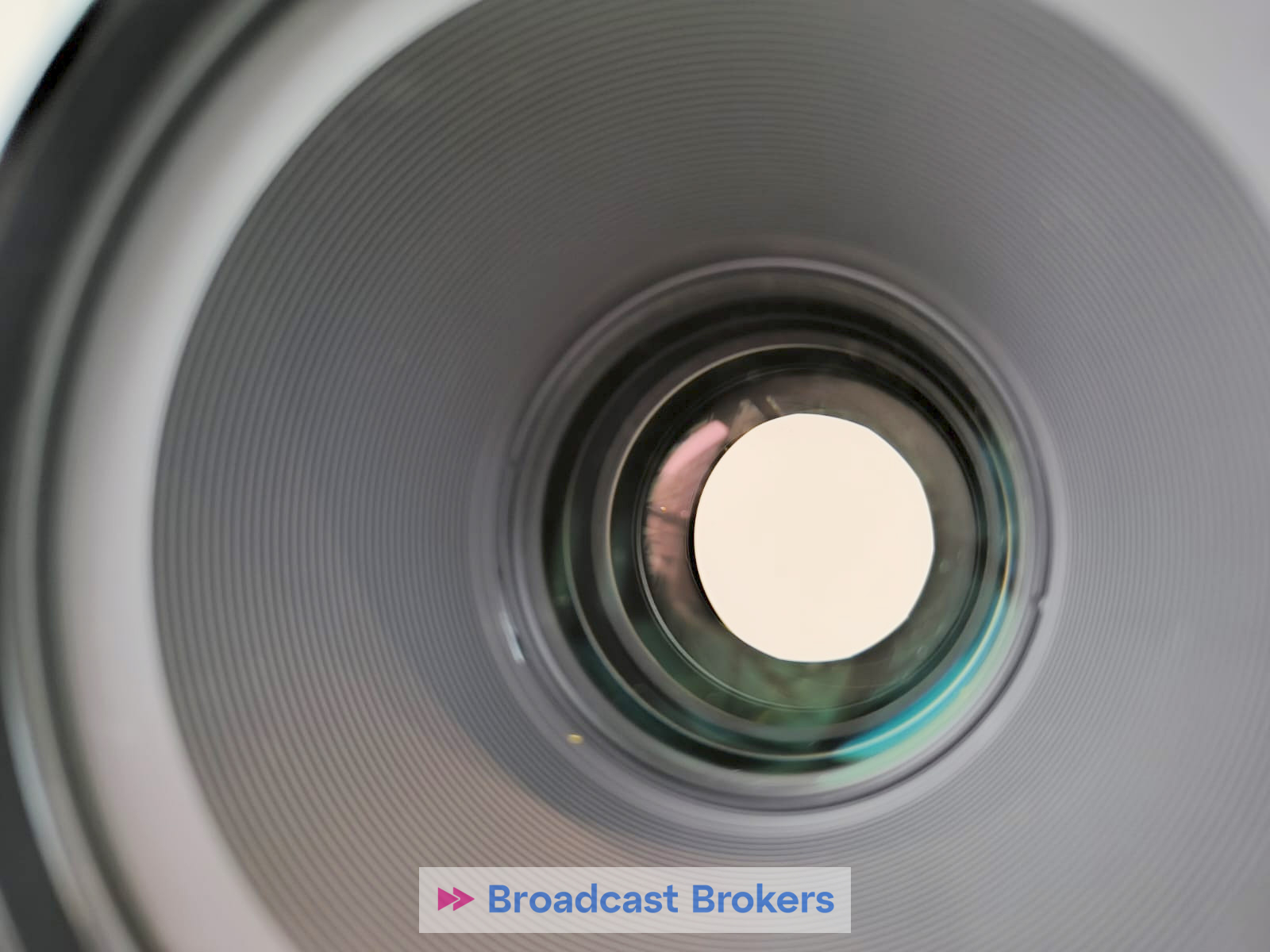

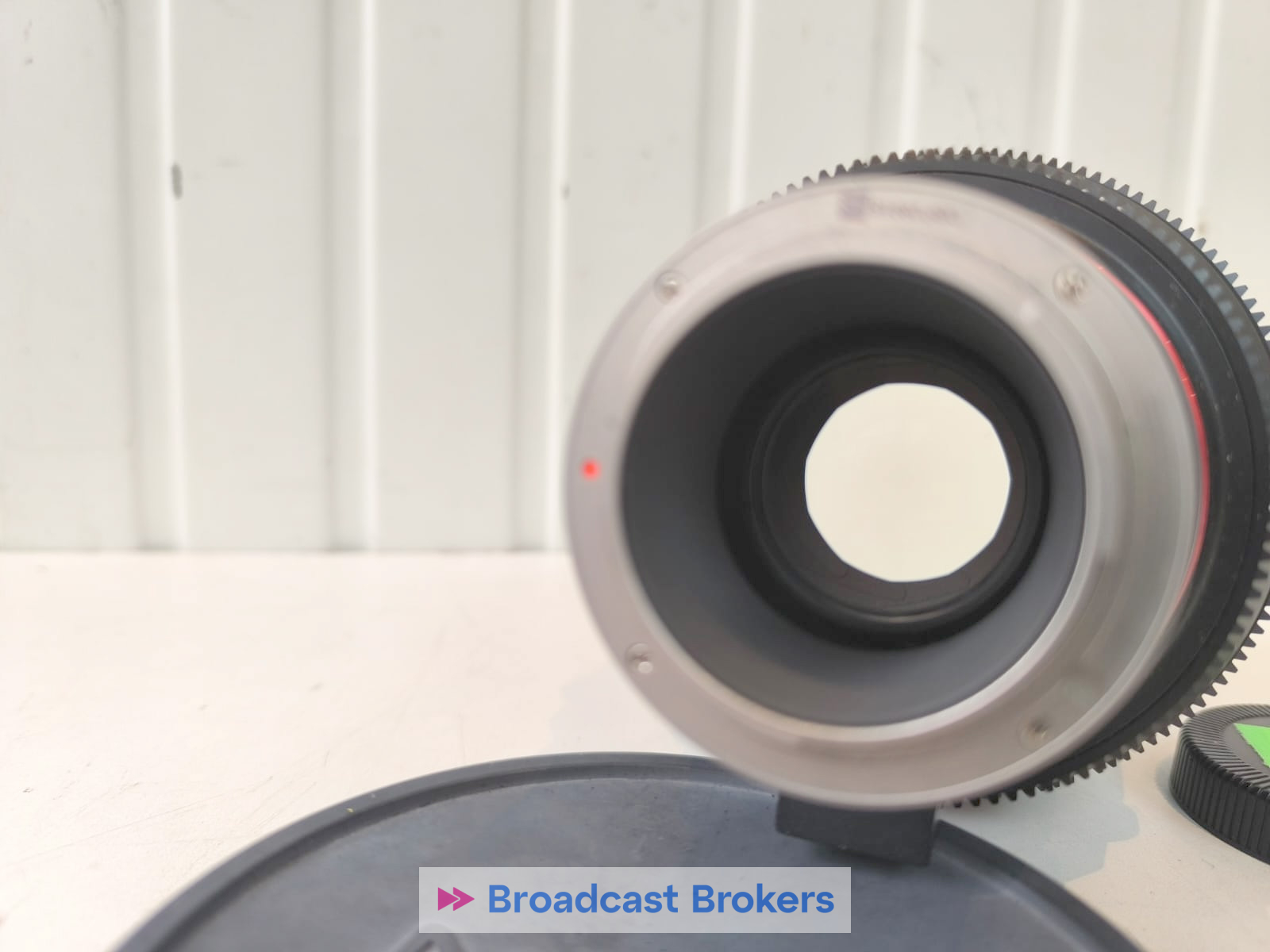

5. 85mm T1.5 XEEN Cinema E-Mount:

• Focal Length: 85mm
• Aperture: T1.5
• Angle of View: 28.4° (full-frame)
• Elements/Groups: 9 elements in 7 groups
• Minimum Focus Distance: 0.9m
• Weight: ~1.1 kg
• Lens Type: Medium telephoto
• Lens Coating: Ultra Multi Coating (UMC)

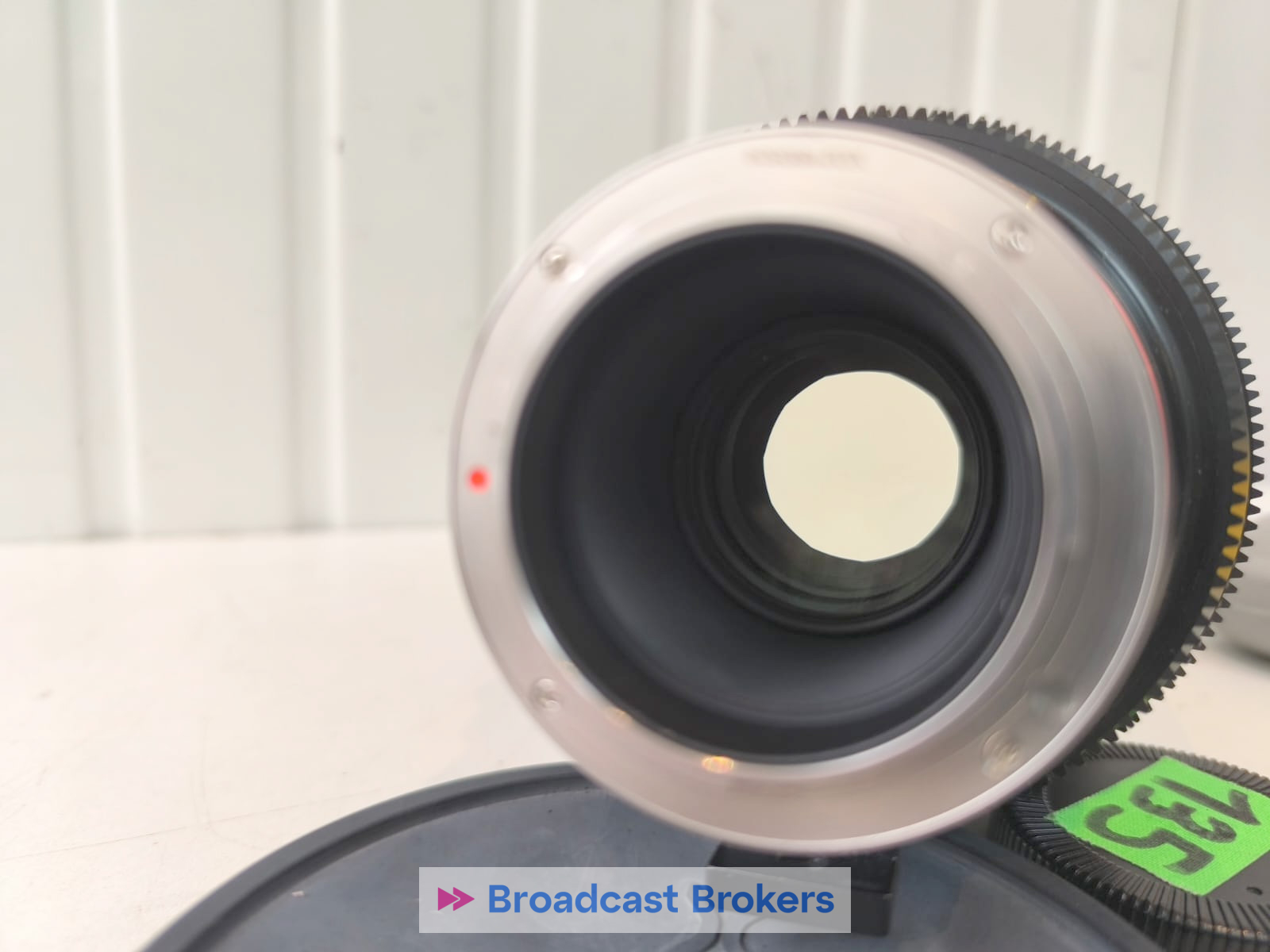

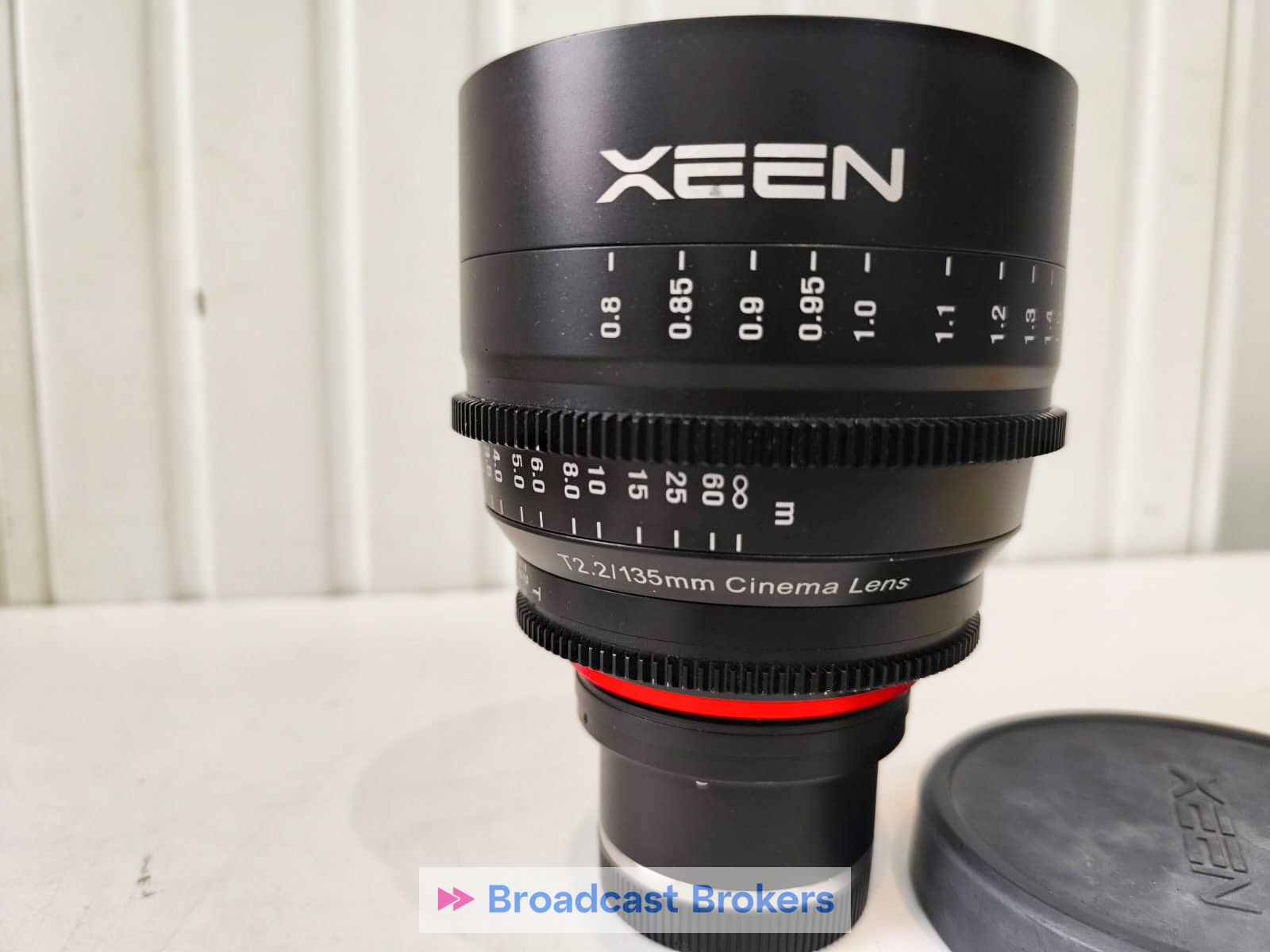

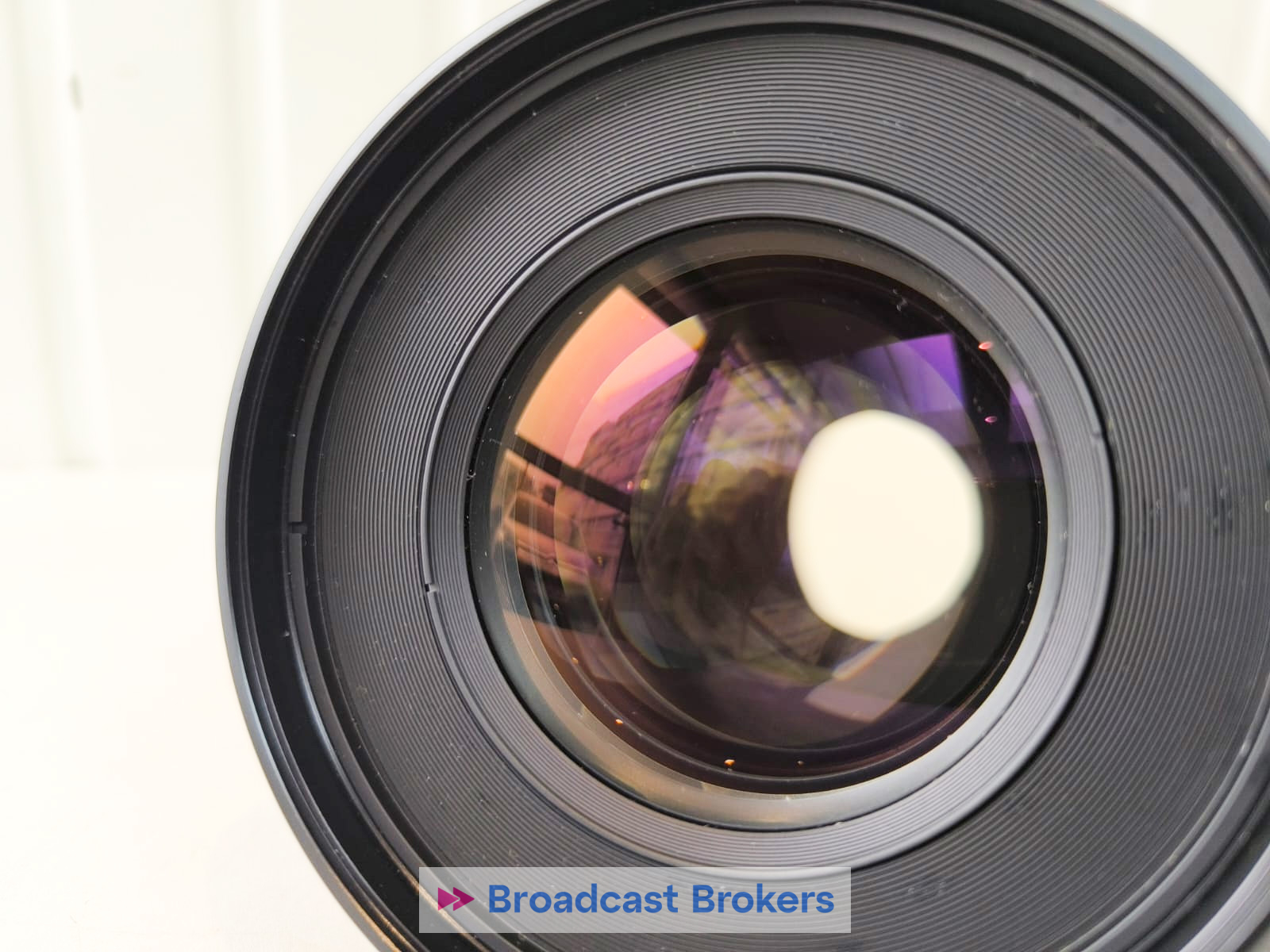

6. 135mm T2.2 XEEN Cinema E-Mount:

• Focal Length: 135mm
• Aperture: T2.2
• Angle of View: 18.8° (full-frame)
• Elements/Groups: 10 elements in 8 groups
• Minimum Focus Distance: 1.5m
• Weight: ~1.2 kg
• Lens Type: Telephoto
• Lens Coating: Ultra Multi Coating (UMC)

Common Features:

• Smooth Iris Control: The aperture ring has de-clicked settings, allowing for smooth adjustments during filming.
• Interchangeable Mounts: Available in PL, EF, and E-mount (with this particular listing focusing on the E-mount version).
• Color Matching: All XEEN lenses are designed to have consistent color rendition across the entire line, ideal for matching lenses in multi-camera setups.
• Focus Breathing: Reduced focus breathing for more consistent composition when pulling focus during shots.

These lenses are designed to be used for cinema and professional video production, offering top-tier image quality, precise manual control, and rugged durability. The T-stop ratings provide accurate light transmission, making them well-suited for low-light conditions and professional cinematography.
