Vinten OSPREY ELITE

Description

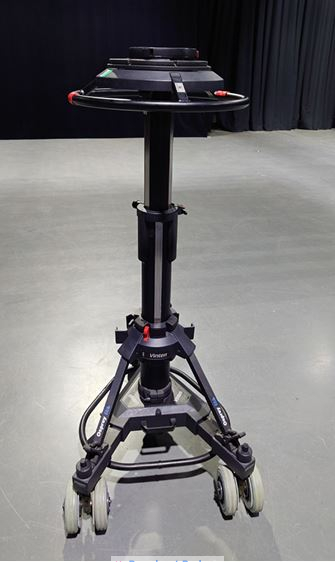

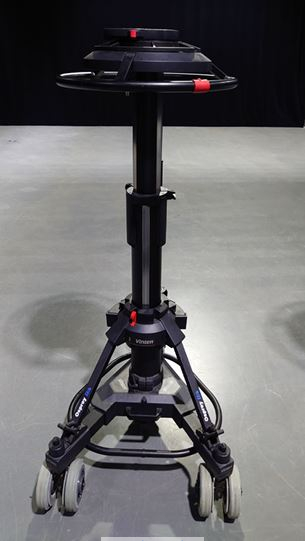

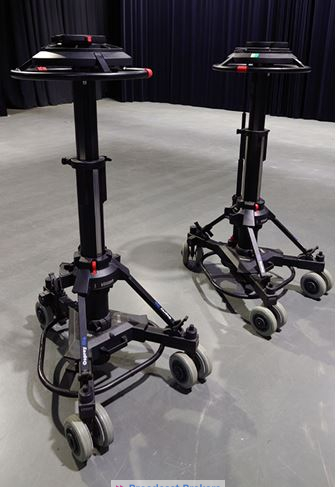

Vinten OSPREY ELITE studio pedestal 2 stages flat base

The Vinten Osprey Elite is a high-capacity, two-stage pneumatic pedestal designed for studio and outside broadcast applications. It offers precise vertical movement and stability for heavy-duty camera setups.

Key Specifications:

Load Capacity: Supports up to 75 kg (165 lb), accommodating large camera systems and accessories.
Height Range: Adjustable from 66 cm (26 in.) to 143 cm (56.3 in.), providing flexibility for various shooting scenarios.
On-Shot Stroke: Offers a stroke of 77 cm (30 in.) for dynamic shooting requirements.
Wheel Options:
- Studio Version: Equipped with 125 mm (5 in.) wheels and cable guards, suitable for studio environments.
- Outside Broadcast (OB) Version: Features 160 mm (6.3 in.) wheels for enhanced mobility on various terrains.
Dimensions:
- Skid Leg Radius: 48 cm (19 in.)
- Doorway Tracking Width: 97 cm (38 in.)
- Transit Doorway Width: 86 cm (34 in.)
- Narrow Doorway Tracking Width: 70 cm (27.5 in.)
- Steering Ring Diameter: 53.5 cm (21 in.)
- Wheel Diameter: 12.5 cm (5 in.) for the studio version and 16 cm (6.3 in.) for the OB version.
Pressure Rating: Operates at a maximum pressure of 13.8 bar (200 psi), ensuring reliable performance.

The Osprey Elite pedestal is compatible with various Vinten camera mounts, including pan and tilt heads, via its standard four-bolt mounting plate. Its design facilitates smooth vertical movements and precise horizontal “crab” steering, making it ideal for both studio settings and dynamic broadcast environments.
