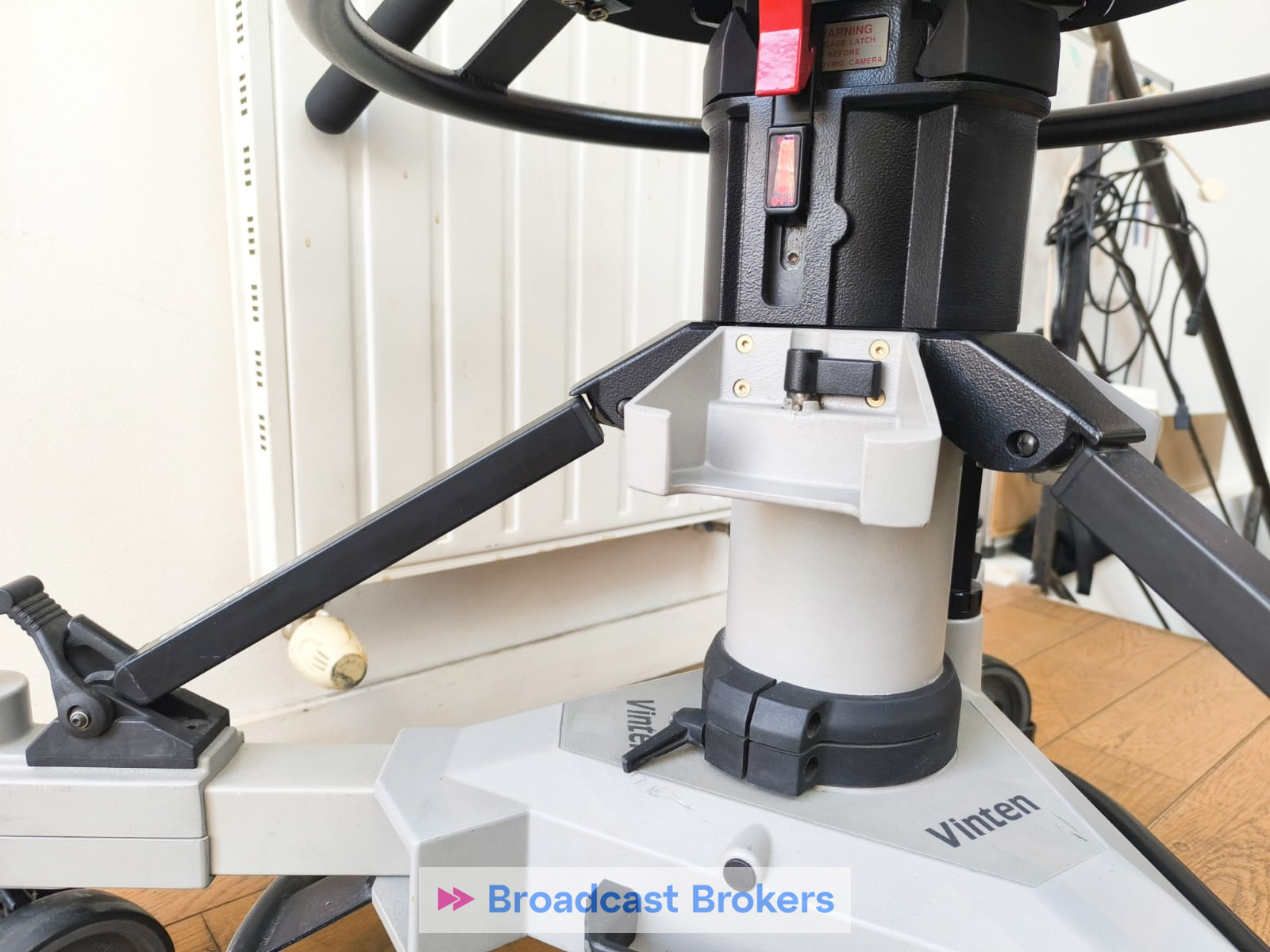

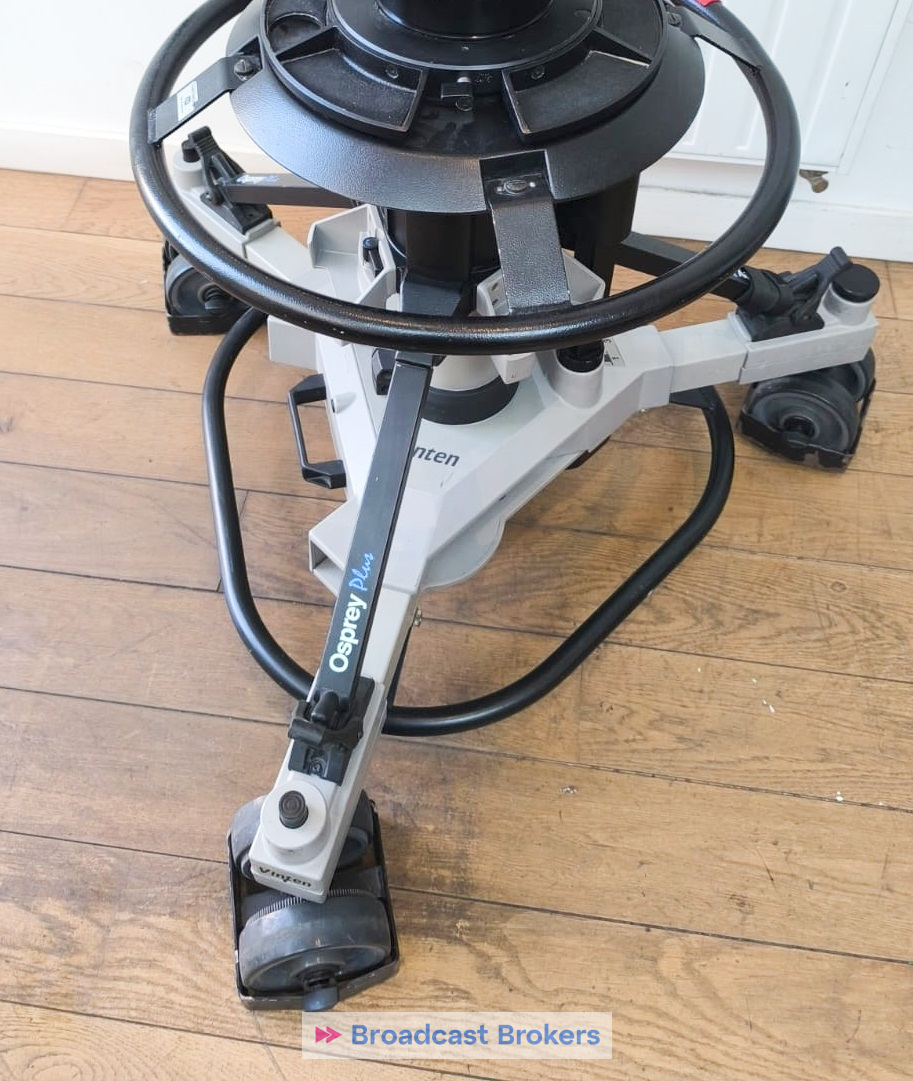

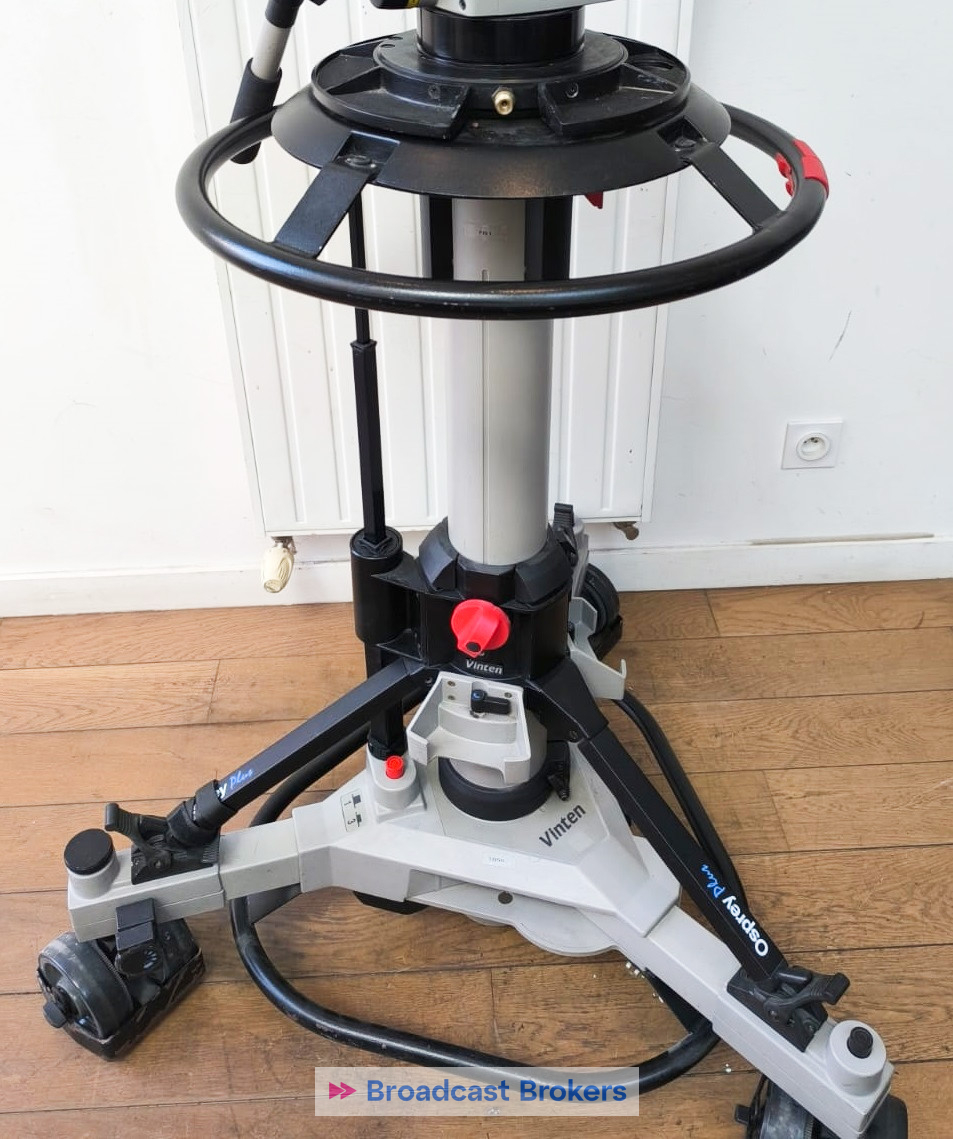

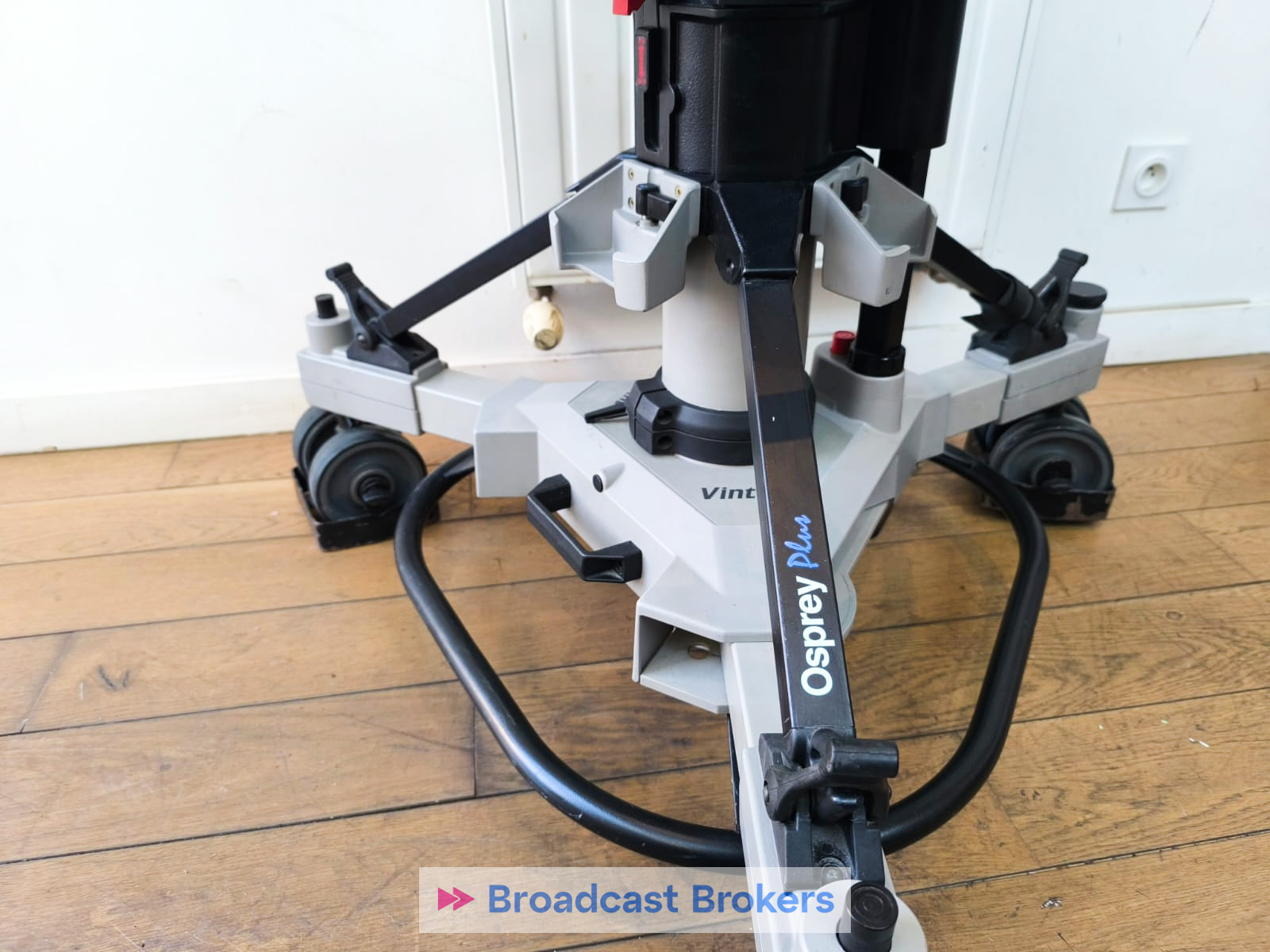

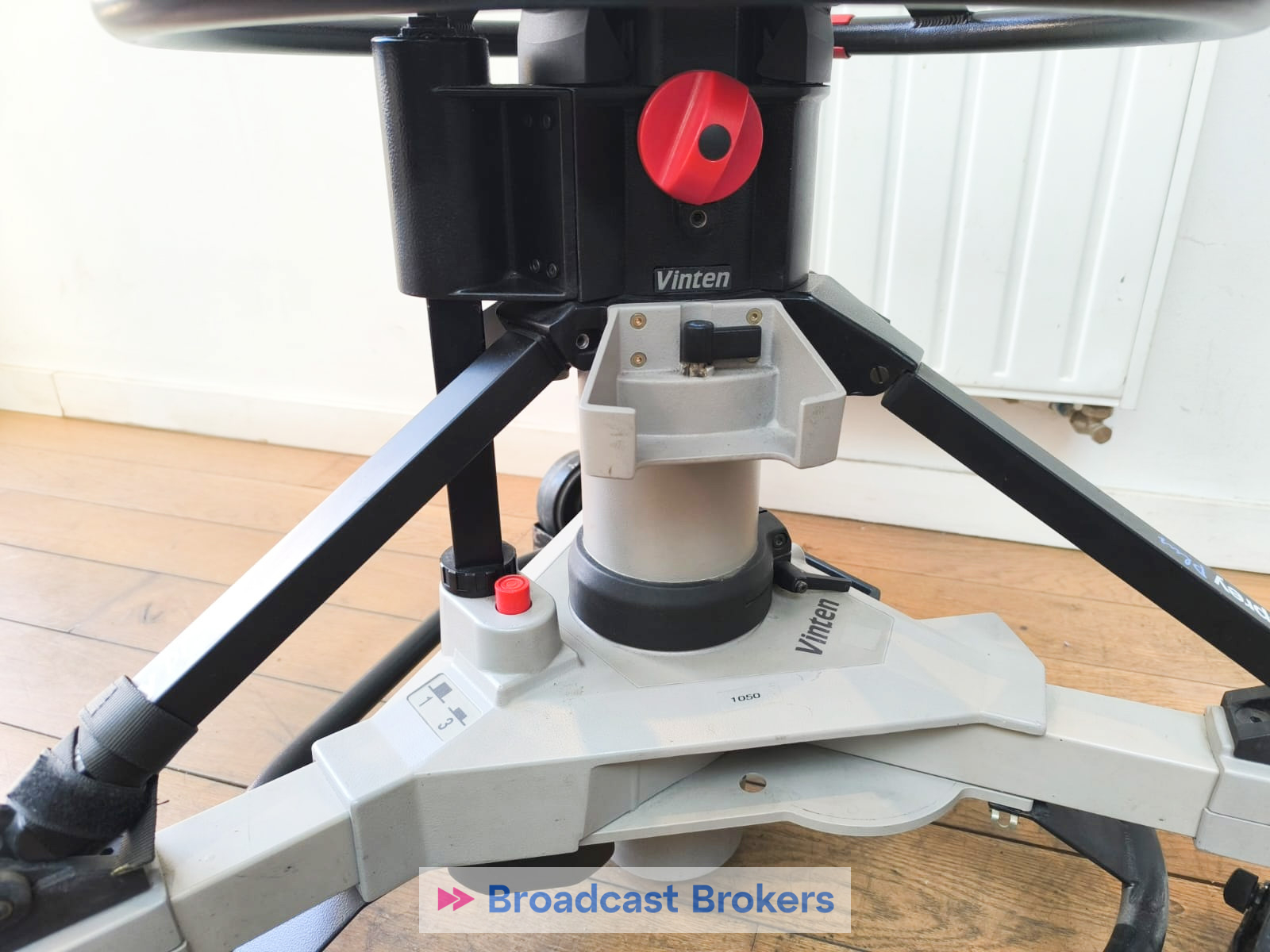

Vinten OSPREY PLUS

Vinten OSPREY PLUS studio pedestal 2 stages flat base

The Vinten Osprey Plus is a professional camera pedestal system designed for both studio and outside broadcast (OB) applications. It offers precise control, smooth height adjustments, and robust support for heavy camera setups.

Dimensions & Weight

• Height Range: 33.9 to 66.1 inches (86 to 168 cm)

• On-Shot Stroke: 16.1 inches (41 cm)

• Weight:

  • Pedestal: 42.5 kg (93.5 lb)

  • Skid: 21 kg (47 lb)

  • Trim Weights: 3 kg (6.6 lb)

  • Total: 66.1 kg (145.1 lb)

Payload Capacity

• Studio Version: Supports up to 90 kg (198 lb)

• OB Version: Supports up to 70 kg (154 lb)

 Steering & Mobility

• Steering: Full crab and steer capabilities via a central steering ring

• Wheel Diameter:

  • Standard: 5 inches (12.7 cm)

  • OB Version: 6.2 inches (15.7 cm)

• Wheel Lock: Single-point locking mechanism

• Ground Clearance:

  • Standard: 19 mm

  • OB Version: 34.5 mm

Balance & Adjustment

• Perfect Balance Stage: Allows for smooth in-shot height adjustments without stops or bumps

• Manual Pump: Integrated for easy counterbalance setup

• Air Inlet Valve: Compatible with optional pumps or compressed air cylinders

• Pressure Gauge: Built-in for clear and reliable setup

Mounting & Compatibility

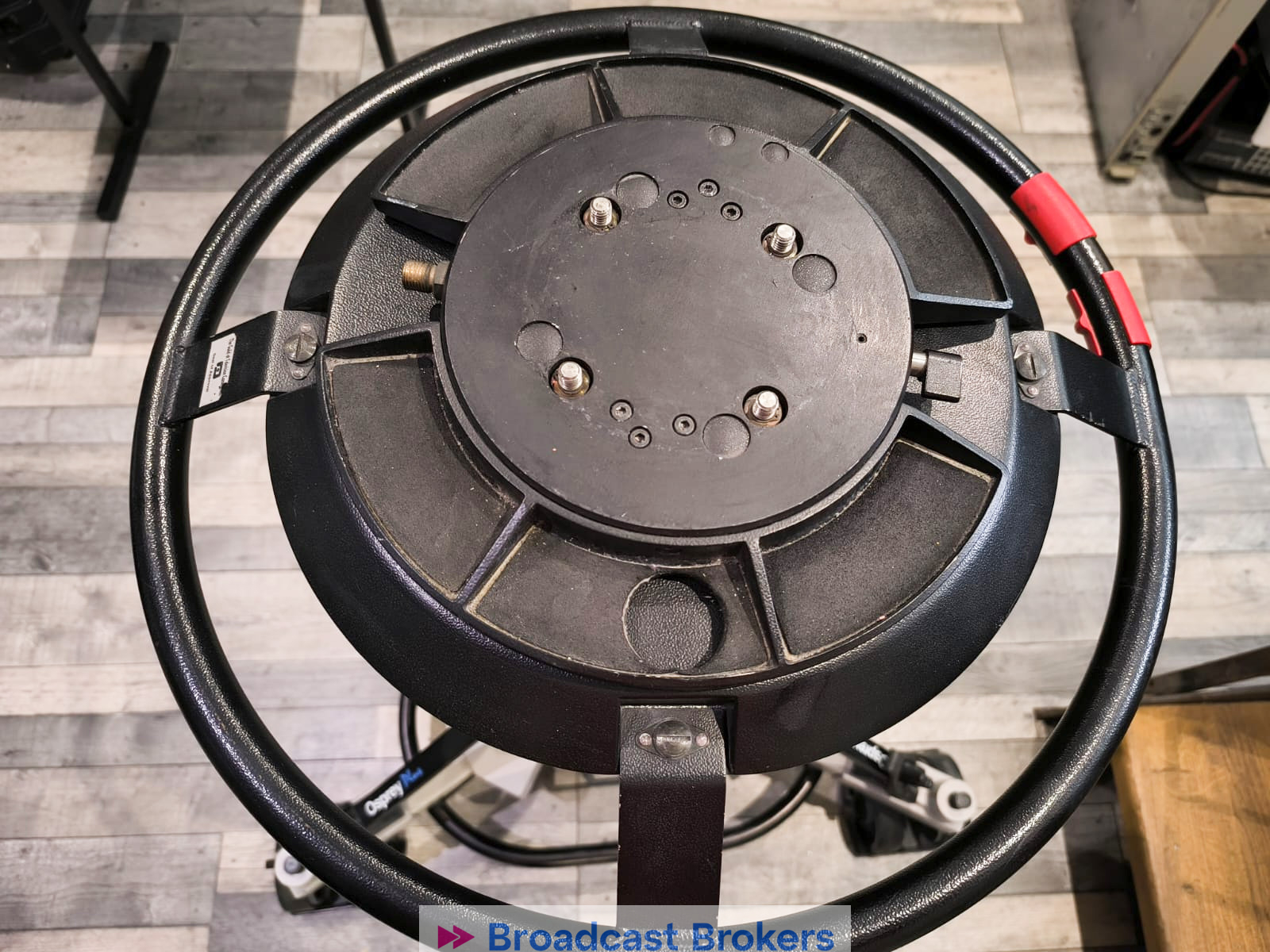

• Head Fitting: Flat base with Quickfix quick release system

• Fluid Head Compatibility:

  • Versine 360 Fluid Head (supports up to 88 lb)

  • Vision 250 Fluid Head

• Mounting Options: Supports 4-bolt flat base, 100mm, and 150mm bowl mounts

Transport & Storage

• Detachable Skid: Allows for easy breakdown into two sections for transportation and storage

• Accessory Holder: Included for operator convenience

• Dolly: Removable with cable guards to prevent rolling over cables
