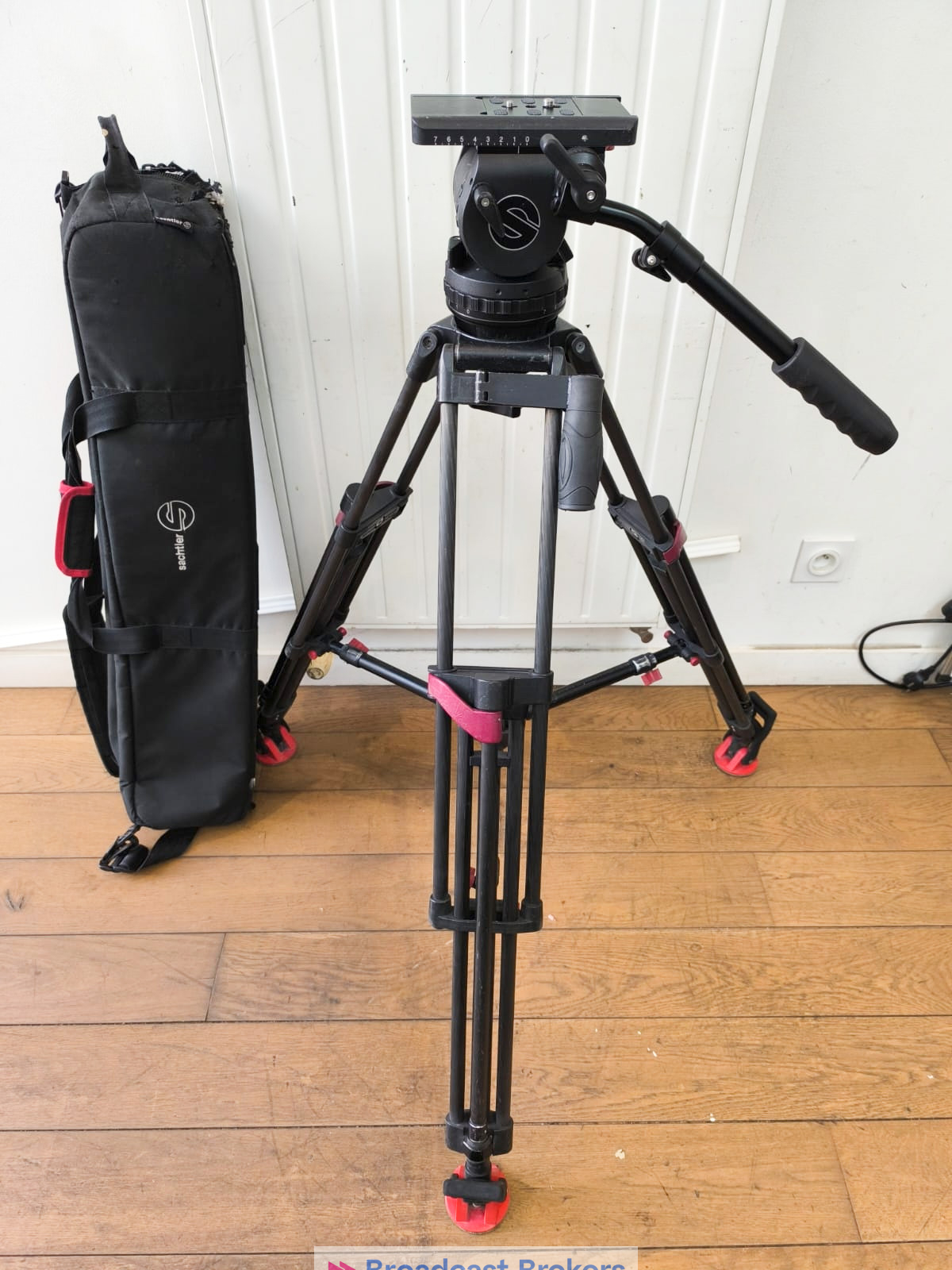

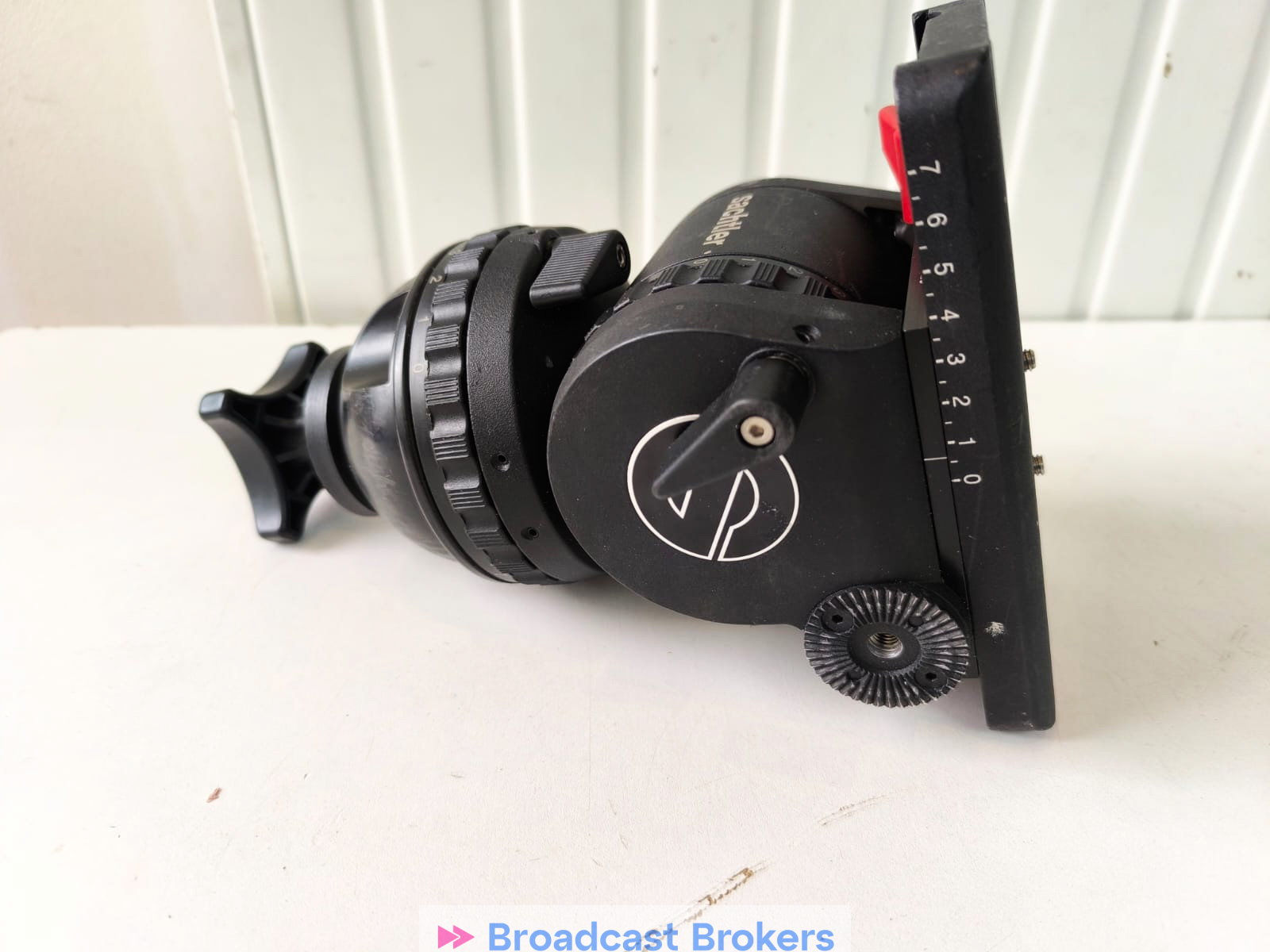

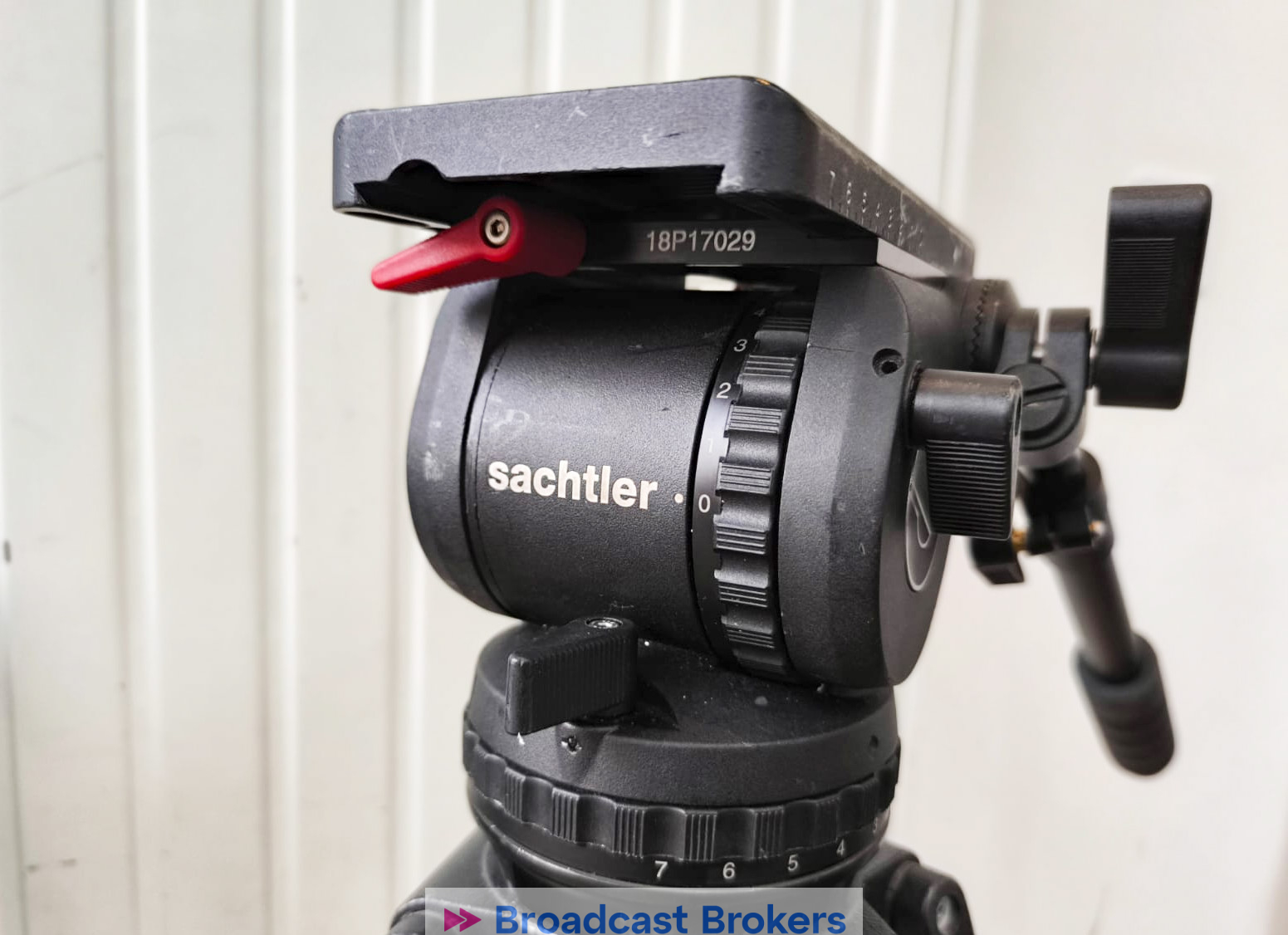

SACHTLER VIDEO 18P CF

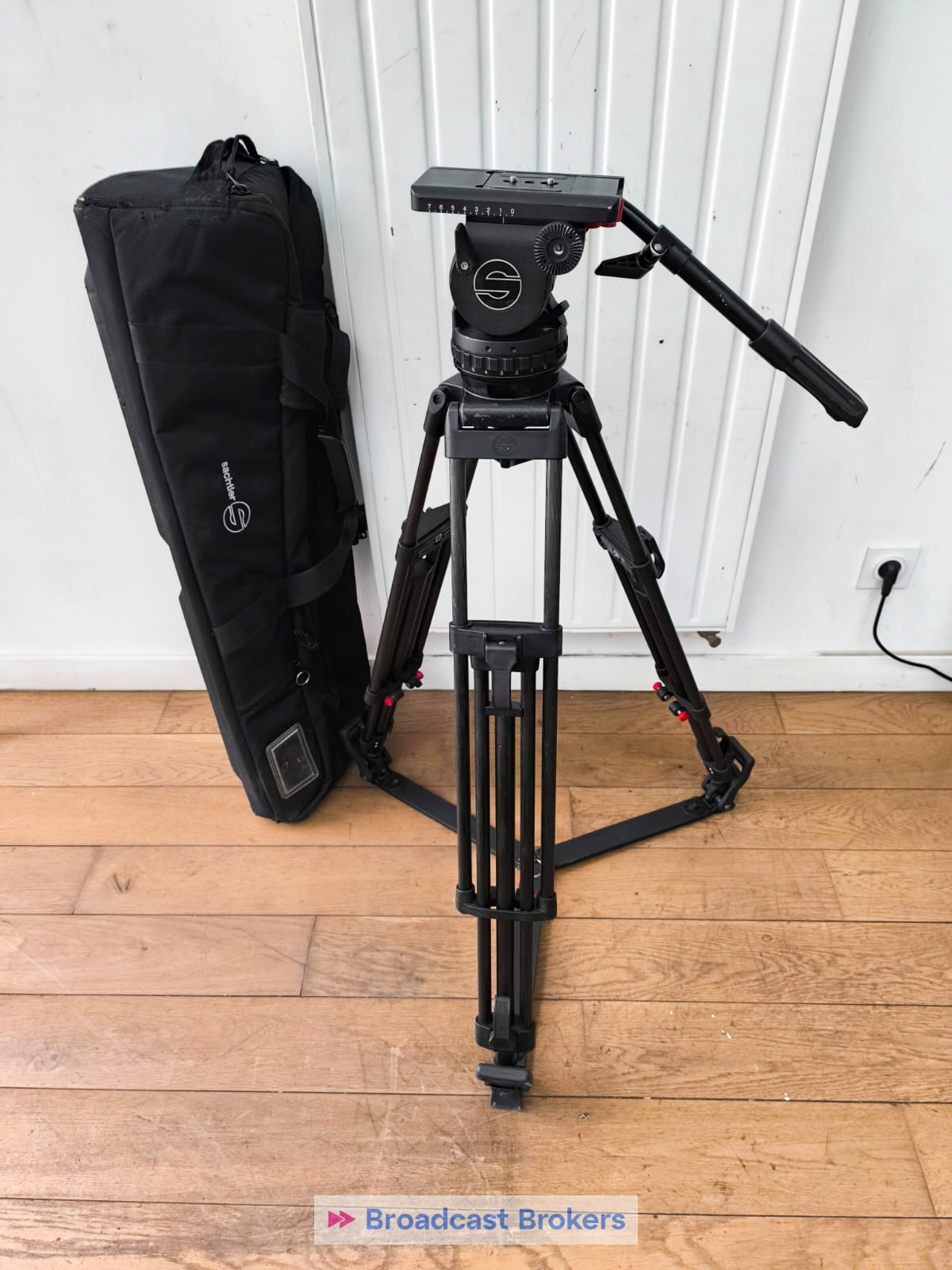

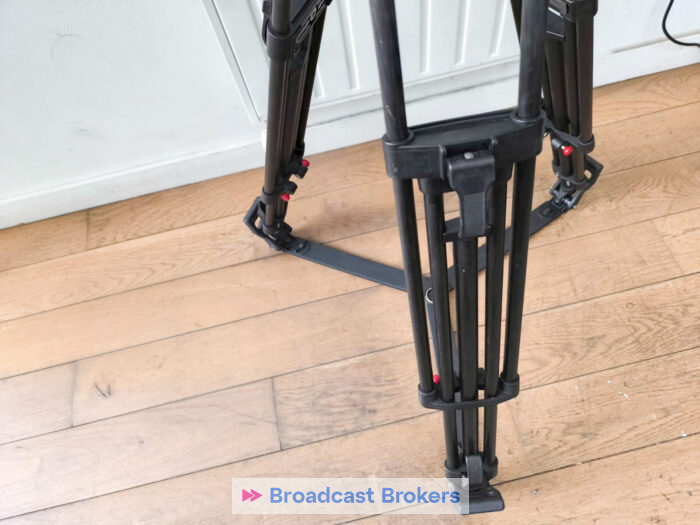

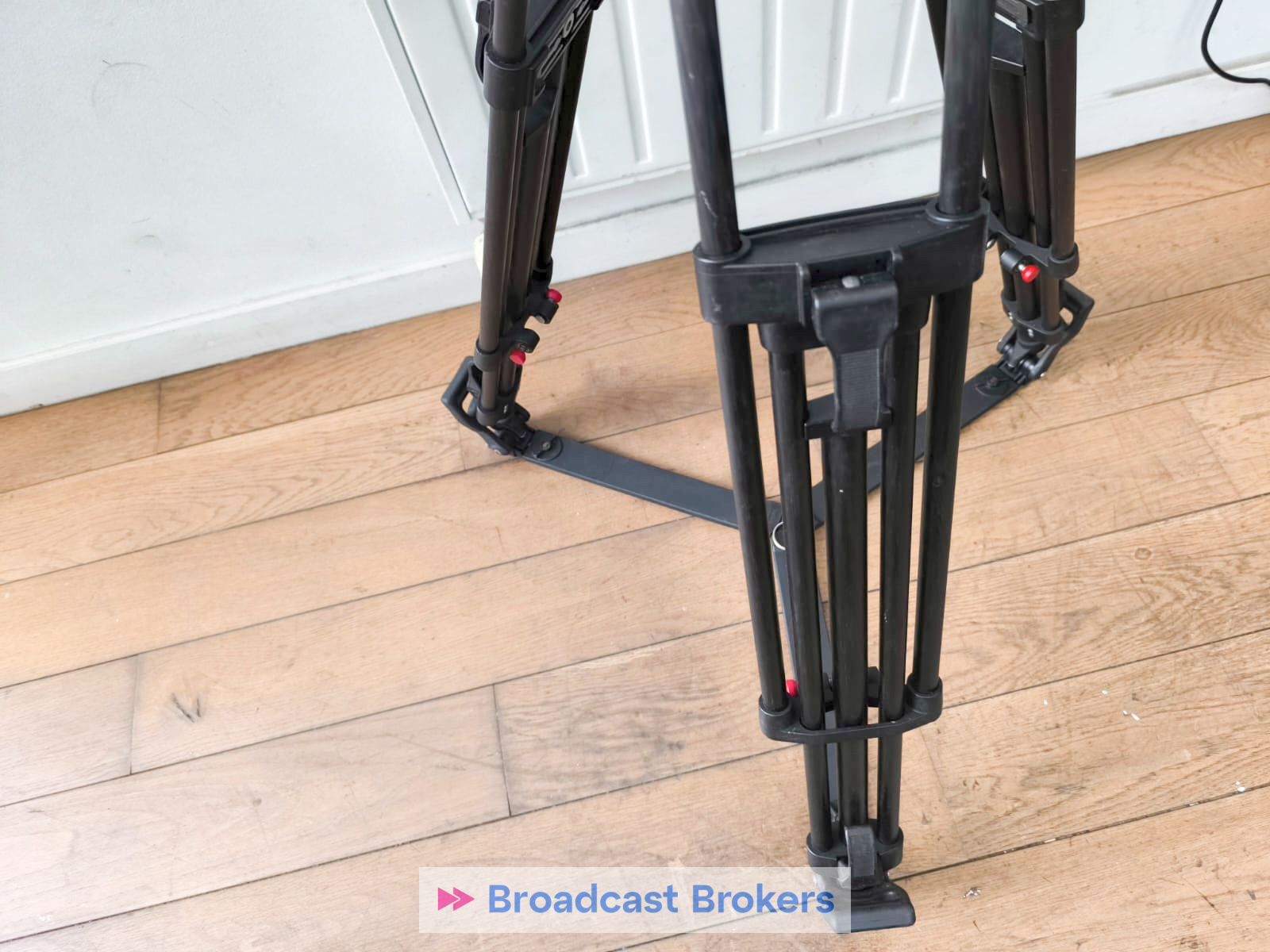

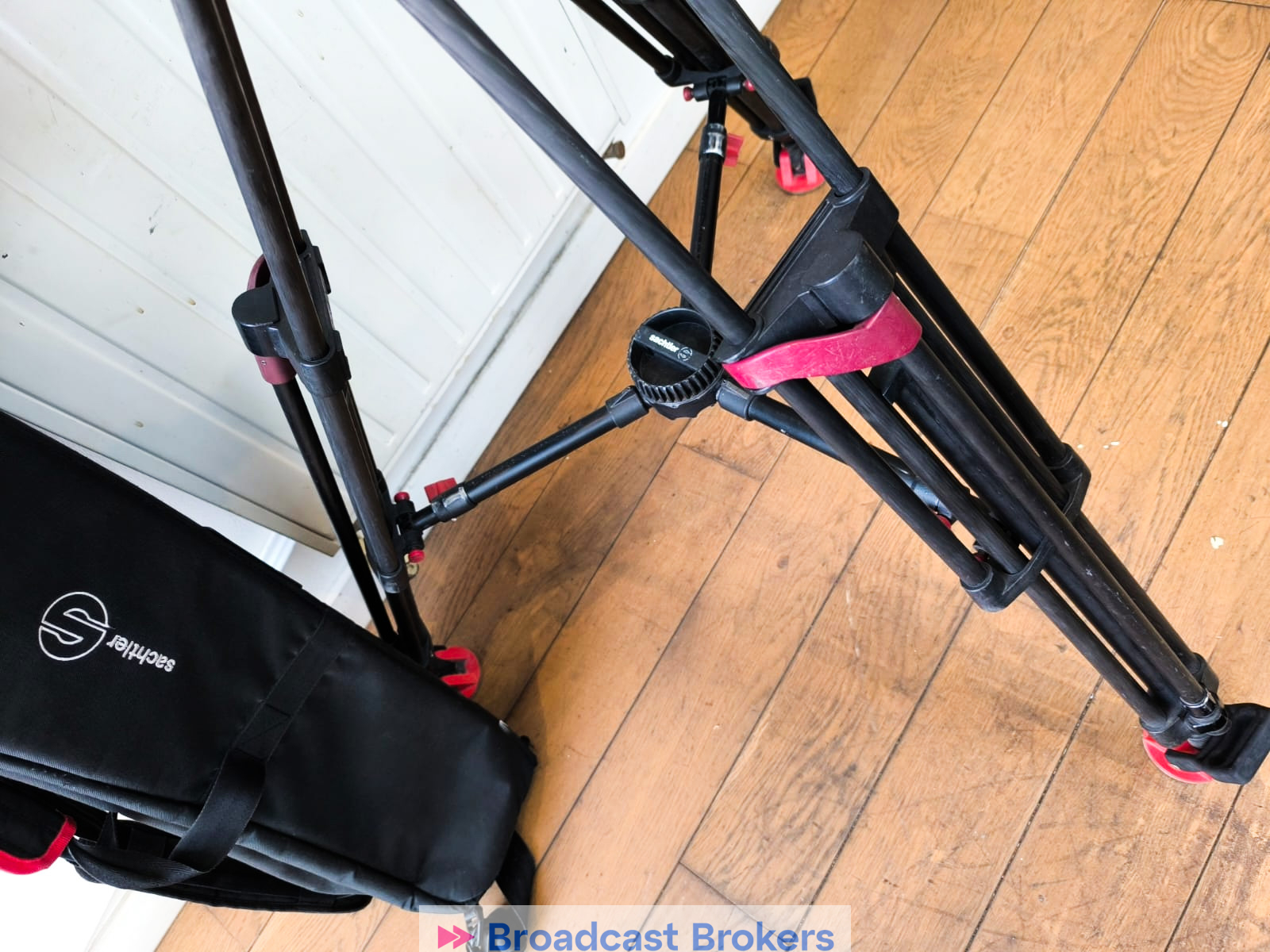

Fluid head +carbon fiber tripod with mid-spreader + transport tube

fully revised by technician – 3 months warranty

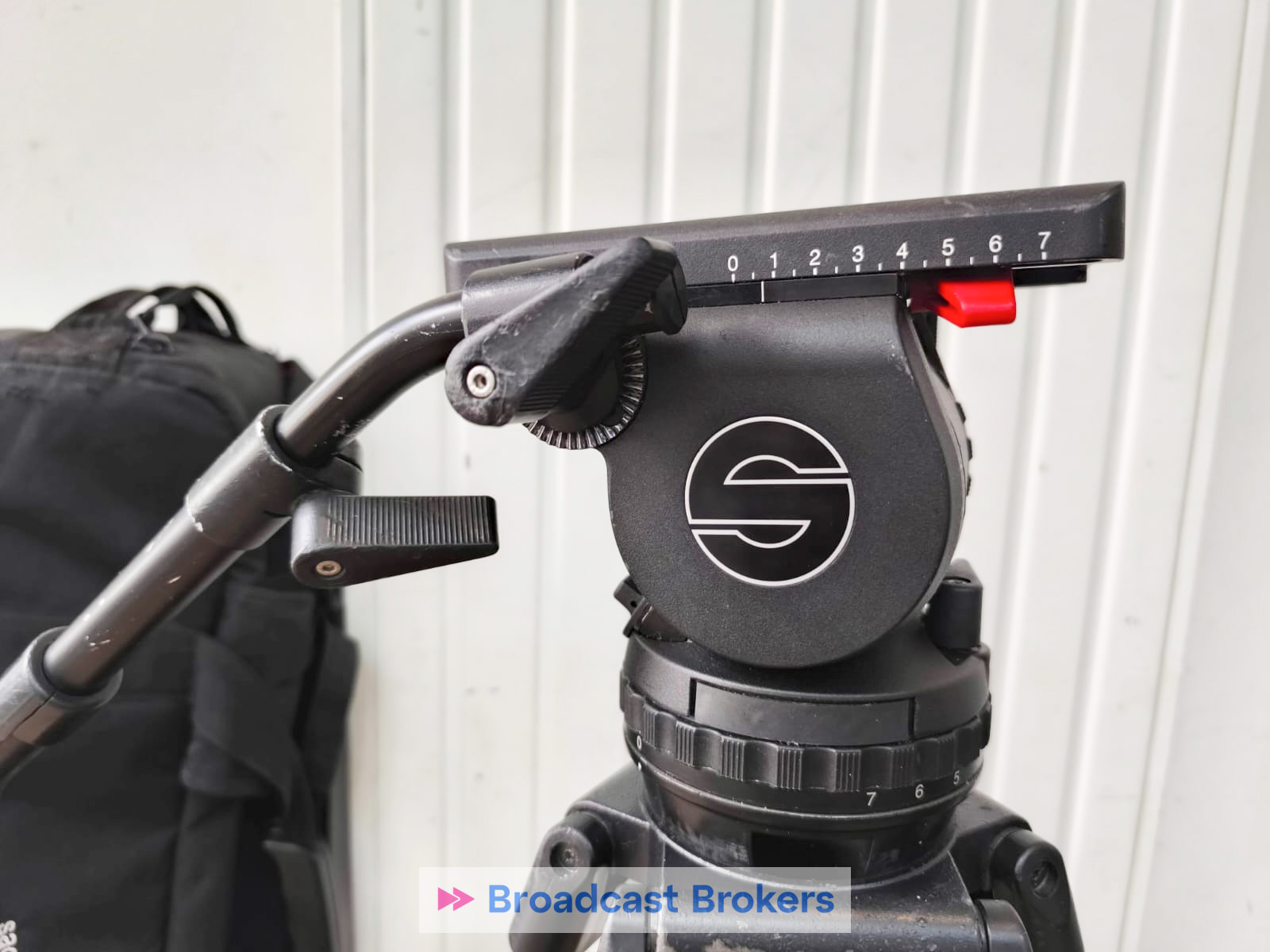

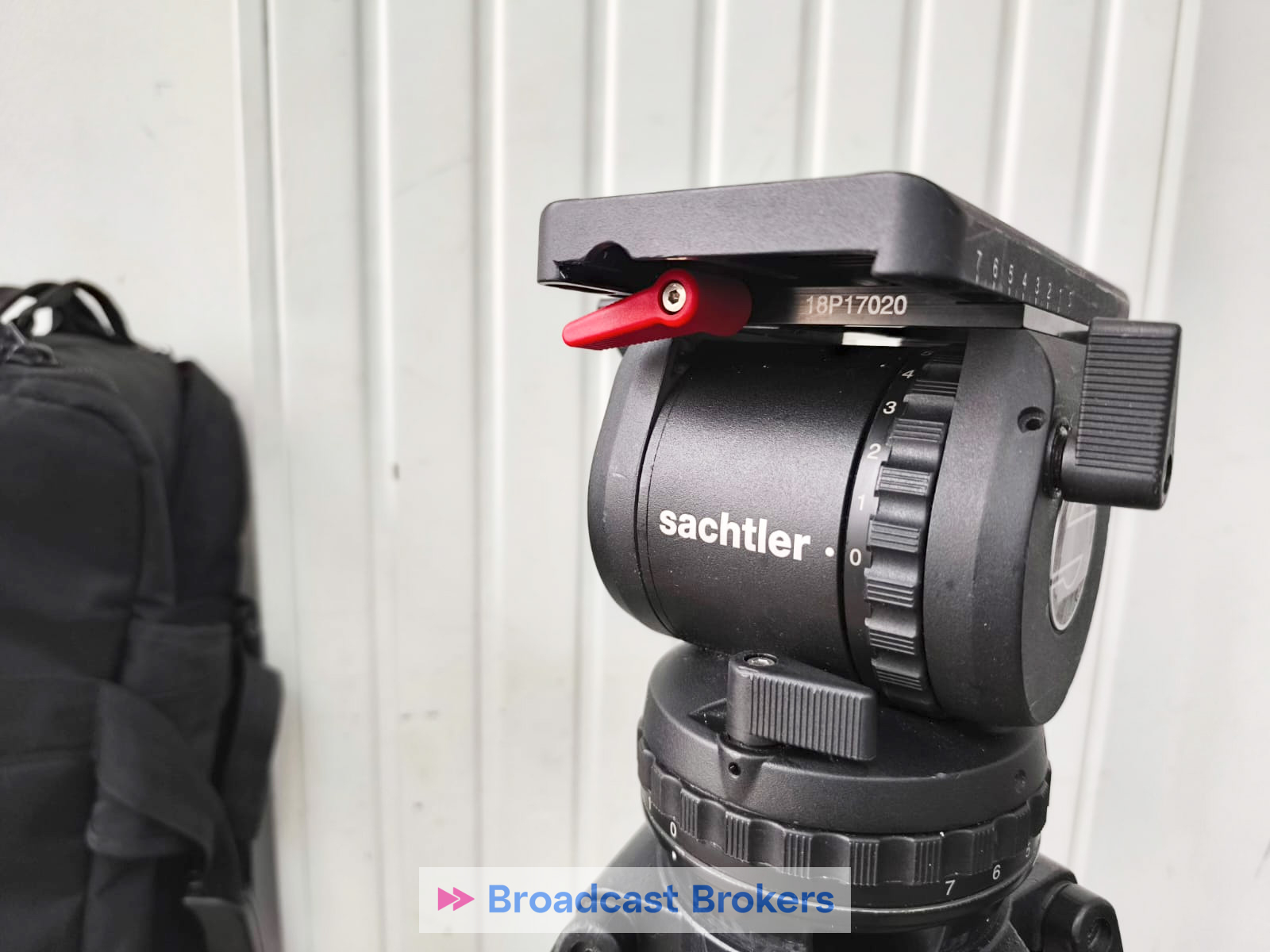

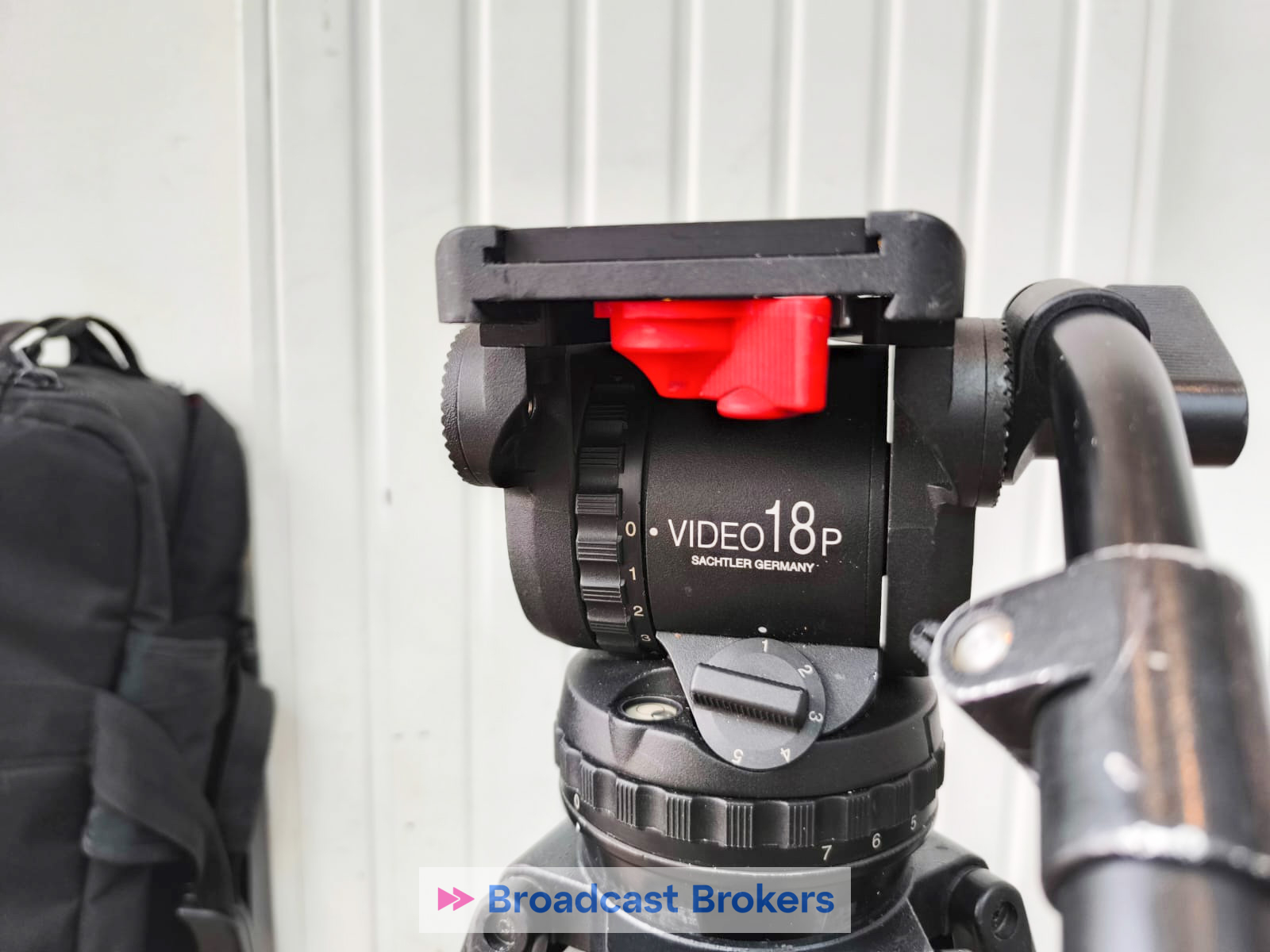

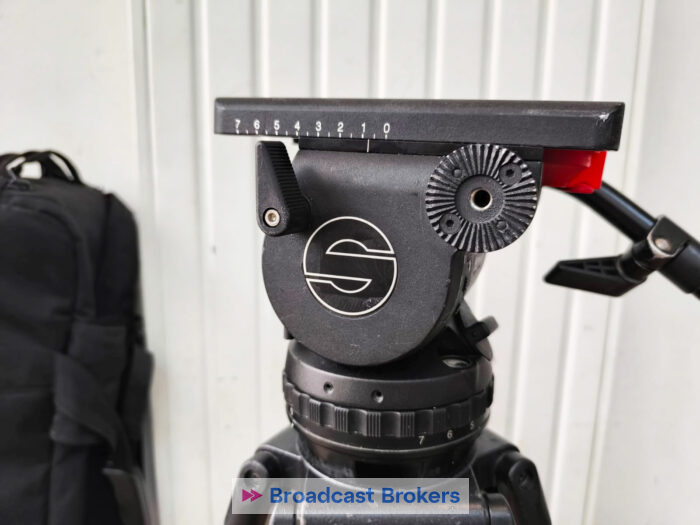

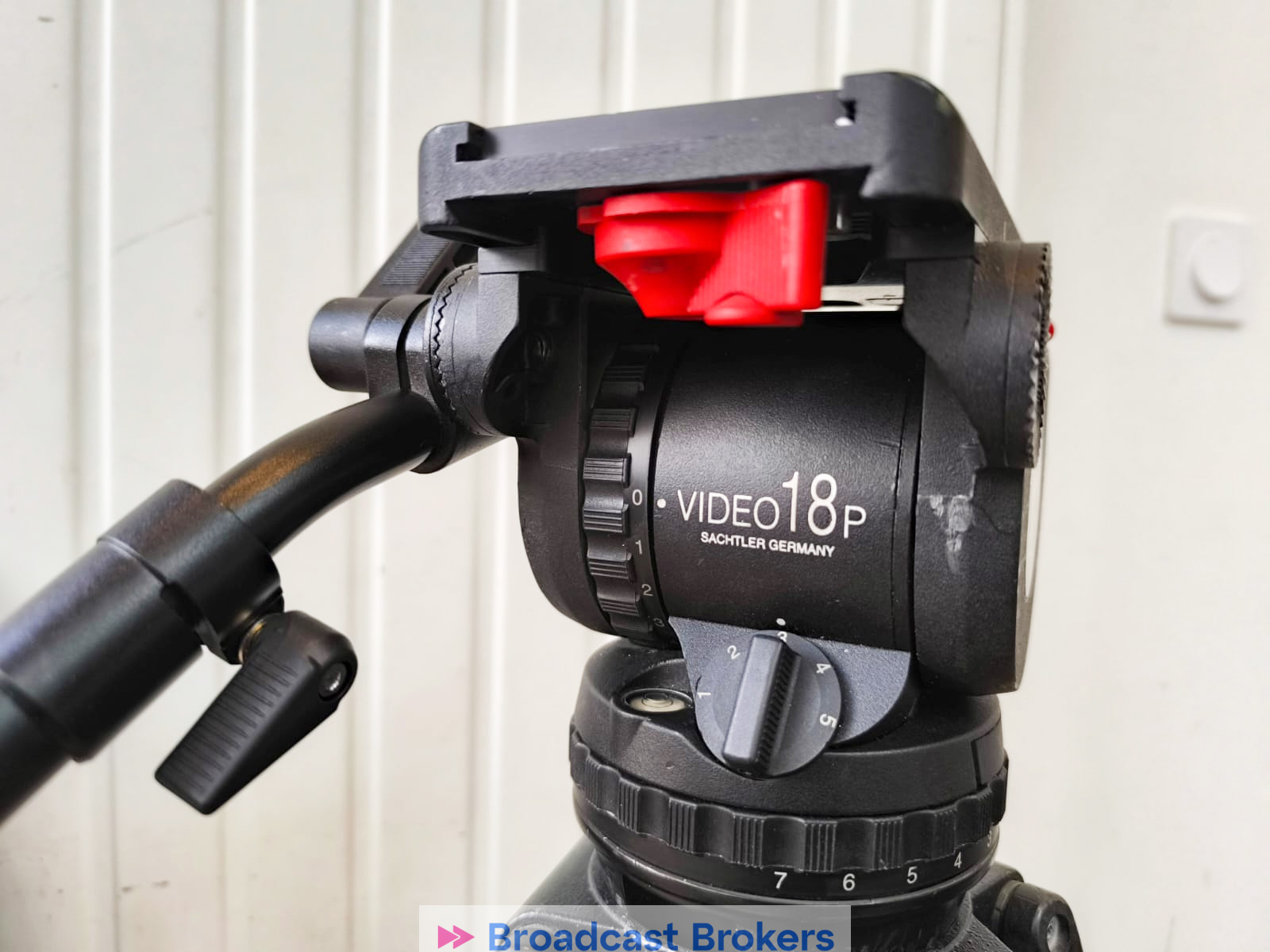

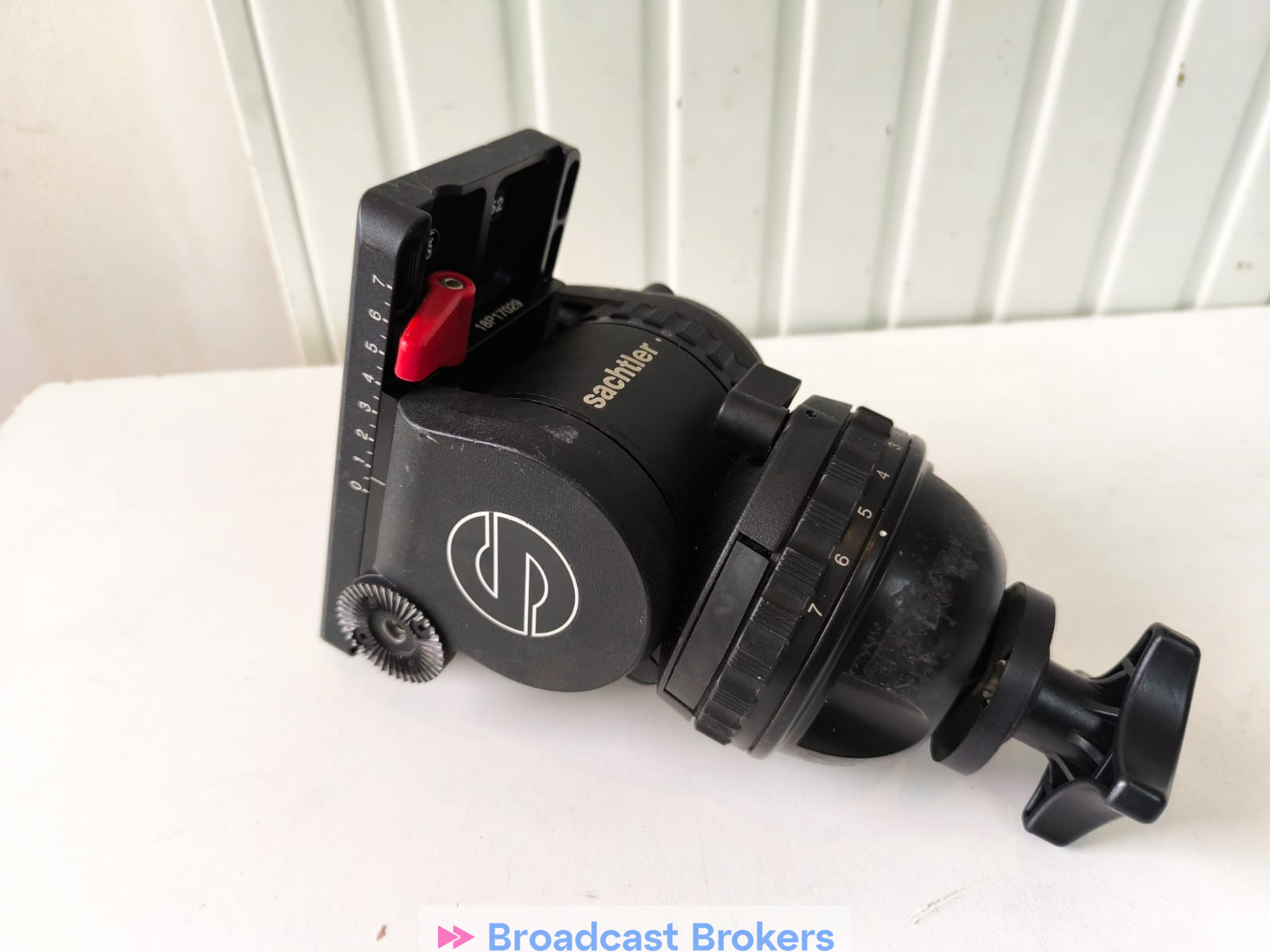

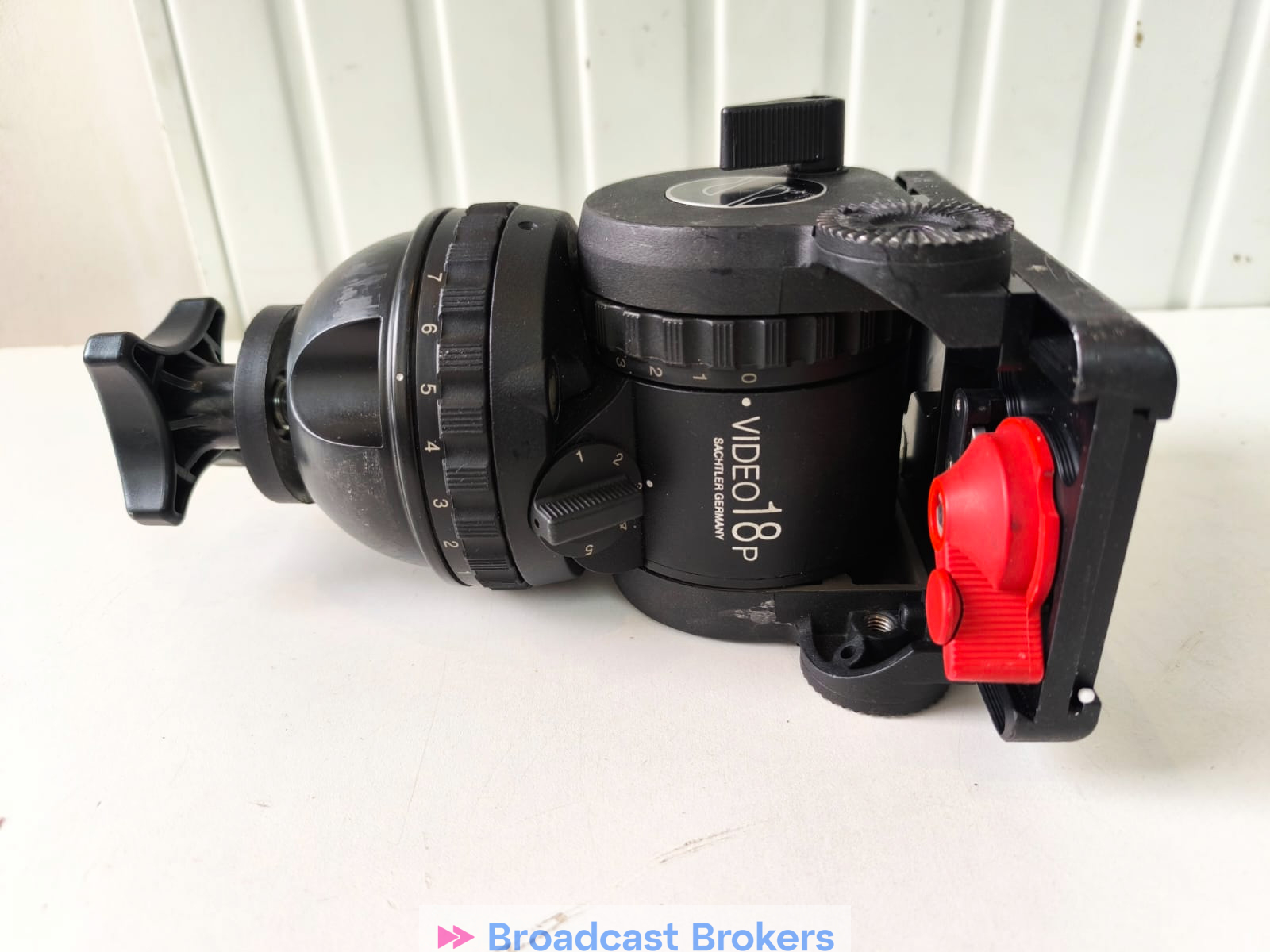

The Sachtler Video 18P is a fluid head designed for professional video cameras and is known for its stability, smoothness, and versatility in various filming conditions.

Key Features and Specifications:

• Payload Capacity:

  • 4 to 18 kg (8.8 to 39.7 lbs), making it suitable for a wide range of cameras, from lightweight to heavier setups.

• Counterbalance System:

  • The Video 18P features Sachtler’s Synchronized Balance Technology (SBT), which offers precise and consistent counterbalance across the entire tilt range. The counterbalance can be adjusted in 16 steps for fine-tuned support.

• Tilt Range:

  • +90° to -90°, allowing for smooth tilting in both directions.

• Pan and Tilt Drag:

  • It offers 7 selectable drag levels in both pan and tilt axes, which can be adjusted to suit the required filming style, from smooth pans to more rigid, controlled movements.
  • 0 (free) to 7 (maximum drag) in both pan and tilt, for excellent control over camera movement.

• Fluid Head:

  • The fluid system provides smooth starts and stops, essential for high-quality video productions.

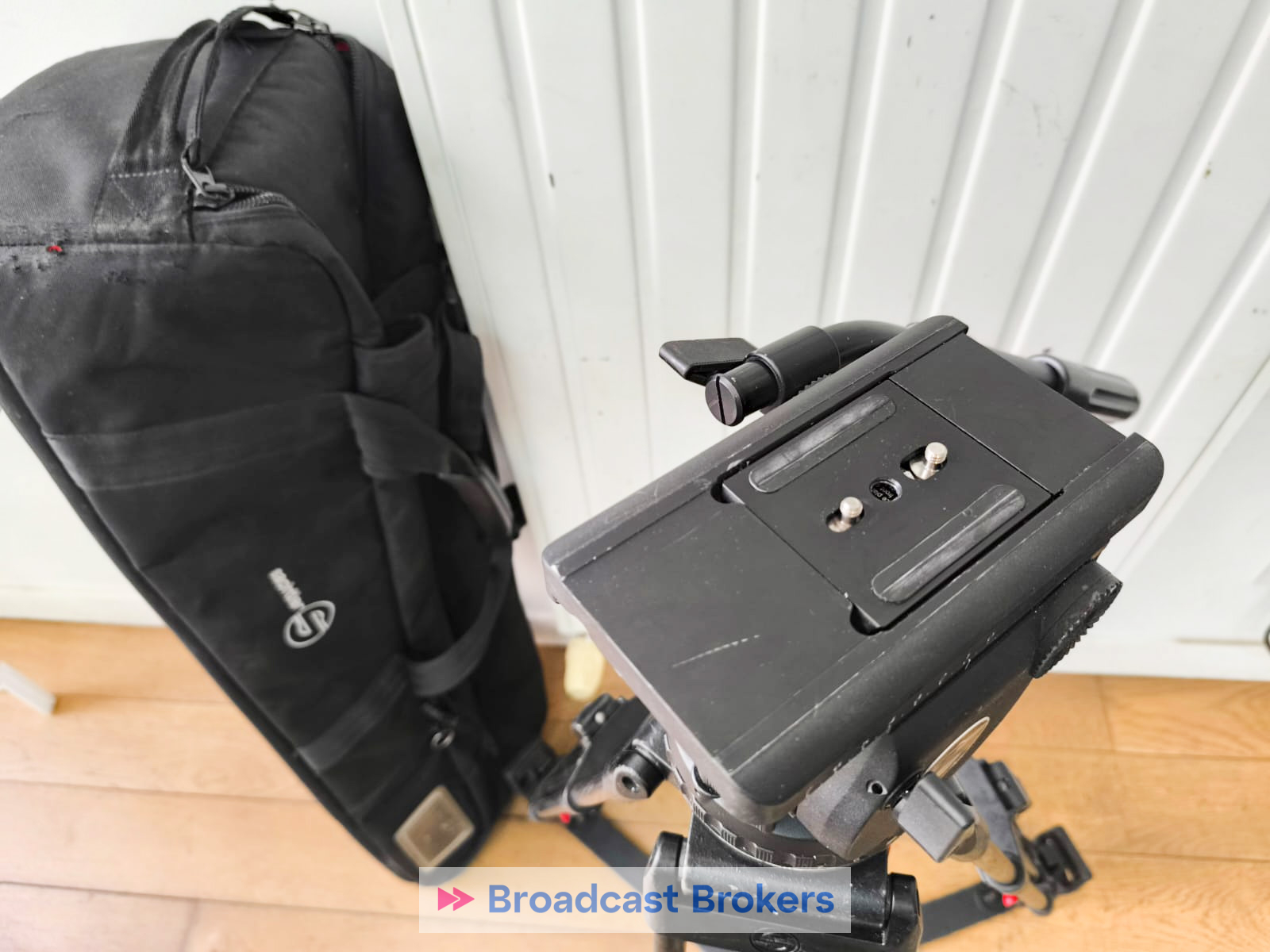

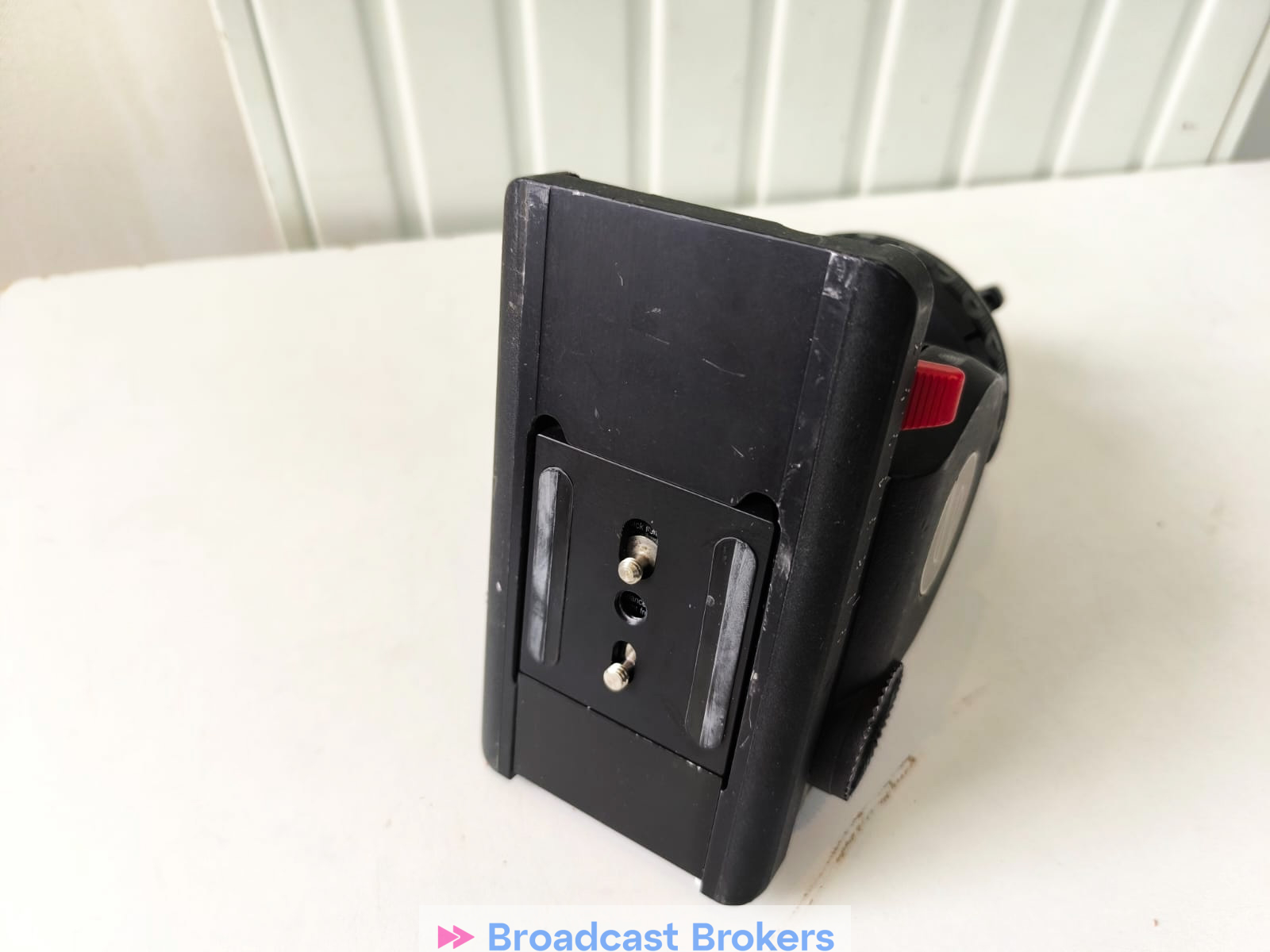

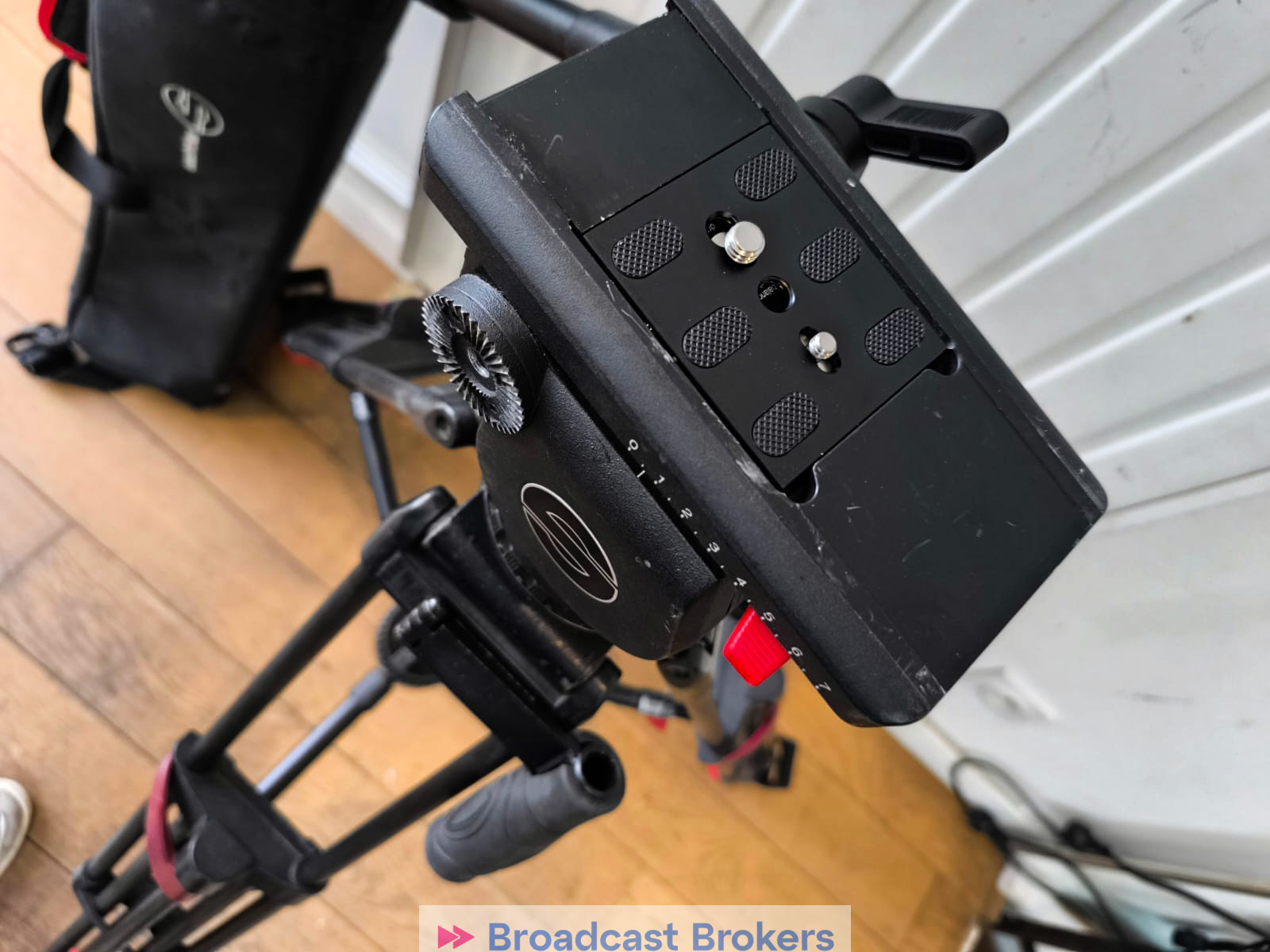

• Quick Release Plate:

  • Sachtler DV 75 (Touch & Go) system, compatible with various quick-release plates for easy mounting and dismounting of the camera.

• Weight:

  • The head weighs approximately 5.2 kg (11.5 lbs), providing a stable base for a wide variety of setups.

• Base Mounting:

  • The Video 18P has a 75mm ball base, compatible with a wide range of tripods.

• Temperature Range:

  • Works in temperatures between -40°C to +60°C (-40°F to +140°F), making it suitable for a variety of filming environments.

• Pan Bar:

  • Includes two pan bars, allowing the user to configure the head for left- or right-handed use. The pan bars are also adjustable in length.

Physical Dimensions:

• Head height: 160 mm (6.3 inches)
• Head width: 200 mm (7.9 inches)
• Head length: 210 mm (8.3 inches)

Other Features:

• Durability: Built with robust materials to ensure high performance in demanding environments.
• Easy Setup: The intuitive controls and fluid mechanism make the Video 18P quick to set up and easy to use.
• Versatility: Excellent for shooting in both studio and field environments.

This system provides excellent support for high-end cameras, allowing for precise and controlled camera movements, even in challenging filming conditions.
