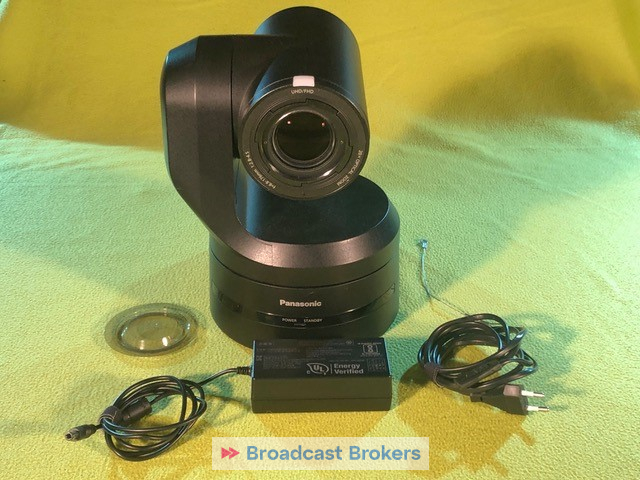

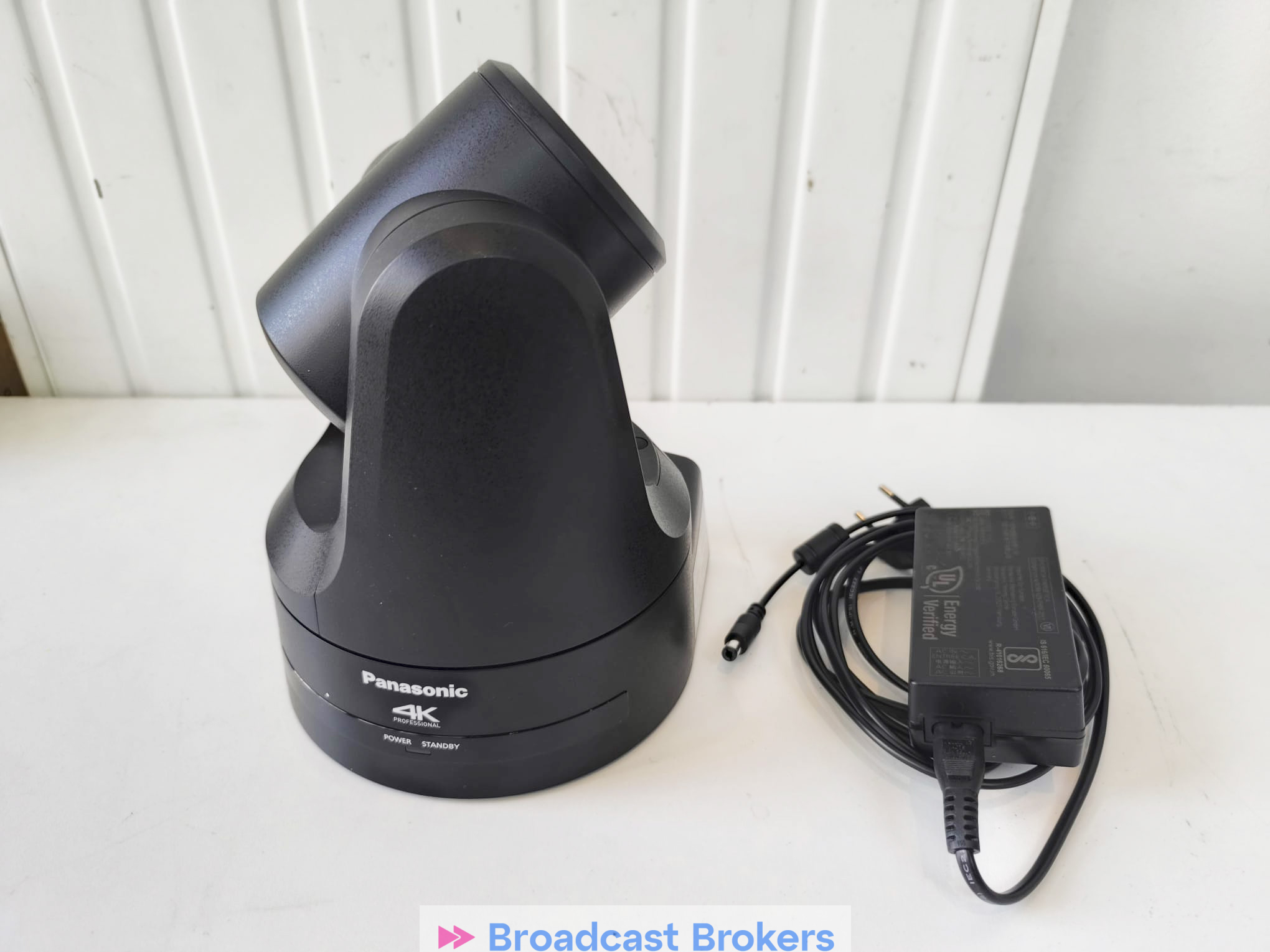

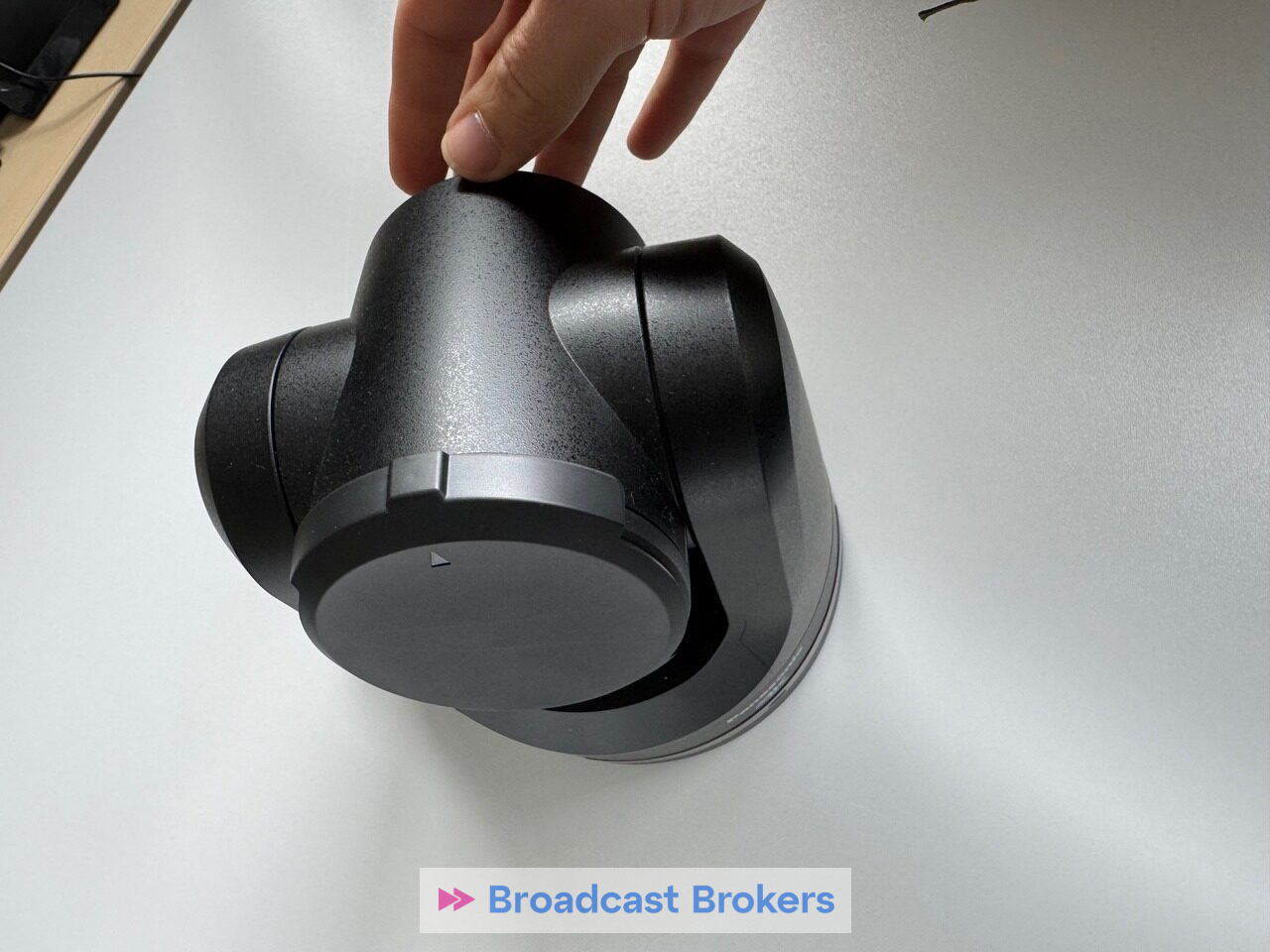

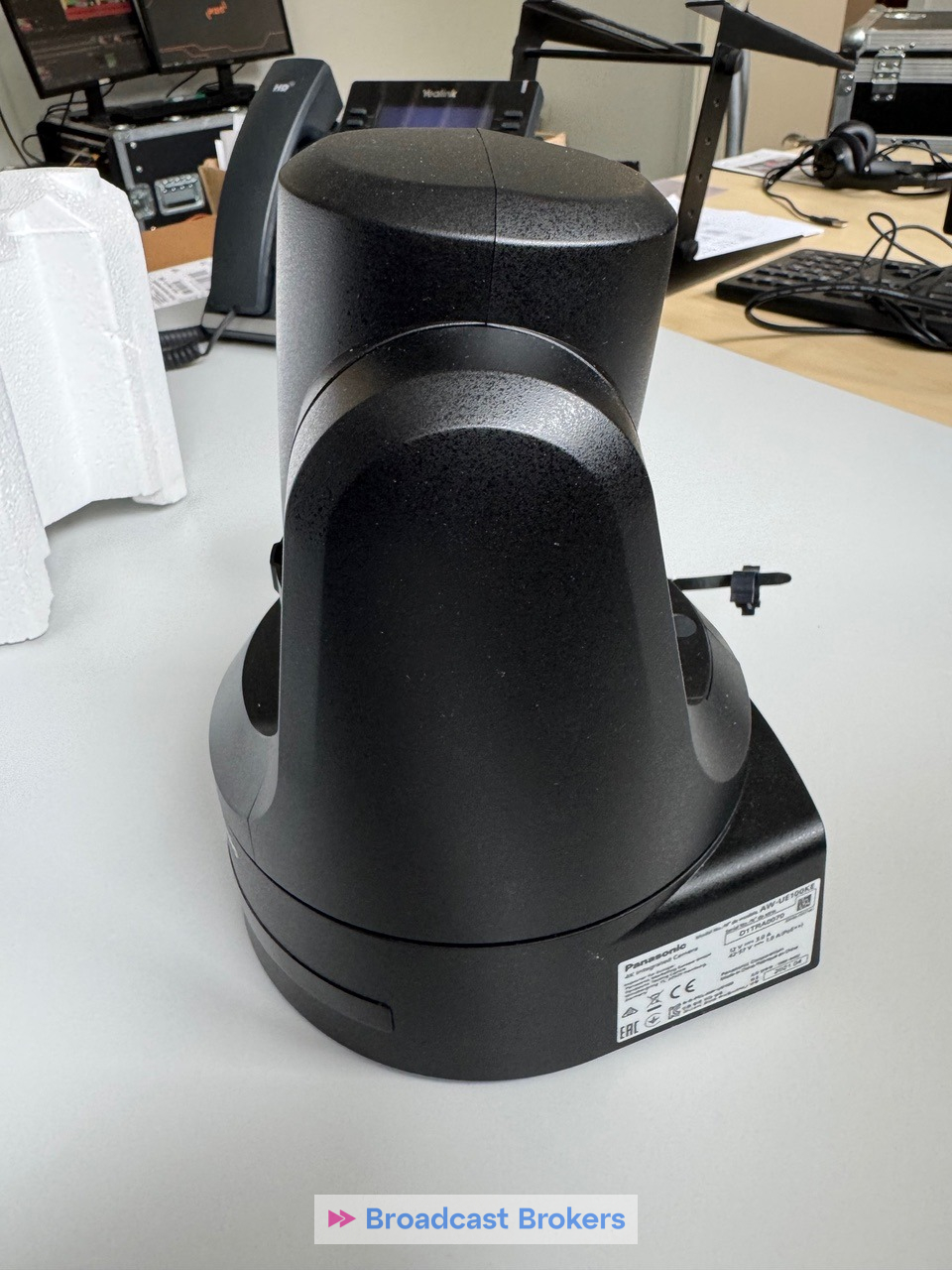

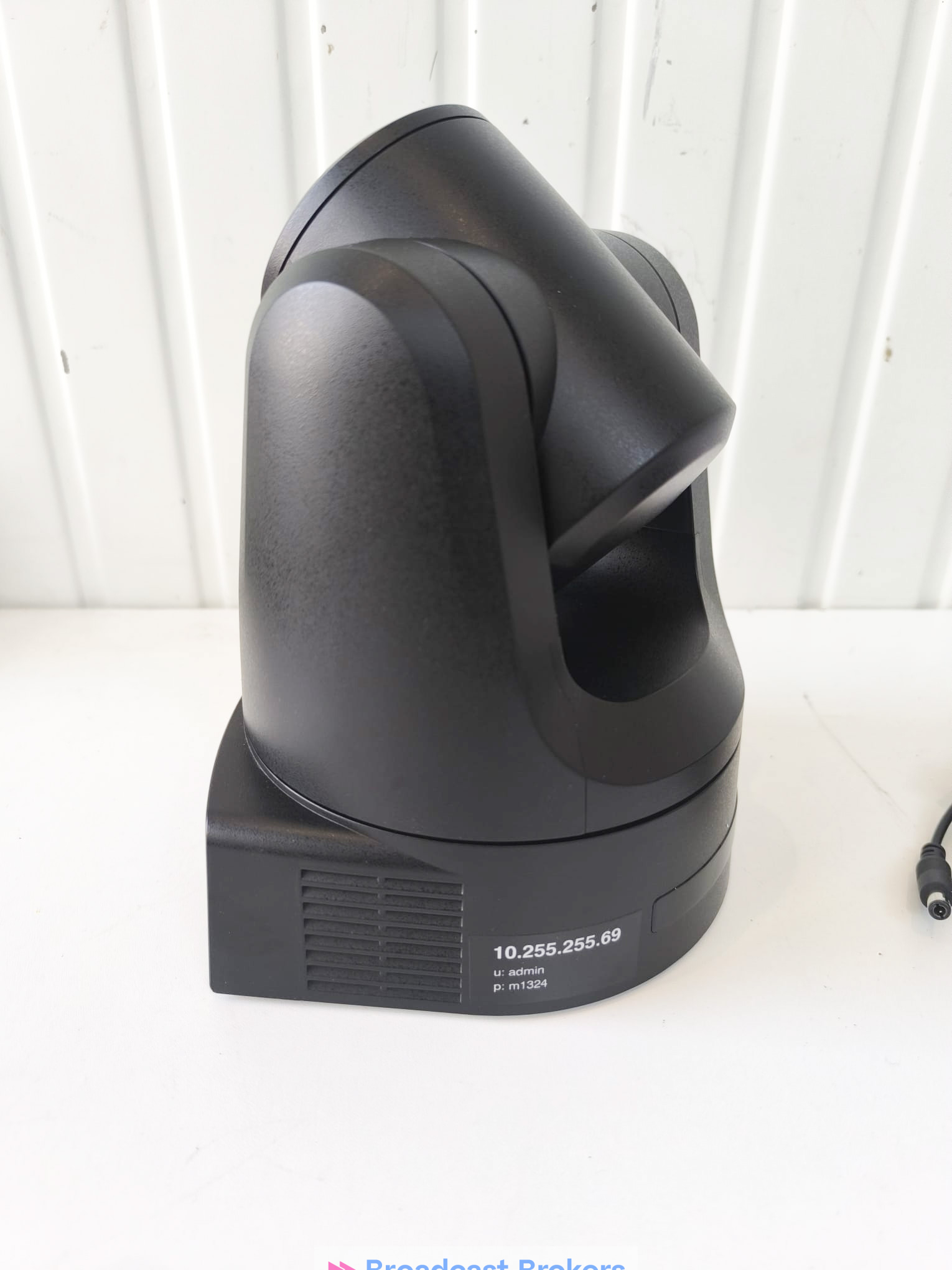

Panasonic AW-UE100KE 4K

HD 4K PTZ camera – Black

The Panasonic AW-UE100KEJ is a versatile 4K PTZ camera designed for professional broadcasting, live streaming, and AV installations.

Imaging & Lens

• Sensor: 1/2.5-type 4K MOS sensor

• Effective Pixels: Approximately 8.49 million pixels

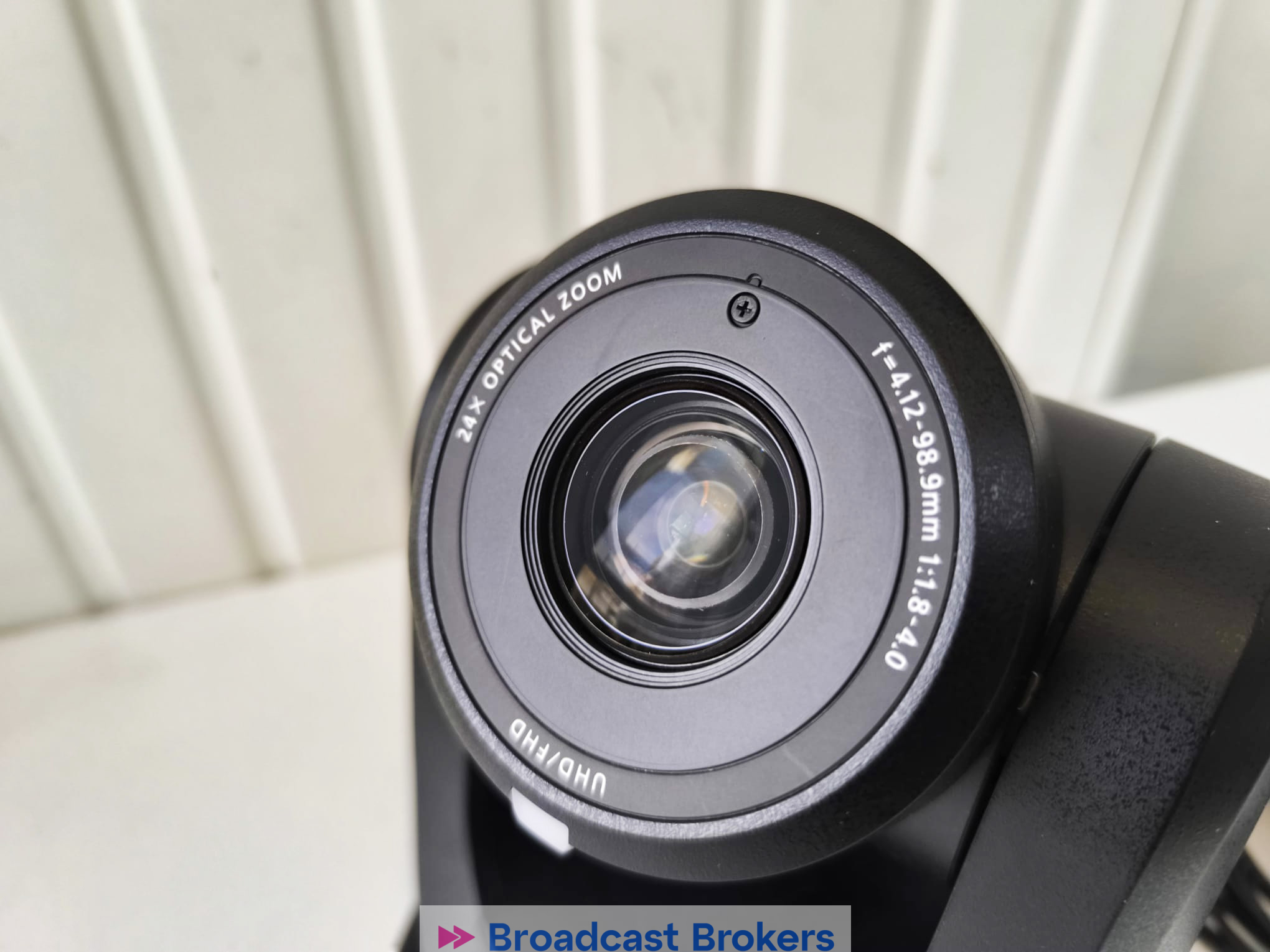

• Lens: Motorized 24x optical zoom (f=4.12 mm to 98.9 mm, equivalent to 25.0 mm to 600.0 mm in 35mm terms)

• Maximum Aperture: f/1.8 to f/4.0

• i.Zoom: UHD: 28x, FHD: 36x

• Field of View:

  • Horizontal: 74.1° (wide) to 3.3° (tele)

  • Vertical: 46.0° (wide) to 1.9° (tele)

  • Diagonal: 81.8° (wide) to 3.8° (tele)

• Optical Filters: Through, 1/4, 1/16, 1/64, IR through (Night mode)

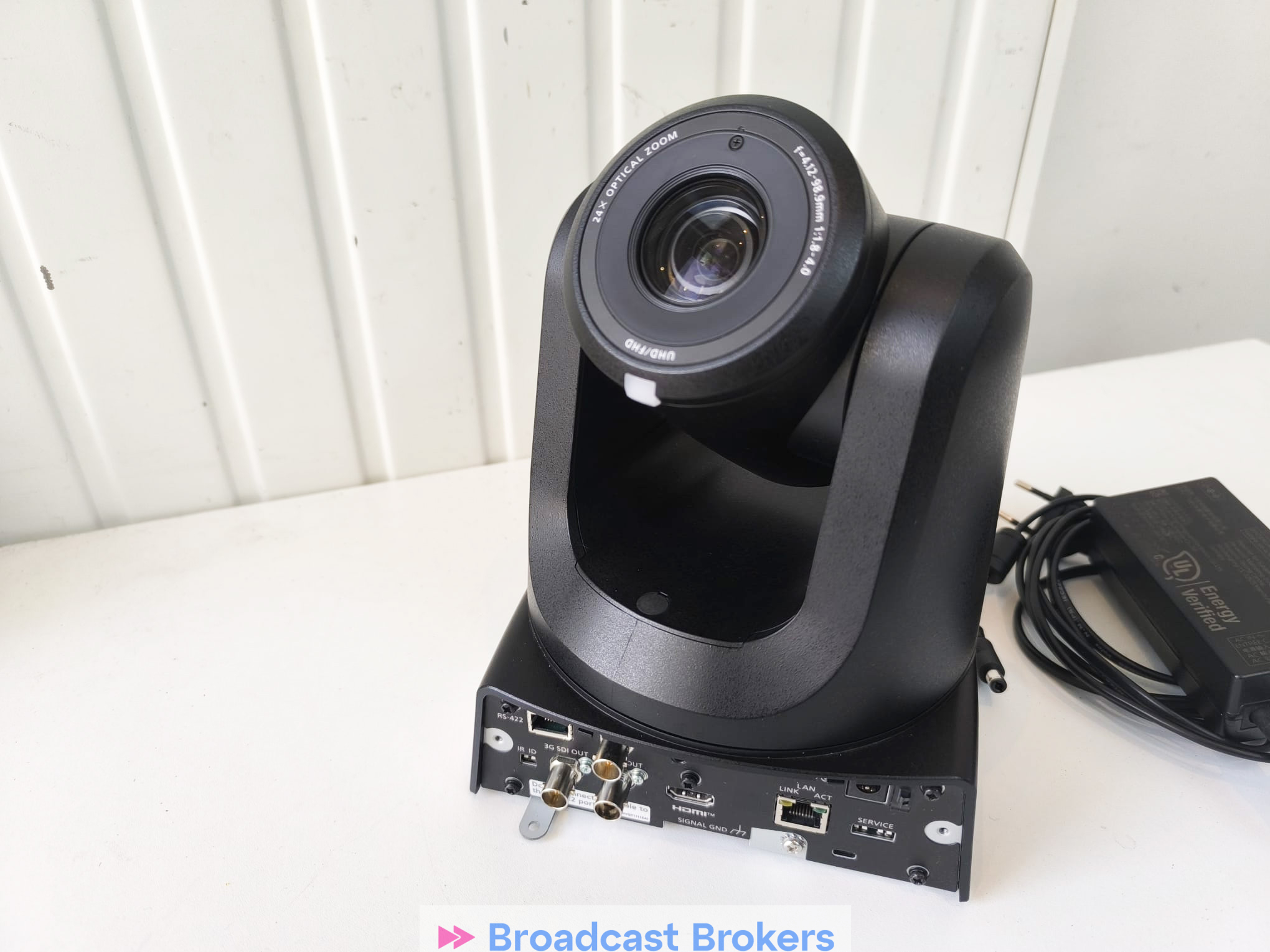

 Video Output & Compression

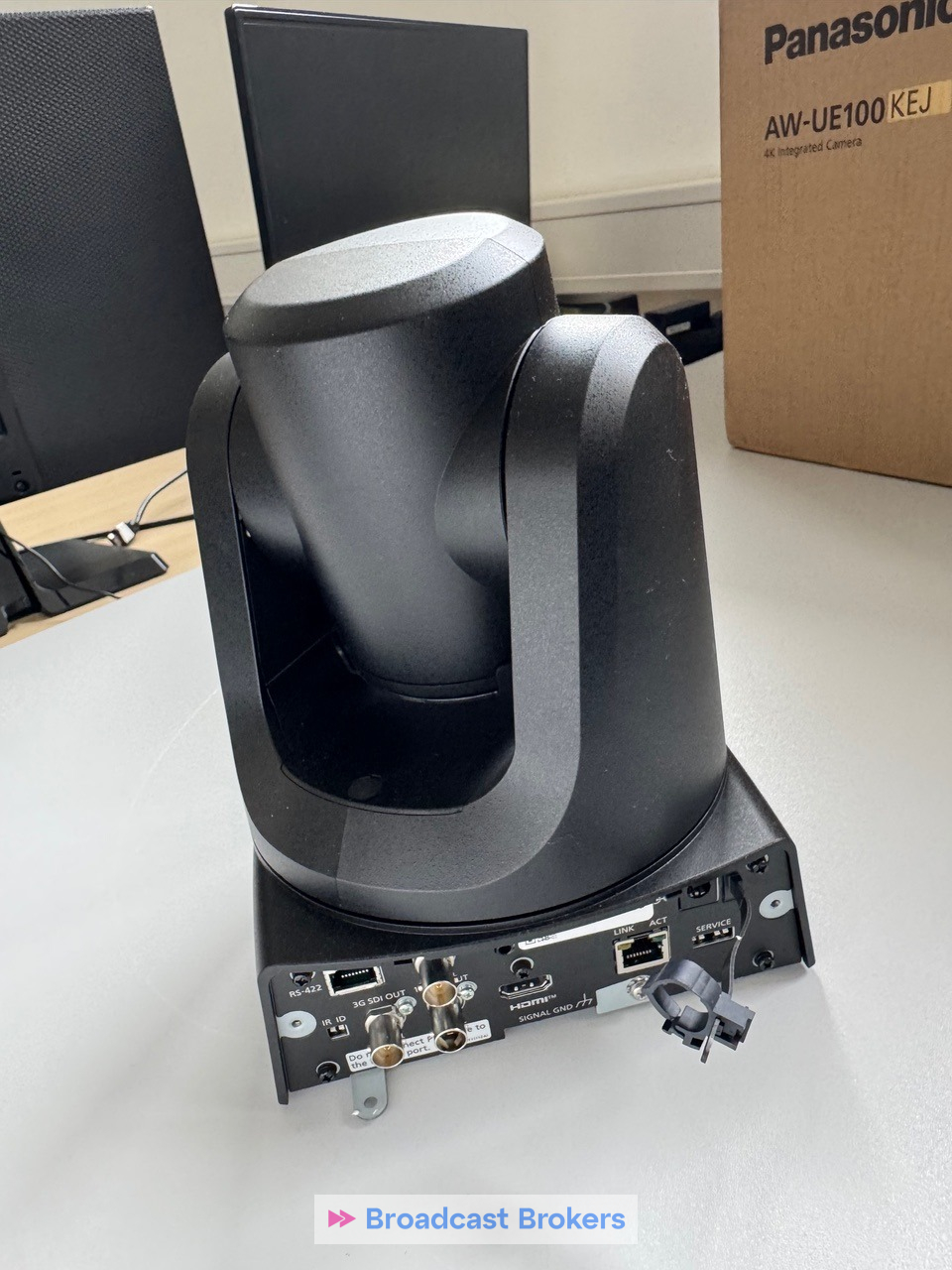

• Video Outputs:

  • 1x 12G-SDI (BNC)

  • 1x 3G-SDI (BNC)

  • 1x HDMI 2.0

• Video Resolutions:

  • 4K (3840 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps

  • 1080p (1920 x 1080) at 25/29.97/50/59.94 fps

  • 1080i (1920 x 1080) at 50/59.94 fps

  • 720p (1280 x 720) at 50/59.94 fps

• Compression Formats:

  • JPEG (MJPEG), H.264, H.265, NDI|HX, High Bandwidth NDI

• Audio:

  • Embedded audio via SDI, HDMI (24-bit/48 kHz)

  • IP streaming supports 16-bit/48 kHz AAC audio

Control & Protocols

• Control Interfaces:

  • IP (RJ45)

  • RS-422 (RJ45)

  • FreeD (for virtual set integration)

• Supported Controllers:

  • AW-RP150, AW-RP60, AK-HRP1010GJ, AK-HRP1015GJ, AK-HRP250GJ

• Pan/Tilt Range:

  • Pan: ±175°

  • Tilt: -30° to +210°

• Pan/Tilt Speed: 0.08° to 180°/s

Power & Environmental

• Power Options:

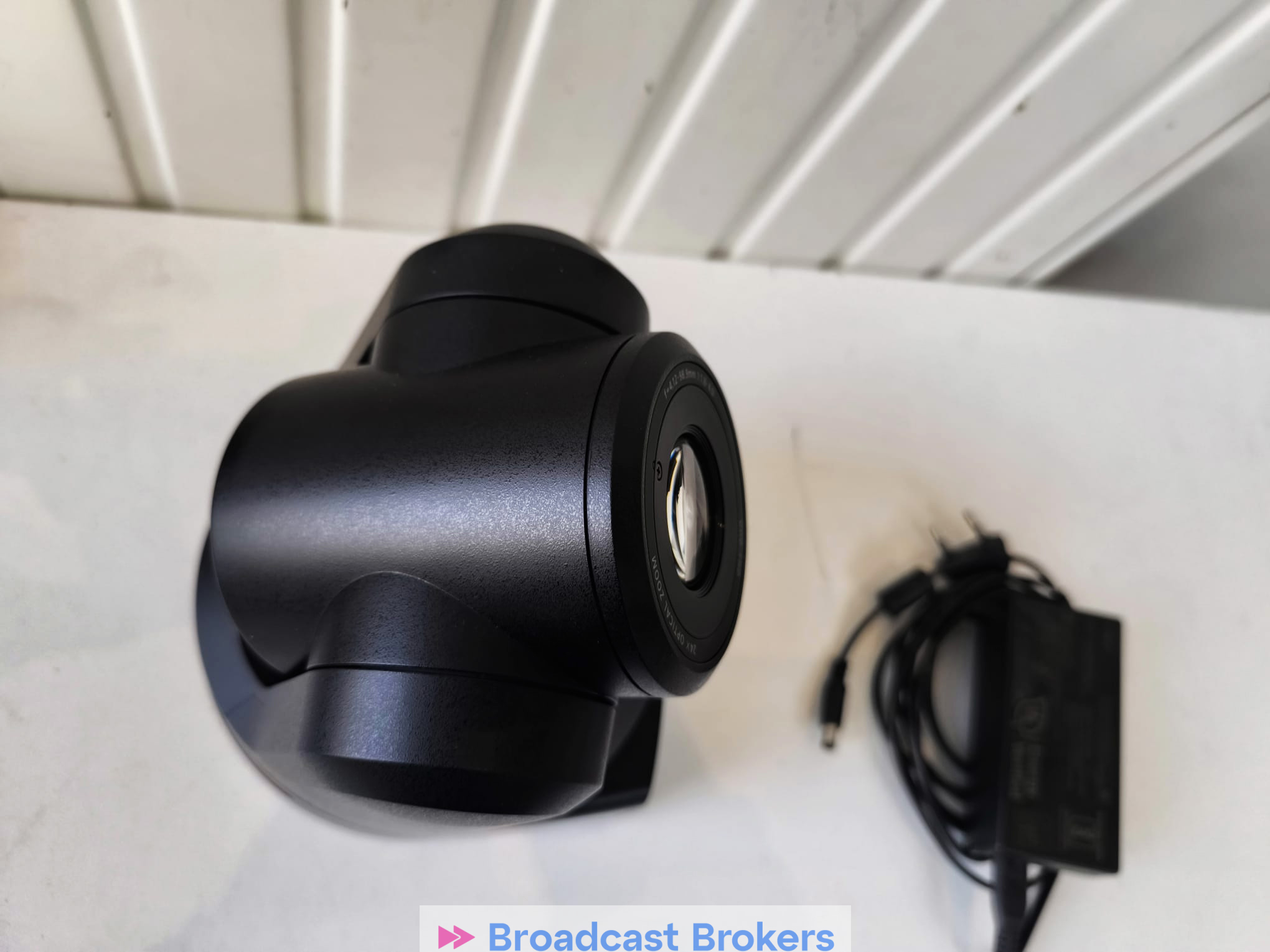

  • 12 V DC (10.8 V to 13.2 V) via supplied AC adapter

  • PoE++ (IEEE 802.3bt) 42 V to 57 V DC

• Power Consumption:

  • 3.0 A (AC adapter)

  • 1.2 A (PoE++)

• Operating Conditions:

  • Temperature: 0°C to 40°C

  • Humidity: 20% to 90% (non-condensing)

• Storage Conditions:

  • Temperature: –20°C to 50°C

• Dimensions: 169.2 mm (W) x 204.6 mm (H) x 170.6 mm (D)

• Weight: Approximately 2.3 kg

Additional Features

• Image Stabilization: Combines Optical Image Stabilization (OIS) with Electronic Image Stabilization (EIS) for enhanced stability during dynamic movements

• NDI Support: Offers both High Bandwidth NDI and NDI|HX for flexible IP-based workflows

• Mounting: Compatible with 1/4″-20 threaded mounts
