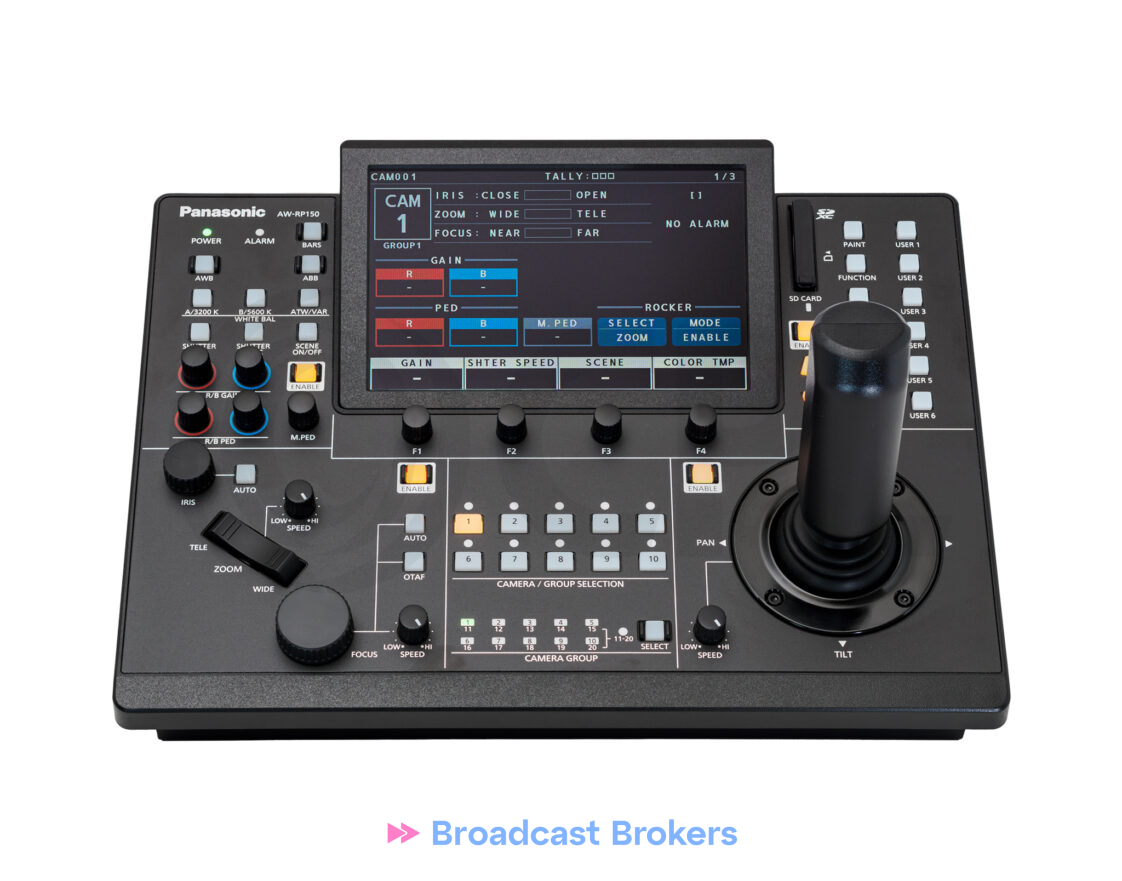

Panasonic AW-RP150

The Panasonic AW-RP150GJ is a professional remote camera controller designed for seamless operation of PTZ cameras in broadcast and AV environments.

Power & Environmental

• Power Input: 12 V DC (10.8 V to 13.2 V) or PoE+ (IEEE802.3at, 42 V to 57 V)

• Current Consumption: 1.0 A (connector input), 0.6 A (PoE+)

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Humidity: 10% to 90% (non-condensing)

• Storage Temperature: -20°C to 50°C (-4°F to 122°F)

• Weight: Approximately 3.2 kg (7.05 lb)

• Dimensions: 342 mm (W) × 178 mm (H) × 245 mm (D)

Input/Output Connectors

• Power Input: XLR 4-pin (DC 12 V IN)

• Video Input: 3G-SDI IN (SMPTE292 / 75 Ω, BNC × 1)

• Video Output: 3G-SDI ACTIVE THRU OUT (SMPTE292 / 75 Ω, BNC × 1)

• IP Control: 100BASE-TX (PoE+ input)

• Serial Control: RS-422 (RJ-45)

• Tally Output: Open collector output (negative logic), max voltage DC 24 V, max current 50 mA

• GPIO 1: D-sub 25-pin (10 inputs for photocoupler signals, 6 GPI, 5 GPIO)

• GPIO 2: D-sub 25-pin (10 inputs for photocoupler signals, 10 GPIO)

 Display & Controls

• LCD Display: 7-inch Touch Panel GUI Monitor (WVGA 800×480)

• Joystick: ZOOM/FOCUS rocker for intuitive one-handed operation

• Assignable Buttons: 6 physical buttons + up to 10 on the LCD menu

• Camera Selection: 10 physical buttons

• Camera Groups: 20 groups (10 units per group)

Memory & Presets

• Preset Memory: 100 presets

• Tracing Memory: Supports up to 10 settings per camera, with a maximum of 5 minutes total per camera

 Additional Features

• Pan/Tilt Speed Adjustment: 7 levels

• Tally LED Display: Green/Red

• Touch Focus Function: Quickly aligns focus to the area touched on the screen

• Cropping Control: Allows for precise cropping of images from compatible cameras
