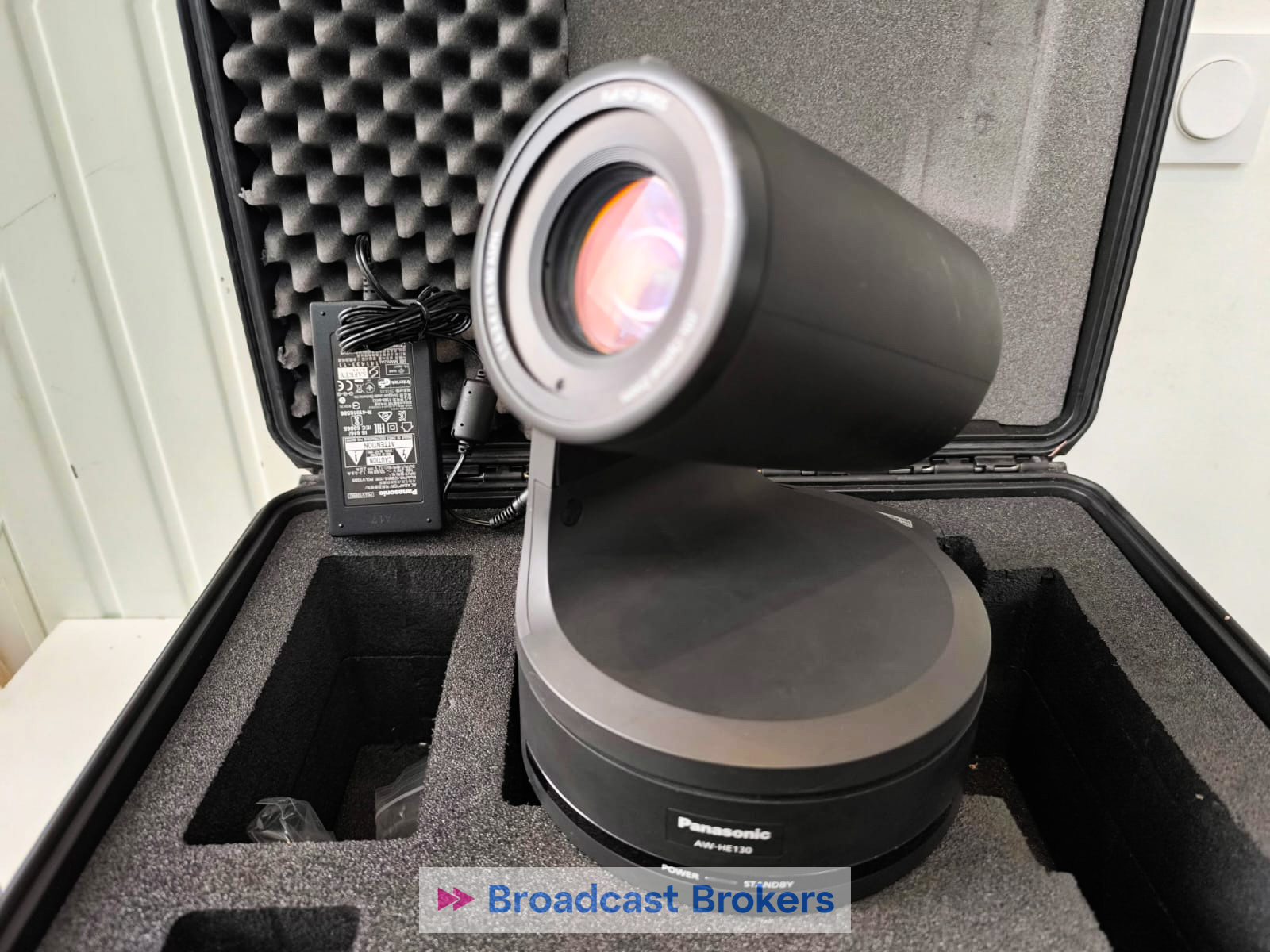

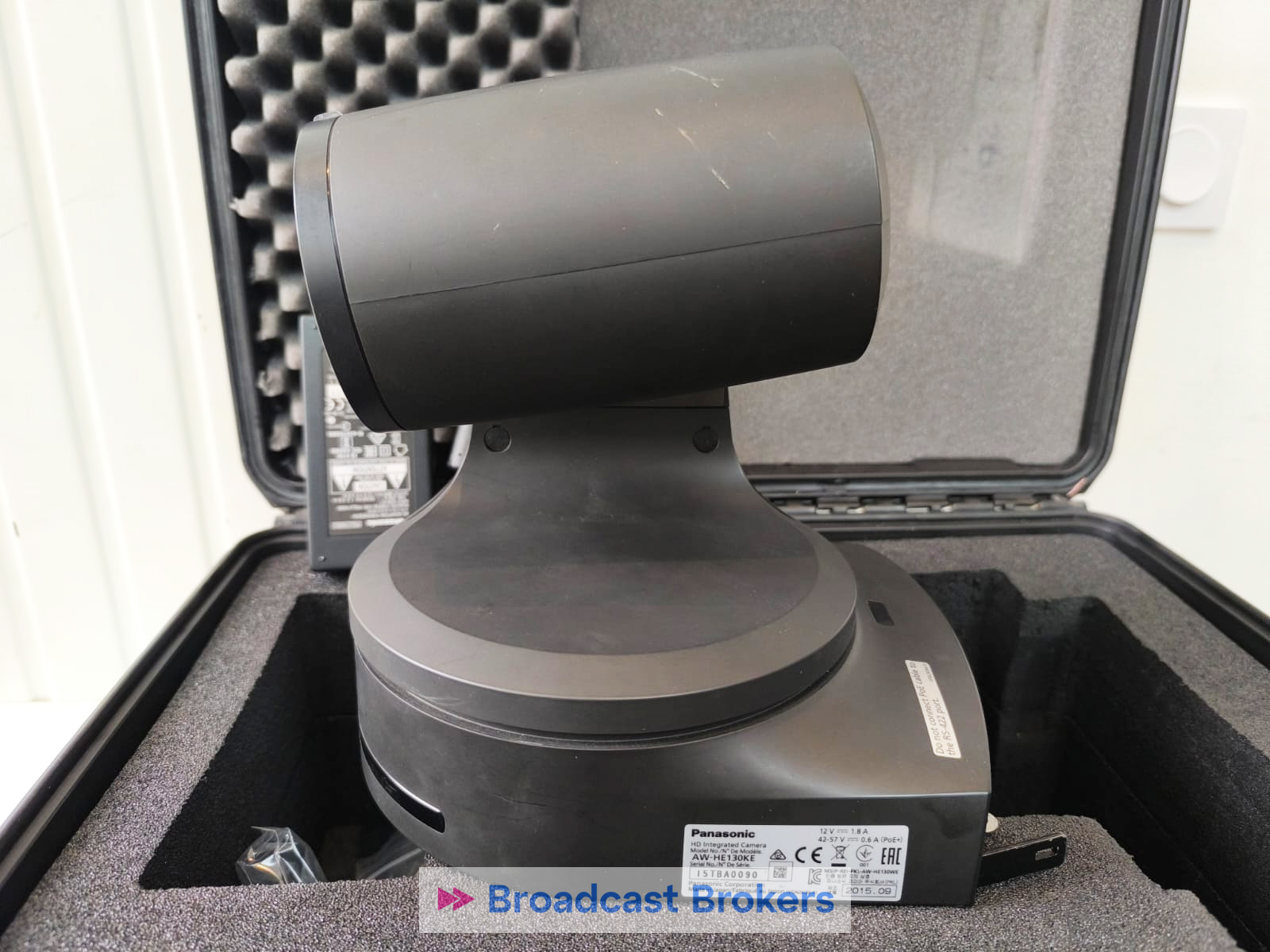

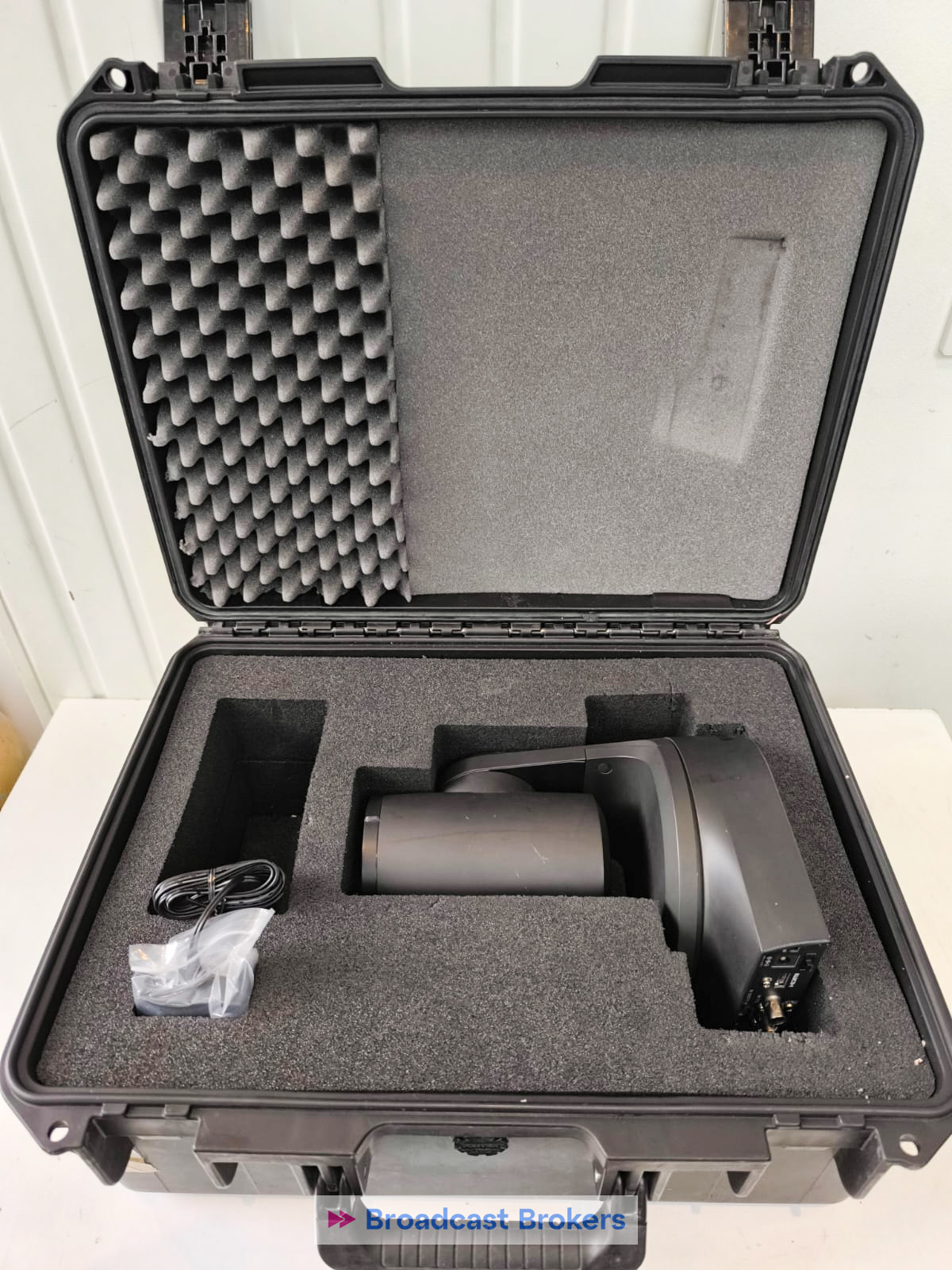

Panasonic AW-HE130KE

AW HE130KE Remote hothead camera HDMI & HD/SDI

up to 6 units available

The Panasonic AW-HE130KEJ is a high-performance PTZ (pan-tilt-zoom) camera designed for professional video production and live streaming. It features a 1/2.86-inch MOS sensor, providing excellent image quality with a native resolution of 1920x1080p. The camera boasts a 20x optical zoom lens, which allows for versatile shot composition and detailed close-ups. It supports a variety of video formats, including HD and SD, and offers a range of connectivity options such as HDMI, HD-SDI, and IP streaming, making it suitable for various broadcasting and video conferencing applications.

The Panasonic AW-HE130KE is a high-performance PTZ (Pan-Tilt-Zoom) camera designed for various professional broadcasting, video production, and live streaming environments.

Key Features:

• Camera Type: PTZ Camera (Pan-Tilt-Zoom)
• Sensor: 1/2.86-inch 3-MOS (three separate MOS sensors)

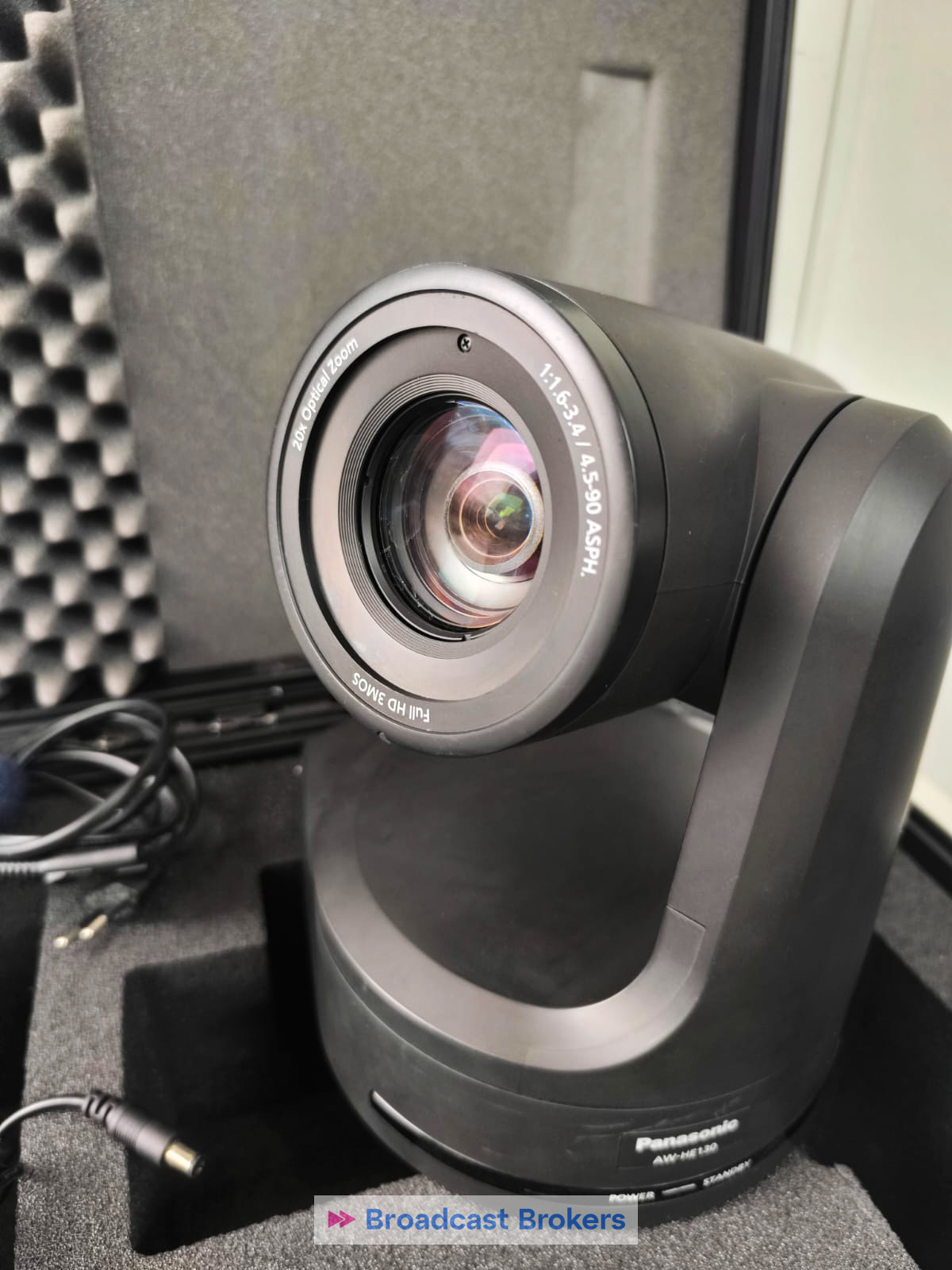

• Lens: Integrated 20x optical zoom lens, motorized focus, and iris control
• Resolution:
  • 1080p (Full HD)
  • 720p
  • 480p

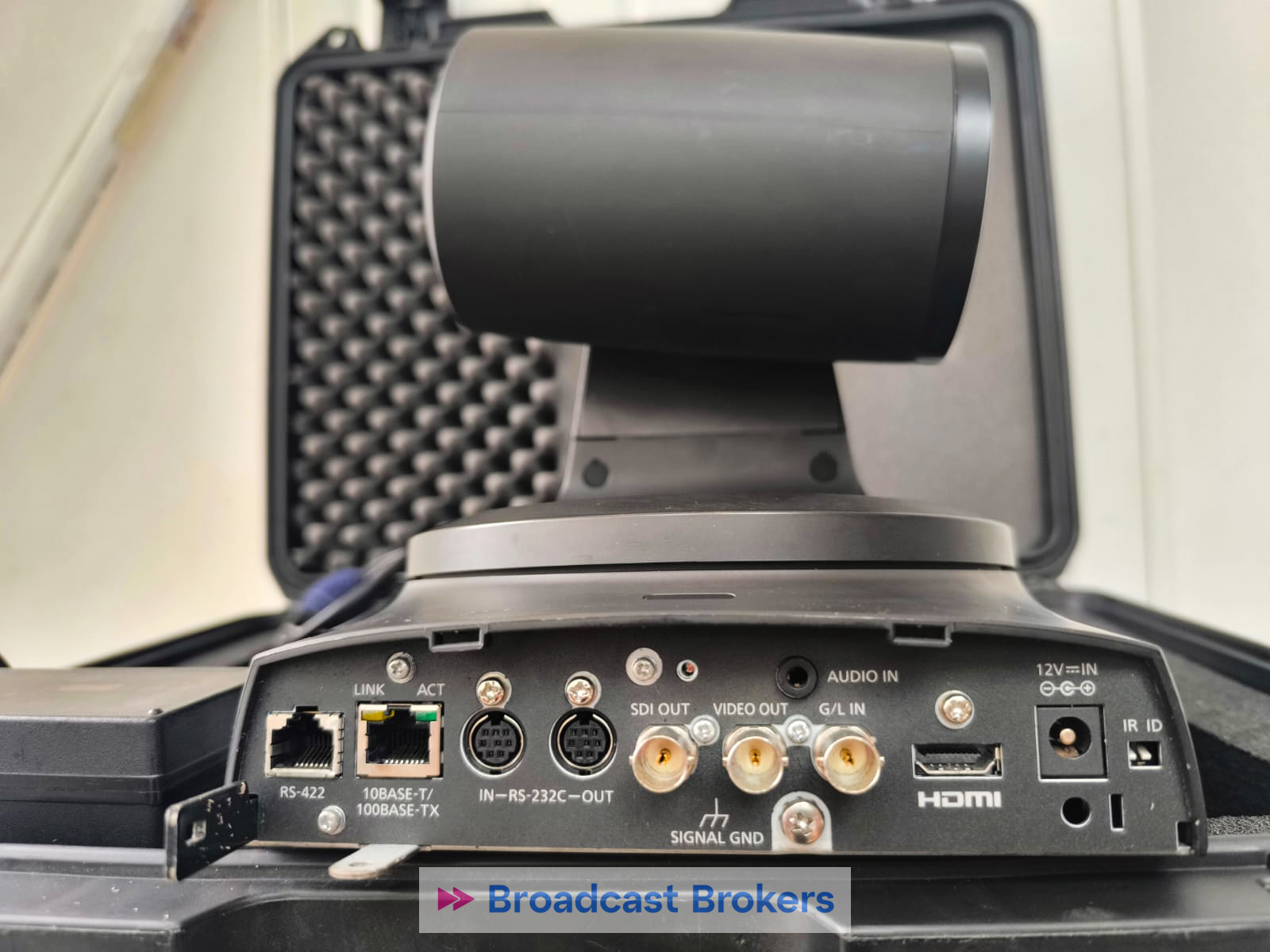

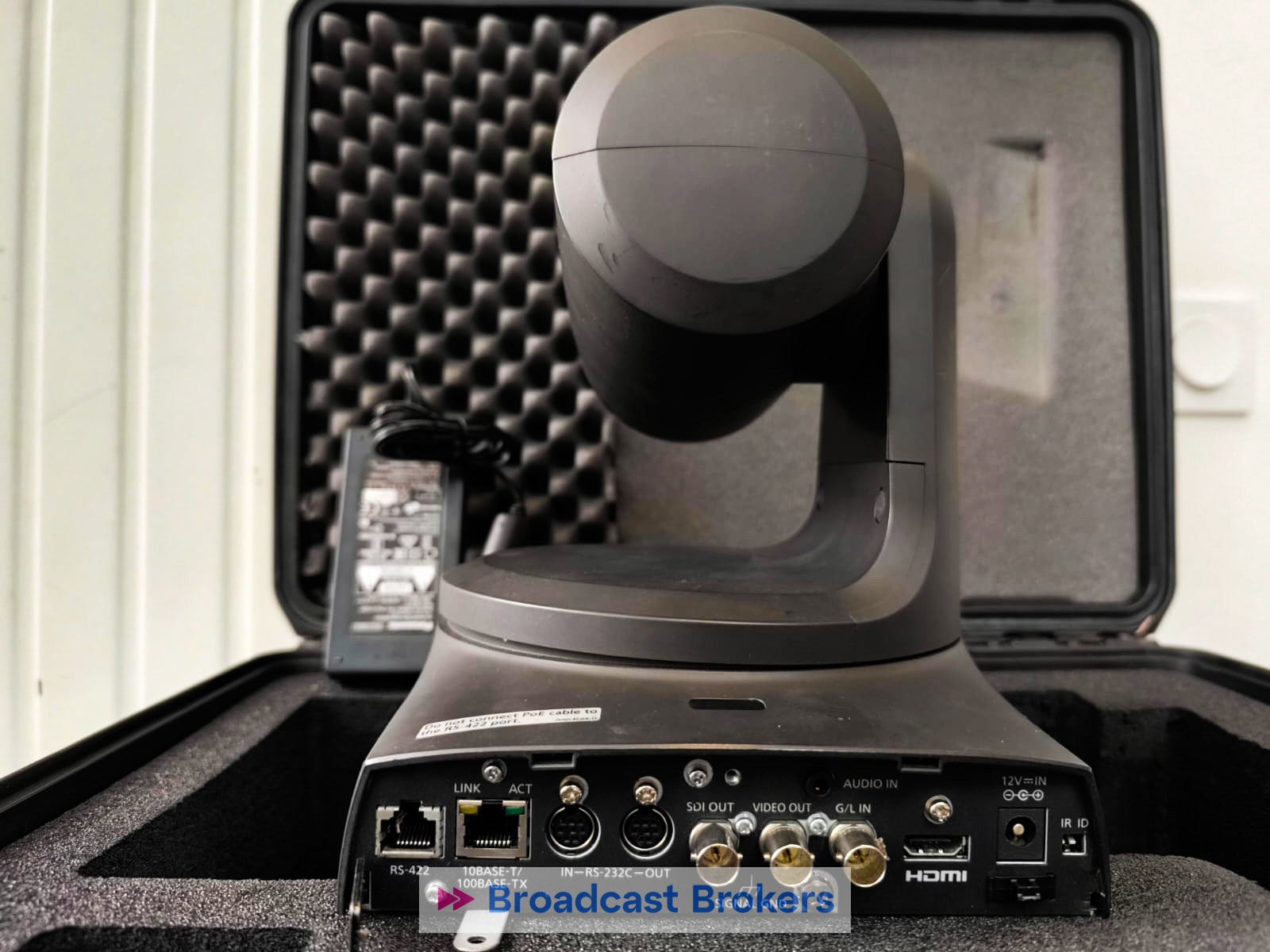

• Video Output:
  • 3G-SDI, HDMI, and IP streaming outputs
  • Simultaneous output of 3G-SDI and IP streaming
• IP Streaming: H.264 (up to 1080p at 60fps)
• Camera Control:
  • RS-232C, RS-422 (VISCA, PELCO-D, PELCO-P), and IP (WEB control)
  • Support for Panasonic AW-RP50, AW-RP120, AW-RP150 controllers
  • Direct control via web interface for setup and operation
• Pan/Tilt Movement:
  • Pan: ±170°
  • Tilt: ±30°
  • Speed: Pan: 0.1° to 60°/sec, Tilt: 0.1° to 30°/sec
• Zoom:

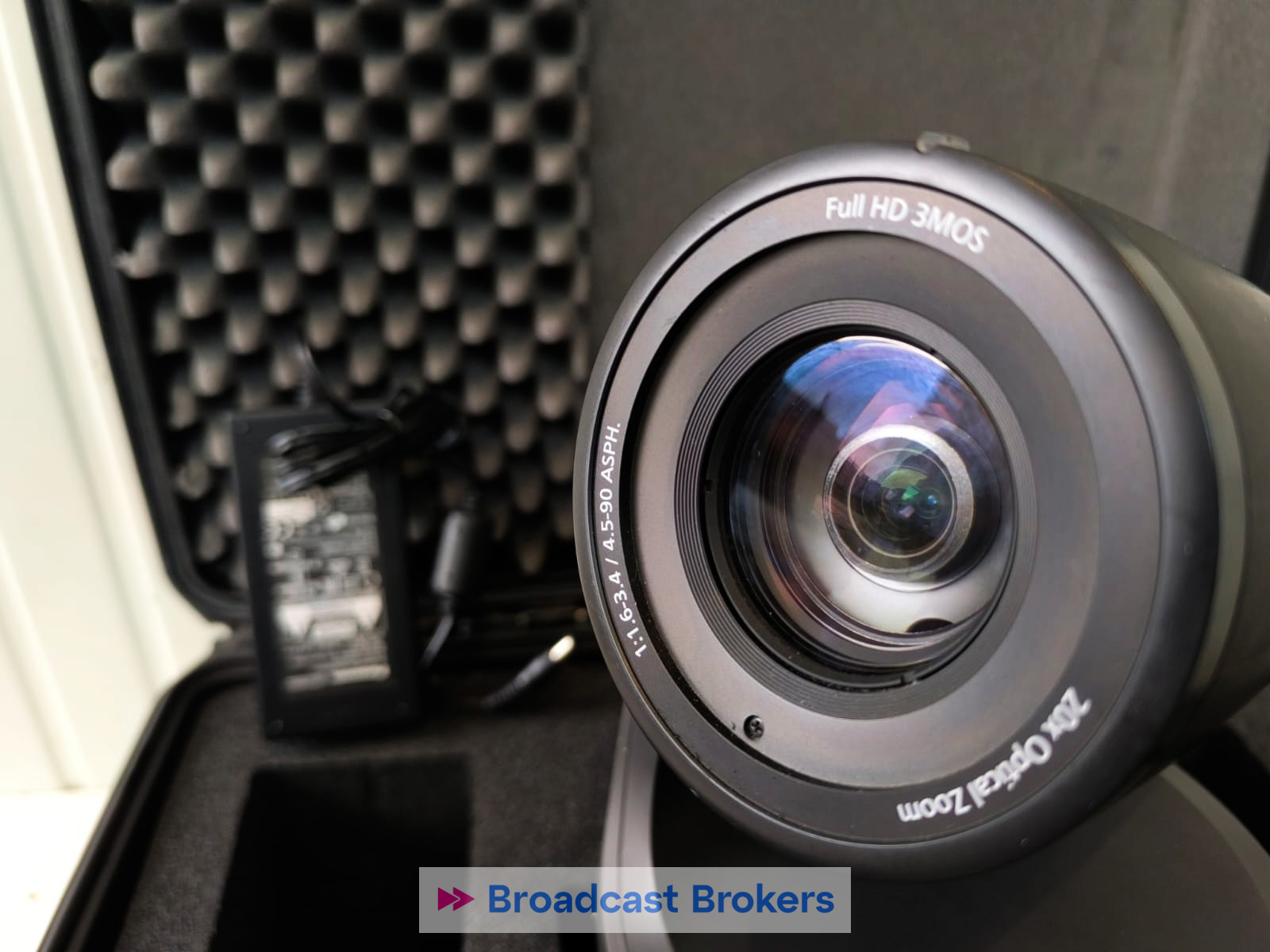

  • 20x optical zoom (focal length: 4.5mm to 90mm)
  • 10x digital zoom
• Audio: Audio embedding over SDI and HDMI
• Low Light Performance:
  • Minimum illumination: 0.5 lux (color), 0.05 lux (B/W, in low light mode)
  • Adaptive Noise Reduction (NR) for low-light environments
• White Balance: Automatic/Manual/One-push white balance
• Focus: Automatic/Manual focus options
• Field of View:
  • Horizontal: 60.7° (Wide end)
  • Vertical: 34.0° (Wide end)
• Remote Control: Supports remote PTZ control with optional controllers, and can be controlled via IP networks.

Video Formats & Resolutions:

• HD:
  • 1080p (59.94/50/29.97/25/23.98 Hz)
  • 720p (59.94/50 Hz)
• SD:
  • 480p (59.94 Hz)
  • 576p (50 Hz)

Power:

• Power Supply: DC 12V (Power consumption: 24W)
• Power over Ethernet (PoE): Supported via IEEE 802.3af

Dimensions and Weight:

• Dimensions:
  • 195 mm (W) x 182 mm (H) x 186 mm (D)
• Weight:
  • Approx. 2.8 kg (6.2 lbs)

Network Control & Streaming:

• Web Interface: Integrated web-based control and configuration interface
• Streaming: RTSP/RTMP live streaming over the IP network
• Dual Streaming Output: Supports both 3G-SDI and IP streaming simultaneously

Special Features:

• Auto Tracking: Automatically tracks moving subjects in specific applications (optional add-on)
• High Dynamic Range (HDR): Available in some modes
• Privacy Zones: You can set zones within the camera’s field of view that will be hidden or excluded from the camera’s output.
• Preset Positions: 100 preset camera positions can be stored for quick recall.

The AW-HE130KE is highly versatile, designed for various applications, such as live event production, conference rooms, houses of worship, and educational institutions. It combines superior image quality with extensive control options, including remote operation, and is a highly regarded choice for users in need of a reliable and high-quality PTZ camera.

In comparison to equivalent models from competitors, the Panasonic AW-HE130KEJ holds its ground with the following key features:

1. Sony BRC-X1000: Sony’s BRC-X1000 offers similar high-definition video capabilities with a 1-inch sensor for enhanced low-light performance. It also includes a 12x optical zoom lens, which is slightly less than the AW-HE130KEJ’s 20x zoom. The BRC-X1000 provides excellent connectivity options, including HDMI and IP streaming.
2. JVC KY-PZ100: JVC’s KY-PZ100 is another competitor in the PTZ camera market. It features a 4K resolution sensor, offering superior image clarity compared to the AW-HE130KEJ’s HD resolution. However, the KY-PZ100 has a 30x optical zoom lens, which can be advantageous for capturing distant subjects. It also supports IP streaming and various output options.
3. Canon CR-N300: The Canon CR-N300 is a PTZ camera that competes closely with the AW-HE130KEJ. It has a 1/2.3-inch CMOS sensor and a 15x optical zoom lens. It supports 4K video output and offers advanced IP control and streaming features. Canon’s model is known for its high-quality image processing and low-latency streaming.

In summary, while the Panasonic AW-HE130KEJ provides a solid balance of image quality, zoom capability, and connectivity, competitors like the Sony BRC-X1000, JVC KY-PZ100, and Canon CR-N300 offer alternatives with different strengths, such as higher resolution or longer zoom ranges.
