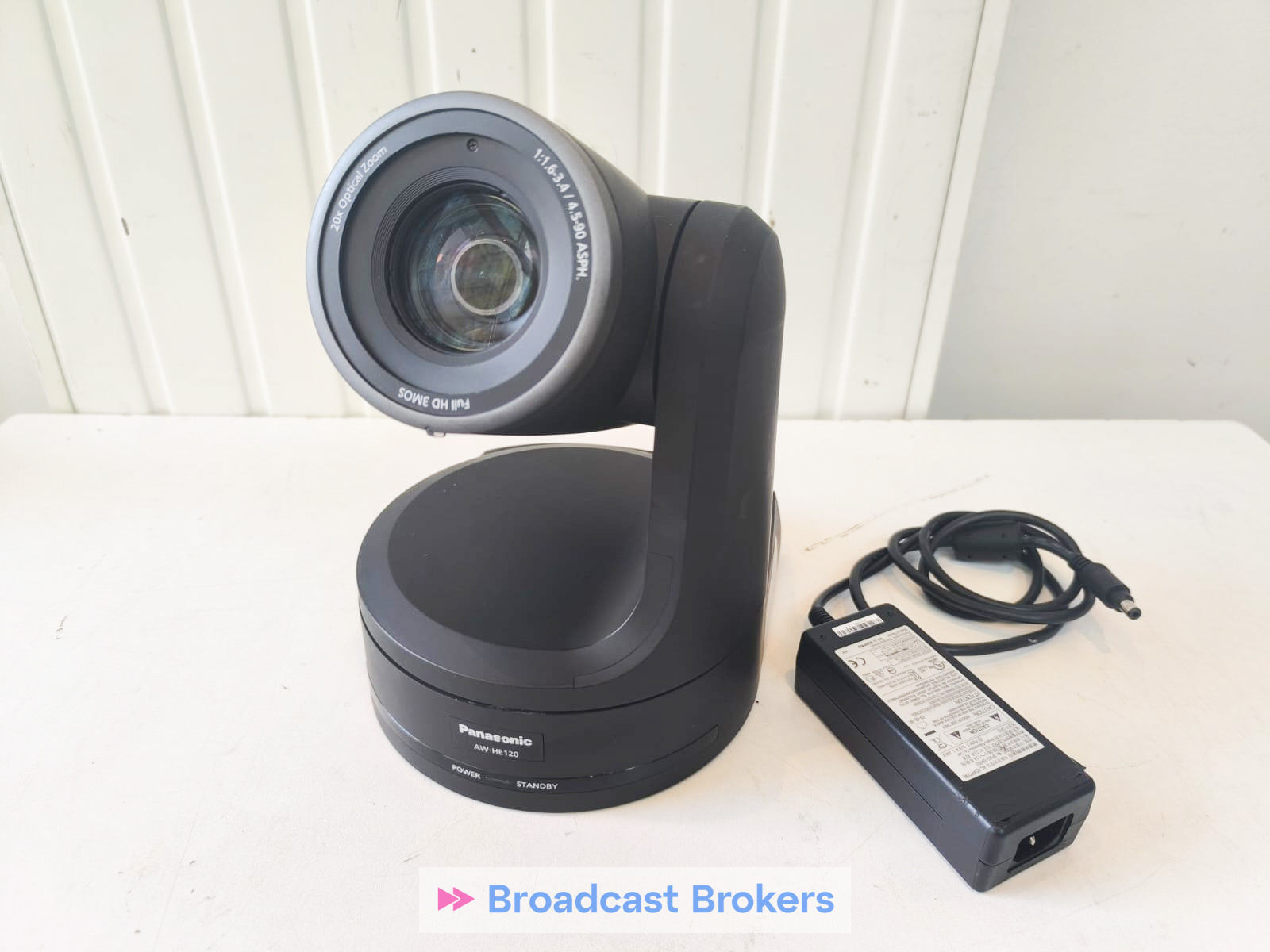

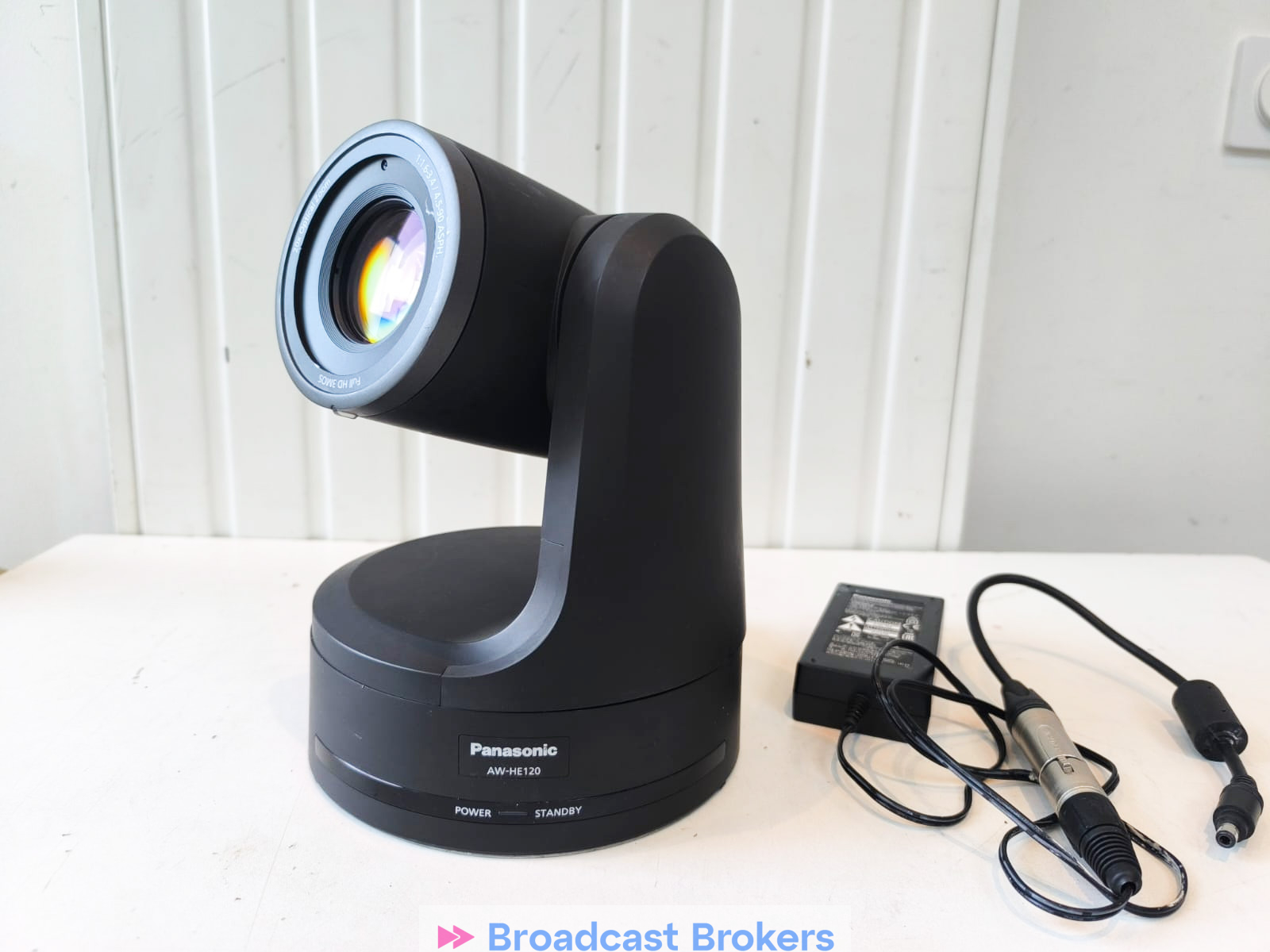

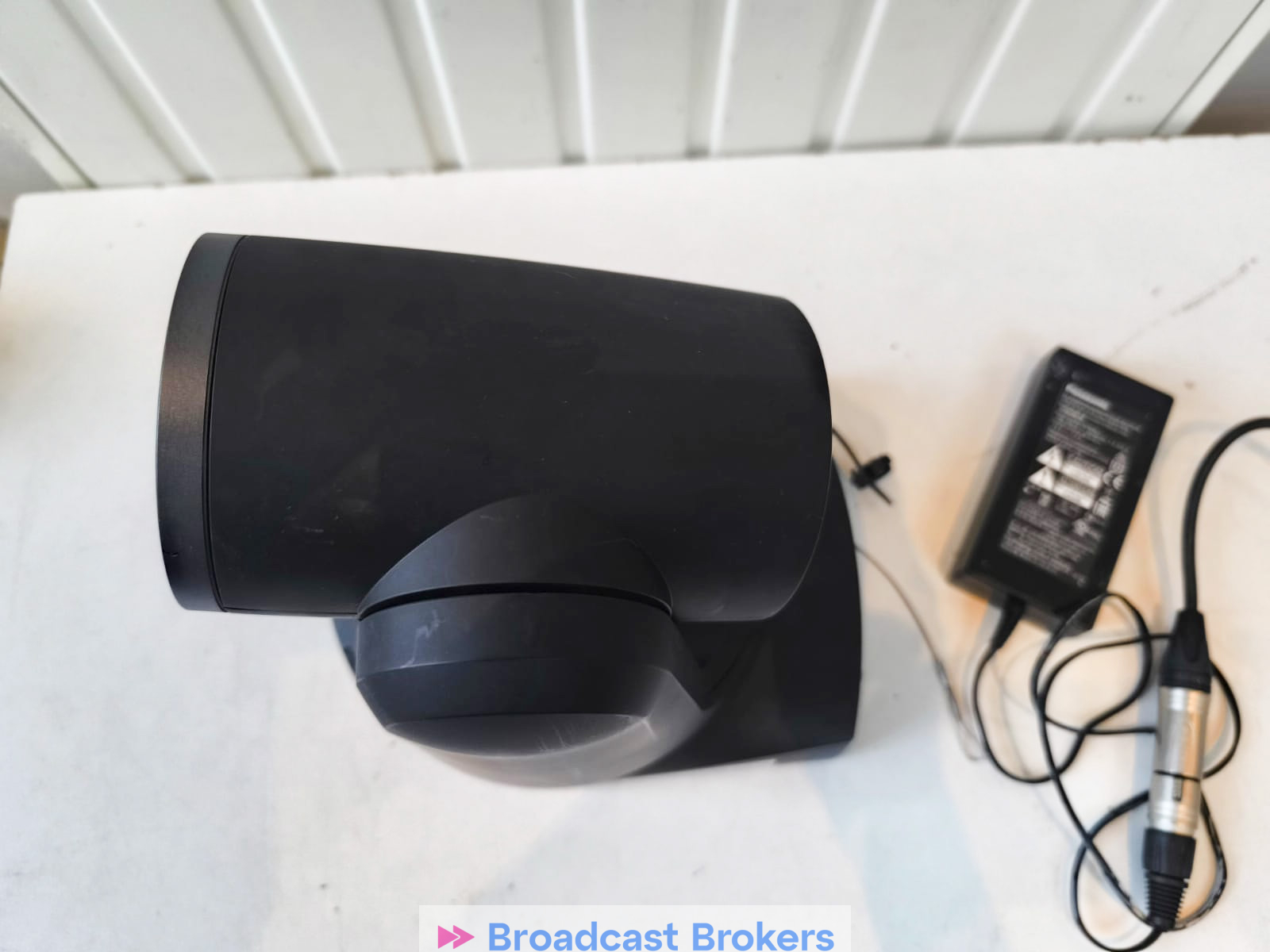

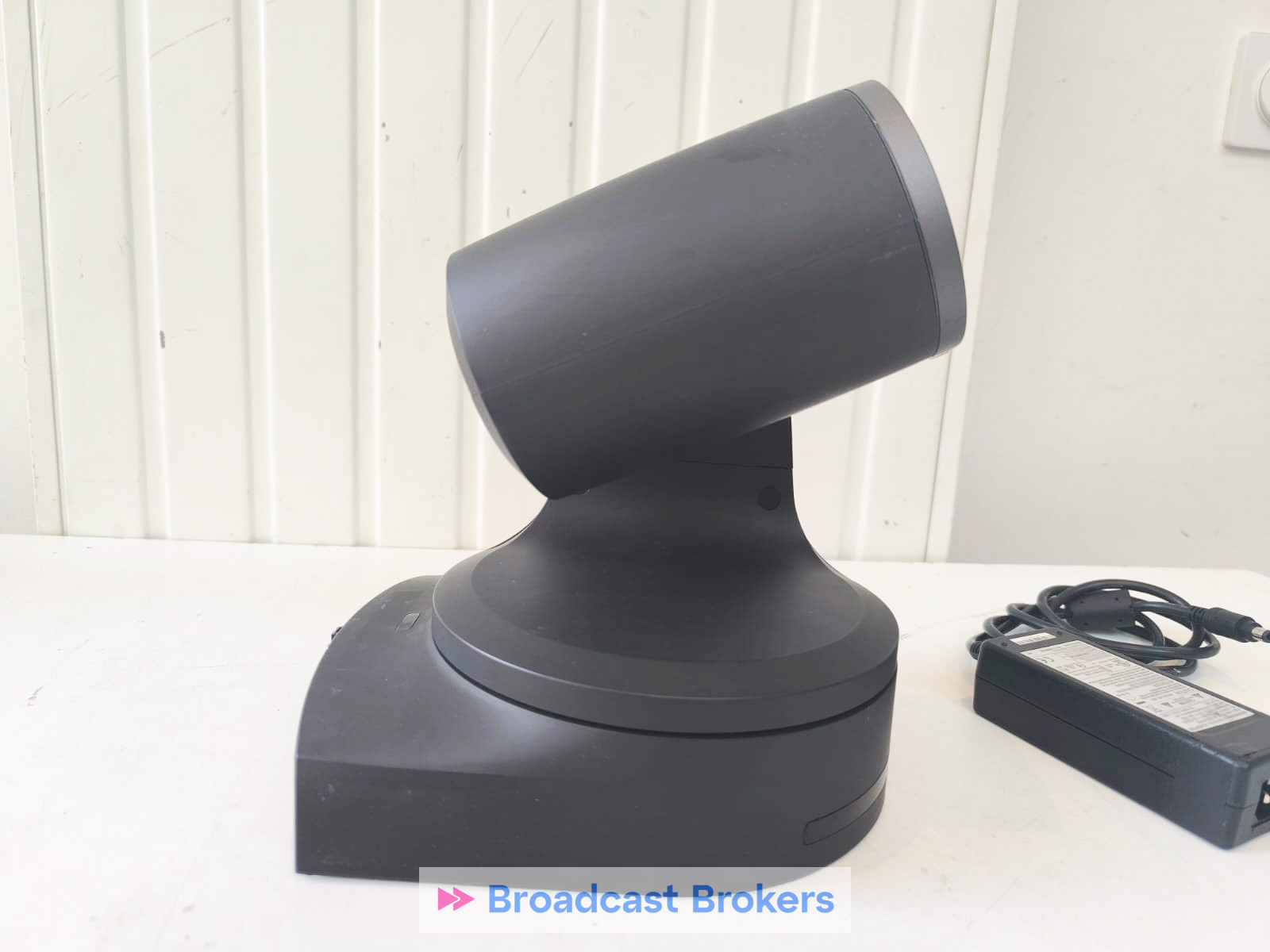

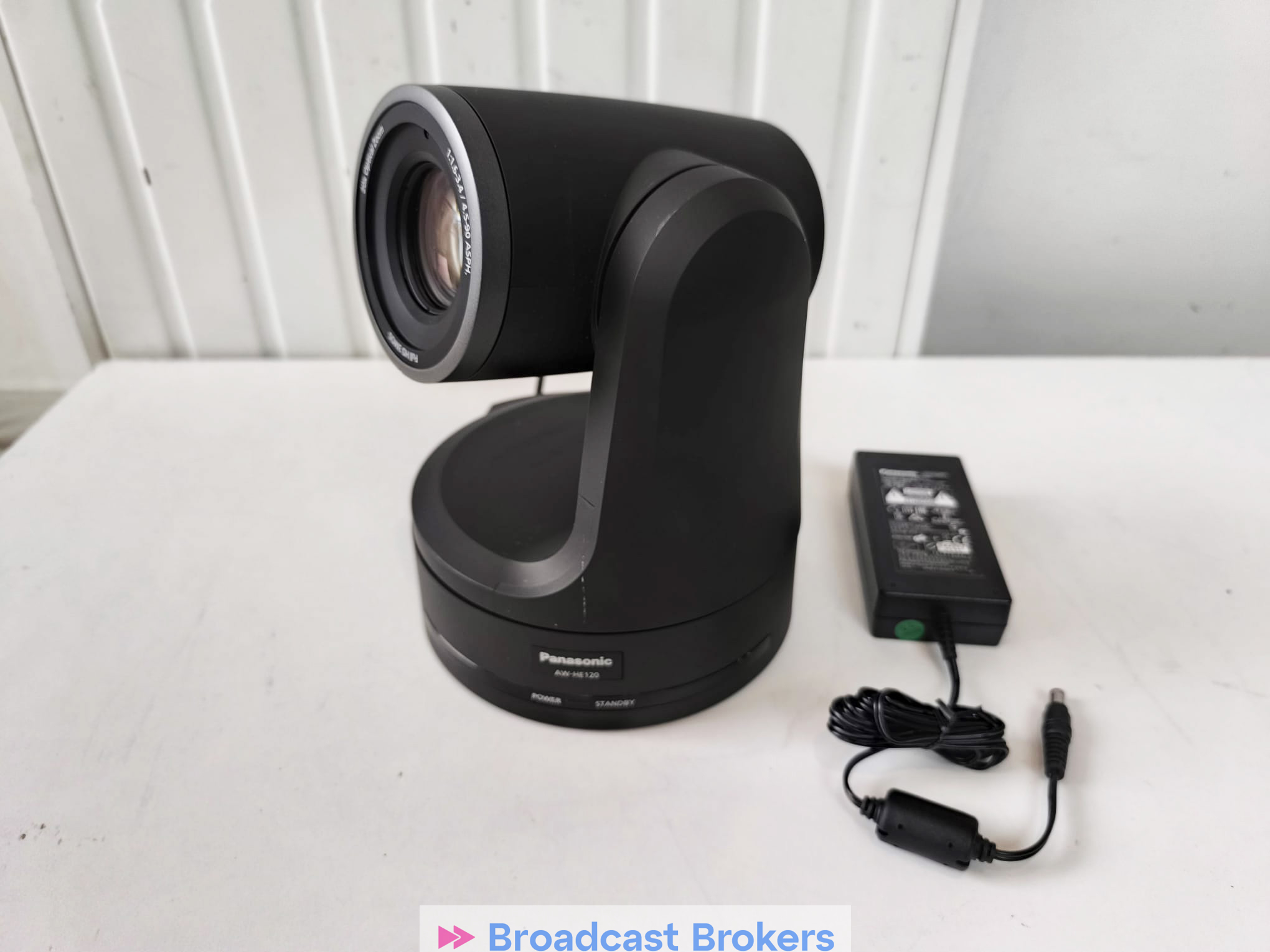

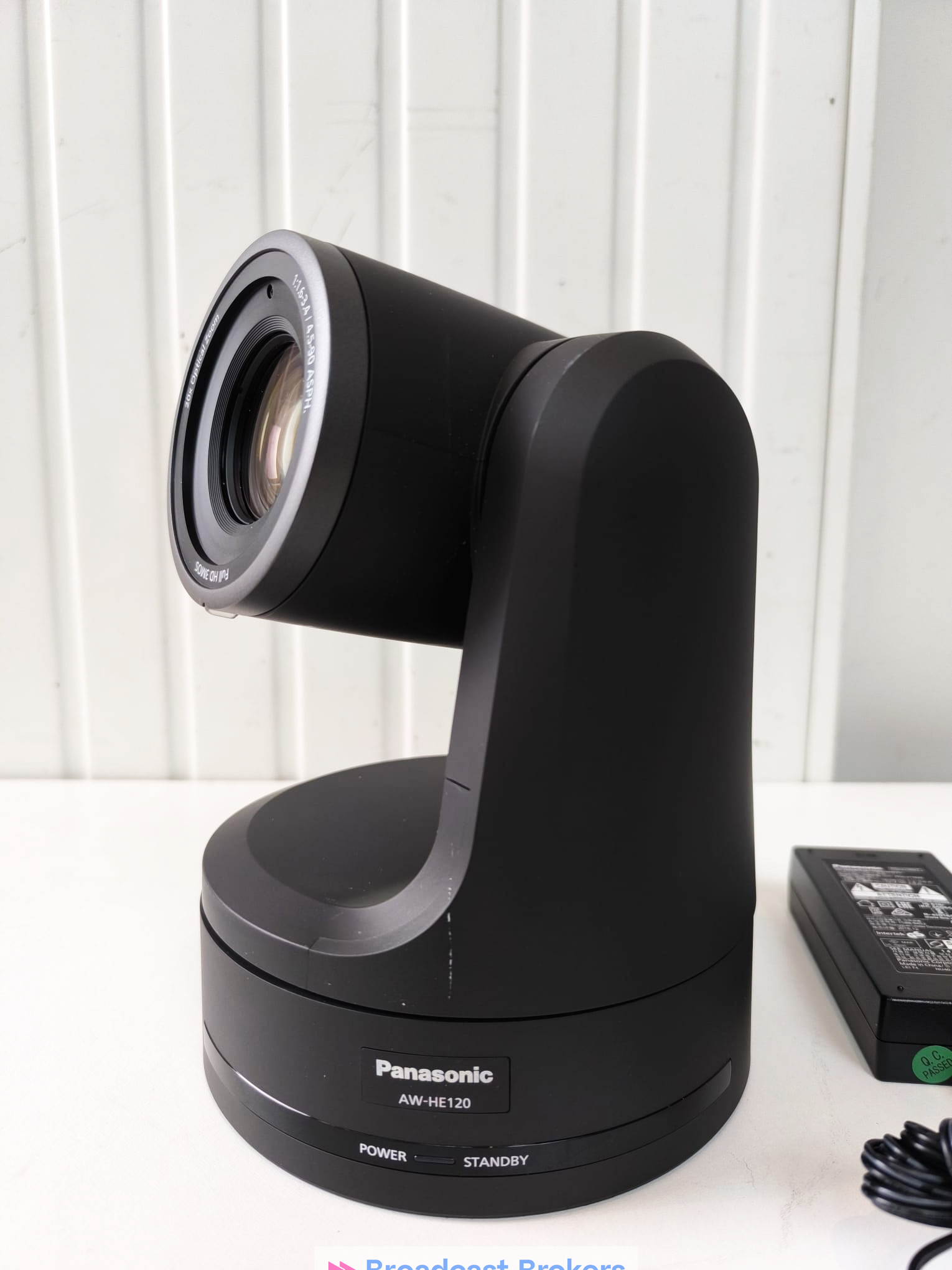

Panasonic AW-HE120 KEJ

AW HE120KE Black Remote hothead cameras HDMI & HD/SDI

5 units  available

also available : AW-HE130KEJ, AW-UN70, AW-UE70WEJ

The Panasonic AW-HE120KEJ is a professional PTZ (pan-tilt-zoom) camera designed for a range of broadcasting and video production applications. It features a 1/2.86-inch MOS sensor that delivers high-definition video with a resolution of 1920x1080p. The camera is equipped with a 20x optical zoom lens, allowing for flexible framing and detailed close-ups. It supports multiple video formats, including HD and SD, and offers various connectivity options such as HDMI, HD-SDI, and IP streaming, which enhances its versatility in different setups.

The Panasonic AW-HE120KE is a PTZ (Pan-Tilt-Zoom) camera designed for professional broadcasting and video production.

Key Features:

1. Camera Type:

   • PTZ (Pan-Tilt-Zoom) Camera
   • Remote-controlled operation
   • Designed for professional use in live production environments

2. Image Sensor:

   • 1/2.86-inch CMOS sensor
   • Progressive scan for high-quality video capture

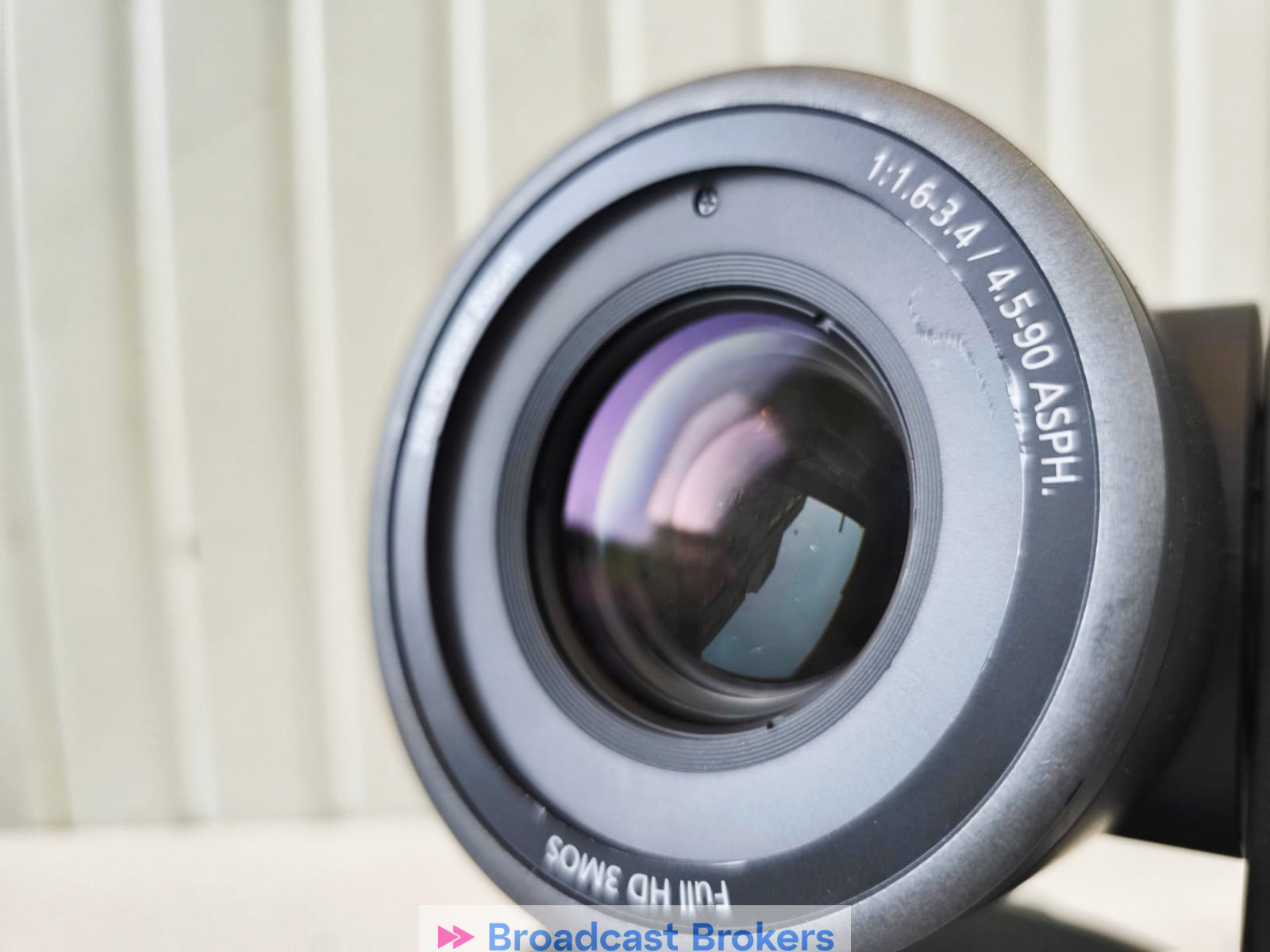

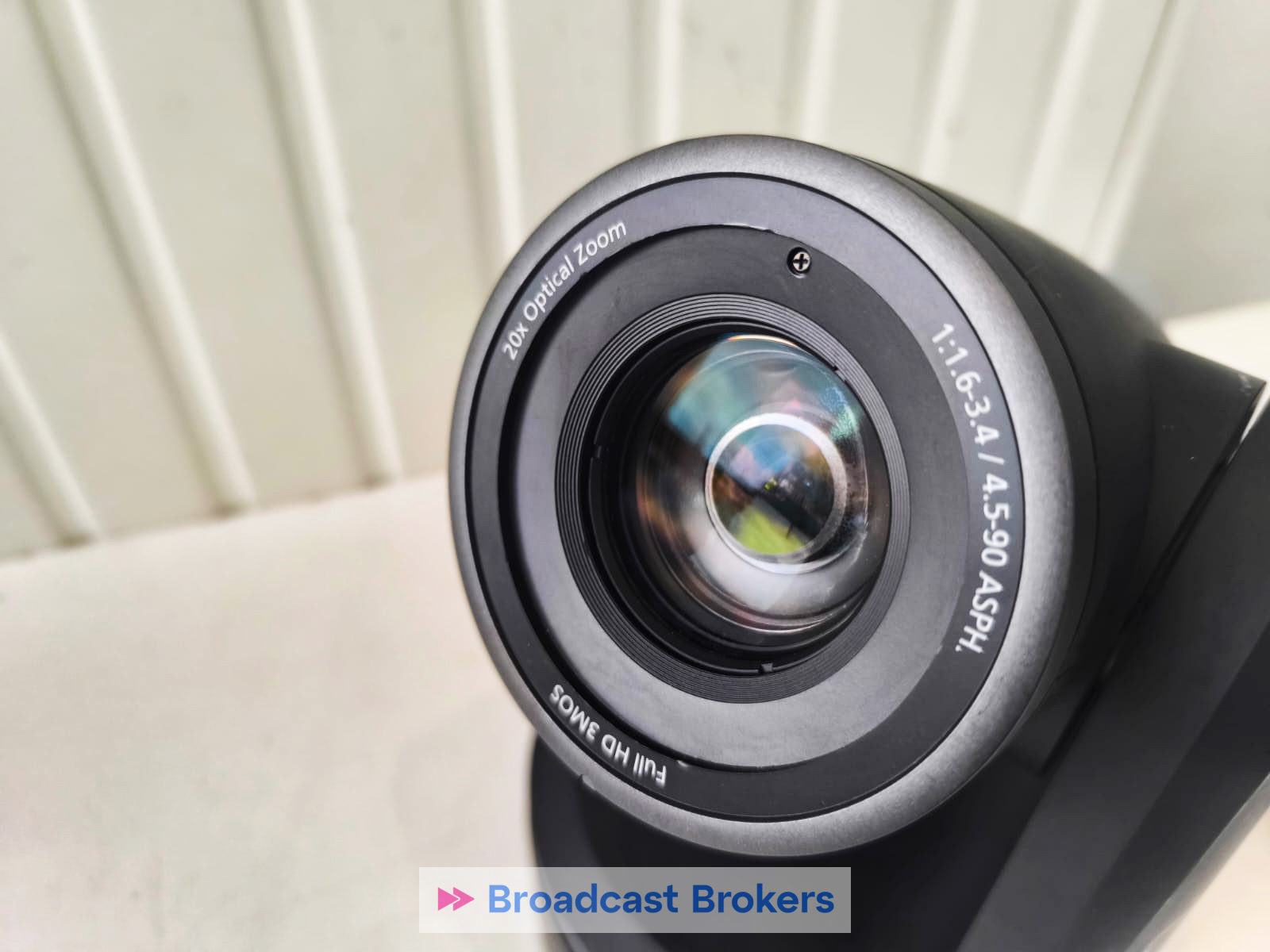

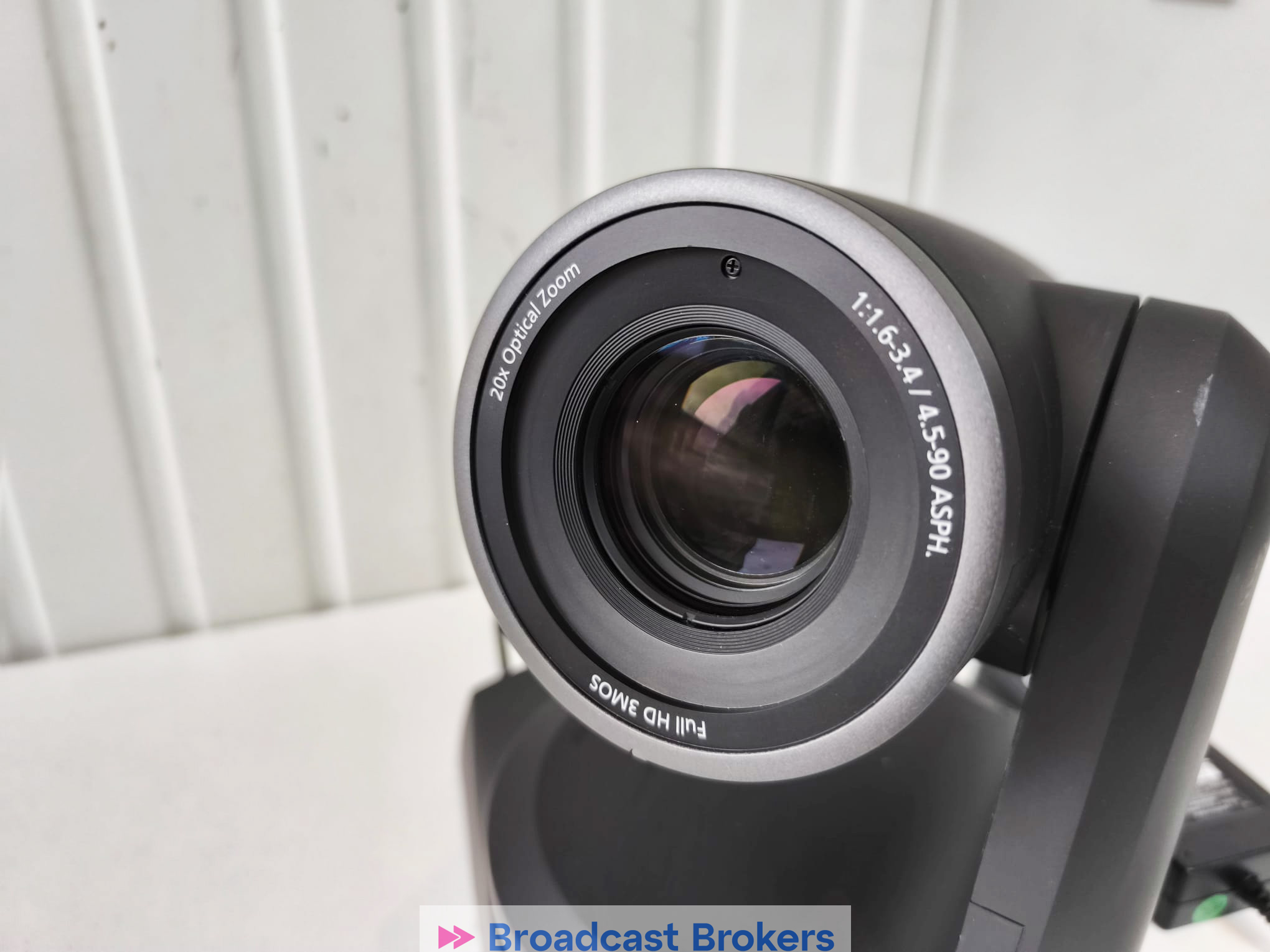

3. Lens:

   • 20x Optical Zoom lens
   • Focal Length: 4.4 mm (Wide) to 88 mm (Telephoto)
   • Auto-focus and manual focus options

4. Resolution:

   • HD 1080p: 1920×1080 (Full HD)
   • 720p: 1280×720
   • SD 480p: 720×480 (Standard Definition)

   Supports both 30p, 60i, and 50i formats depending on your region and requirements.

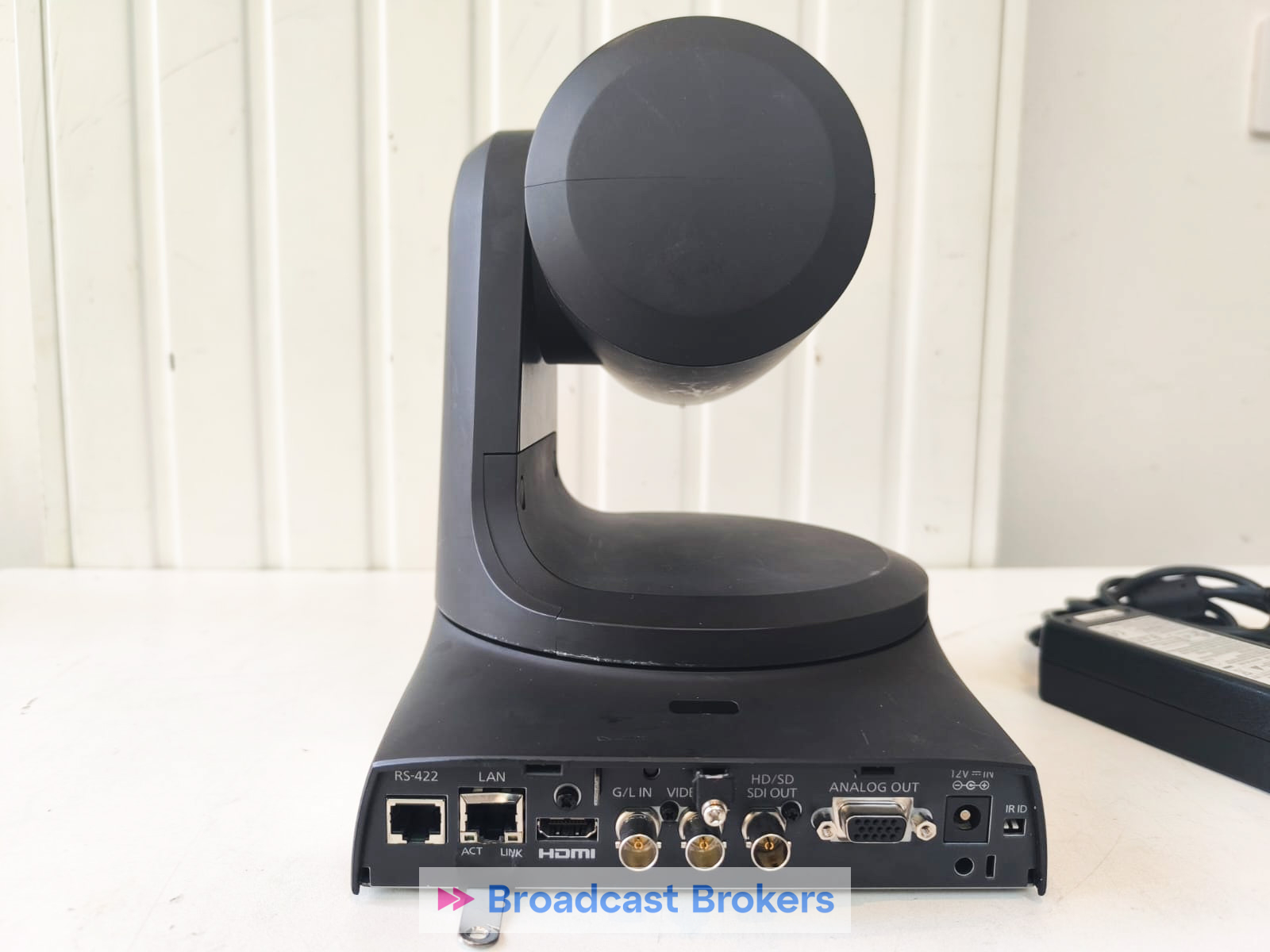

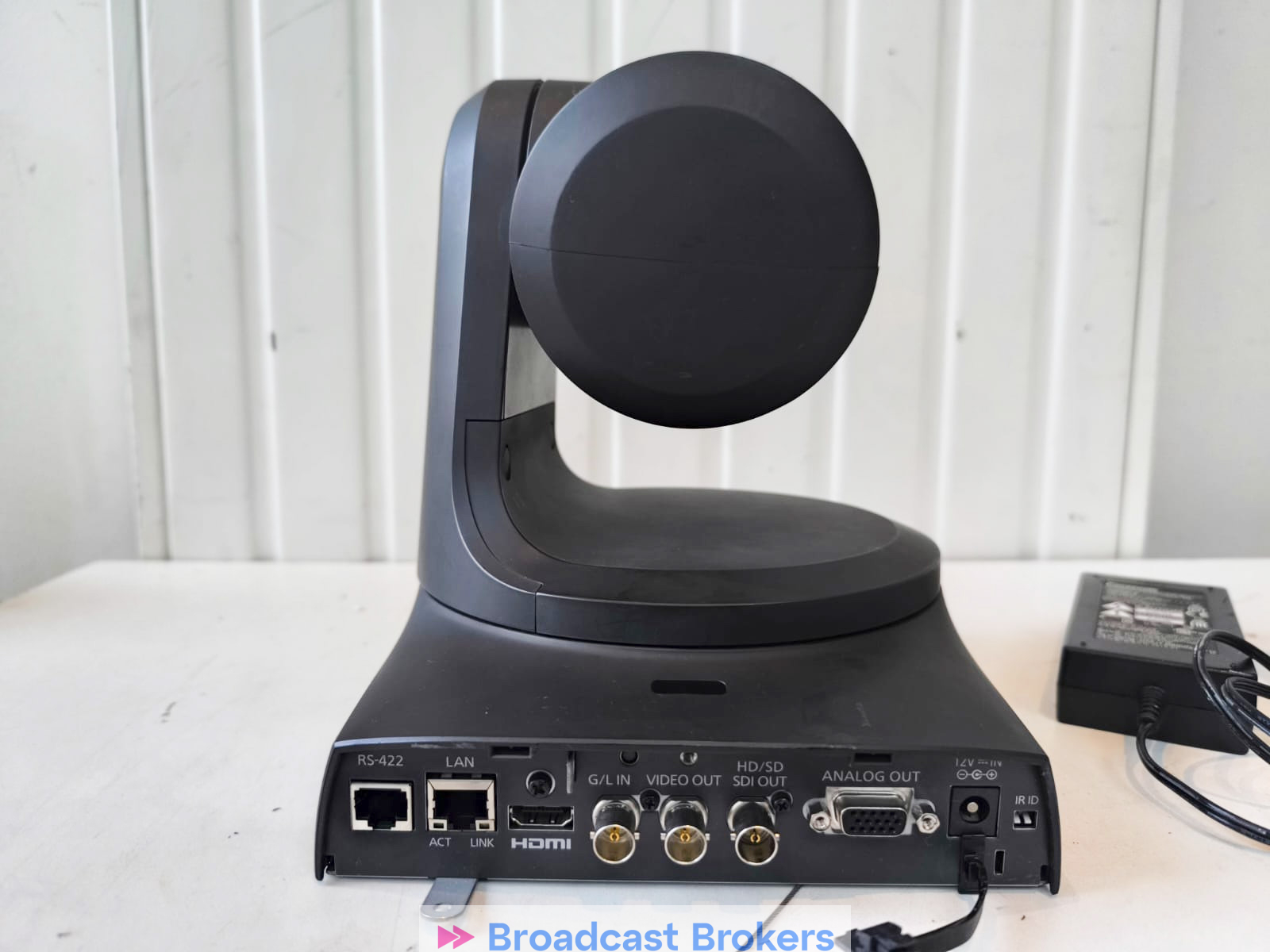

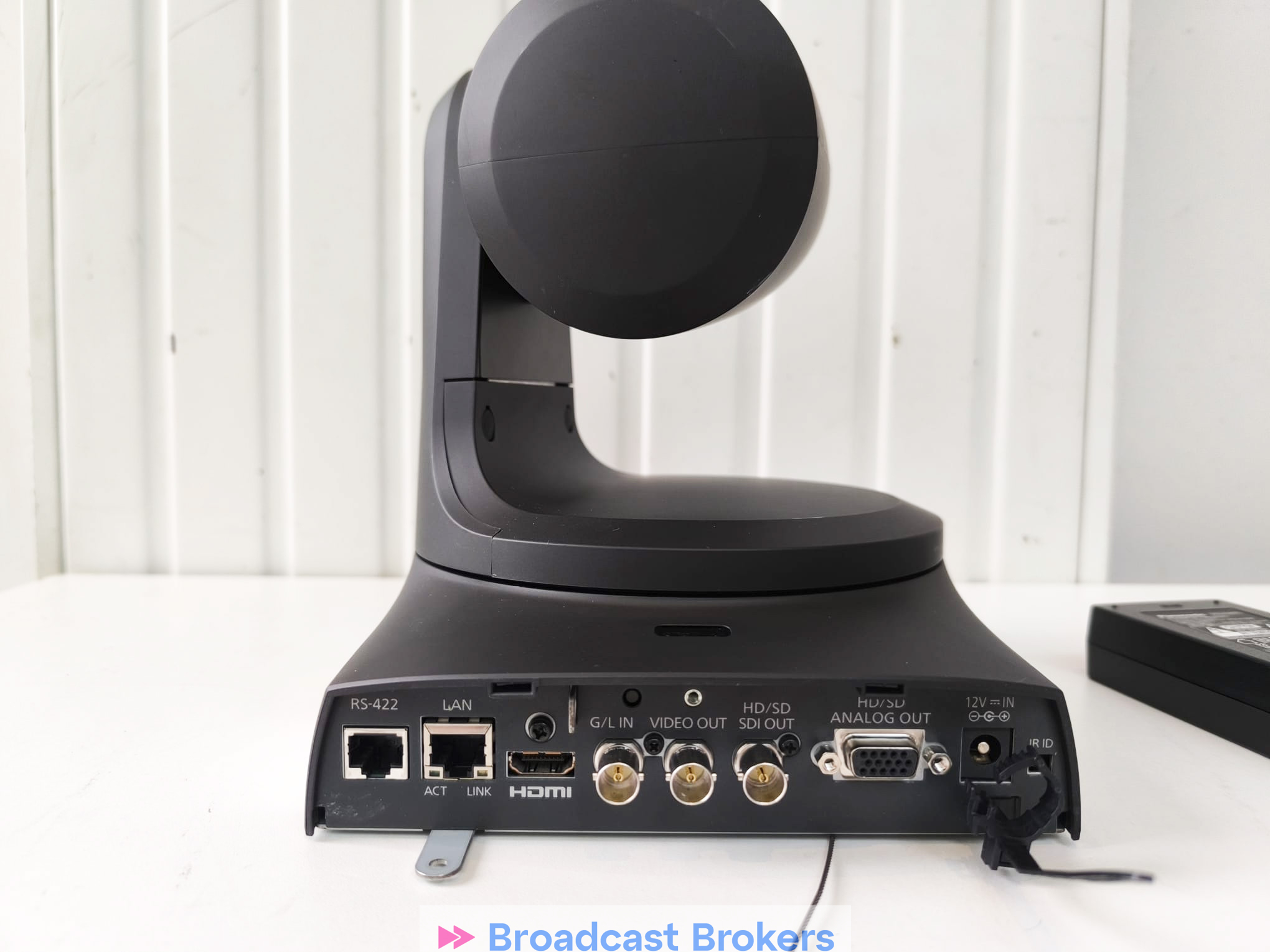

5. Video Output:

   • 3G-SDI Output (BNC)
   • HDMI Output
   • IP Streaming Output (RTSP/RTMP for live streaming)
   • Component (Y/Pb/Pr) for analog output (Optional with the appropriate converter)

6. Pan & Tilt:

   • Pan: ±170° (340° total)
   • Tilt: +90° to -30°
   • Speed: Adjustable speed control for both pan and tilt movements

7. Zoom:

   • 20x Optical Zoom
   • Digital zoom (up to 12x)

8. Control Options:

   • RS-422, RS-232, and IP control interfaces for remote control
   • Supports Panasonic’s AW-RP50 and AW-RP120 controllers for ease of use
   • WEB GUI interface for browser-based control via IP network
   • Compatible with VISCA protocol, which is common for third-party controllers

9. Audio:

   • Supports embedded audio in SDI and HDMI outputs
   • Audio input is not available directly on the camera; audio integration requires external equipment

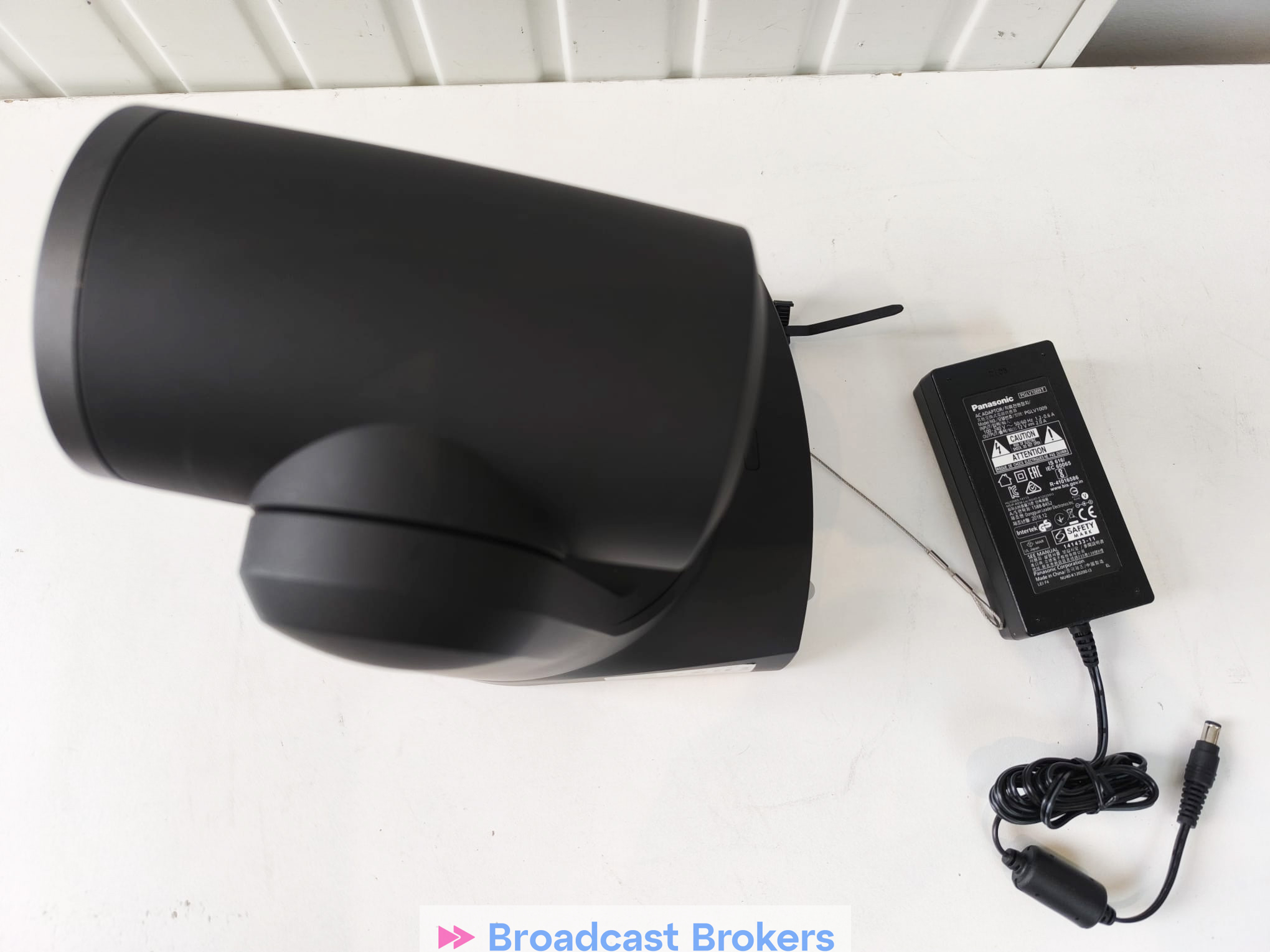

10. Power Supply:

• Power Input: 12V DC (with AC adapter included)
• Power Consumption: Approximately 15W

11. Other Features:

• Auto white balance, auto exposure, and auto gain control
• Manual adjustments for color, focus, exposure, and other image settings
• Built-in tally light for status indication
• IP control and monitoring (supports standard web browsers and RTSP/RTMP)
• Compatible with various control systems, making it ideal for large multi-camera setups.

12. Dimensions:

• W x H x D: 187 mm x 183 mm x 179 mm (7.4″ x 7.2″ x 7.0″)
• Weight: 2.4 kg (5.3 lbs)

13. Mounting:

• Standard tripod screw mount (1/4”-20 thread)
• Supports wall and ceiling mounts (optional accessories)

14. Operating Environment:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 10% to 80% (non-condensing)

Additional Information:

• Streaming Capabilities: The camera has support for IP-based streaming, which is useful for broadcasting and live web streaming.
• Remote Operation: Full pan-tilt-zoom control can be operated remotely via IP or serial control, allowing flexibility in live production scenarios.

This camera is typically used in sports broadcasting, conference rooms, educational setups, houses of worship, and other live production environments where remote control and high-quality video capture are essential.

Here is how the Panasonic AW-HE120KEJ compares to similar competitive models:

1. Sony BRC-X1000: The Sony BRC-X1000 is a direct competitor with a 1-inch Exmor R CMOS sensor that provides excellent low-light performance and high-definition video output. It features a 12x optical zoom lens, which is slightly less than the AW-HE120KEJ’s 20x zoom. The BRC-X1000 supports HDMI and IP streaming and is known for its robust image quality and remote control capabilities.
2. JVC KY-PZ100: The JVC KY-PZ100 is another comparable PTZ camera with a 4K resolution sensor, offering superior image clarity compared to the HD resolution of the AW-HE120KEJ. It has a 30x optical zoom lens, providing greater reach for capturing distant subjects. The KY-PZ100 supports IP streaming and multiple output options, making it a versatile choice for high-definition applications.
3. Canon CR-N300: The Canon CR-N300 competes closely with the Panasonic AW-HE120KEJ. It features a 1/2.3-inch CMOS sensor and a 15x optical zoom lens. It supports 4K video output, offering enhanced resolution over the AW-HE120KEJ’s HD capability. The CR-N300 is noted for its high-quality image processing, low-latency streaming, and advanced IP control features.
