Panasonic AK-UC4000 4K

4K FIber SMPTE Broadcast camera chains – several units available with :

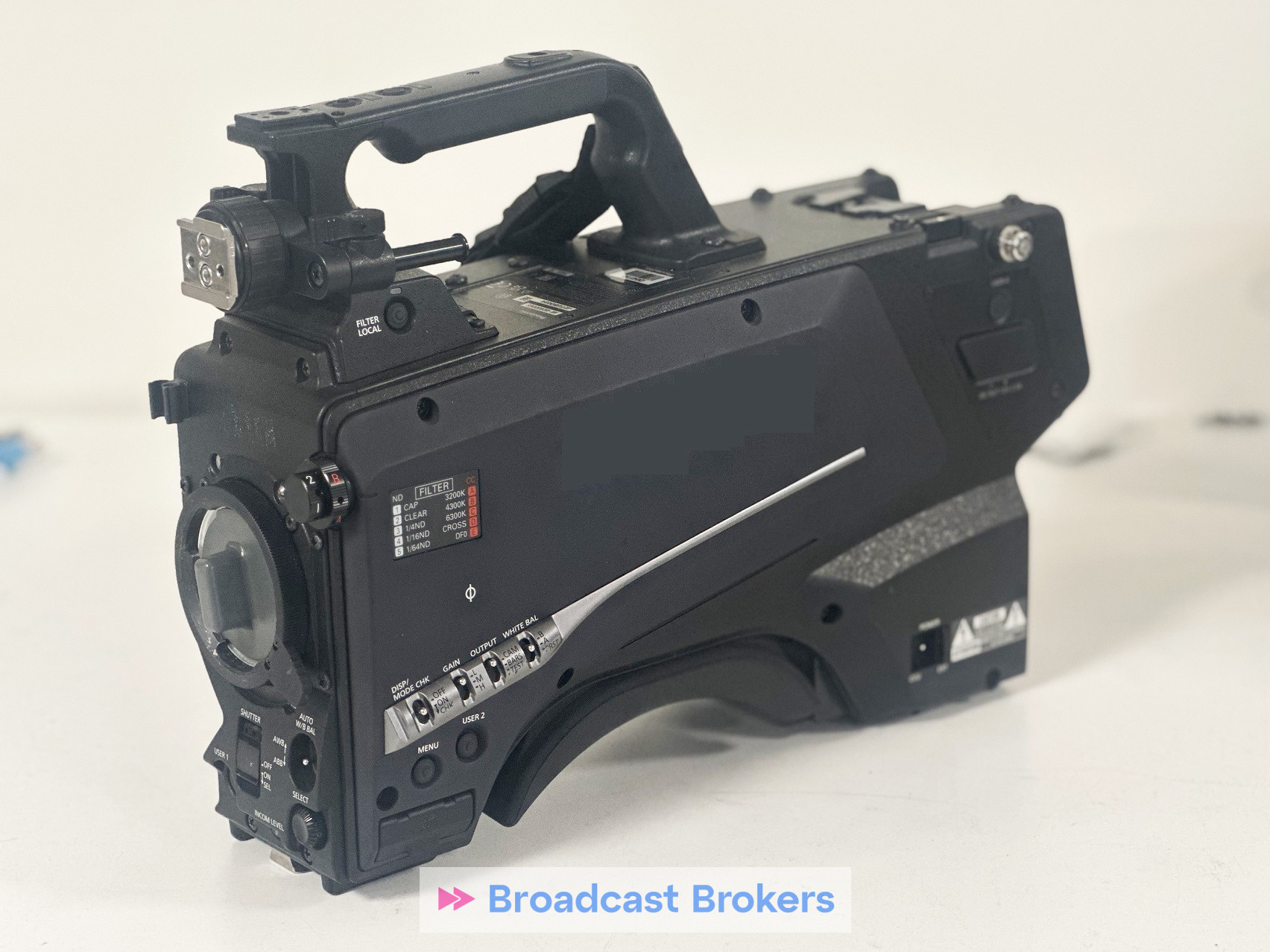

Panasonic AK-UC4000GSJ camera body

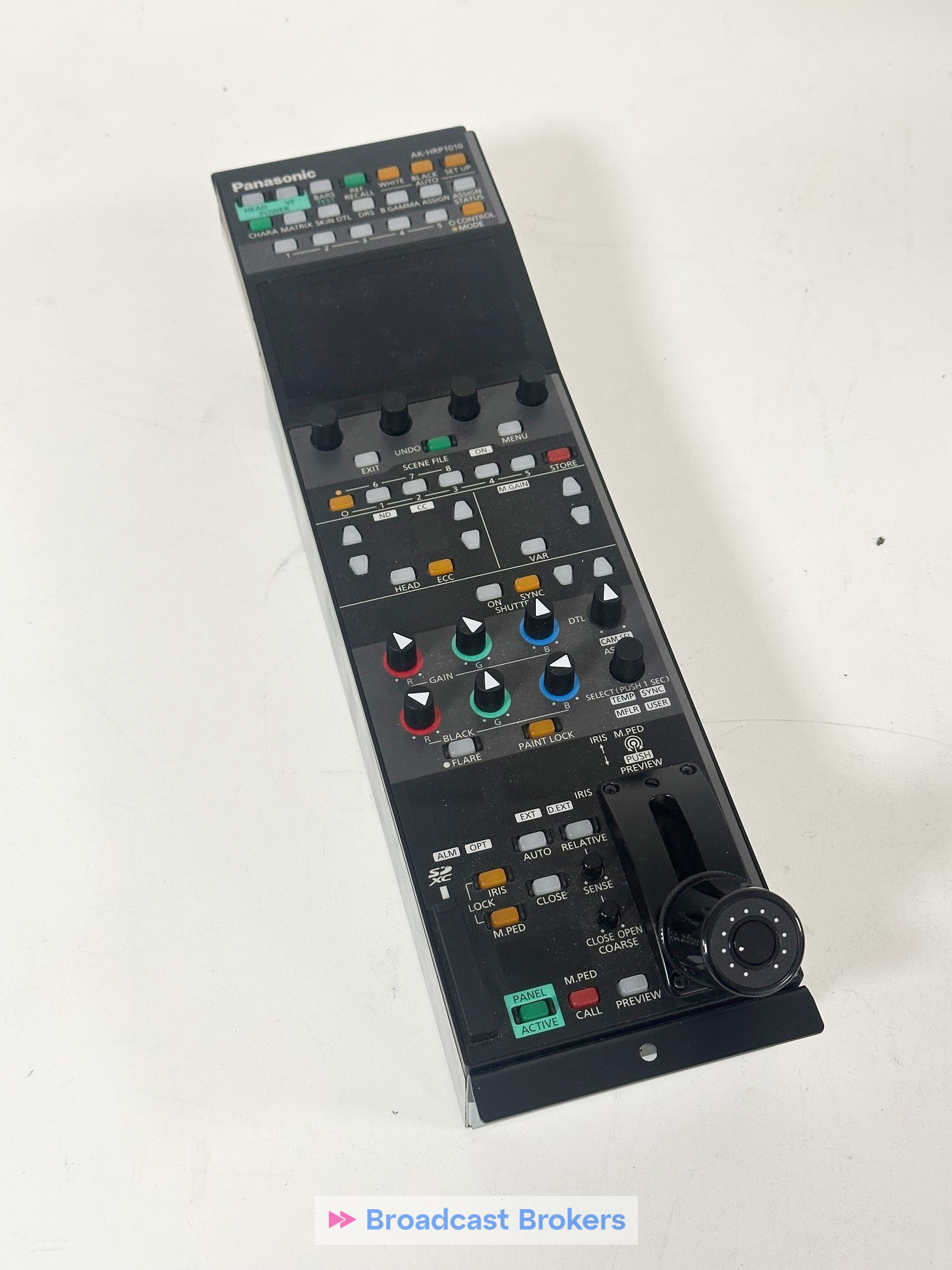

Panasonic AK-HRP1000GJ OCP

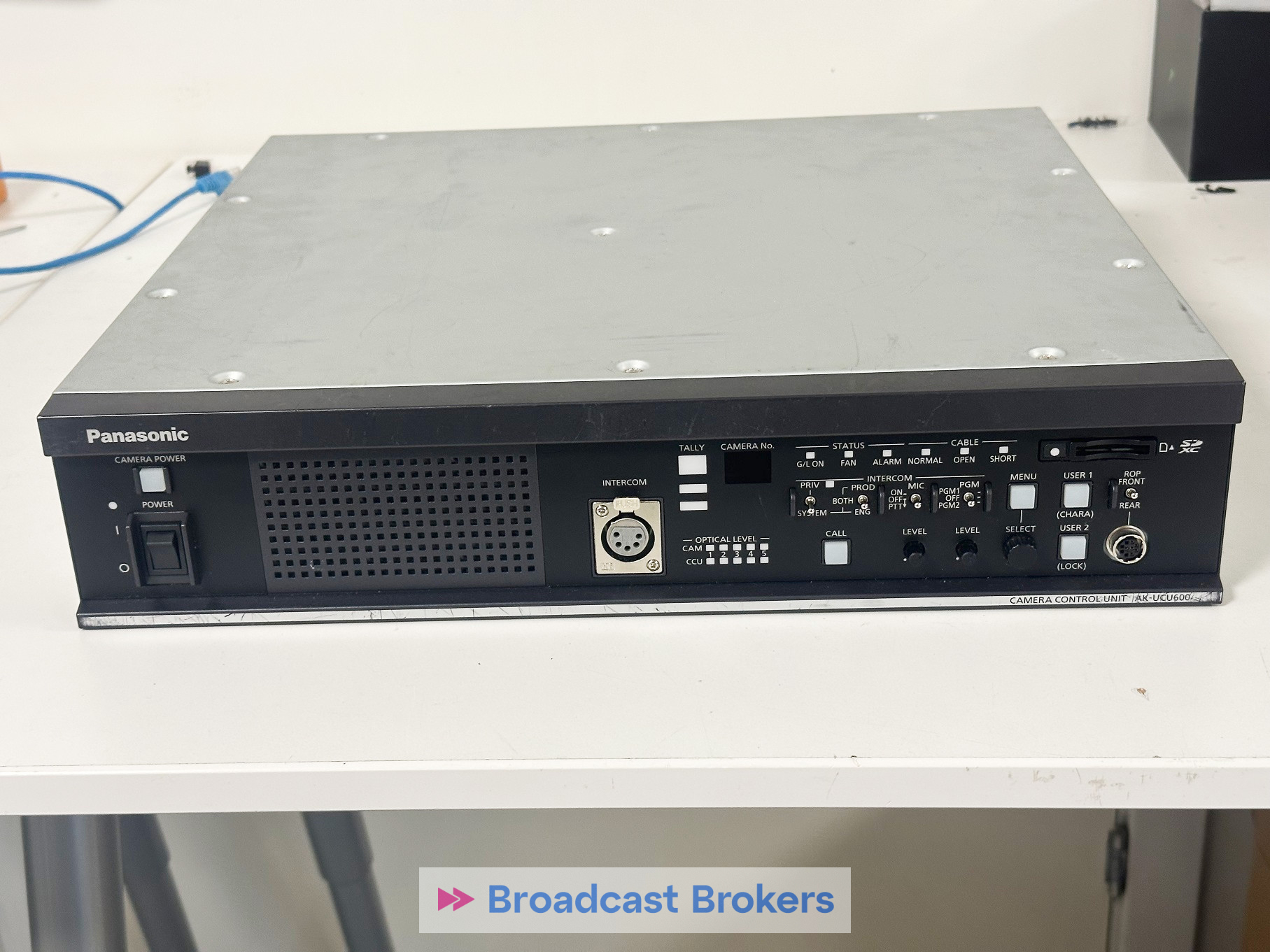

Panasonic AK-UCU600ESJ CCU (Camera Control Unit)

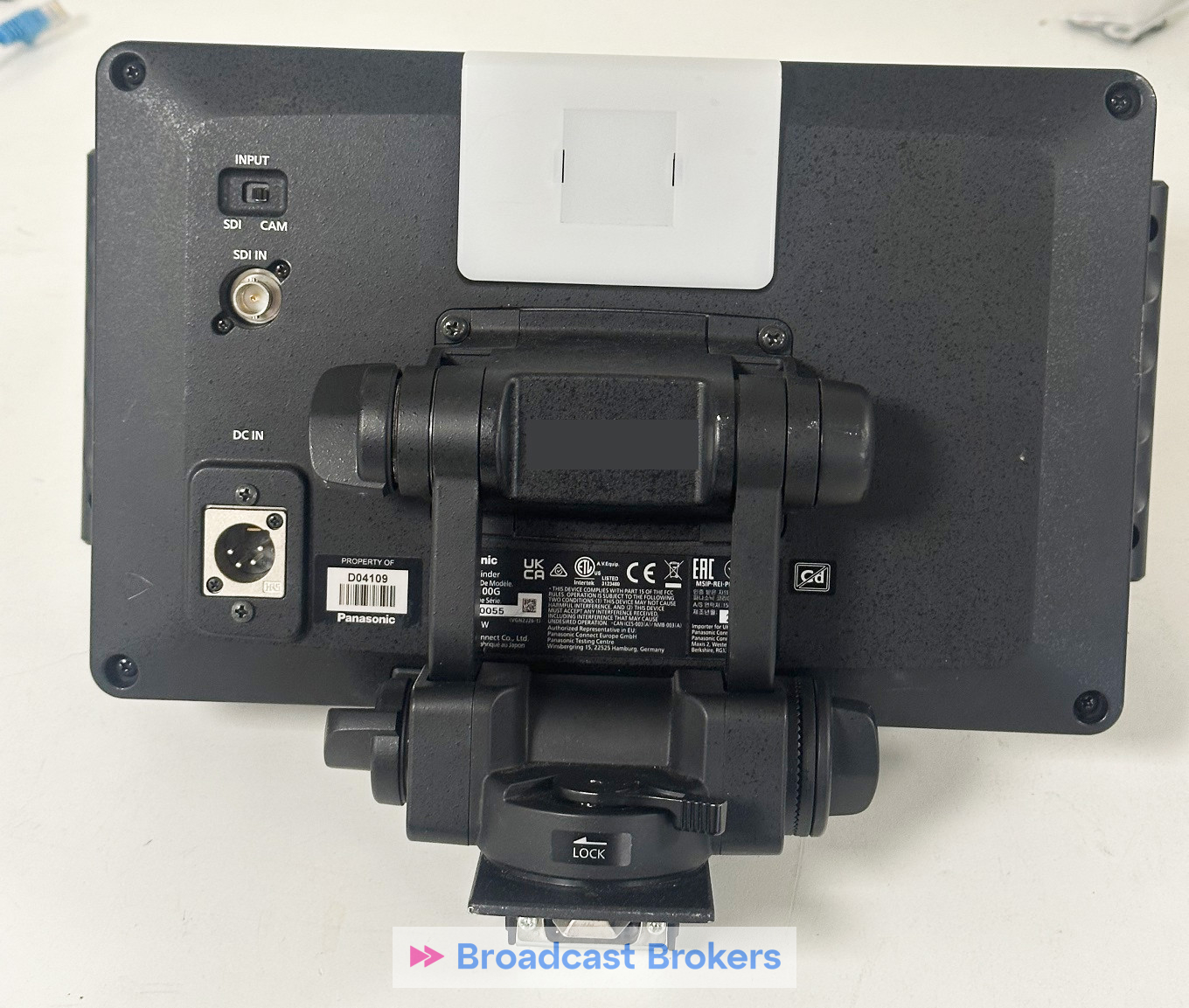

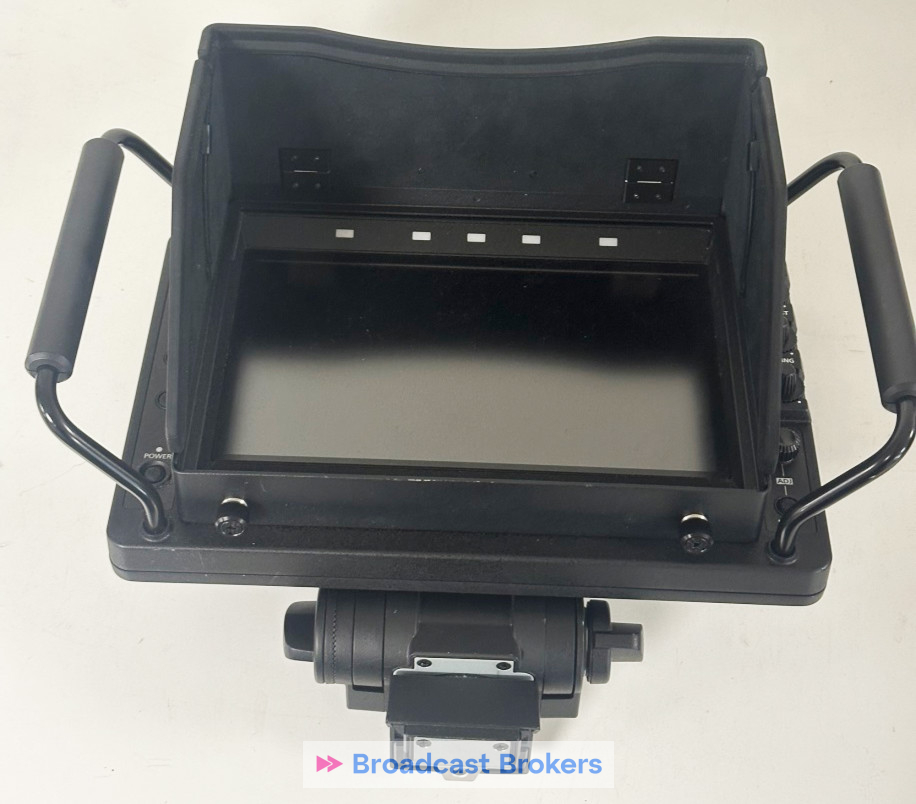

Panasonic AK-HVF 100GJ, 9” Studio viewfinder
Panasonic 2” HD ENG viewfinder
cable SMPTE 3111 100m with cable drum

the Panasonic AK-UC4000 is a professional 4K camera system designed for high-end broadcasting and production.

1. Imaging Sensor:

• Type: 2/3-inch CMOS sensor

• Resolution: 4K (4096 x 2160) in progressive mode, capable of 4K UHD (3840 x 2160)

• Sensor System: 3MOS for high sensitivity and low noise

2. Video Output:

• 4K Output: 12G-SDI, quad 3G-SDI, and HDMI 2.0 outputs

• HD Output: 3G-SDI (HD, 1080p)

• HDR Support: Hybrid Log-Gamma (HLG), and HDR with both SDR and HDR image outputs

3. Frame Rate Support:

• 4K: 50p/60p, 25p/30p

• HD: 50p/60p, 25p/30p, 24p

• Slow Motion: Up to 240fps in HD mode with 720p resolution

4. Signal Processing:

• Dynamic Range: High dynamic range (HDR) support for improved color and detail

• Color Space: Rec. 709, P3, and BT.2020 support

• High Frame Rate: Ability to shoot in high frame rates for slow-motion capture

• Gamma Options: Supports multiple gamma curves, including V-Log for post-production flexibility

5. Lens Mount:

• Lens Mount Type: B4 Mount, compatible with standard 2/3-inch broadcast lenses

6. Audio:

• Audio Inputs: 2 x XLR (balanced) audio inputs for microphone or line-level signals

• Embedded Audio: Supports embedded audio in SDI signals

7. Connectivity:

• IP Streaming: Supports IP-based video transport over networks with the integration of an optional IP interface

• Ethernet: Gigabit Ethernet (for remote control, video over IP, and camera configuration)

• SDI: Multiple SDI outputs, including quad 3G-SDI for 4K and 12G-SDI

8. Remote Control & Integration:

• Camera Control: Integrated with Panasonic’s AW-HEA10 and AW-RP50 controllers

• Remote Operation: Full remote control and monitoring over IP, using Panasonic’s RP50 controller and AW-HS50 switcher

9. Power:

• Power Consumption: Approximately 50W (without viewfinder or options)

• Power Supply: Typically powered via V-Mount or AB-type battery (with optional battery adapters) or via external DC power

10. Viewfinder:

• Optional 7-inch HD LCD viewfinder or other compatible monitors for on-camera monitoring

11. Other Features:

• Digital Extender (x2 and x4): Available for lens zooming for additional reach

• Pre-recording Function: Up to 10 seconds of pre-recorded buffer for fast action

• Wide Dynamic Range: Advanced processing for detailed and balanced highlights and shadows

12. Optional Accessories:

• Viewfinder: AK-HVF100 (HD LCD viewfinder)

• Studio Pedestal Mounting Kit

• Camera Control Systems: AW-RP50 or AW-HEA10 for remote camera control

This camera is aimed at delivering professional-grade 4K content for live events, broadcast production, and cinematography. It integrates seamlessly with Panasonic’s larger broadcast ecosystem, offering advanced image quality, remote operation, and production flexibility.
