O’CONNOR ULTIMATE 2575D +Tripods long & short

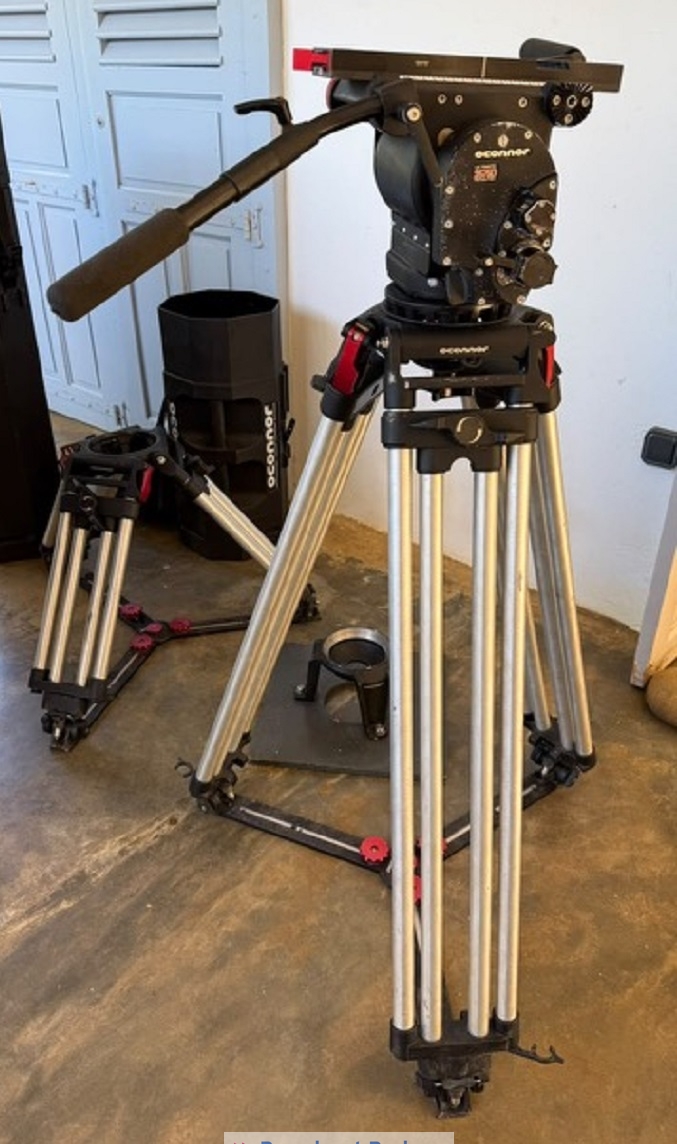

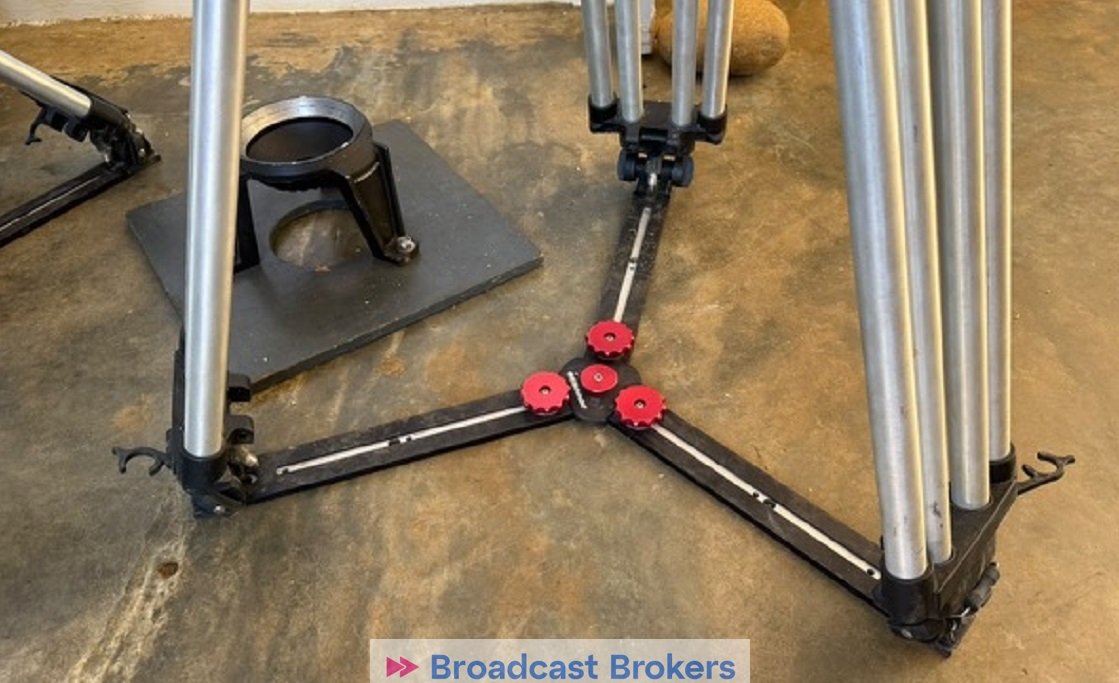

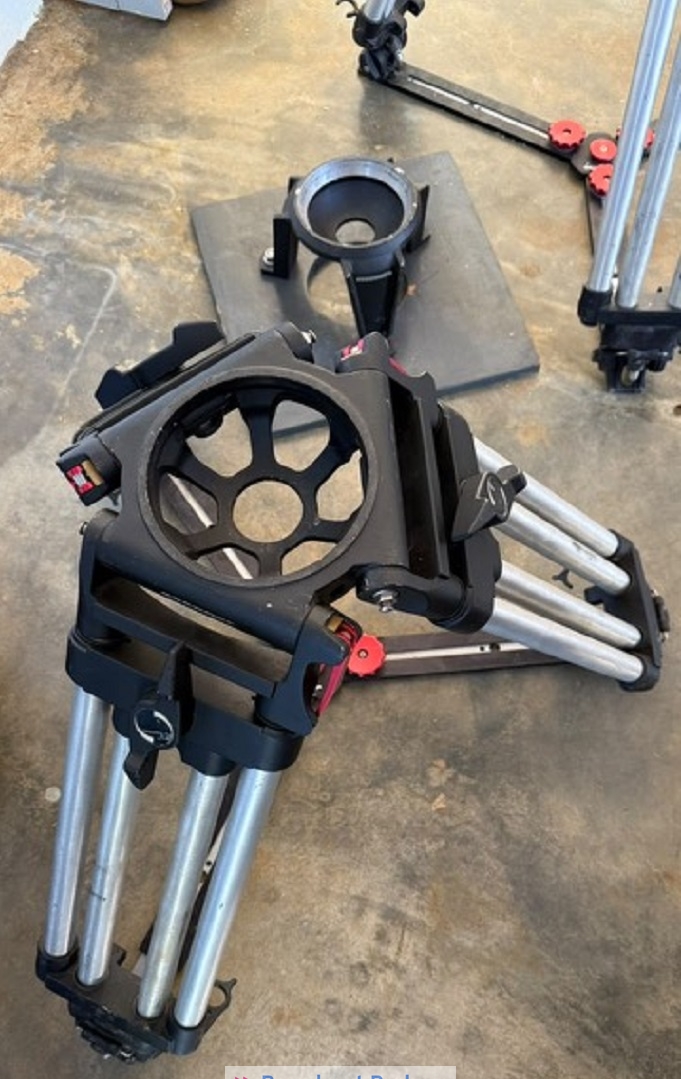

O’CONNOR Ultimate 2575D head +Europlate, with OConnor long and OConnor short tripods, both with spreaders.

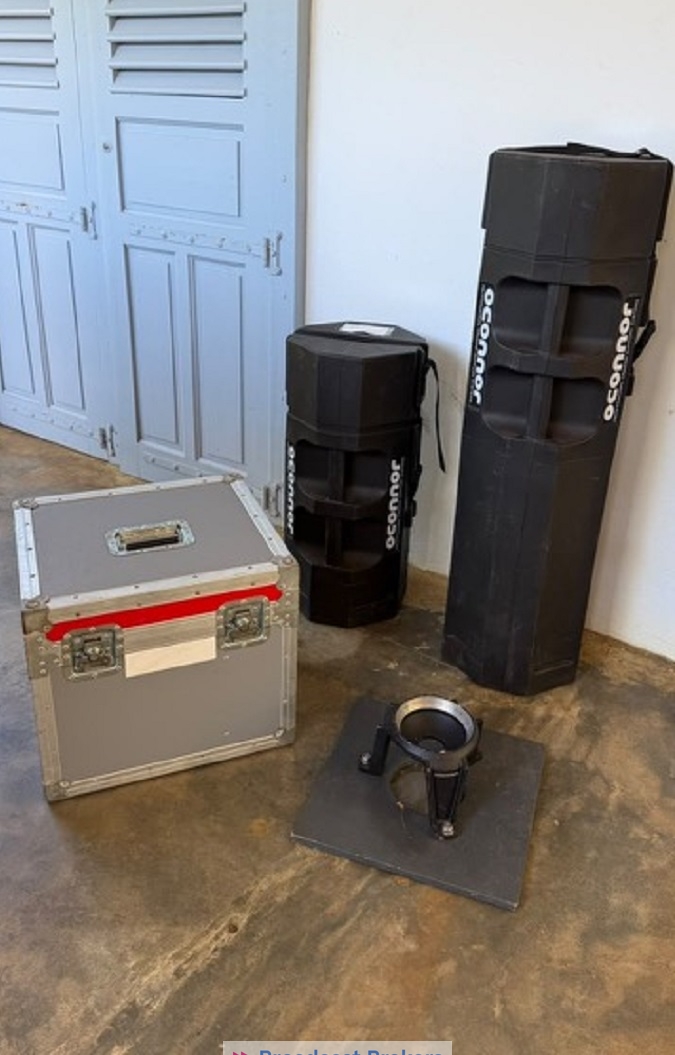

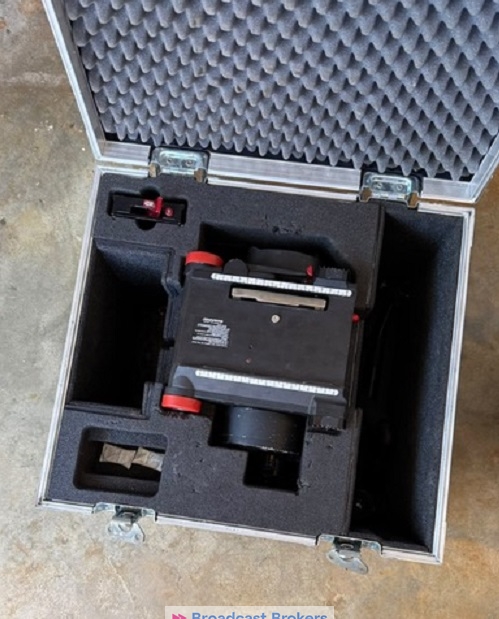

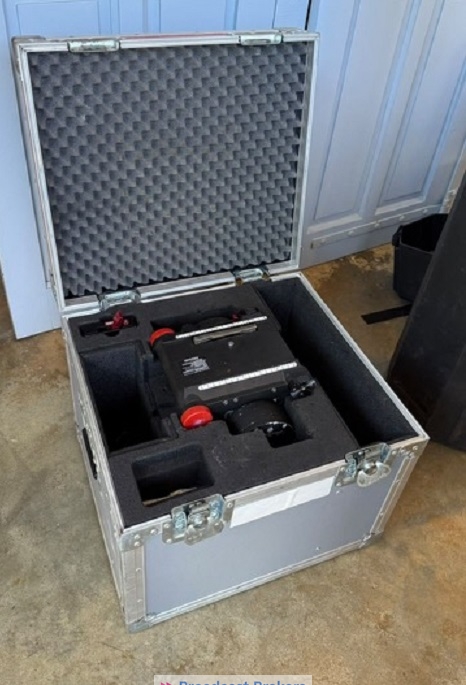

hard transport cases + custom made hardcase for the head.

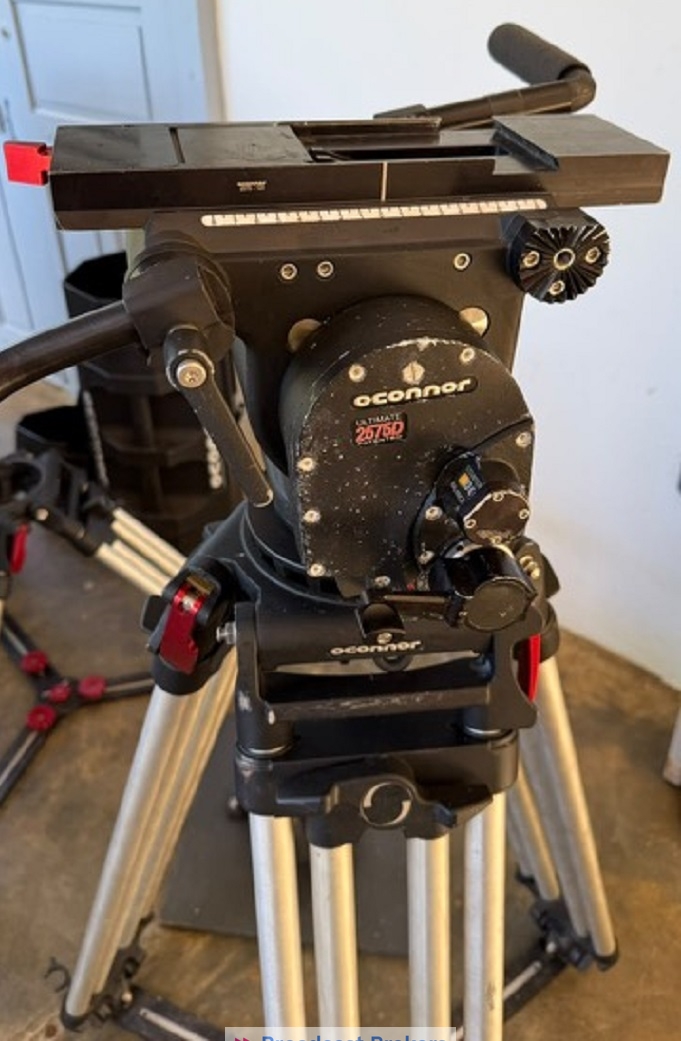

The O’Connor Ultimate 2575D Fluid Head is a professional-grade camera support system designed for demanding film and broadcast applications.

Payload Capacity:

• At 4 inches (102 mm) center of gravity (C of G) height: 133 lbs (60.5 kg)
• At 6 inches (152 mm) C of G height: 105 lbs (47.7 kg)
• At 8 inches (203 mm) C of G height: 87 lbs (39.5 kg) Note: The head’s counterbalance system is optimized for these payloads at the specified C of G heights.

Tilt Range:

• ±90° throughout the entire counterbalance range, from zero to maximum.

Pan Range:

• 360° continuous rotation.

Dimensions:

• Height: 8.4 inches (21.3 cm)
• Width: 12.4 inches (31.5 cm)
• Depth: 8.6 inches (21.8 cm)
• Weight: 22.9 lbs (10.4 kg)

Counterbalance System:

• Features O’Connor’s patented sinusoidal counterbalance system, providing true, accurate balance at any point in the tilt range.

Fluid Drag System:

• Stepless, ultra-smooth pan and tilt fluid drag, specifically enhanced for film applications, allowing for precise control and stability.

Handle Mounting:

• Four rosette handle mountings located at the front and rear of the head, on both the left and right sides, offering flexible handle positioning.

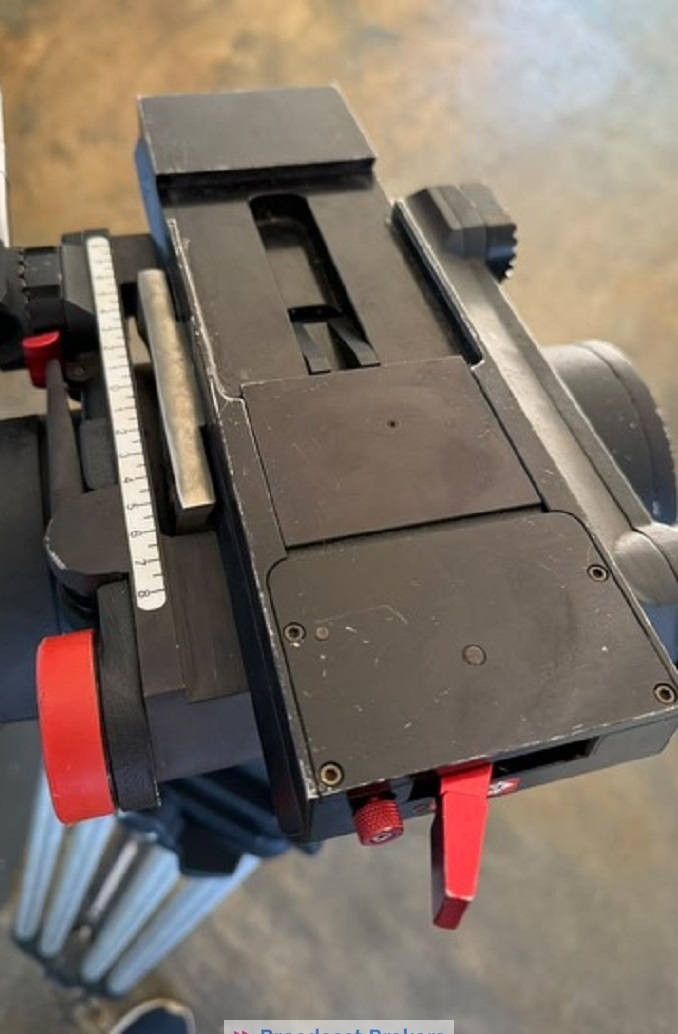

Platform:

• Side-loading platform with a one-touch, finger-actuated safety release catch for secure camera mounting.
• Dual platform scales for precise camera positioning.
• Compatible with various mounting plates, including O’Connor, 120mm Euro, Panavision dovetail, ARRI dovetail plates, and more.

Additional Features:

• Illuminated bubble level for easy setup in low-light conditions.
• Friction locks on each axis allow the head to be locked at any desired position.

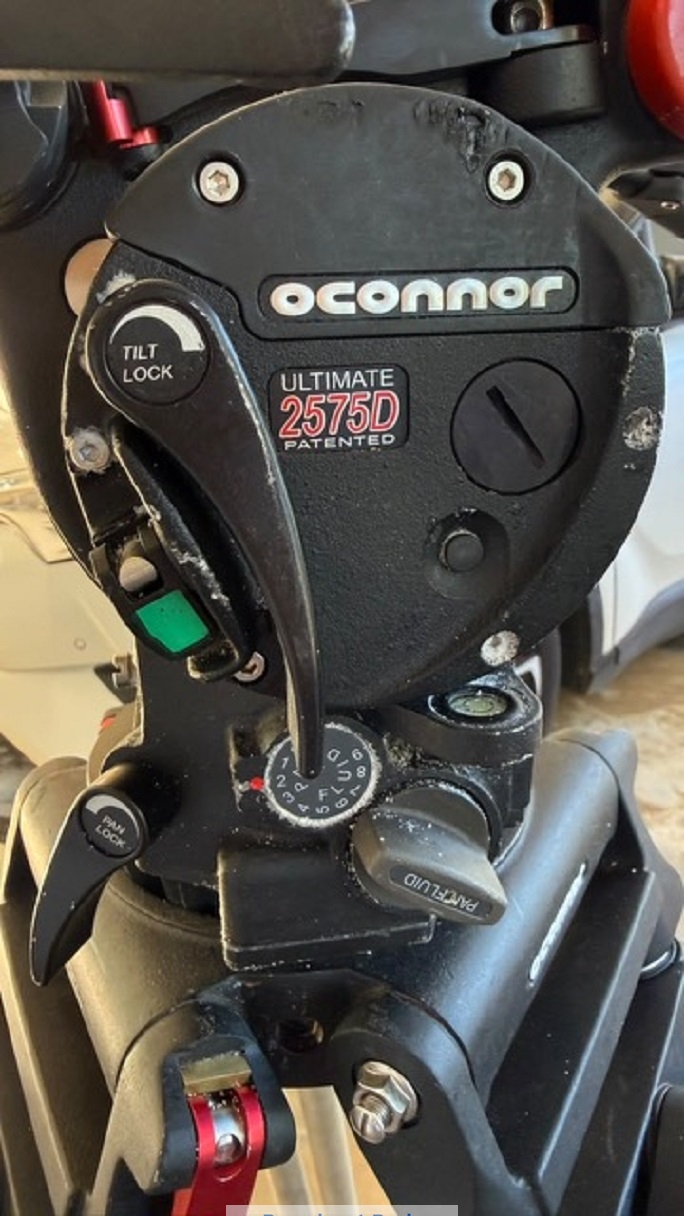

• Tilt lock pin mechanism operated by a flip lever on the left-hand side of the head.

These specifications make the O’Connor Ultimate 2575D Fluid Head a robust and versatile choice for professional cinematographers and camera operators.
