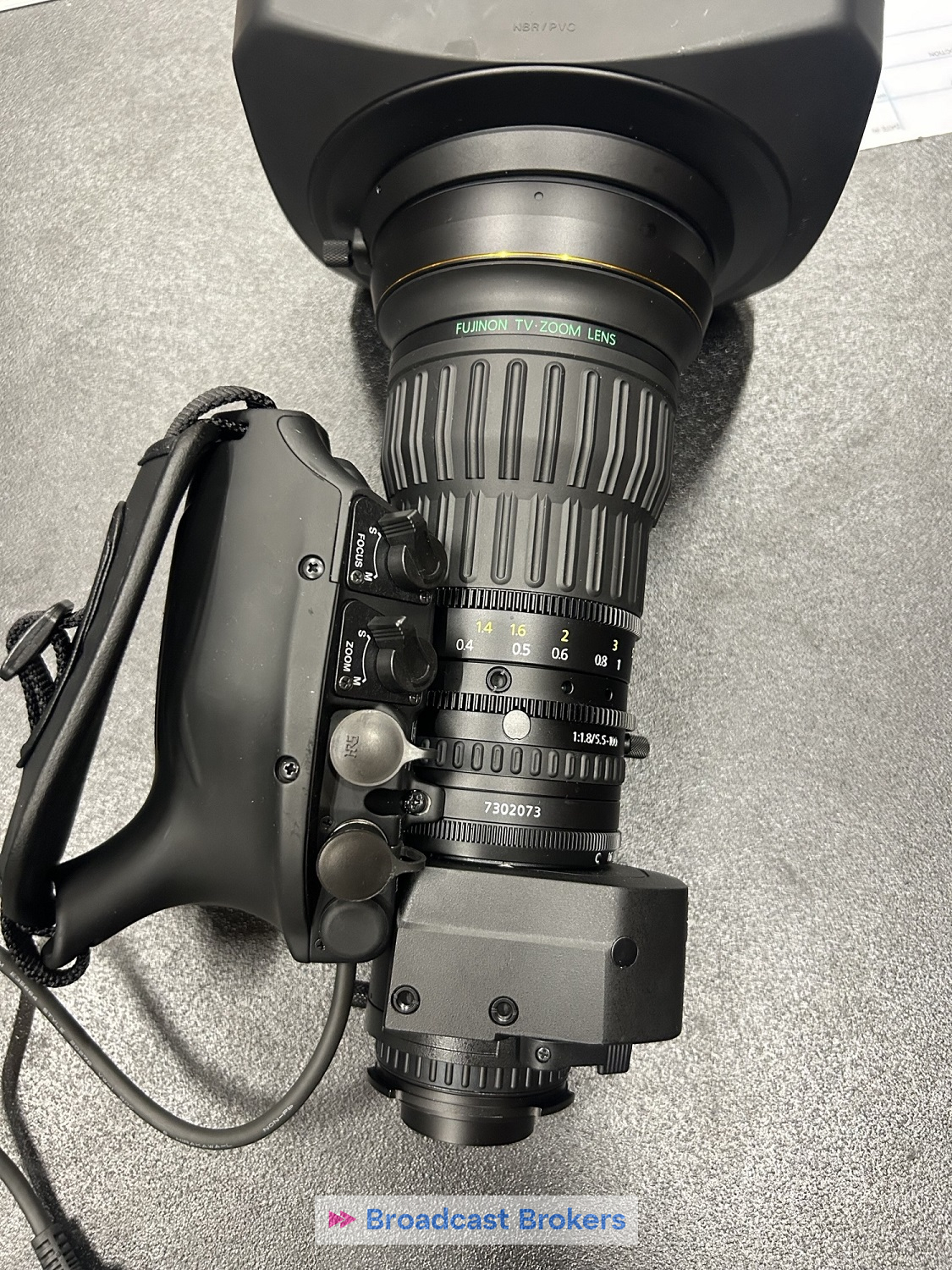

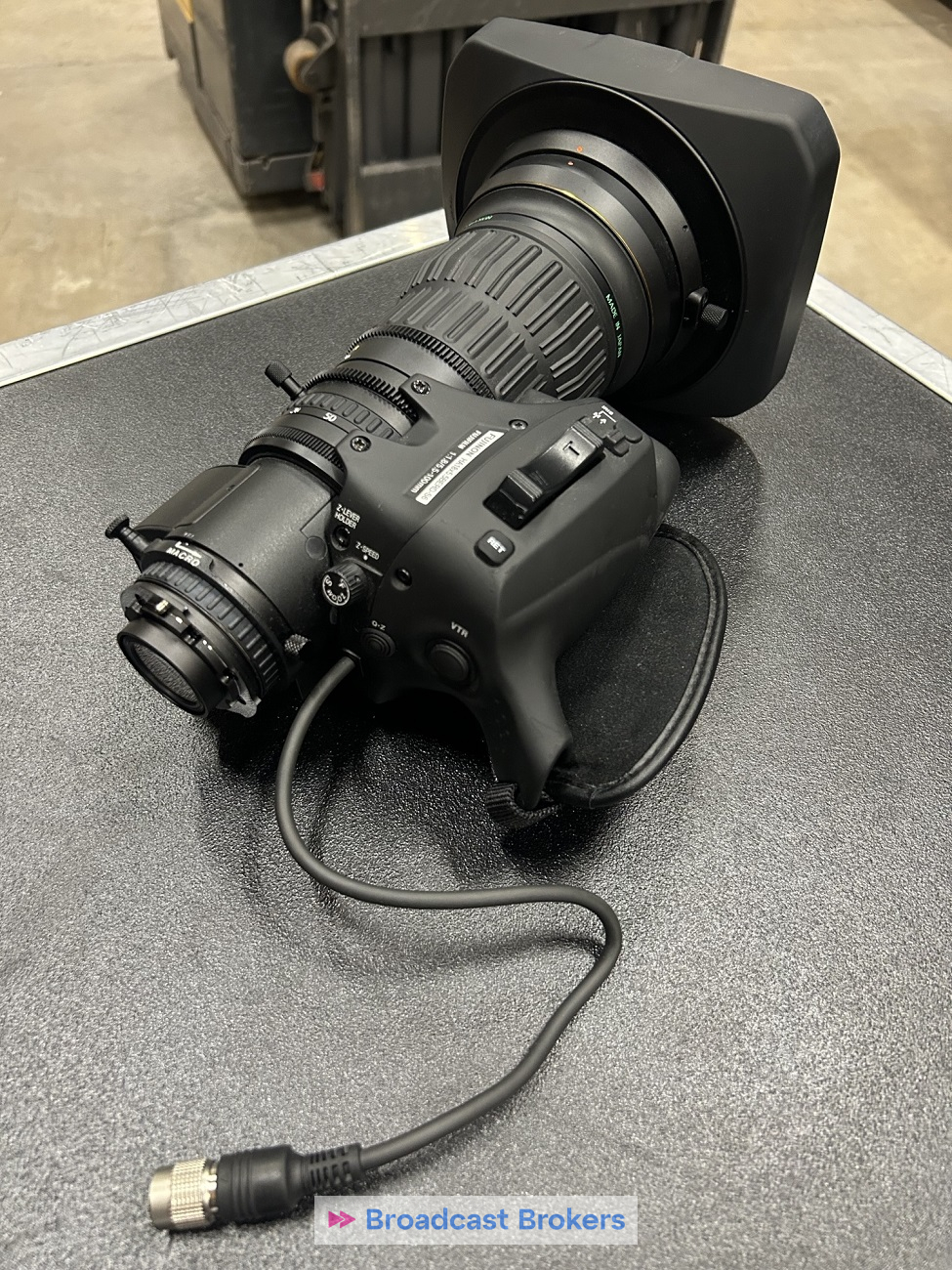

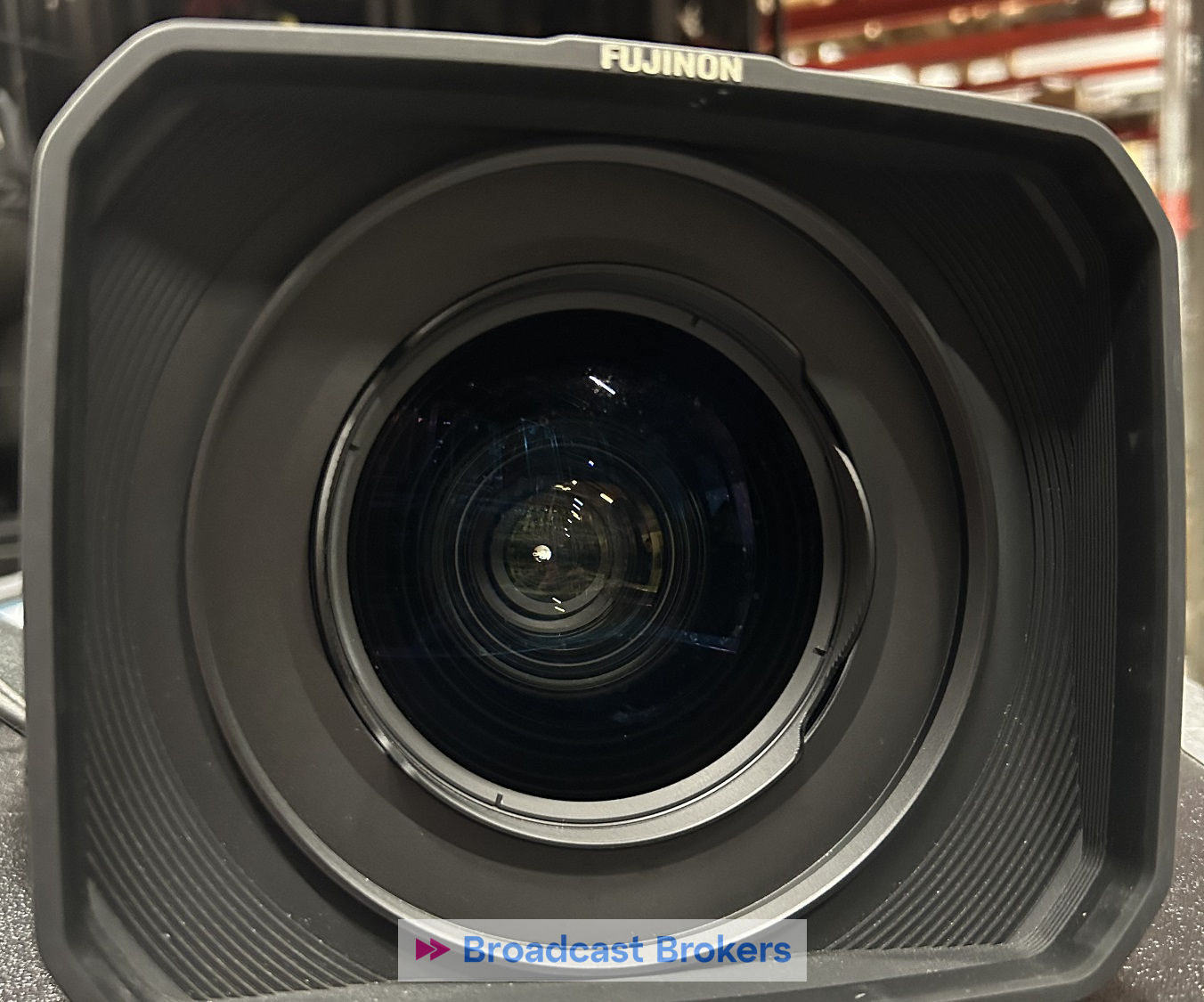

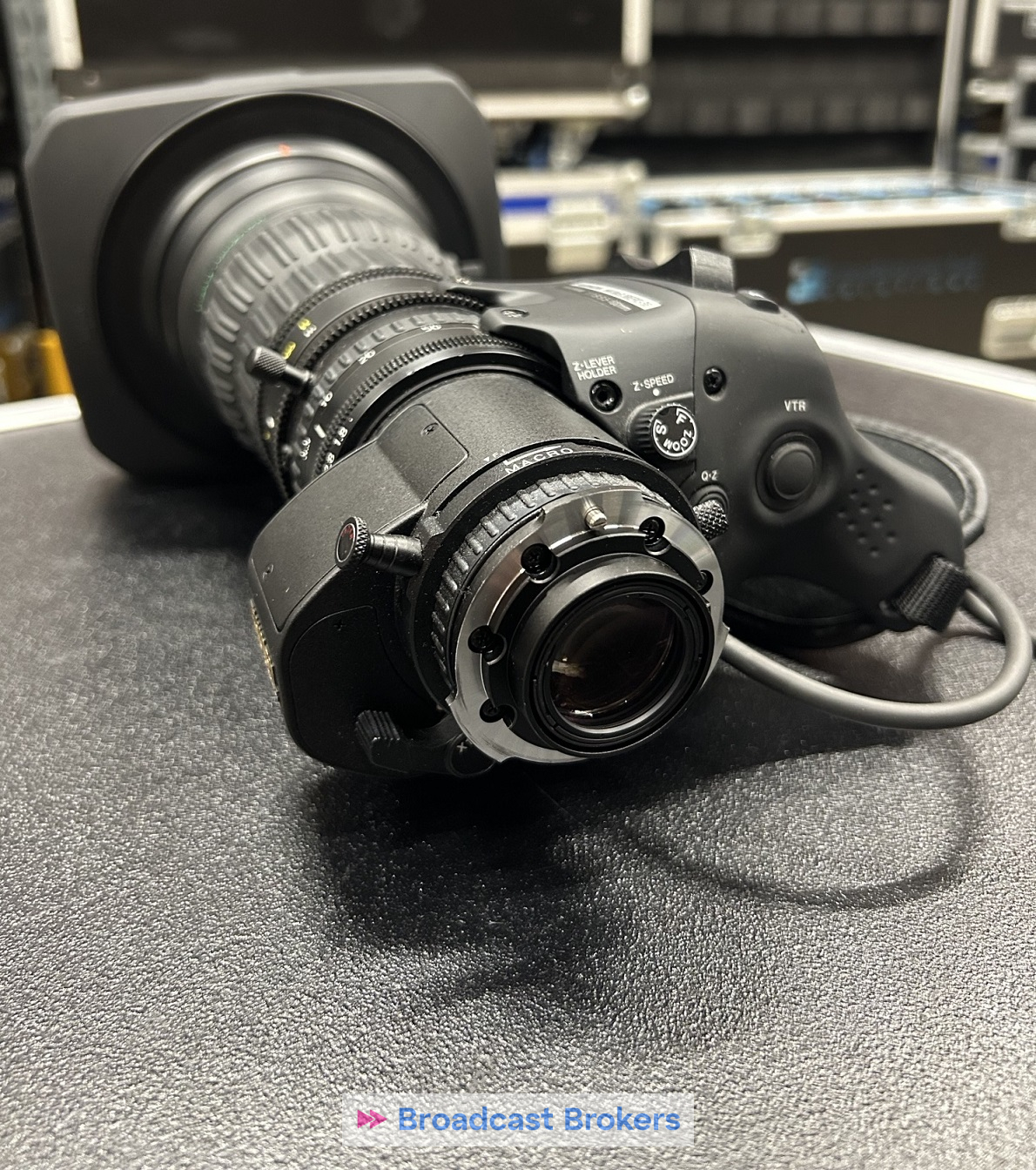

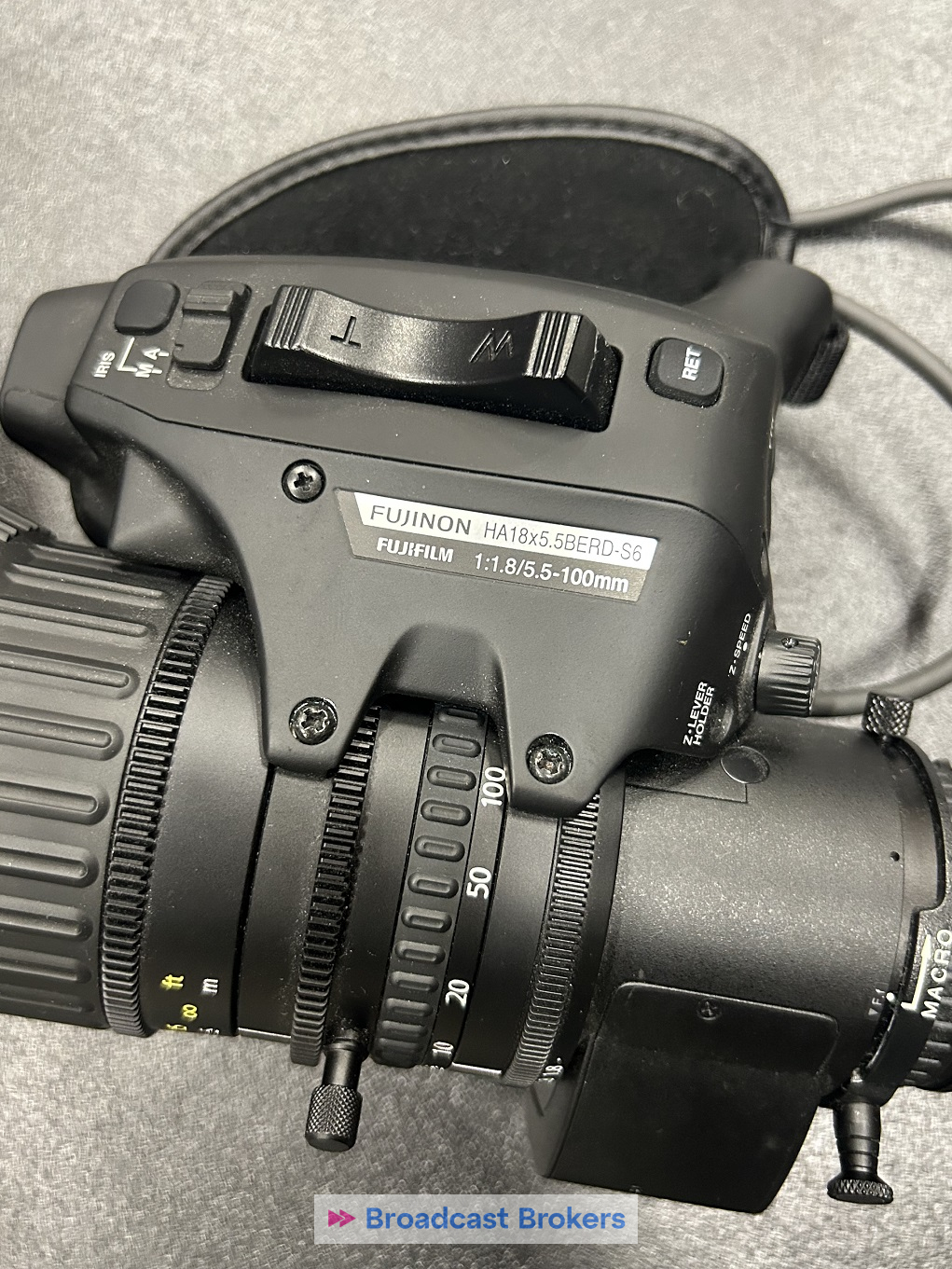

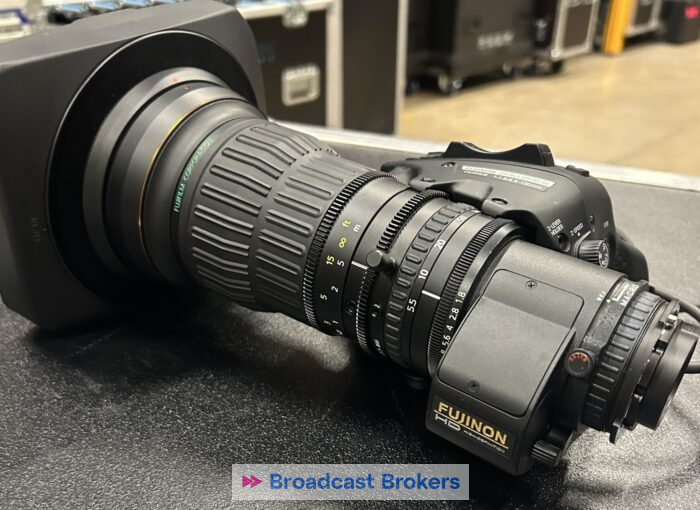

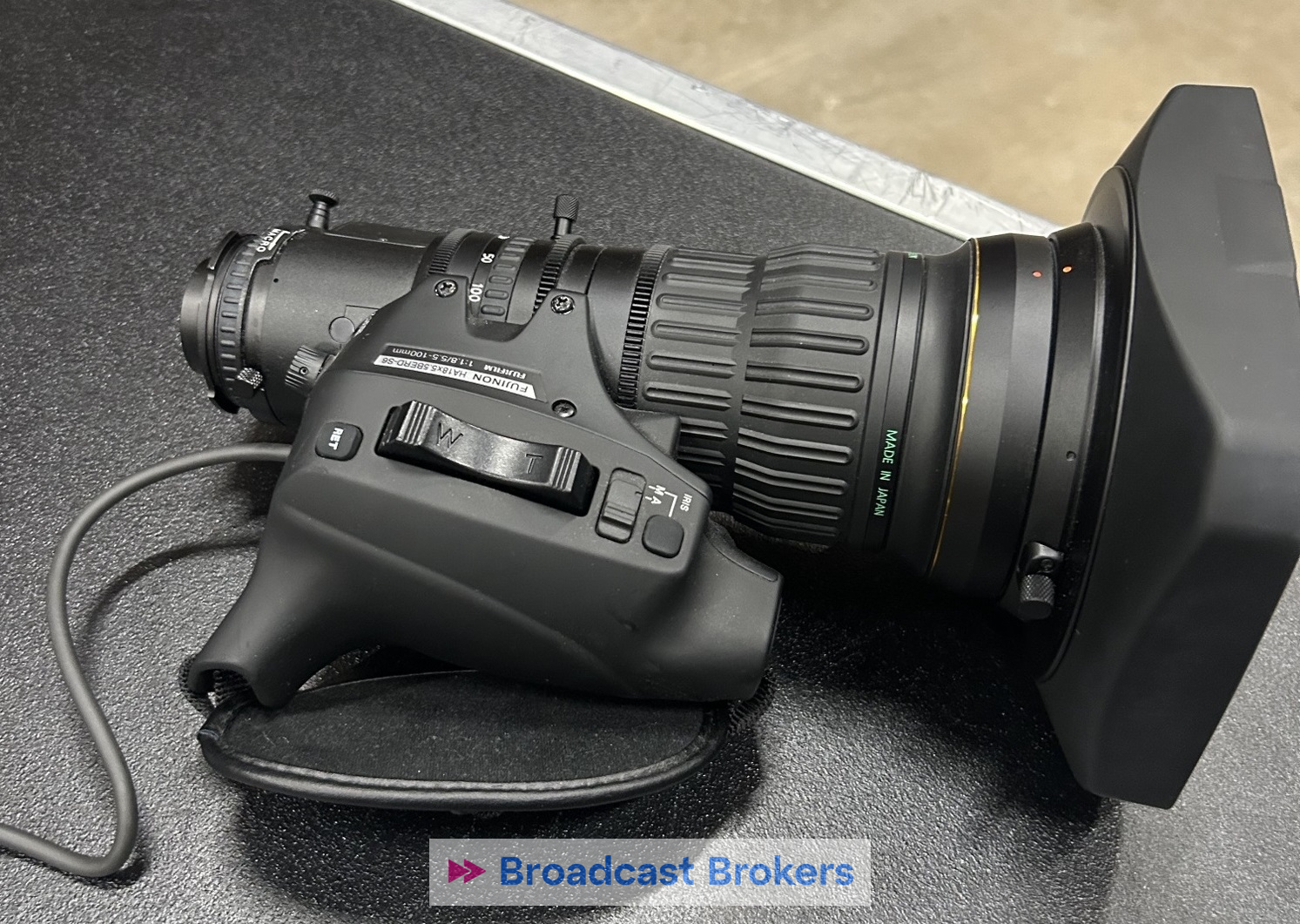

Fujinon HA18x5.5 BERD-S6 +REMOTES

HD B4 2/3″ Broadcast servo lens with remotes focus EPD-41A-D02 +zoom ERD-40A-D01

3 complete sets available

• Format / Camera Compatibility: 2/3″ type, 16 : 9.

• Focal length: 5.5 – 100 mm; with 2× extender: 11 – 200 mm.

• Zoom ratio: 18×.

• Extender: 2× built-in.

• Maximum relative aperture:

  • f/1.8 from 5.5 mm to ~62 mm

  • f/2.9 at 100 mm.

• Minimum object distance (M.O.D.):

  • From the front of lens: 0.4 m (≈ 15.7″)

  • From the image plane: approx. 0.69 m (≈ 2.26′)

• Angular field of view (16:9) at wide end: ~82.2° × 52.2°; at tele end ~5.5° × 3.1°.

• Filter thread: M127 × 0.75 (or M127 × 1 mm in some specs)

• Dimensions (without lens hood): Ø 95 mm × length 240.5 mm

• Weight (approx, without lens hood): ~2.04 kg (≈4.49 lb)

• Mount: B4 / Bayonet (typical for 2/3″ broadcast lenses)

• Servo / Digital Features: Digital servo zoom and focus, 16-bit (or 13-bit) encoders, RS-232 remote control capable.

• Other features: Inner focus design (front element does not rotate) to allow filters/matte box use.

🛠 Manual / Operation Instructions

• The official operation manual for this lens (and related models) is available: The doc is titled for models incorporating drive unit model BERD-S6 (and variants) — see Japanese/English/Chinese versions.

• You can download a PDF of the manual: For example, the file at “fujifilm.com/…/ha18x5.5berd-s6-manuel.pdf” contains a table of specs & operation guidance.

• The manual includes wiring/pinout diagrams, servo demand signals (zoom, focus controls), operational precautions — e.g., the version for BERM-M6(B)/BERD-S6 includes details for analog/digital demands.

🔍 Things to Pay Attention To

• When interfacing for remote/servo control (zoom, focus), ensure compatibility with the lens’s demand signals (analog or digital) and the drive unit version. The “S6” series uses more advanced encoders — some users report differences in dip switches across revisions.

• The filter thread is large (M127) — if you’re using accessories (matte box, filters) check physical dimensions.

• The M.O.D. of 0.4 m means fairly close focusing is possible for a broadcast zoom of this size — useful for ENG/EFP setups.

• The lens weight (~2 kg) means it’s substantial — consider mounting/rigging accordingly.

• The extender doubles the focal length (11-200 mm) but also changes field of view & likely depth-of-field/illumination — check if using the extender results in any change in T-stop or brightness drop (some specs mention light loss with extender).
