CANON HJ24ex7.5B IASE S +SS-41IASD

HD B4 2/3″ Broadcast Long lens with servo remotes zoom +focus SS-41IASD : ZSD-300D +FPD-400D

The Canon HJ24ex7.5B IASE S + SS-41IASD is a professional-grade broadcast lens designed for high-end television production. Here are the key technical details for the components:

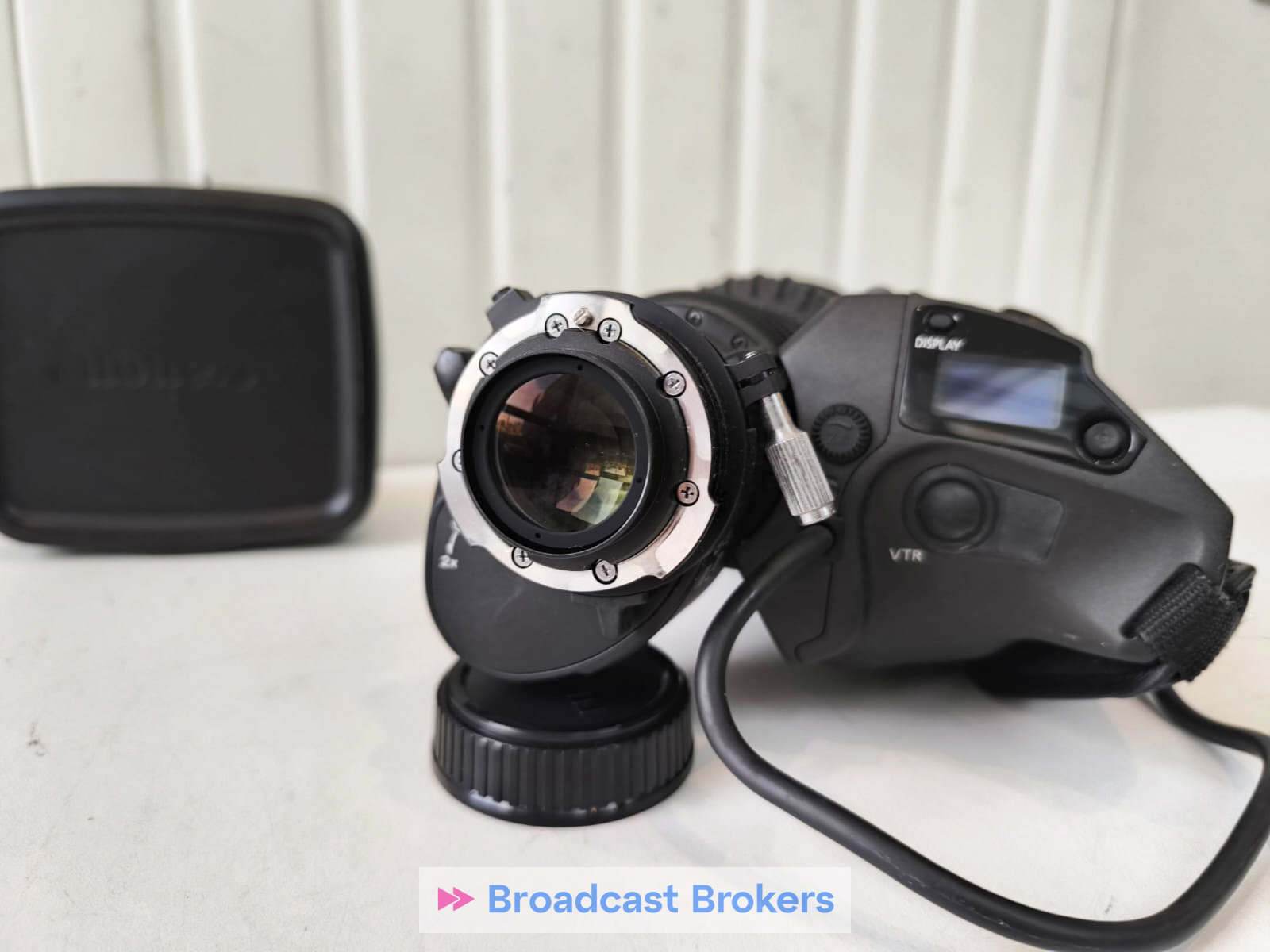

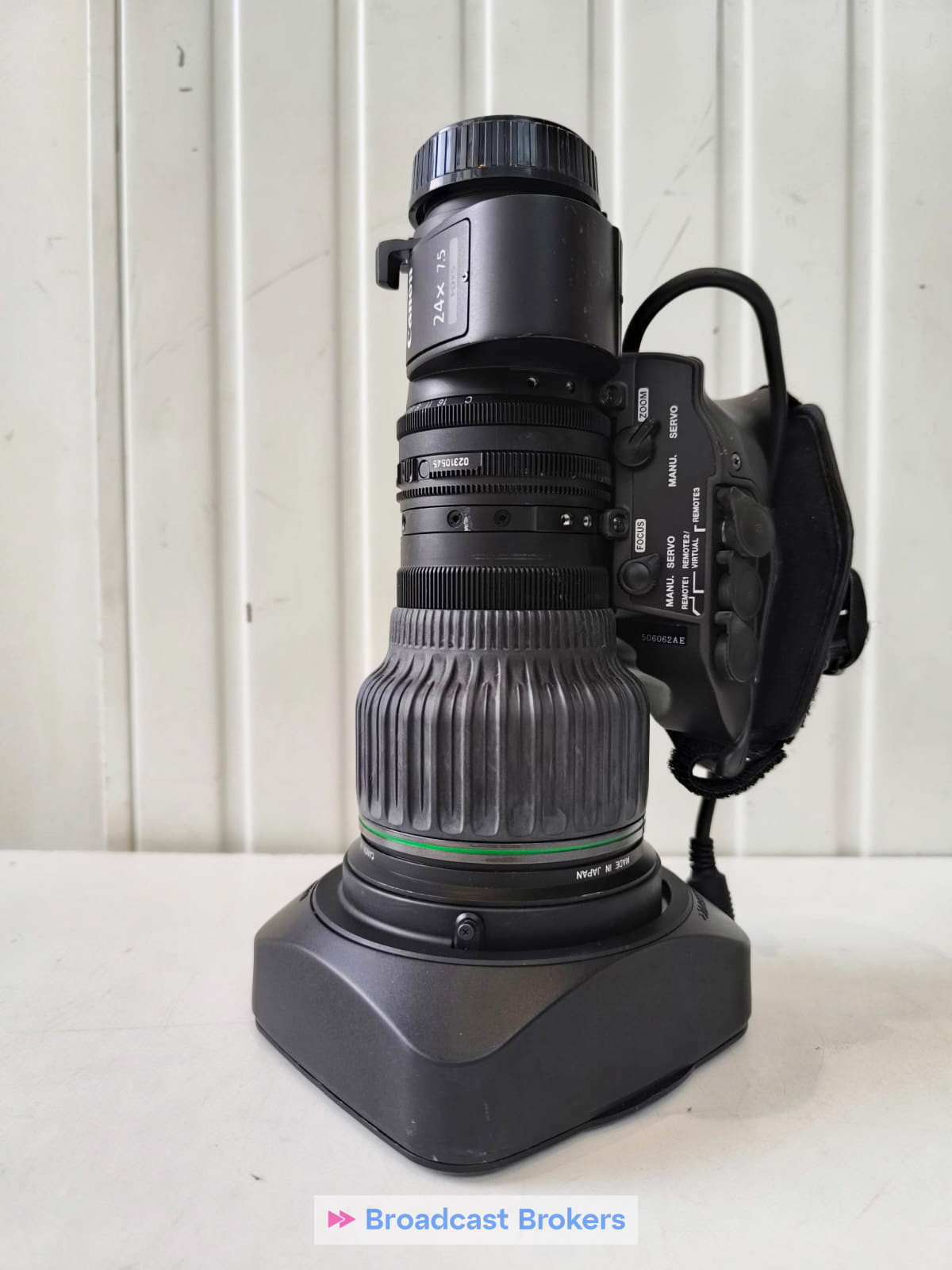

Canon HJ24ex7.5B IASE S Lens

This is a high-performance zoom lens used primarily in the broadcast and ENG (electronic news gathering) industry.

1. Focal Length: 7.5mm to 180mm

   • This provides a wide angle (7.5mm) to a telephoto reach (180mm), allowing for versatile framing and shots.

2. Zoom Ratio: 24x

   • A 24x zoom range allows the user to frame subjects at various distances without switching lenses.

3. Aperture:

   • Maximum Aperture: f/1.8 (at 7.5mm)

   • Minimum Aperture: f/16

   • The wide aperture (f/1.8) provides excellent low-light performance.

4. Optical Design:

   • Features high-definition optics designed for 2/3-inch type broadcast cameras.

   • The lens system includes features like Canon’s proprietary optical technology to ensure superior image quality with minimal distortion and chromatic aberration.

5. Image Stabilization:

   • The IASE S (Image Stabilization and Shift Function) offers image stabilization to reduce the impact of hand-shake, crucial for mobile shooting environments.

6. Back Focus Adjustment:

   • Allows fine-tuning of the focus to ensure sharpness across the zoom range.

7. Compatibility:

   • The lens is typically used with 2/3-inch cameras but can be adapted to others, depending on the specific camera mount.

8. Weight: Approximately 1.9 kg (4.2 lbs)

   • This weight is relatively light for a lens in this category, making it suitable for handheld use or mounting on smaller camera rigs.

9. Focus System:

   • Manual focus ring for precise control.

   • The lens also includes digital servo zoom and focus for smoother control during production.

SS-41IASD Digital Servo Unit

The SS-41IASD is a digital servo zoom control unit designed for the Canon HJ24ex7.5B and similar lenses.

1. Servo Zoom Control:

   • Provides smooth zoom control for precise adjustments during live production or on-location shoots.

2. Digital Interface:

   • Features a digital interface for communication between the lens and the camera, allowing for precise adjustments and feedback between the two systems.

3. Zoom Speed Control:

   • Zoom speed is adjustable, allowing the operator to select the most appropriate speed for the shot.

4. Lens Data Integration:

   • The SS-41IASD integrates with the camera’s lens data system, providing real-time data for focus and zoom position.

5. Ergonomic Design:

   • The servo is designed for ease of use in professional settings, ensuring that operators can use it for extended periods without discomfort.

6. Weight:

   • Approximately 0.8 kg (1.8 lbs).

   • The lightweight design makes it easy to mount and control on various camera rigs.

Summary of Key Features

• 24x zoom with a wide focal range (7.5mm–180mm)

• Fast maximum aperture (f/1.8) for low-light performance

• Image stabilization system (IASE S)

• Compatible with 2/3-inch cameras

• Digital servo unit (SS-41IASD) for precise zoom control

• Ergonomic design for ease of use in professional broadcast settings

This lens and servo unit are widely used in television production environments, where image quality, smooth zooming, and reliable performance are critical.
