CANON DP-V3120 -A stock demo

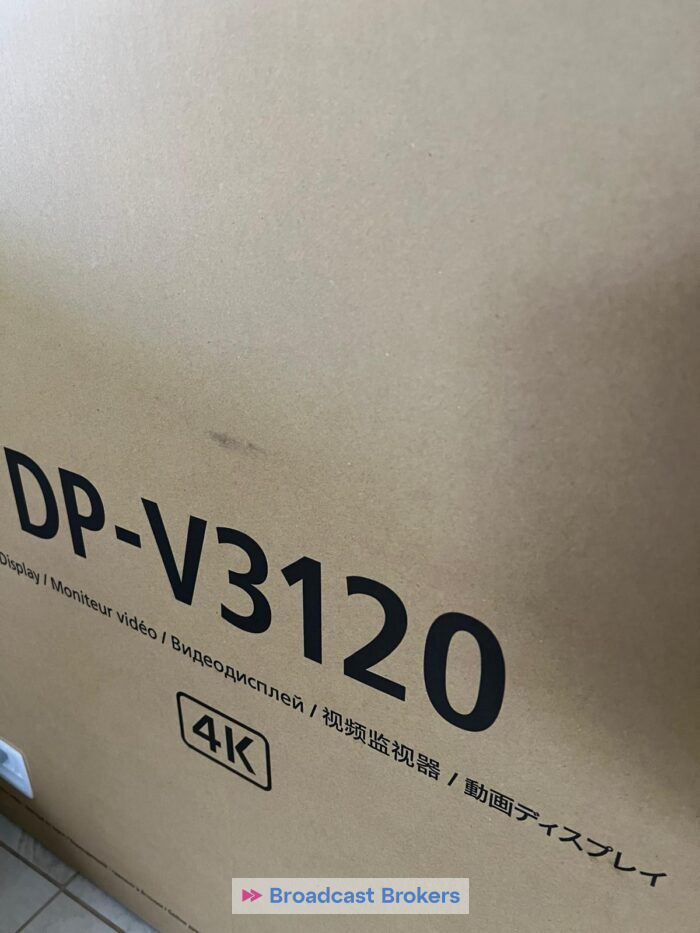

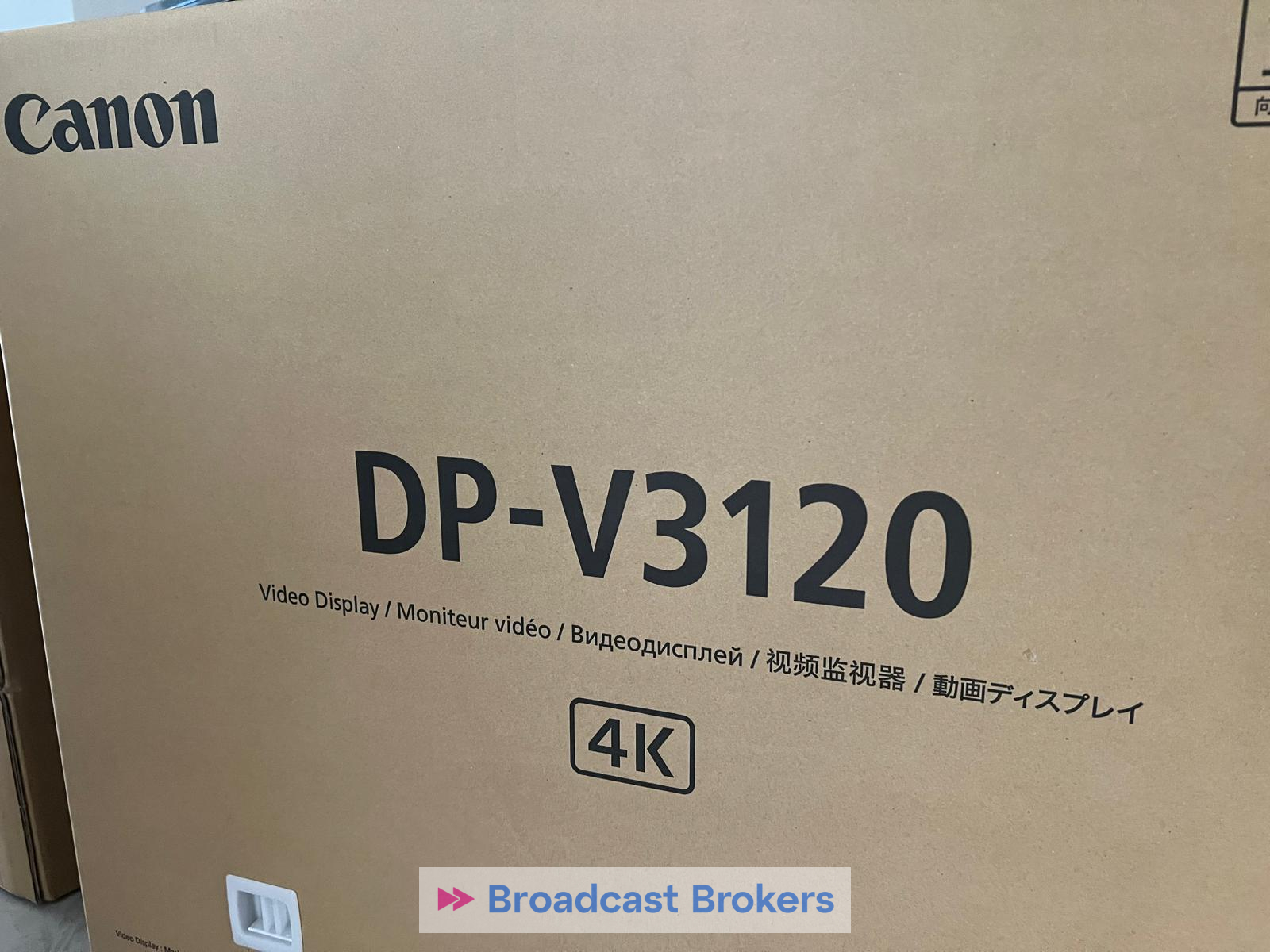

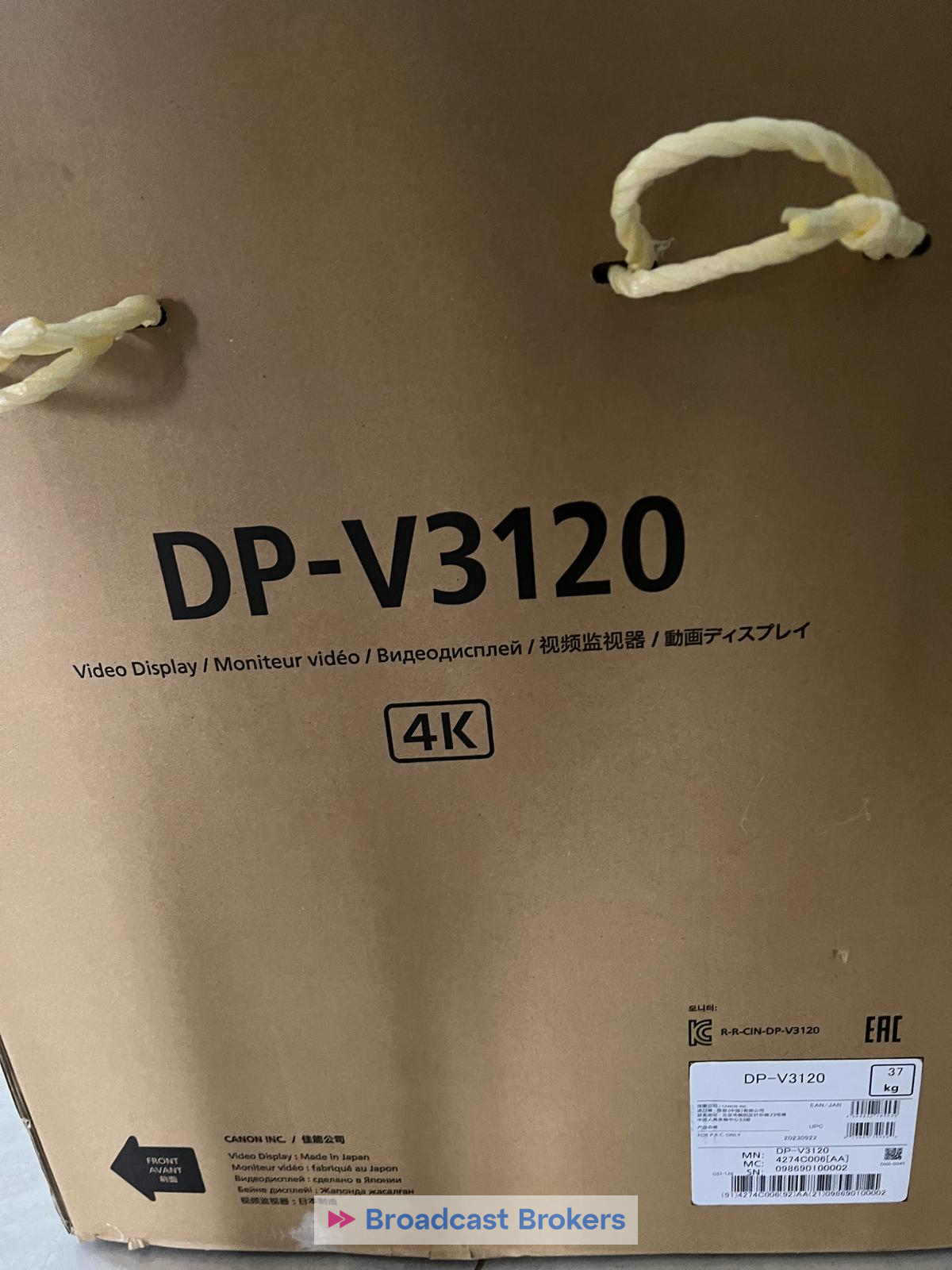

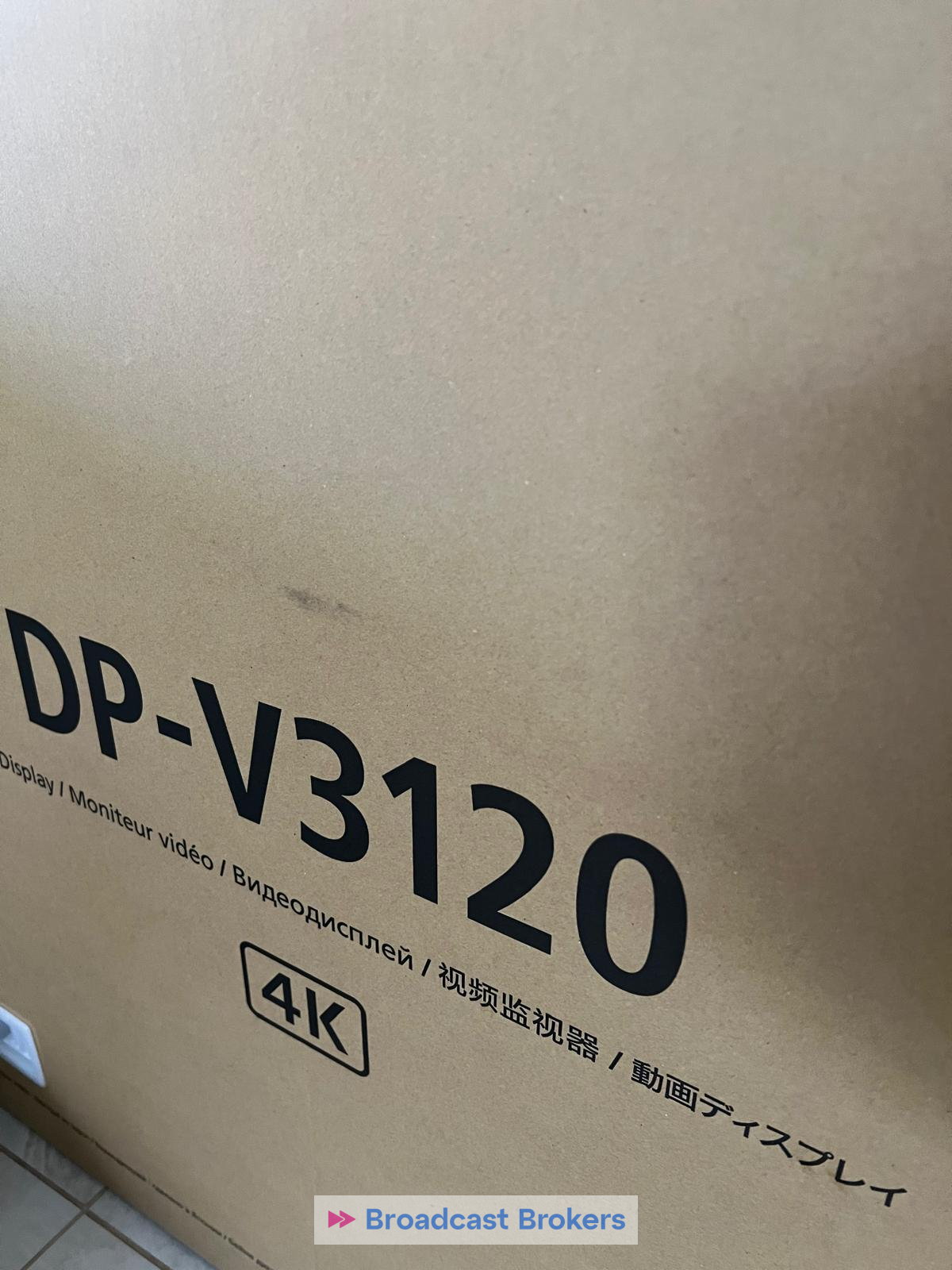

A Stock Demo in original box and packaging – never used

Canon DP‑V3120 31″ 4K HDR Professional Reference Display:

 Panel & Display

• Size & Resolution: 31.1″ IPS LCD, native DCI 4K (4096×2160), also supports UHD (3840×2160) and DCI‑2K (2048×1080)

• Aspect Ratio: 17:9; active area approximately 698 mm × 368 mm; 149 ppi pixel density

• Viewing Angles: 178° (89° in all directions at ≥10:1 contrast)

• Surface Treatment: Anti‑glare coating

Brightness & Color Performance

• Peak Brightness: Up to 2,000 cd/m² (full-screen)

• Black Level: As low as 0.001 cd/m² → 2,000,000:1 contrast ratio

• Color & Gamma:

  • Gammas: Rec. 2.2, 2.4, 2.6, BT.1886, HDR (SMPTE ST.2084 / Rec. BT.2100 HLG)

  • Color Spaces: BT.2020, DCI‑P3 wide gamut; 10‑bit depth (~1.07 billion colors)

  • Exceeds Dolby Vision grading criteria

 HDR & Monitoring Tools

• Built‑in HDR tools: Waveform monitor, vectorscope, false‑color, histogram, pixel‑value checker, frame-luminance view, gamut clipping, HDR vs SDR comparison

 Interfaces & Connectivity

• Video Inputs:

  • 4× 12G‑SDI BNC inputs (SMPTE‑compliant), 1× HDMI Type‑A (HDCP 2.2) Video Outputs:

  • 4× 12G‑SDI loop outputs, built‑in headphone jack (3.5 mm, 32–64 Ω)

• Other I/O: USB‑A 2.0, LAN (RJ‑45), remote/GPI RJ‑45

 Backlight, Cooling & Reliability

• Backlight: LED matrix array with full-screen sensor & intelligent auto‑correction

• Cooling: Designed for quiet operation, suitable for grading suites or on‑set

 Physical & Power Specs

 Remote Control & Workflow Integration

• Remote Operation via LAN using PC or tablet for menu access, image zoom, settings, signal info

• Auto‑setting: Recognizes payload IDs and adjusts Picture Mode automatically; monitors SDI signal integrity (2SI/CRC errors)
