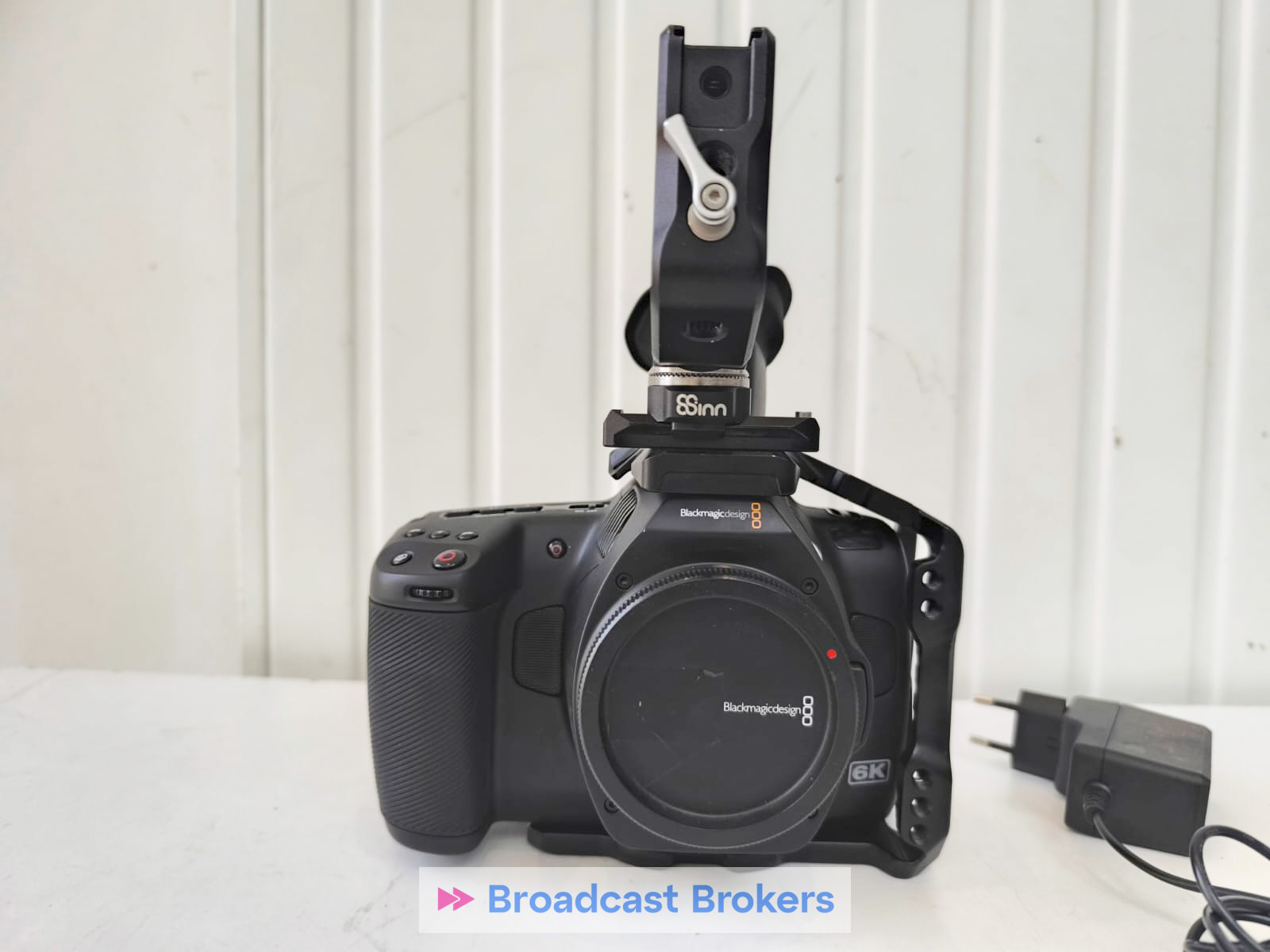

Blackmagic Design POCKET CINEMA CAMERA 6K PRO EF

Blackmagic Design POCKET CINEMA CAMERA 6K PRO EF

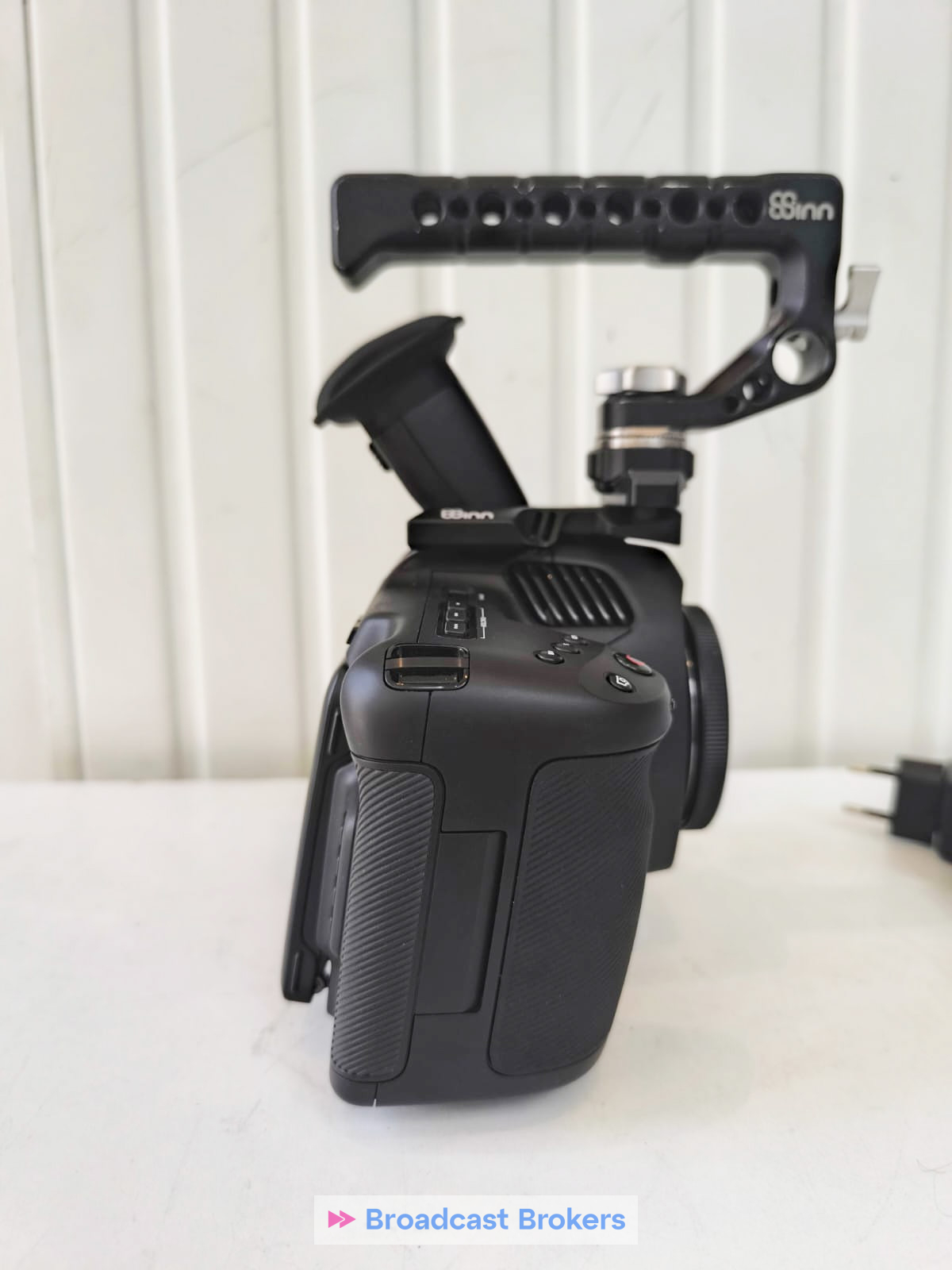

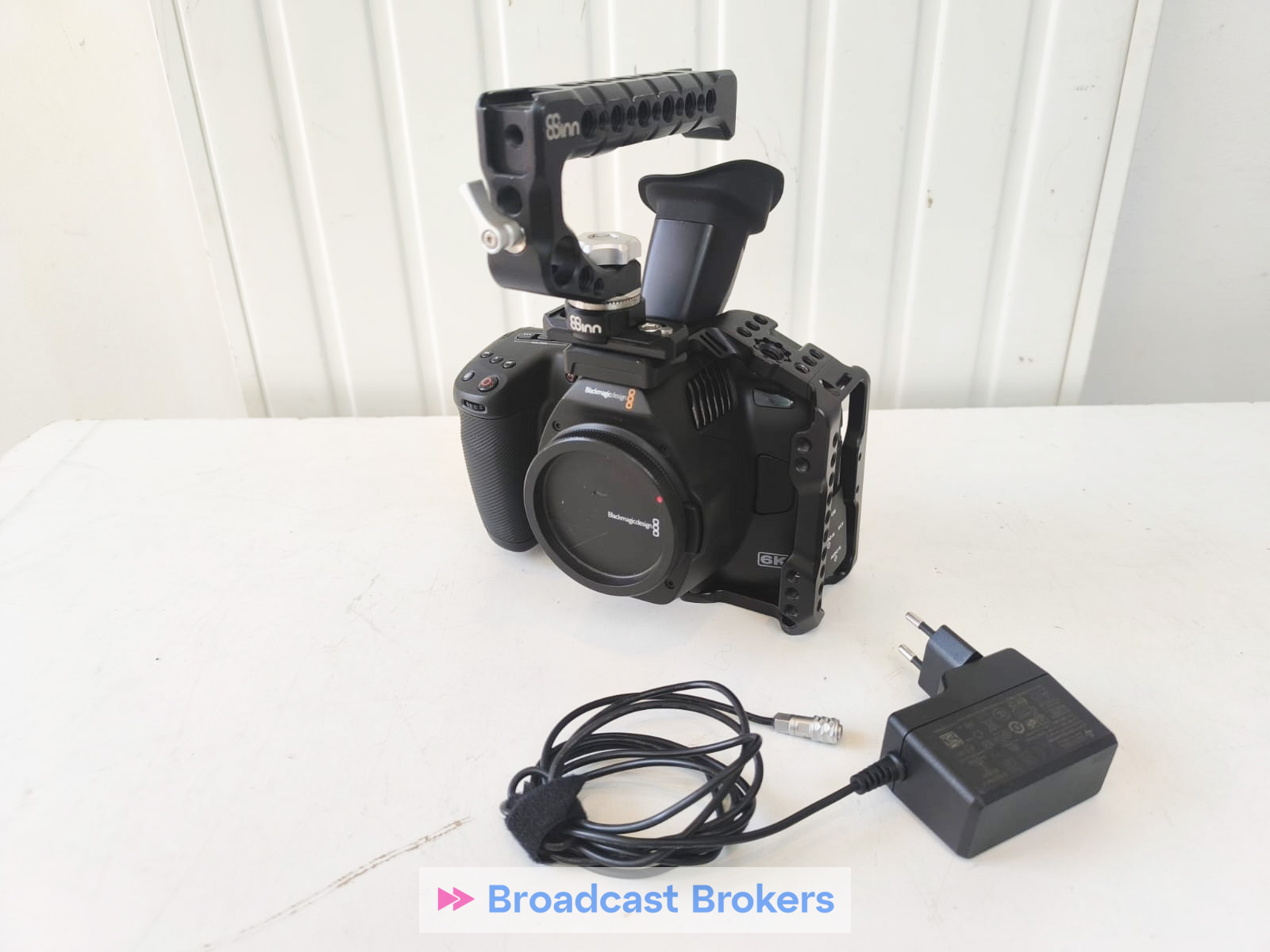

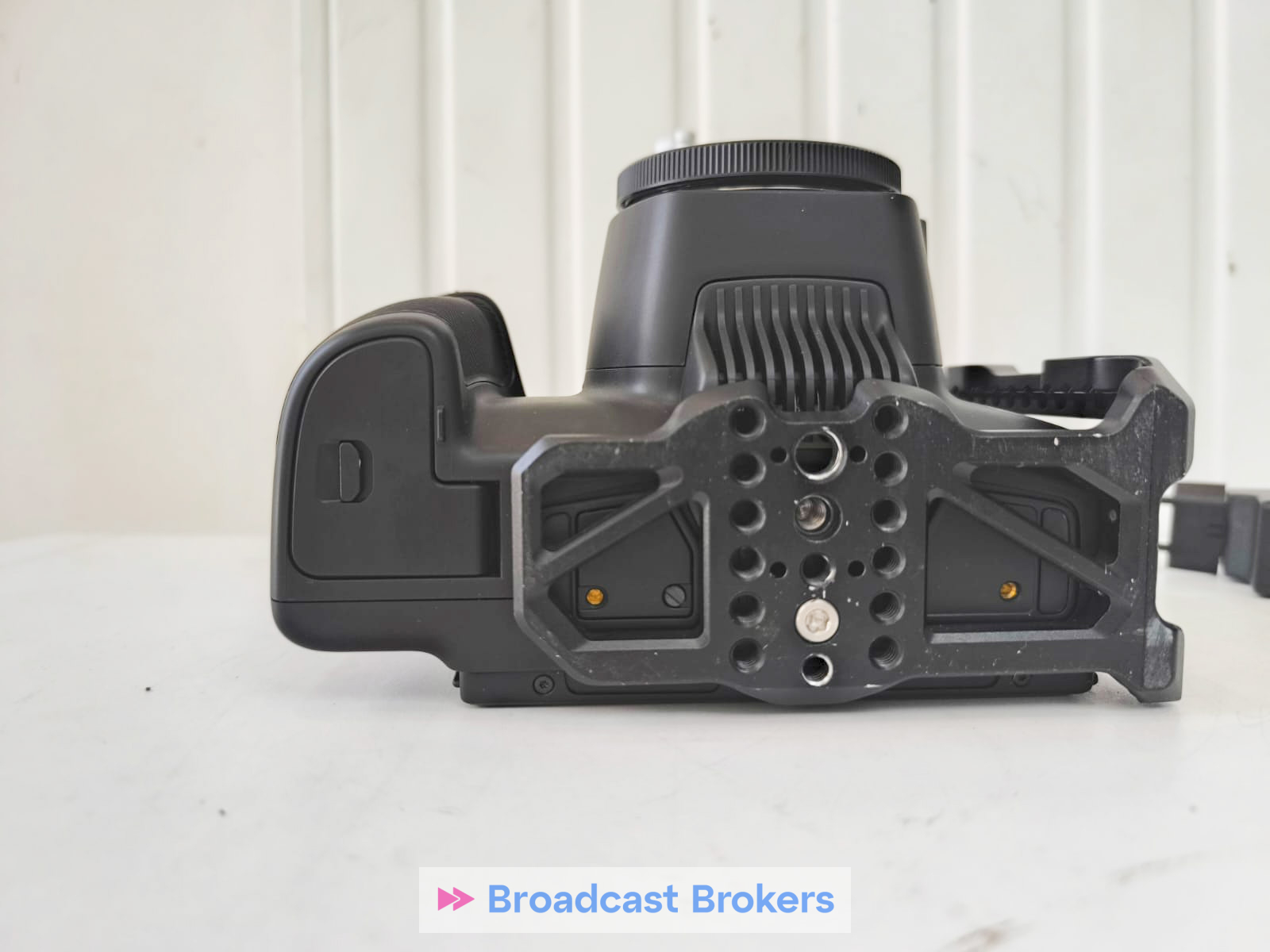

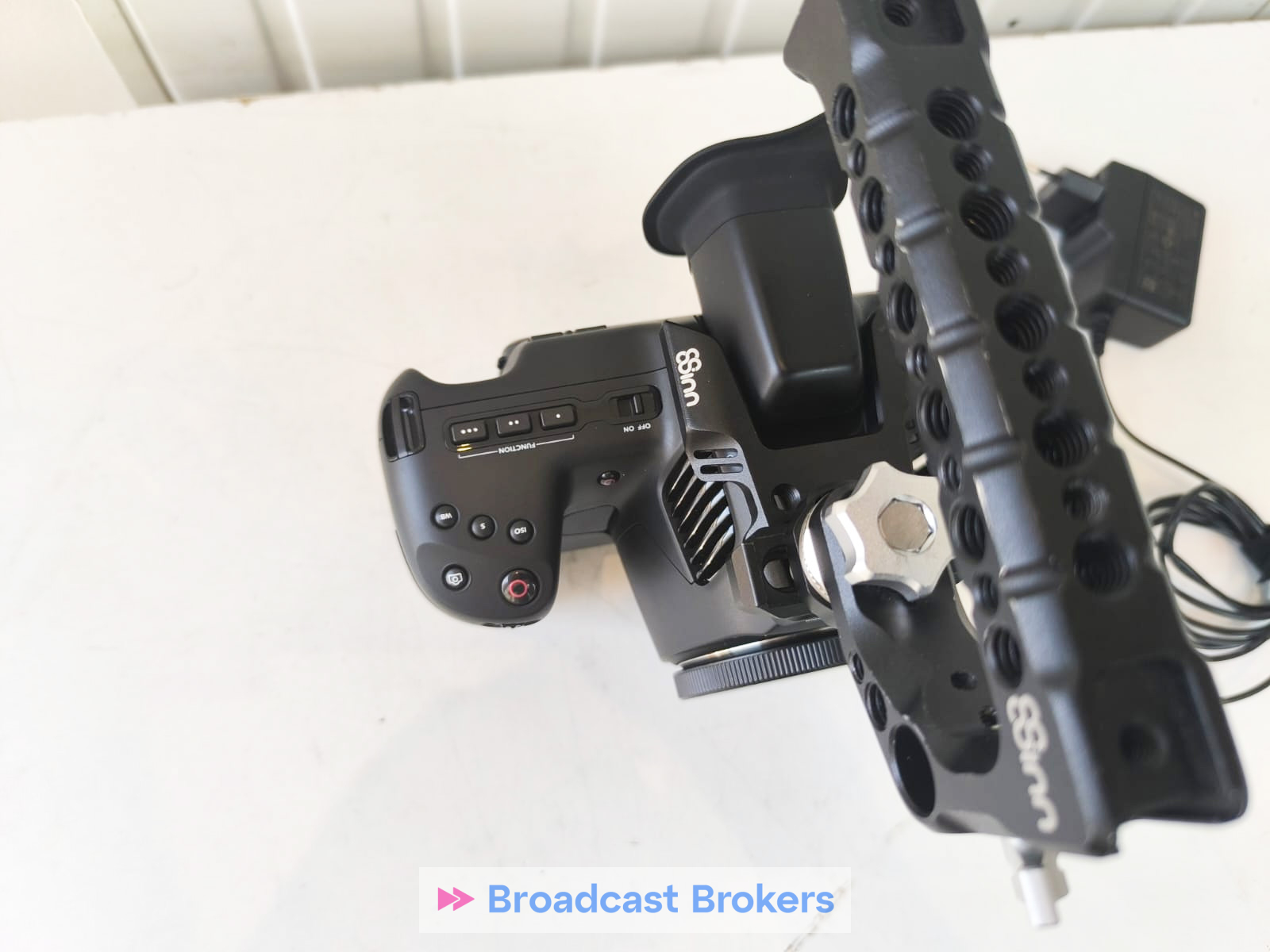

with Cage and power suply

Key Specifications

Sensor & Image Quality

• Sensor: Super 35 HDR CMOS, effective 23.10 × 12.99 mm (21.2 MP, 6,144 × 3,456)

• Dynamic Range: 13 stops

• Dual Native ISO: 400 & 3,200 (expandable up to 25,600)

Lens & Mount

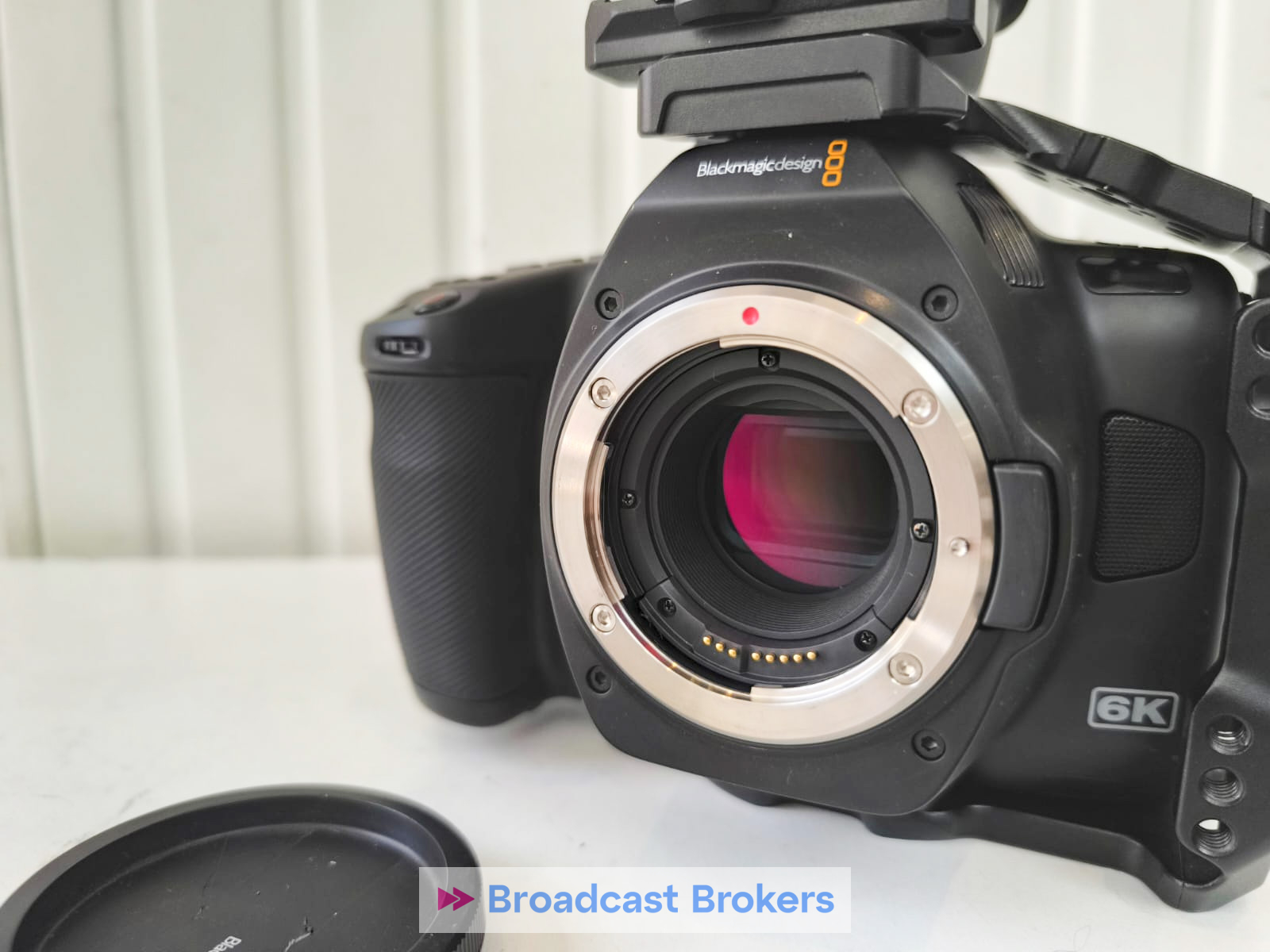

• Mount: Active Canon EF mount

• Lens Control: Supports iris, focus, zoom on motorized EF lenses

ND Filters & Screen

• Built-in ND: 4‑position (clear, 2‑stop, 4‑stop, 6‑stop IR)

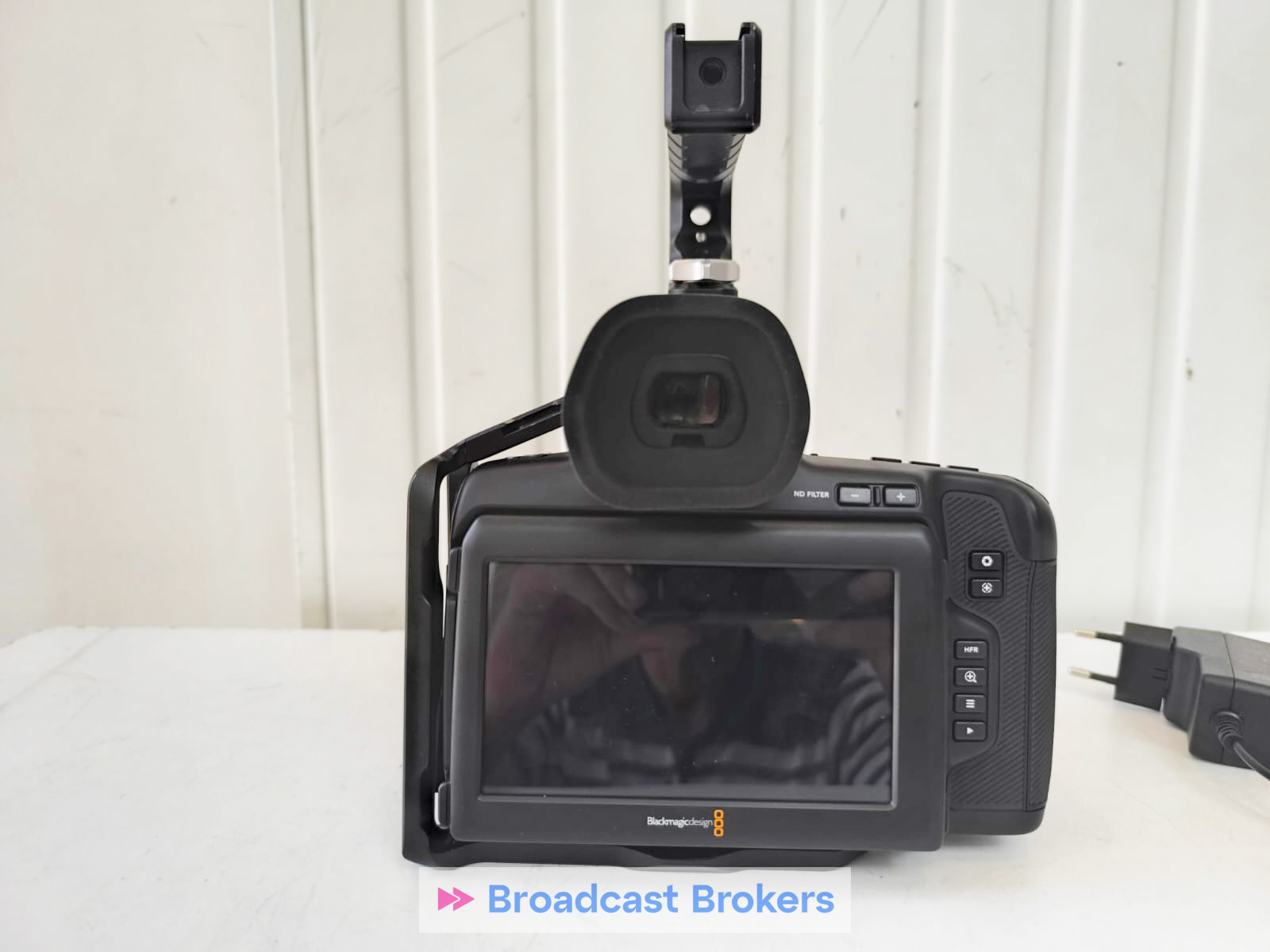

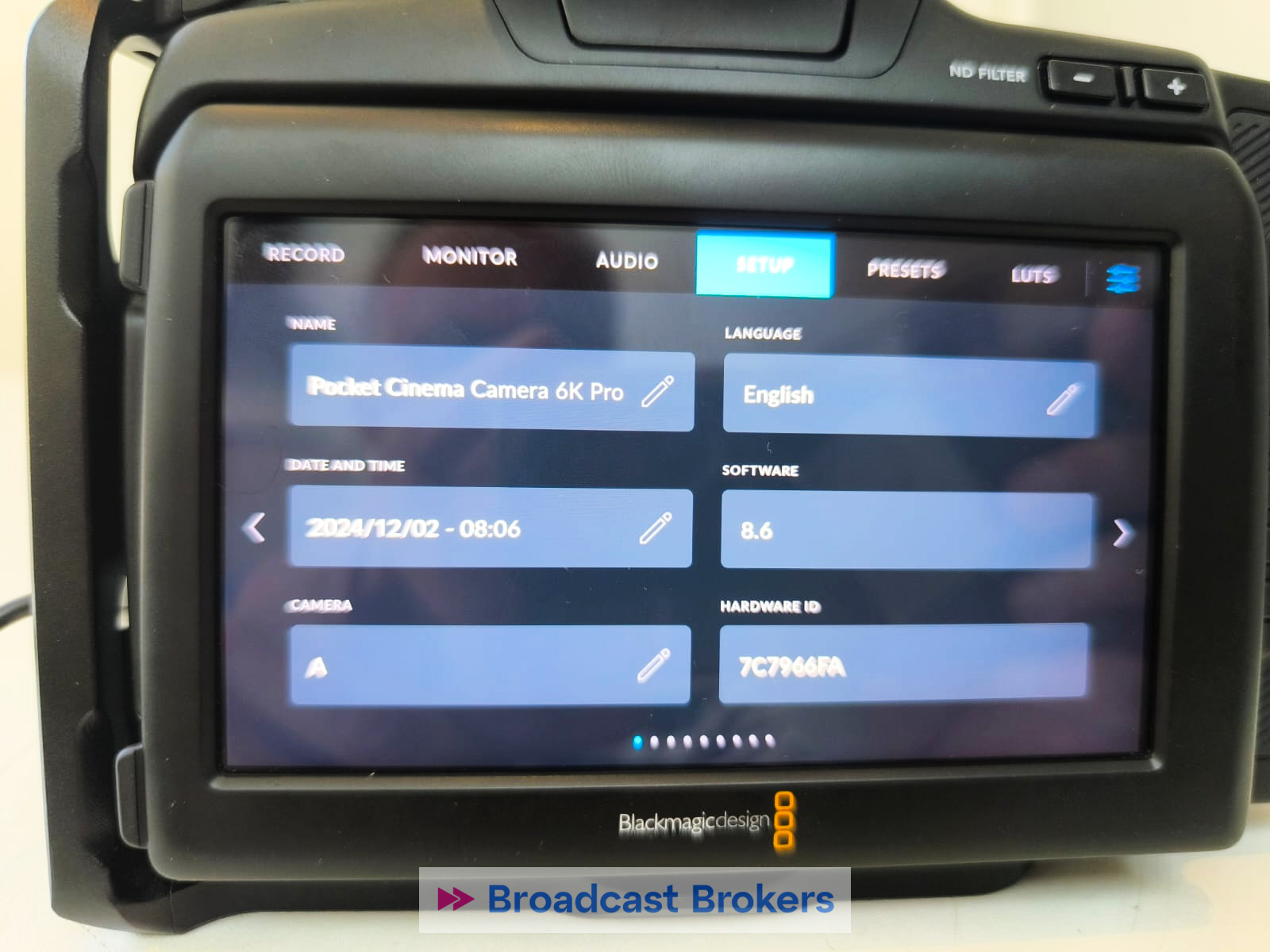

• Display: 5″ tilting HDR capacitive touchscreen, 1,500 nits, 1,920 × 1,080 resolution

Recording & Codecs

• Internal Recording: Blackmagic RAW (12-bit, 3:1–12:1 CBR or Q0–Q5 CQ); ProRes 422 variants

• Resolutions & Max Frame Rates

  • 6K (6144×3456) up to 50 fps

  • 6K 2.4:1 (6144×2560) up to 60 fps

  • 5.7K (5744×3024) up to 60 fps

  • 4K DCI/UHD up to 60 fps

  • 3.7K Anamorphic (3728×3104) up to 60 fps

  • 2.8K (2880×1512) up to 120 fps

  • 1080p up to 120 fps

• External Recording: 12-bit RAW over USB‑C; 4:2:2 10‑bit via HDMI

Media & I/O

• Media Slots: CFast 2.0 and SD UHS‑II

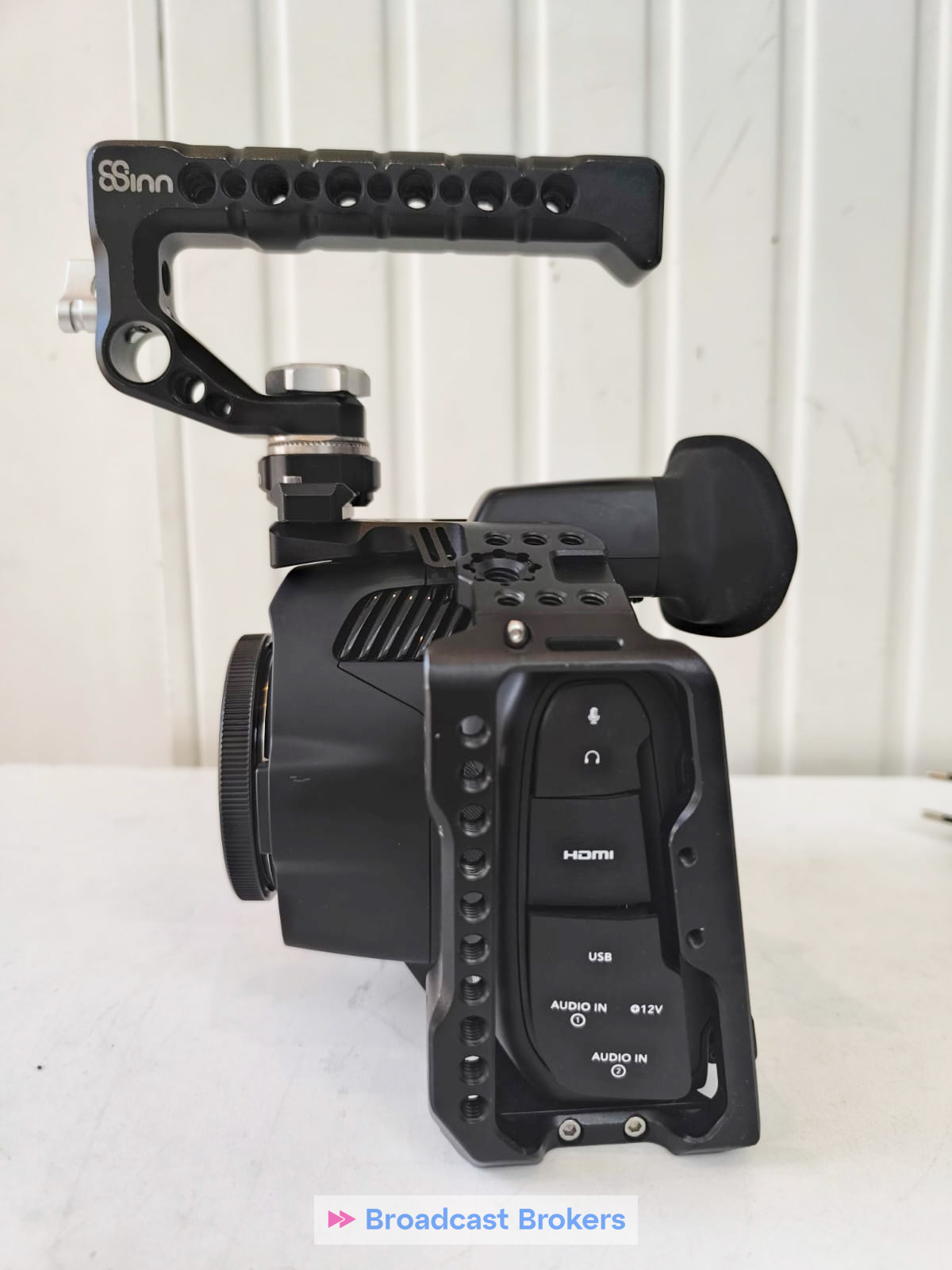

• Ports:

  • HDMI (1080p out)

  • USB‑C 3.1 Gen 1 (record external media, PTP control)

  • 2× Mini‑XLR with phantom power

  • 3.5 mm Mic/Line (also timecode), headphone out

Audio & Timecode

• Inputs: 2× mini‑XLR with +48 V phantom; 1× 3.5 mm mic/line/timecode

• Timecode: Accurate timecode generator

Power & Runtime

• Battery: Sony NP‑F570 L‑series (included), ~60 min recording at 6K/24 fps with 50% brightness

• Optional Grip & EVF available for extended runtime and viewfinder attachment

Build & Dimensions

• Body: Carbon-fiber polycarbonate composite

• Weight: 1.24 kg / 2.73 lb (body only)

• Size: 179.8 × 112.0 × 122.9 mm

Software & Compatibility

• Software Bundle: Includes Blackmagic OS, Camera Setup, RAW Player/SDK, DaVinci Resolve Studio (full license)

• Connectivity: Bluetooth for remote control; no GPS or built‑in Wi‑Fi
