Blackmagic Design POCKET CINEMA CAMERA 6K EF

Blackmagic Design POCKET CINEMA CAMERA 6K  EF

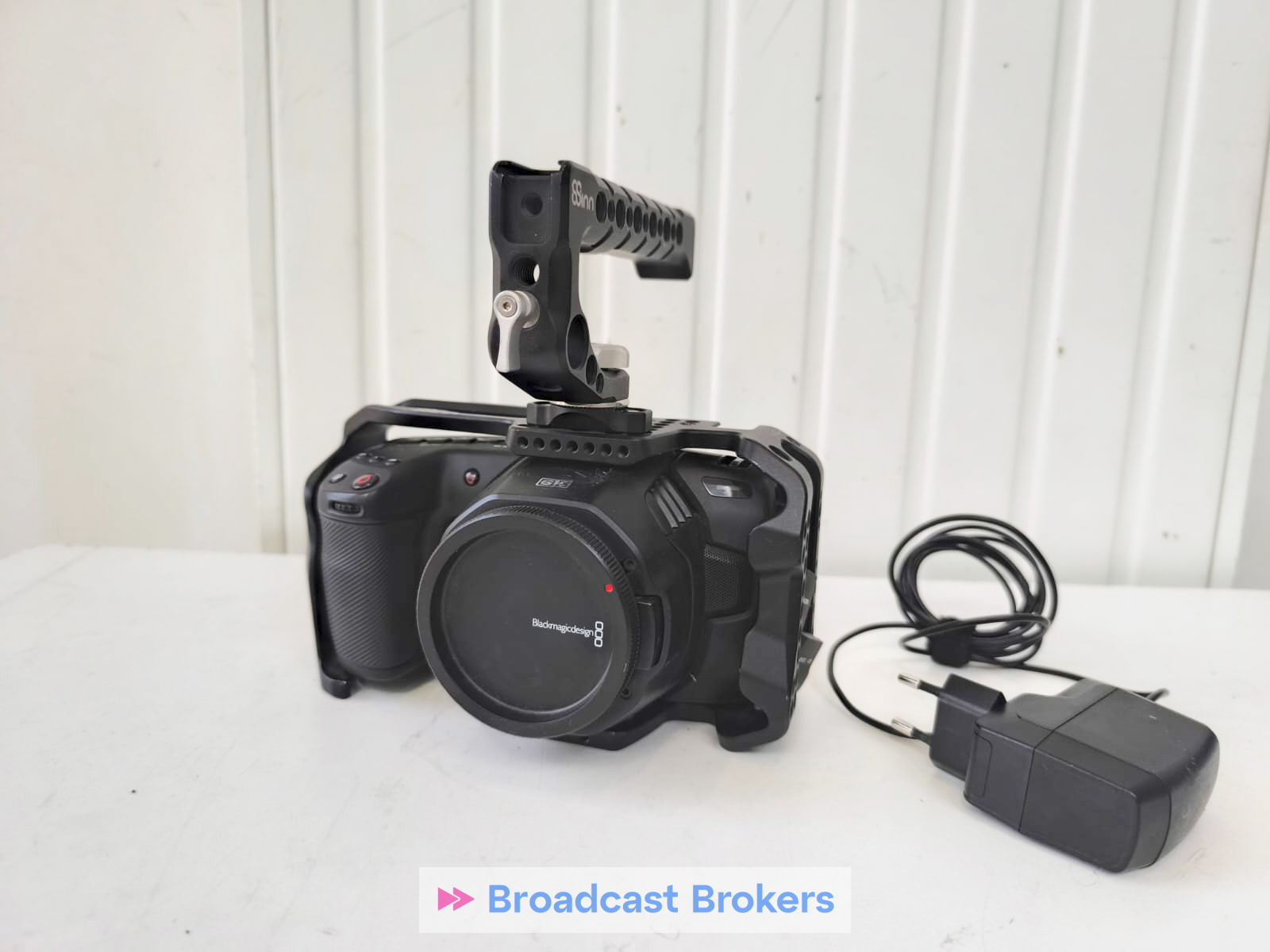

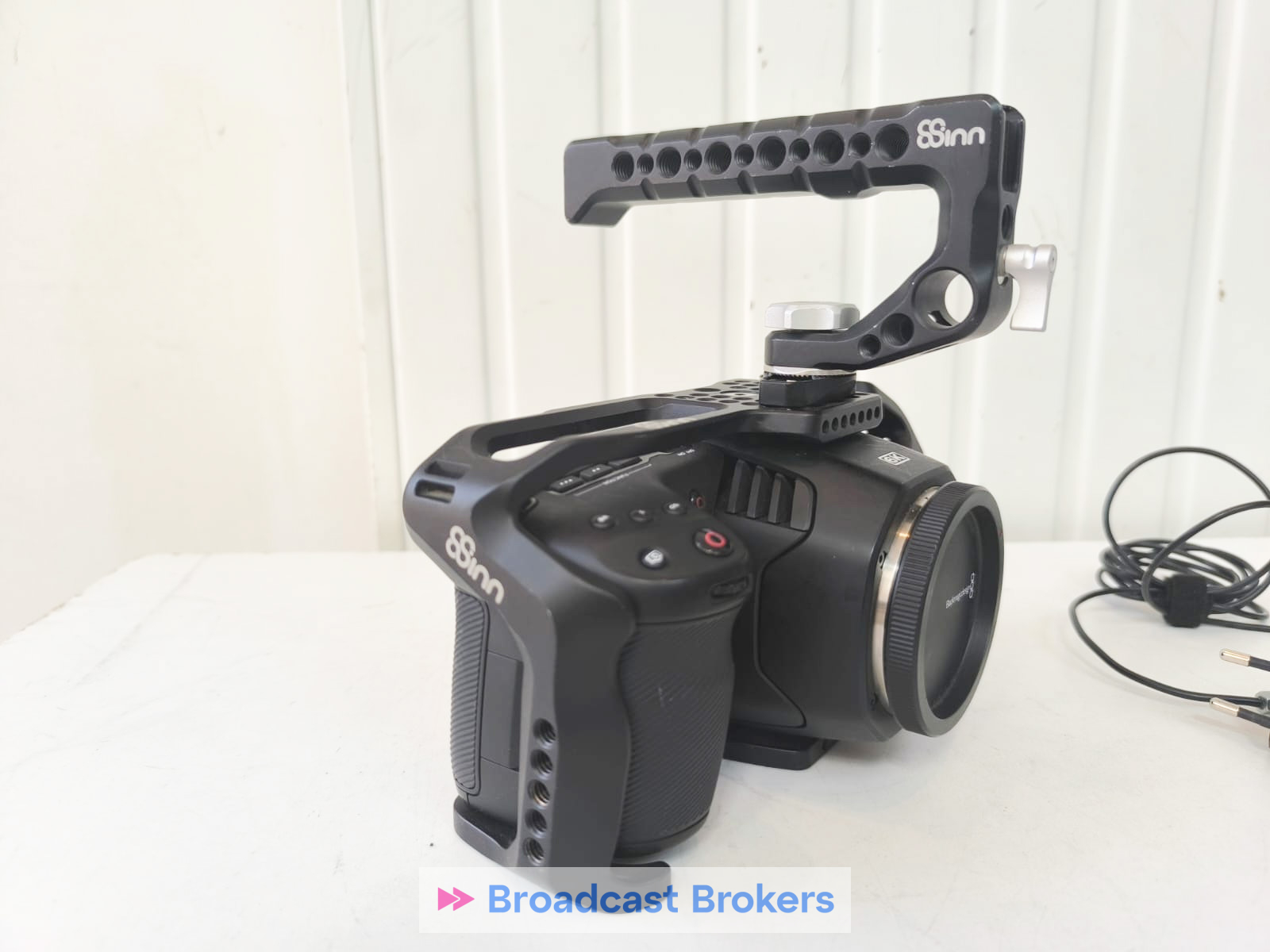

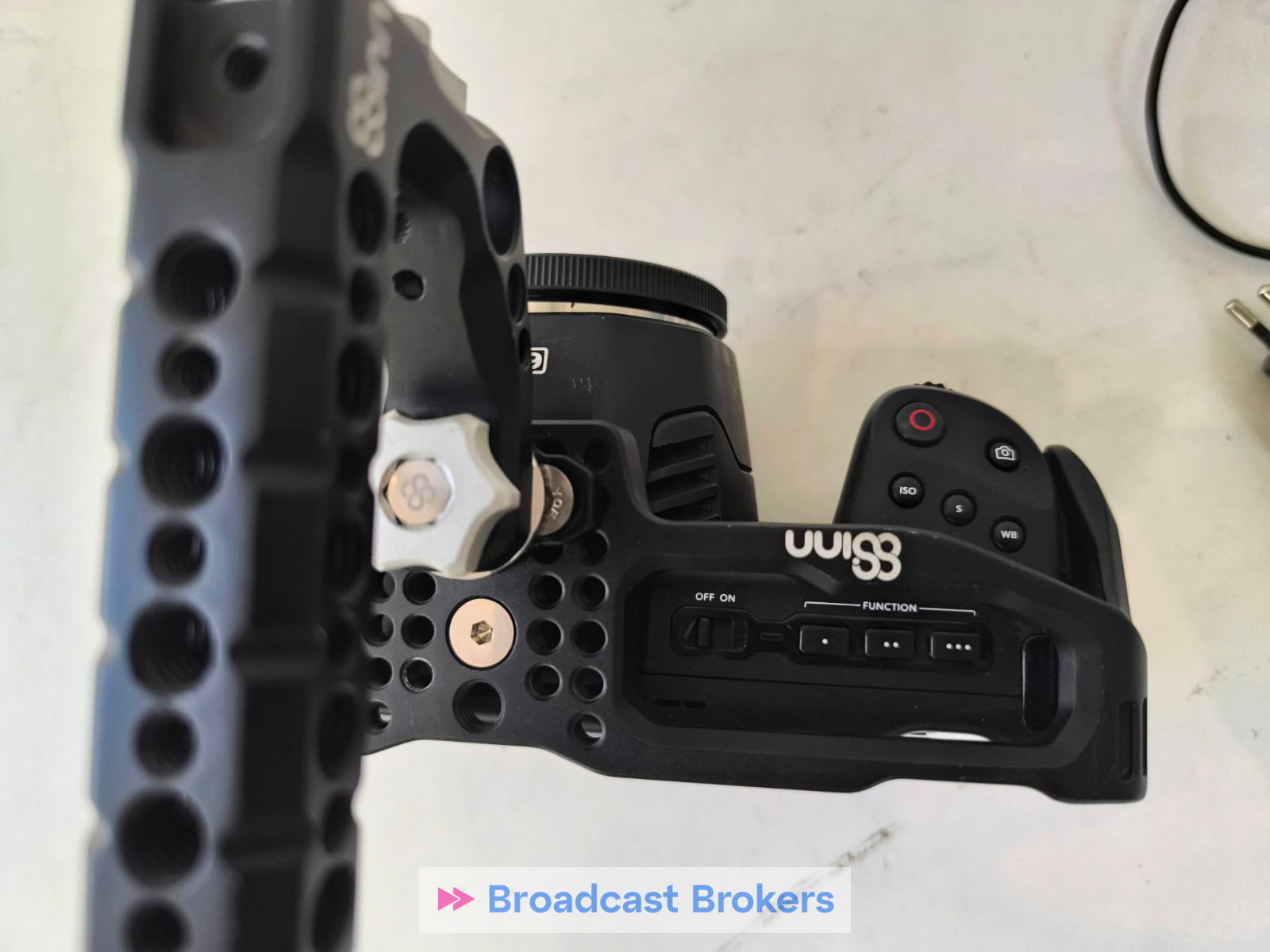

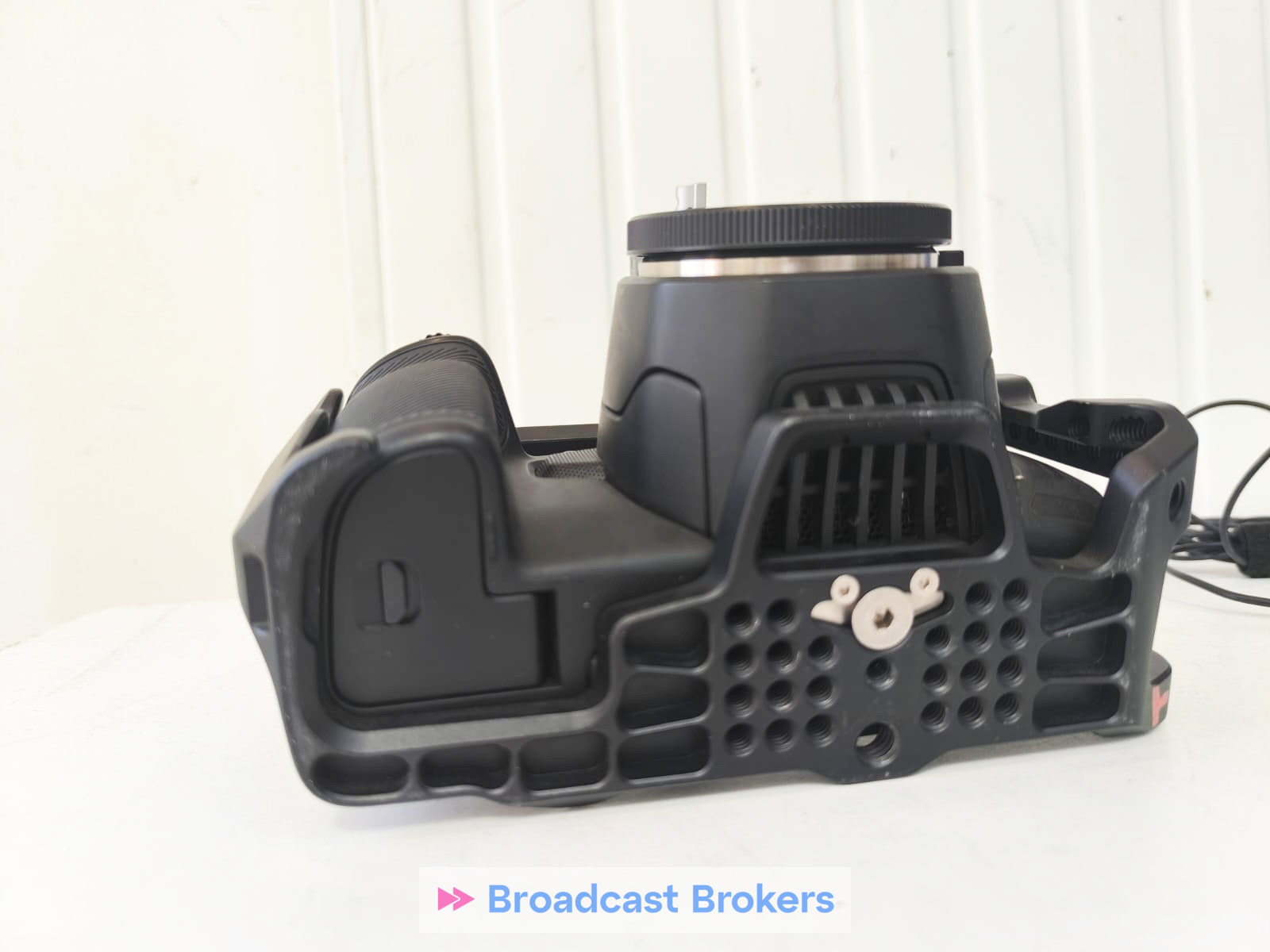

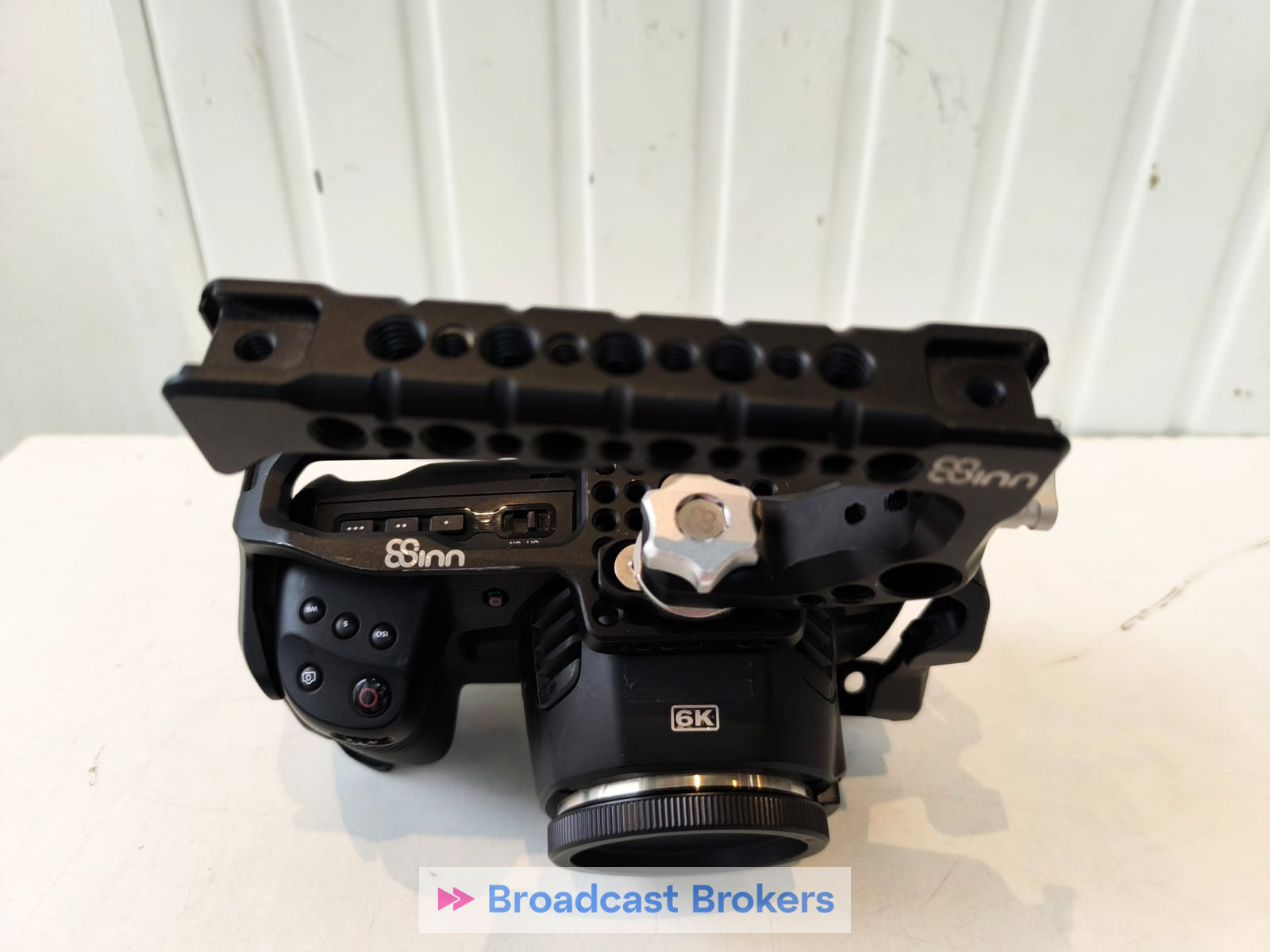

delivered with Cage and power suply

Sensor & Image Quality

• Sensor: Super 35 CMOS, 23.10 × 12.99 mm

• Effective Resolution: 21.2 MP (6144 × 3456)

• Dynamic Range: 13 stops

• Dual Native ISO: 400 & 3200 (expandable to ISO 25,600)

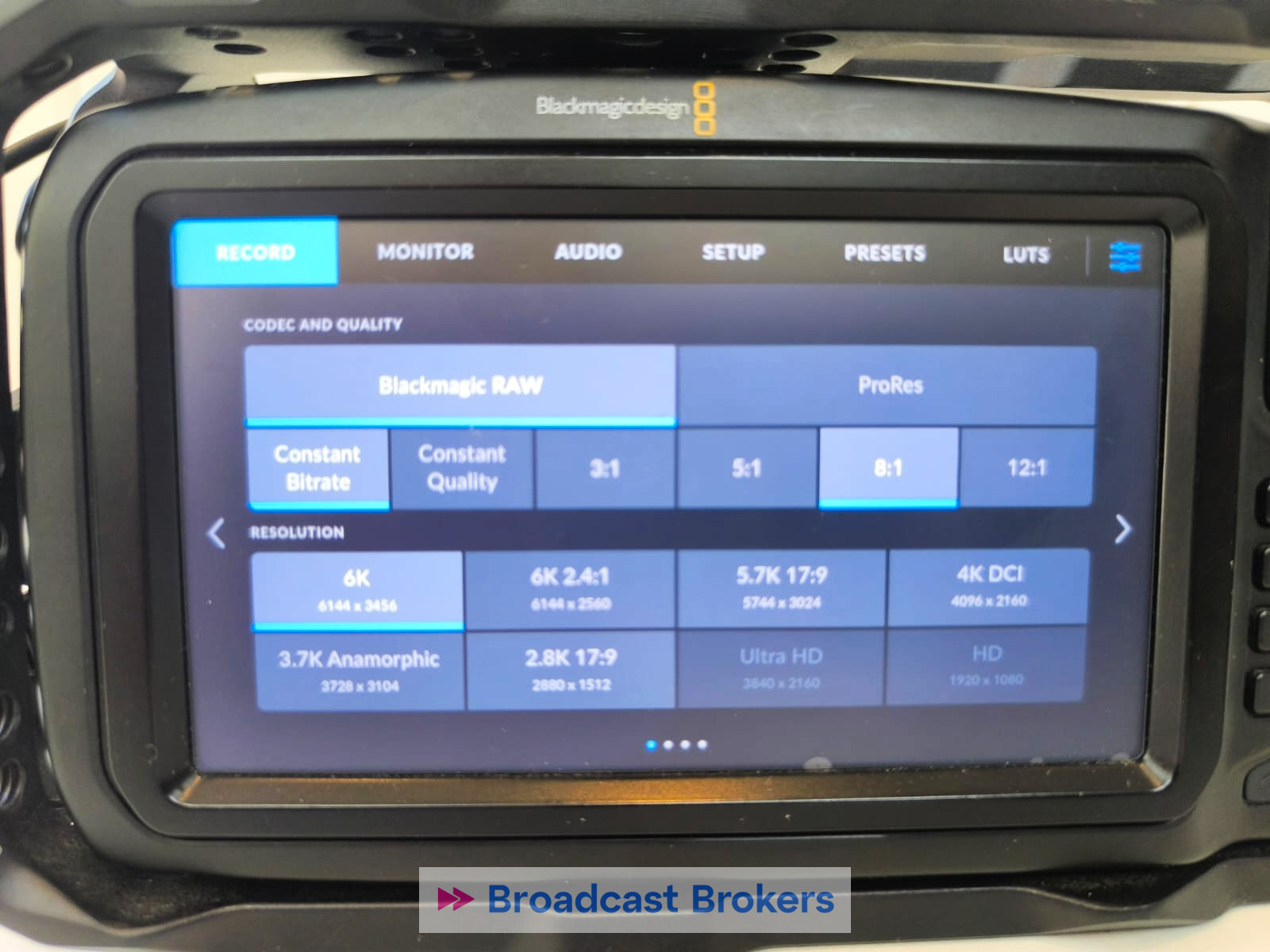

 Recording Formats & Frame Rates

• Raw (Blackmagic RAW):

  • 6K (6144×3456): up to 50 fps

  • 6K 2.4:1 (6144×2560): up to 60 fps

  • 5.7K (5744×3024): up to 60 fps i

• ProRes 422 HQ/LT/Proxy:

  • 4K DCI, UHD, 1080p: up to 60 fps

  • Full HD can reach 120 fps in high‑speed mode

 Lens & Mount

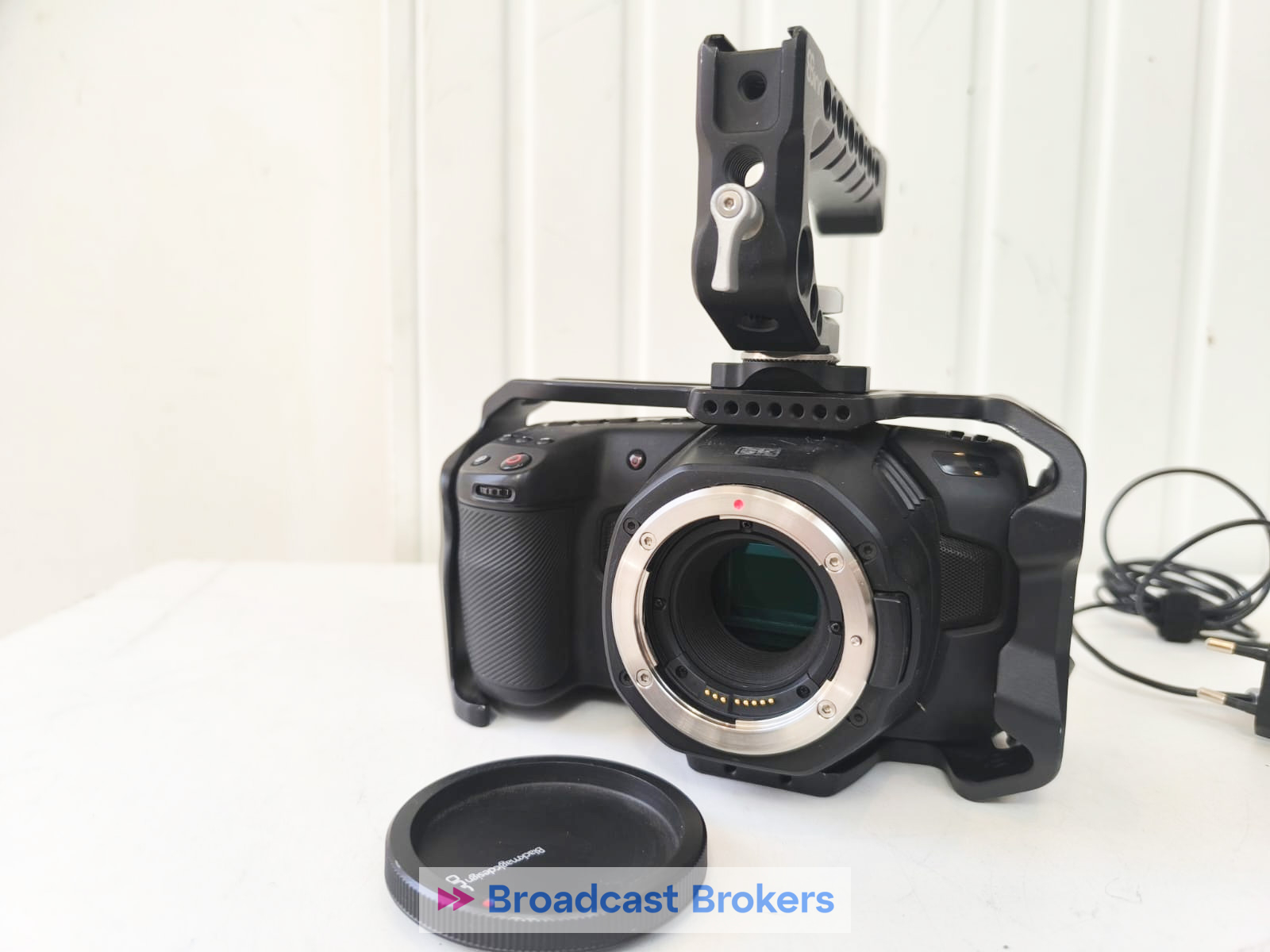

• Mount: Active Canon EF (with electronic iris/focus/zoom control)

Media & Outputs

• Recording Media: 1× CFast 2.0 + 1× SDXC UHS‑II + external USB‑C SSD

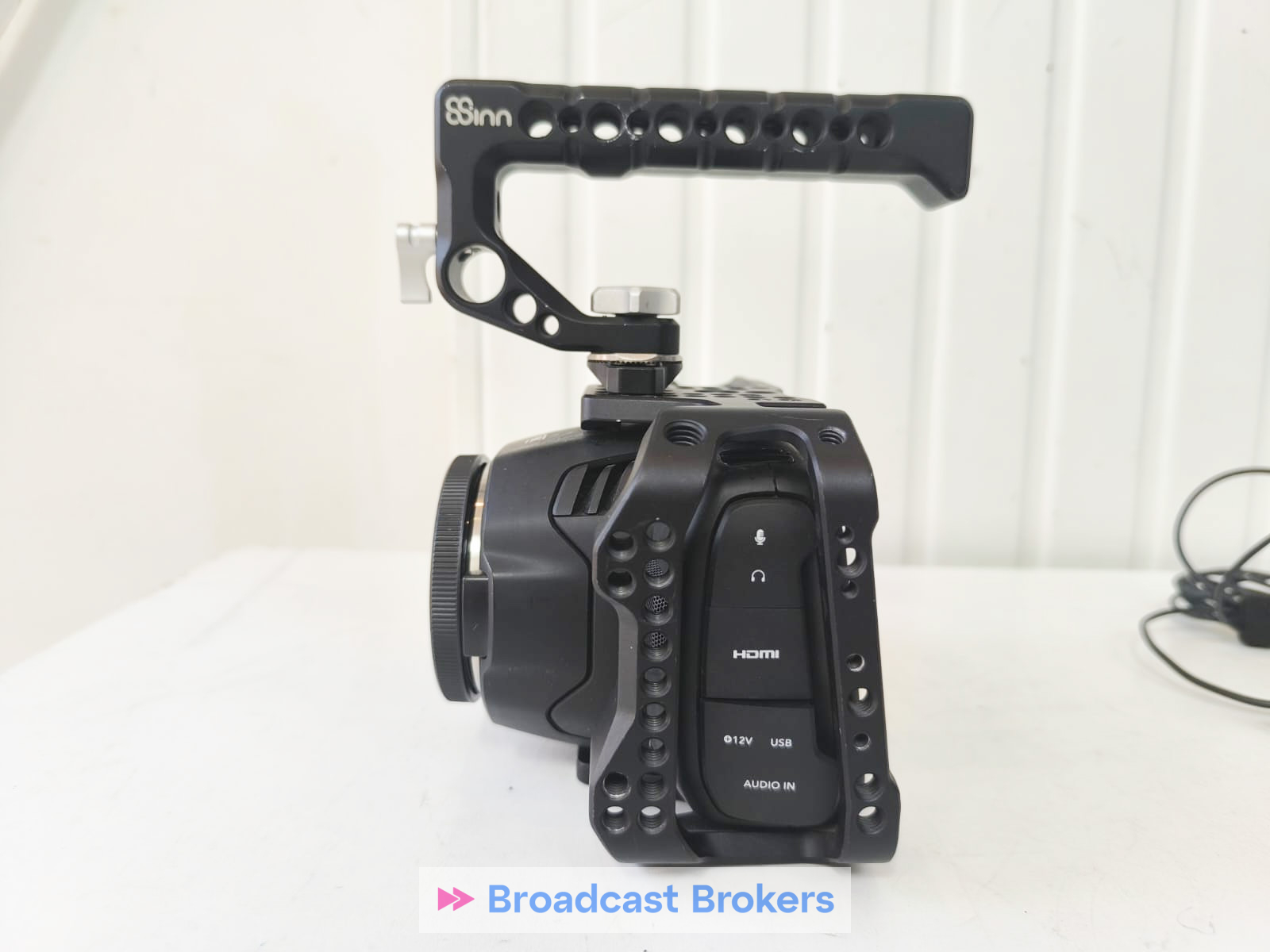

• Video Outputs:

  • HDMI 10‑bit 4:2:2

  • USB‑C raw output

• Audio:

  • 1× Mini‑XLR (+48 V phantom)

  • 1× 3.5 mm mic/line

  • 1× 3.5 mm headphone out

 Power & Battery

• Battery: Canon LP‑E6 (≈45 min at 6K RAW)

• External Power: 12–20 V via locking connector or LEMO

 Monitoring & Controls

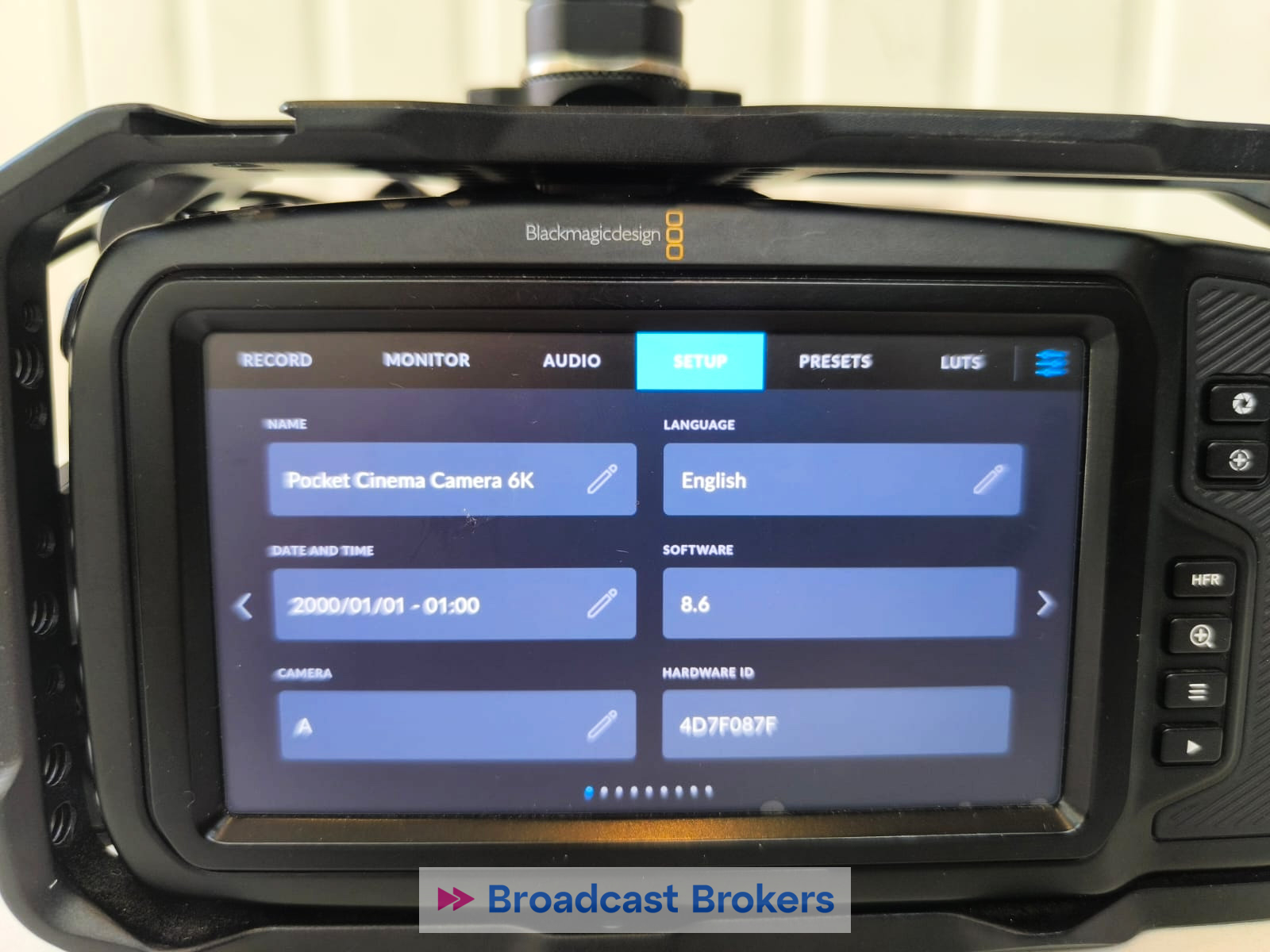

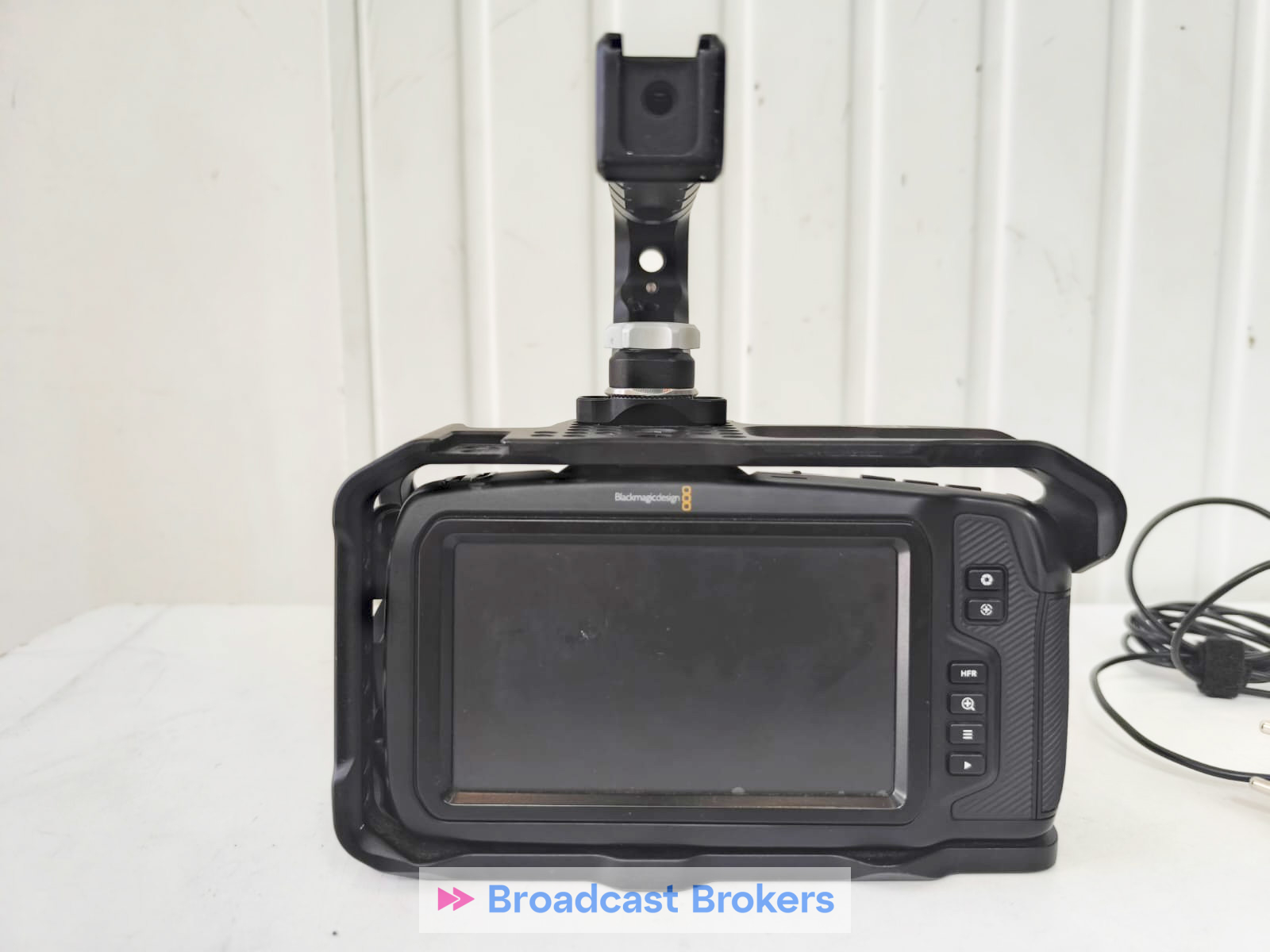

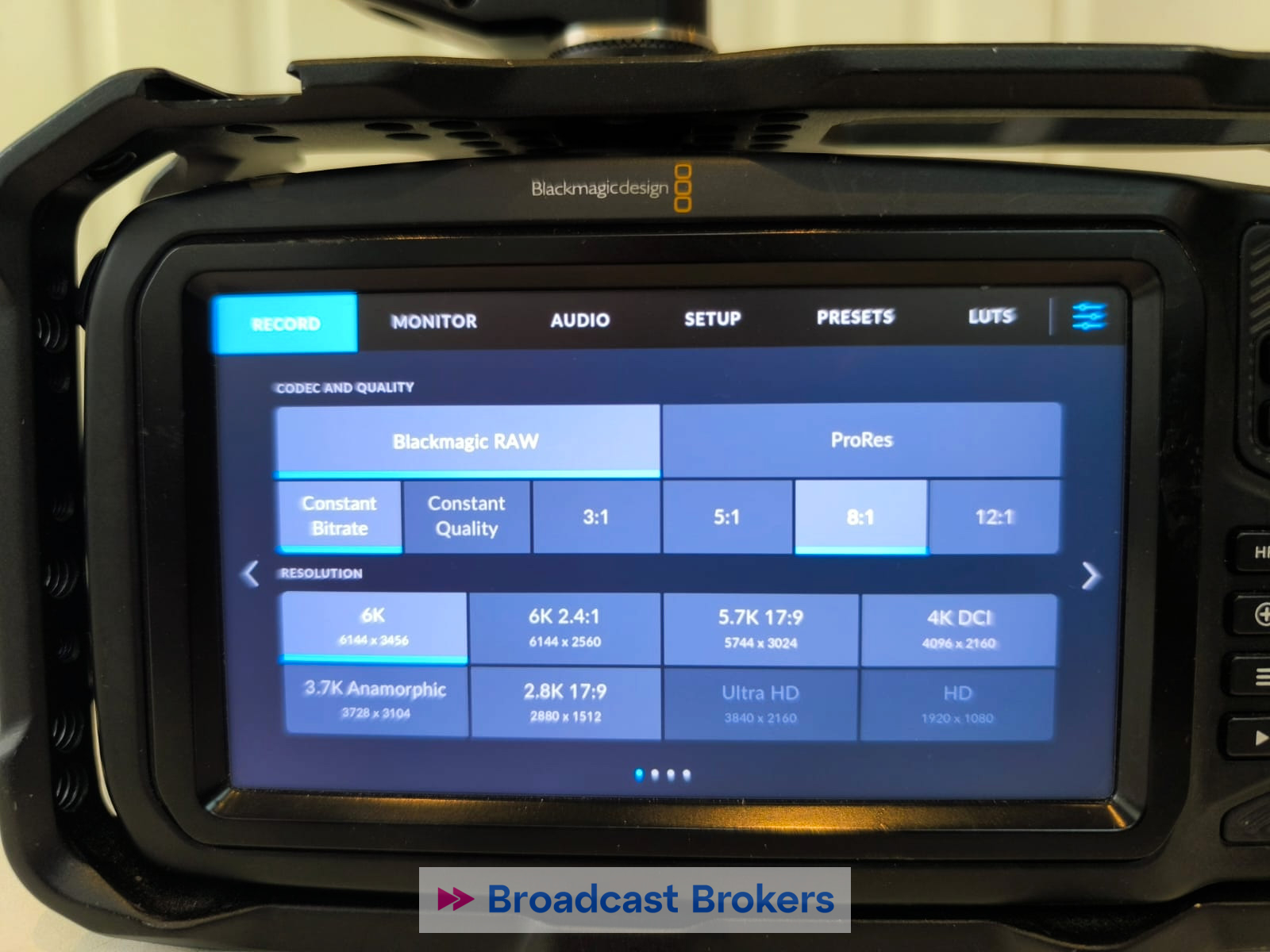

• Screen: Built-in 5″ touchscreen, 1920×1080 resolution

• Bluetooth: For remote control

Physical & Environmental

• Body: Carbon fiber composite

• Dimensions: ~178×102×96 mm

• Weight: ~898 g (camera body only)

• Operating Temperature: 0–40 °C, humidity 0–90% non‑condensing b

Additional Highlights

• Formats: Blackmagic RAW & Apple ProRes 422 (HQ/LT/Proxy) support

• Timecode: Input via 3.5 mm (shared mic jack)

• Includes: DaVinci Resolve Studio activation, battery, power supply, lens cap, strap

Summary

The Pocket Cinema Camera 6K EF delivers cinema-grade performance with a Super 35 sensor, 13 stops dynamic range, high frame rates in RAW and ProRes formats, and extensive connectivity—all packed in a compact, carbon‑fiber body weighing just under 900 g. It’s an excellent choice for filmmakers using Canon EF lenses who need professional image quality with flexibility and affordability.
