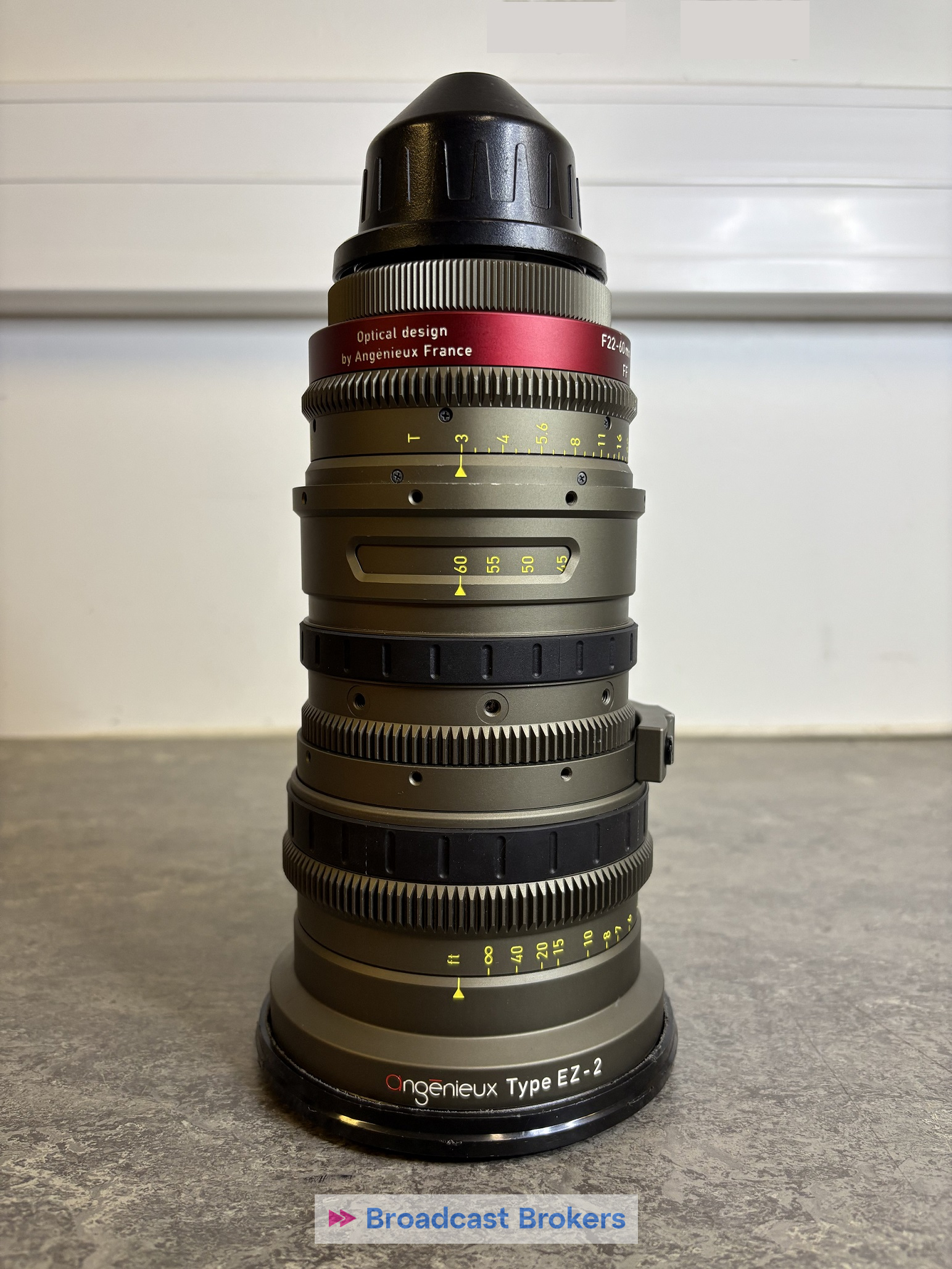

The Angenieux EZ.2 15-40mm S35 PL is a high-performance zoom lens designed for Super 35mm sensors. Here are its technical specifications in English:
- Focal Length: 15-40mm
- Lens Mount: PL Mount (positive lock, compatible with many cinema cameras)
- Format: Super 35mm and FullFrame
- Aperture Range: T2.6 (throughout the zoom range)
- Focus Type: Manual focus
- Zoom Type: Parfocal (maintains focus throughout the zoom)
- Iris Blades: 9 blades for a smooth, rounded aperture
- Angle of View:
- 15mm: 82.2°
- 40mm: 32.4°
- Minimum Focus Distance: 0.8m (approx. 31.5 inches)
- Weight: Approx. 1.9 kg (4.2 lbs)
- Front Diameter: 95mm (for matte boxes or filters)
- Optical Design: 16 elements in 12 groups
- Lens Coating: Advanced multi-layer coating for color consistency and contrast
- Back Focus: Standard for PL Mount
- Dimensions: Compact and lightweight design for handheld operation and drone work
The Angenieux EZ.2 series lenses are known for offering excellent image quality with high resolution and minimal optical distortion, making them suitable for professional cinema and high-end video productions.
