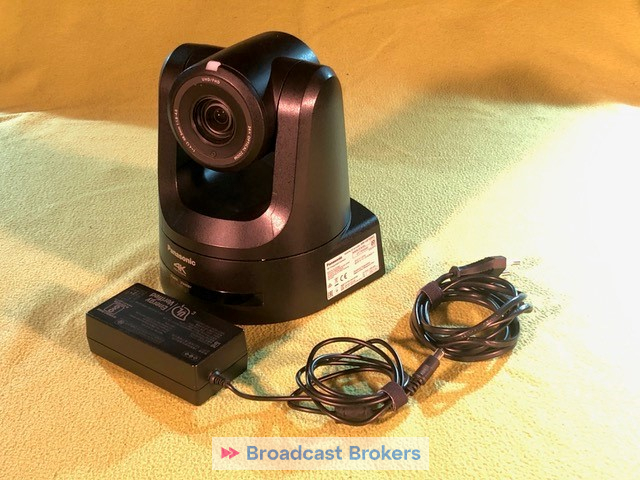

Panasonic AW-HE145KE

AW HE145KE Remote hothead camera HDMI & HD/SDI

1 unit availabe

The Panasonic AW-HE145KE is a high-performance PTZ (pan-tilt-zoom) camera designed for professional video production in various environments.

Camera Unit

• Sensor: 1.0-type Full-HD MOS sensor

• Effective Pixels: Approximately 20.18 million pixels

• Lens: Motorized optical 20x zoom, F2.8 to F4.5

  • Focal Length: 8.8 mm to 176.0 mm

  • 35mm Equivalent: 24.5 mm to 490.0 mm

• Zoom:

  • Optical: 20x

  • Intelligent Zoom (i.Zoom): FHD 32x

  • Digital: 10x

• Angle of View:

  • Horizontal: 75.1° (wide) to 4.0° (tele)

  • Vertical: 46.7° (wide) to 2.3° (tele)

  • Diagonal: 82.8° (wide) to 4.6° (tele)

• Minimum Illumination: 2 lux (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)

• Sensitivity: F9 (2000 lx)

• Focus: Auto and manual modes

• Electronic Shutter Speed: Supports various speeds from 1/25 to 1/10000 depending on frame rate and mode

• White Balance:

  • ATW: 3200K, 5600K

  • AWB-A / AWB-B

  • Variable: 2000K to 15000K

• Optical Filters: Through, 1/4, 1/16, 1/64, IR through (Night mode)

• Gamma Modes: HD, FILMLIKE1/2/3, FILM REC, VIDEO REC, HLG

Power & Dimensions

• Power Requirements:

  • 12 V DC (10.8 V to 13.2 V)

  • DC 42 V to 57 V (Camera Input, PoE++ power supply)

• Current Consumption:

  • 4.0 A (XLR IN connector)

  • 1.2 A (PoE++ power supply)

• Dimensions (W x H x D): 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)

• Weight: Approximately 4.1 kg (9.04 lb) excluding mount bracket

• Finish:

  • AW-HE145W: Pearl white

  • AW-HE145K: Metallic black

Video Output & Connectivity

• Video Output:

  • HDMI 2.0 (4:2:2/10bit)

  • 3G-SDI OUT (SMPTE292 / 75 Ω)

• Input/Output Connectors:

  • LAN (RJ-45) for IP control

  • RS-422A (RJ-45) for camera control

  • MIC/LINE input (ø 3.5 mm stereo mini jack)

• Streaming Protocols:

  • JPEG (MJPEG), H.264, H.265

  • NDI | HX support

  • RTMP direct broadcast

• Synchronization: Internal/External (BBS/Tri-level sync)

Control & Integration

• Supported Controllers:

  • AW-RP150, AW-RP60

  • AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ

• Web Interface: Accessible via supported browsers on Windows, macOS, iOS

• Software: Compatible with Panasonic’s free software for simplified workflow
